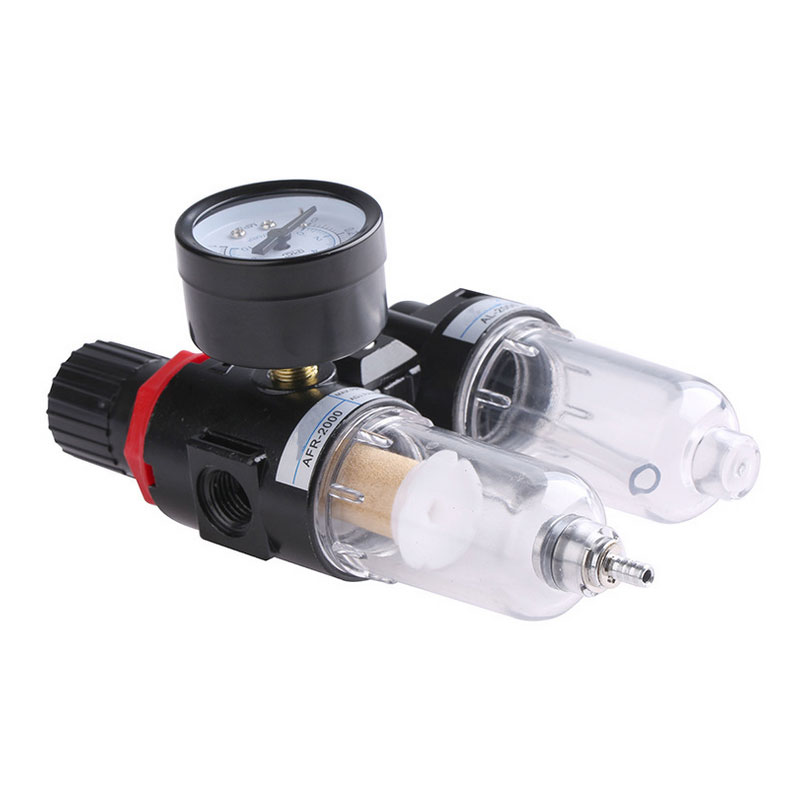

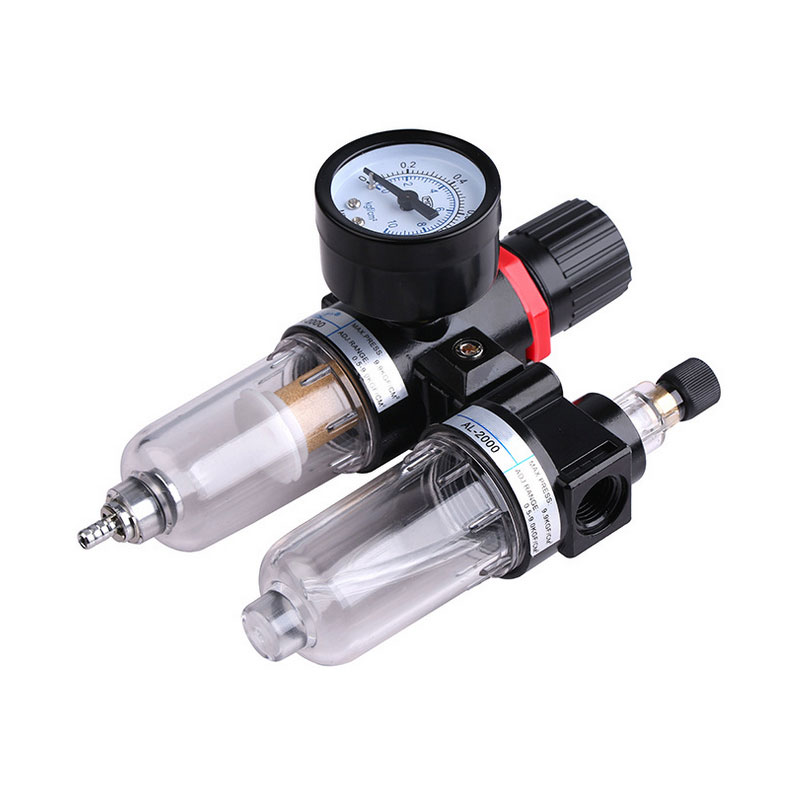

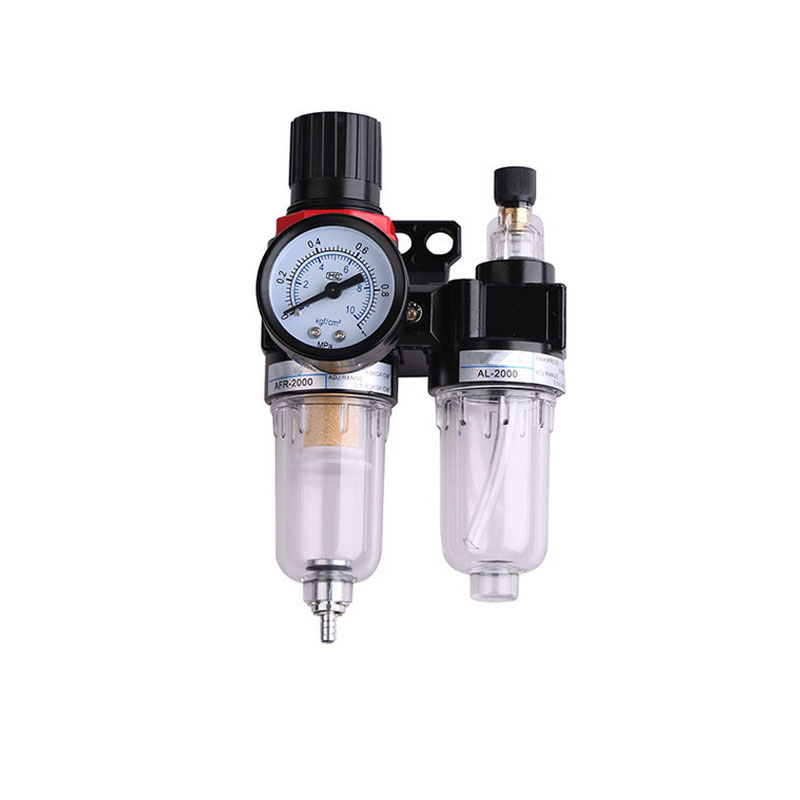

Overview for Air Filter Regulator
FC series
Air Filter Regulator, this product is a combination of filter and lubricator, compact structure, large flow, stable output pressure,
Two Unit Air Combination is easy to install, components have pressure gauges and mounting brackets, lubricator with non-stop refueling function, are equipped with protective cover, safe and reliable, beautiful appearance. Common features of
Pneumatic Air Filter Regulator AFR: proof pressure: 15MPa; Maximum working pressure: 1.0MPa; Environment and fluid temperature: 5-60℃; With cup protective cover ; Standard specifications.

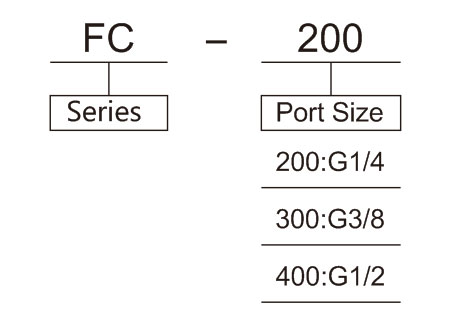

Ordering Code for FC Series Air Filter Regulator

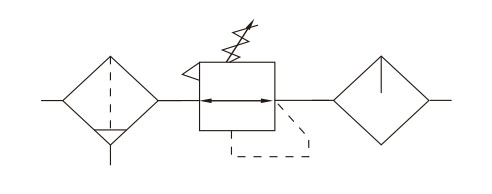

Symbol for FC Series Air Filter Regulator
Technical Parameter for FC Series Two Unit Air Combination
| Model |
FC-200 |
FC-300 |
FC-400 |
| Assembly |
FR-200 |
FR-300 |
FR-400 |
| L-200 |
L-300 |
L-400 |
| Port Size |
G1/4 |
G3/8 |
G1/2 |
| Working Medium |
Compressed air |
| Range of pressure regulation |
0.05~1.2MPa |
| Max. Proof Pressure |
1.6MPa |
| Filtration aperture |
40μm (routine) or 5μm (customized) |
| Rated flow |
1000L/min |
2000L/min |
2600L/min |
| Min. fogging flow |
3L/min |
6L/min |
6L/min |
| Capacity of water bowl |
22ml |
43ml |
43ml |
| Lubrication |
ISO VG32 or the same grade oil |
| Ambient temperature |
5~60℃ |
| Mounting Type |
Tube mounting or bracket mounting |
| Main material |
Body: Zinc Alloy; Bowl: PC; Protective Cover: Aluminium Alloy |

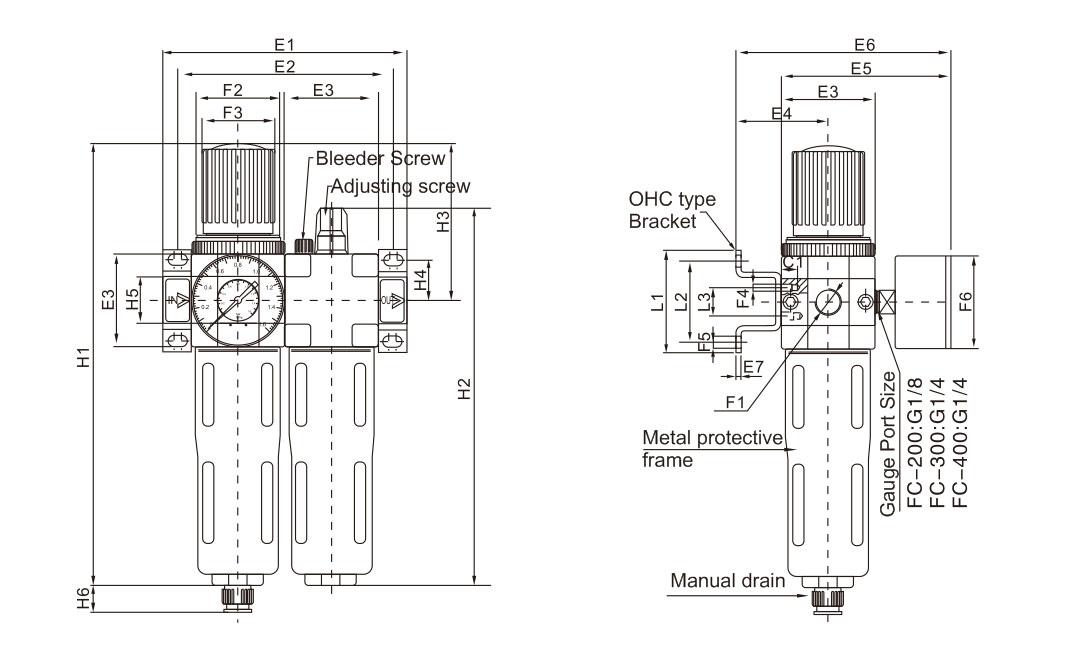

Overall Dimension for Two Unit Air Combination
| Model |
E1 |
E2 |
E3 |
E4 |
E5 |
E6 |
E7 |
F1 |
F2 |
F3 |
F4 |
F5 |
F6 |
L1 |
L2 |
L3 |
H1 |
H2 |
H3 |
H4 |
H5 |
H6 |
| FC-200 |
104 |
92 |
40 |
39 |
76 |
95 |
2 |
G1/4 |
M36×1.5 |
31 |
M4 |
4.5 |
40 |
44 |
35 |
11 |
194 |
169 |
69 |
17.5 |
20 |
15 |
| FC-300 |
140 |
125 |
55 |
47 |
93 |
112 |
3 |
G3/8 |
M52×1.5 |
50 |
M5 |
5.5 |
52 |
71 |
60 |
22 |
250 |
206 |
98 |
24.5 |
32 |
15 |
| FC-400 |
140 |
125 |
55 |
47 |
93 |
112 |
3 |
G1/2 |
M52×1.5 |
50 |
M5 |
5.5 |
52 |
71 |
60 |
22 |
250 |
206 |
98 |
24.5 |
32 |
15 |
