Actuator Accessories - Pneumatic Oil Pressure Buffers5

•

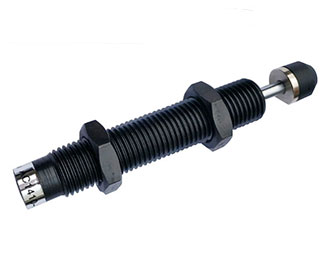

  Pneumatic Oil Pressure Buffers ACD

  The oil buffer can effectively absorb the vibration and noise generated by high-speed motion, convert kinetic energy into heat energy and release it into the atmosphere, so tthe object can stop balanced and effectively in each action.

  Stroke: 30,35mm
  Max. absorbed energy: 45,52
  Absorbed energy per hour: 54000,62400
  Tempreture: -10~80℃


  Learn more
•

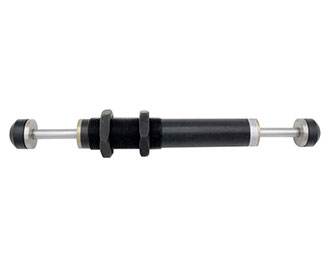

  Pneumatic Oil Pressure Buffers RB/RBC

  The easiest way to improve production quality is to increase the operating speed of the machine, but the result will cause excessive vibration noise, damage to the machine and product

  Maximum absorption energy(kgf·m): 0.3~15
  Absorption stroke(mm): 6,7,12,15,25
  Max. impact speed(mm): 5
  Ambient temperature: -10~80℃


  Learn more
•

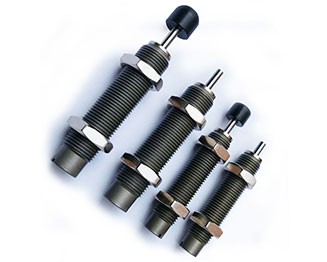

  Pneumatic Oil Pressure Buffers AC

  Eliminate the force required for non mechanical vibration, impact damage and other shocks; Reduce noise; Speed up mechanical action frequency and increase production capacity;

  Stroke (mm): 5,6,8,10,12,16,20,25,40,50,60
  Max. absorbed energy: 2,3,4,5,10,15,20,40,60,80,120,250
  Working temp: -10~80℃


  Learn more
•

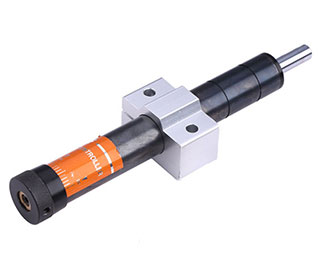

  Pneumatic Oil Pressure Buffers SR

  It can control continuously and stably for a long time, and the stroke adopts spring return.

  Max. stroke (mm): 15,30,60,80,100
  Max. load: 15~350kg/f
  Working temperature: 0~60℃


  Learn more
•

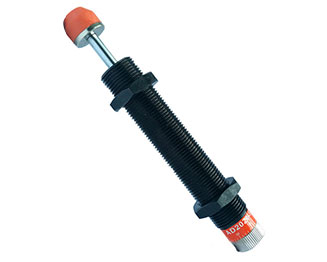

  Pneumatic Oil Pressure Buffers AD

  It can control continuously and stably for a long time, and the stroke adopts spring return.

  Stroke: 10,16,25,40,50,75,100,125mm
  Max. absorbed energy: 20,25,85,100,260,500,750,12000,24000,36000
  Working temp: -10~80℃


  Learn more
