Rodless Pneumatic Cylinder

Rodless Pneumatic Cylinder (Rodless Air Cylinder) is a cylinder that uses the piston to connect the external actuator directly or indirectly, and makes it follow the piston to achieve reciprocating motion. The greatest advantage of this Rodless Pneumatic Cylinder is that it saves installation space and is divided into magnet coupling Rodless Pneumatic Cylinder (magnetic cylinder) and mechanical Rodless Pneumatic Cylinder.
Rodless Air Cylinder can be used for opening and closing doors of automobiles, subway and NC machine tools, mobile positioning of manipulator coordinates, parts transmission of centerless grinders and electrostatic spraying, etc.

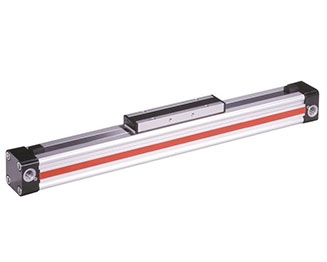

Rodless Pneumatic Cylinder OSP-P

OSP-P Rodless Pneumatic Cylinder with stroke up to 10m, modular design, high adaptability and easy installation; metal-to-metal sealing system; The design stainless steel belt and dust-proof brush system makes it possible for the cylinder to operate normally in harsh environments.

Bore Sizes: 16,25,32,40,50,63,80
Stroke Lengths: 200,300,400,500,600,700,800,900,1000,1500,2000,3000,4000,6000mm
Operating Pressure: 0.16-0.7 MPa
Speed: 5-200mm/sec；200-4000mm/sec；10000mm/sec；
Working Environment Temperature: -10 to 80°C
Learn more

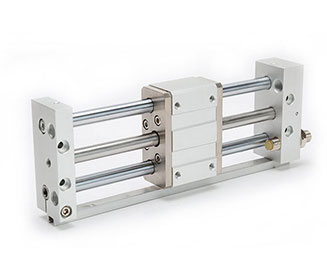

CY3B/R Rodless Pneumatic Cylinder

CY3R Rodless Air Cylinder: Directly mounted rodless cylinder, can directly install the load; Compact size; The cylinder does not rotate within the load range; slide table for cylinder fixing; The buffer can be installed, and the reversing action is stable without impact; The wear-resistant ring with special resin has better lubricity and durability.

Bore sizes: 15, 20, 25, 32, 40, 50
Stroke lengths: 100, 150, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000mm
Operating Pressure: 0.16-0.7 MPa
Speed: 50 ~ 500 mm/s.
Working Environment Temperature: -10 to 60°C
Learn more

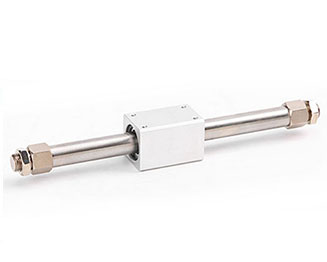

CY1L Rodless Air Cylinder

CY1L Rodless Pneumatic Cylinder has no rigid piston rod of ordinary cylinder, it uses piston to realize reciprocating movement directly or indirectly. The advantage of this kind of cylinder is to save installation space, especially suitable for occasions with small bore and long stroke.

Bore Sizes: 6,10,15,20,25,32,40
Stroke Lengths: 50,100,150,200,250,300,400,500,600,700,800,900,1000,1500mm
Operating Pressure: 0.18-0.7 MPa
Speed: 50-1000mm/s；
Working Environment Temperature: -10 to 60°C
Learn more

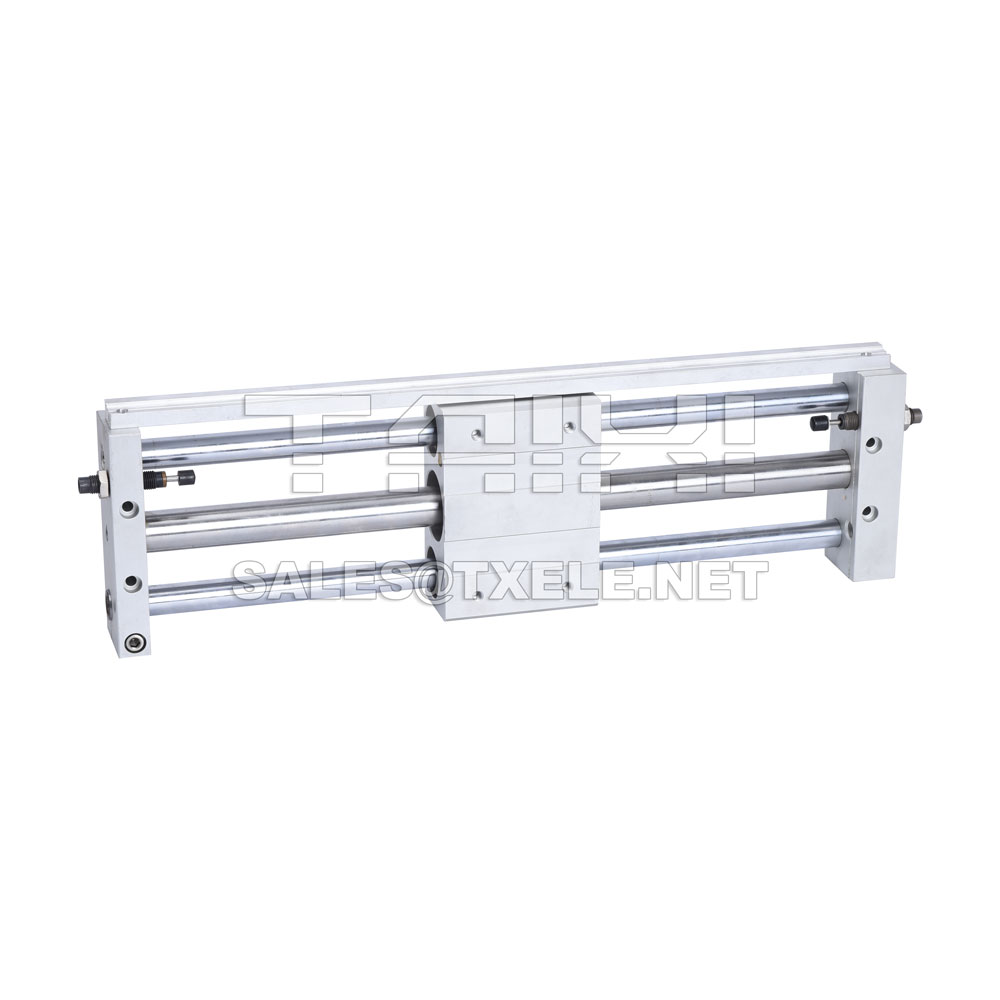

CY1S Rodless Air Cylinder

CY1S Rodless Pneumatic Cylinder: can directly install the load, the retention force is large; the stroke can be selected in a wide range, the maximum stroke is larger than that of the ordinary cylinder;

Bore Sizes: 6,10,15,20,25,32,40,50,63
Stroke Lengths: 50,100,150,200,250,300,400,500,600,700,800,900,1000,1500mm
Operating Pressure: 0.18-0.7 MPa
Speed: 50-400mm/s；
Working Environment Temperature: -10 to 60°C
Learn more
