Stopper Air Cylinder

Stopper Cylinder is used to control the stroke of the Pneumatic cylinder. The piston rod of the Stopper Pneumatic Cylinder is extended on both sides of the cylinder, there is a screw cap on one side, adjusting nut location can change the movement distance of the piston rod, to achieve the purpose of fixed stroke. Generally used in stamping process, fixed cylinder block, piston rod is used for stamping work.
Stopper Air Cylinder is suitable for the stop function of the conveyer line, to stop the workpiece in motion, generally used in the automobile industry, to achieve automation and labor-saving of the conveyer line.

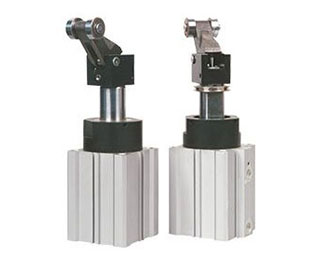

Stopper Air Cylinder RSQ

RSQ Stopper Cylinder has various rod end shape, can select rod types according to the use; By adopting the new main body, magnetic switches can be installed on 4 surfaces without installation parts, miniature magnetic switches can be installed.

Bore: 12, 16, 20, 32, 40, 50mm
Motion Pattern: Double-acting, Single-acting
Standard stroke: 10, 15, 20, 25, 30mm
Piston speed: 50~750mm/s
Ambient and fluid temperature: -10~+70°C
Learn more
