Pneumatic Cylinder Actuator - Double Rod Air Cylinder4

Double Rod Air Cylinder



Double Rod Air Cylinder utilize guide rods mounted parallel to the piston rod to provide stable, non-rotating, high side load performance. The piping of the Double Piston Pneumatic Cylinder can be installed on the left and right sides, and the piping can be easily handled according to the device. Using reaming holes for parallel pins , it can be easily adjusted when replacing products in maintenance.
Double Rod Pneumatic Cylinder has the advantages: the rod is not rotating, with left and right guide rod, high stiffness and high precision, installation size is compact (thin), suitable for small space, and Double Rod Air Cylinder is used in certain occasions with positioning accuracy requirement and clamping requirements.

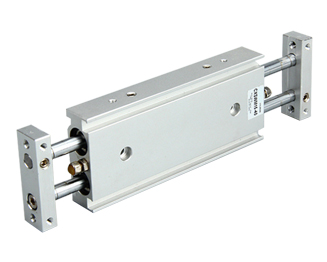

  • Double Rod Air Cylinder CXSW

    CXSW Double Rod Cylinder has a thin double cylinder structure, high non-rotation accuracy and 2 times output force, has strong resistance to side load. CXSW Double Rod Cylinder is a dual piston, double rod actuator with a non-rotating accuracy of ± 0.1°.

    Bore: 6, 10, 15, 20, 25, 32mm
    Motion Pattern: Double-acting
    Operating pressure: 0.1~0.7MPa
    Piston speed: 50~500mm/s
    Ambient and fluid temperature: -10~+60°C
    Learn more

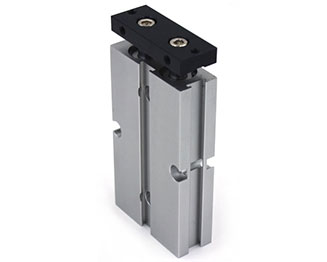

  • Double Rod Air Cylinder TN

    TN Double Rod Cylinder is one of the most widely used dual-shaft cylinders because of its buried mounting fixed form, saving mounting space, double piston force, certain bending and torsion resistance, and can withstand certain lateral load.

    Bore: 10, 16, 20, 25, 32mm
    Motion Pattern: Double acting
    Operating pressure: 0.1~1.0MPa
    Piston speed: 30~500mm/s
    Ambient and fluid temperature: -20~+70°C
    Learn more

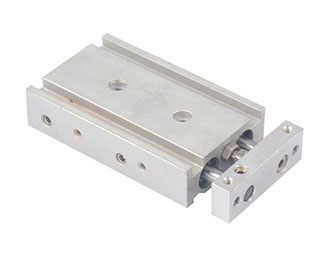

  • Double Rod Air Cylinder CXS

    CXS Dual Rod Cylinders have thin double cylinder structure, high non-rotation accuracy and 2 times the output force, strong resistance to side load; cylinder can be fixed with screws in four directions, the position of the air supply port can be selected.

    Bore: 6, 10, 15, 20, 25, 32mm
    Motion Pattern: Double-acting
    Operating pressure: 0.05~0.7MPa
    Non-rotating accuracy: ± 0.1°
    Ambient and fluid temperature: -10~+60°C (No Freezing)
    Learn more

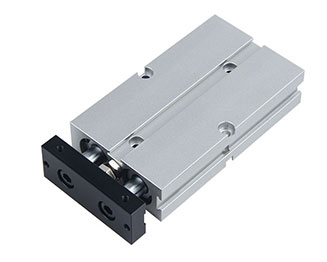

  • Double Rod Air Cylinder TDA

    TDA Pneumatic Cylinder provide high resistance to bending and torsion, ensuring the Dual Rod Cylinder's life and excellent steering performance. Use embedded installation, does not require any accessories to achieve space saving.

    Bore: 10, 16, 20, 25, 32mm
    Motion Pattern: Double-acting
    Operating pressure: 0.1~1.0MPa
    Piston speed: 30~500mm/s
    Ambient and fluid temperature: -20~+70°C
    Learn more
