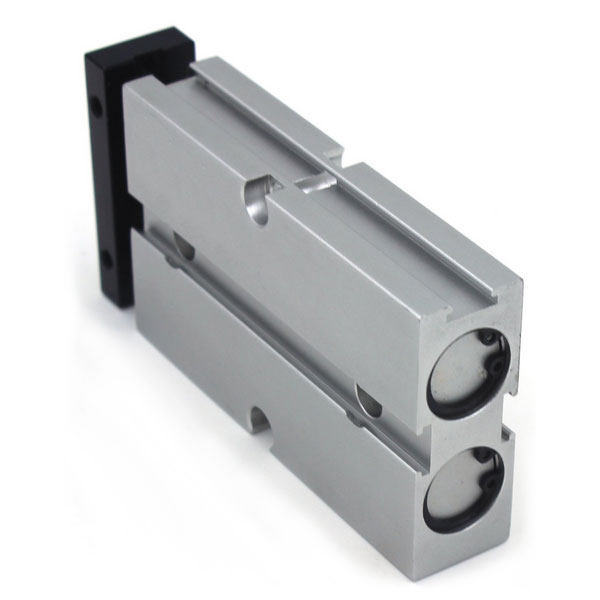

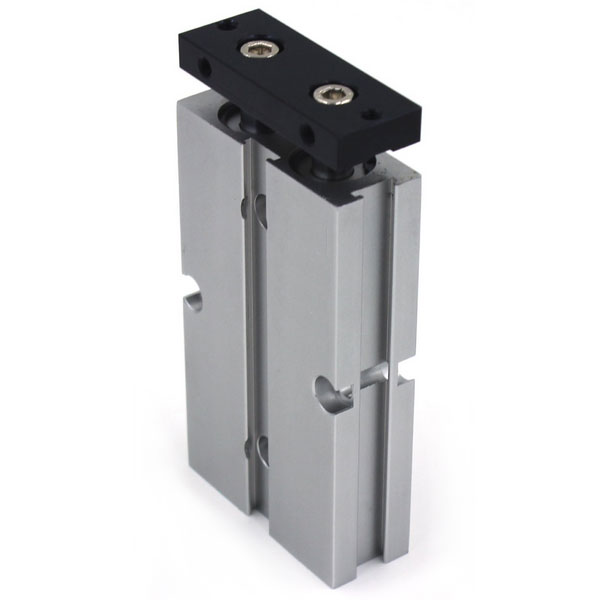

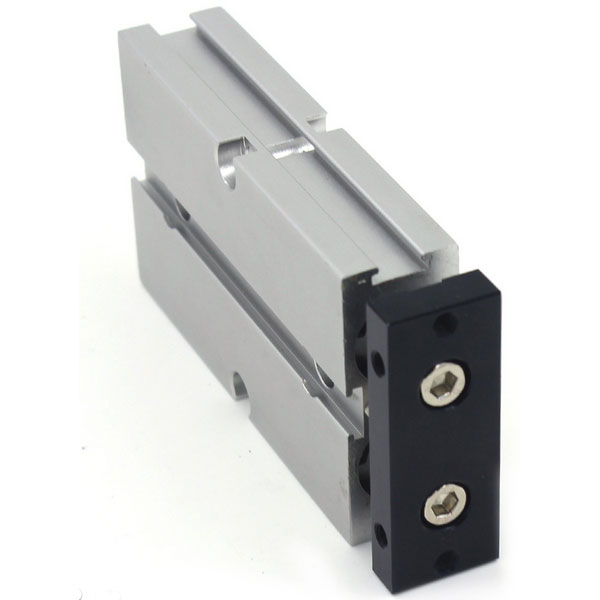

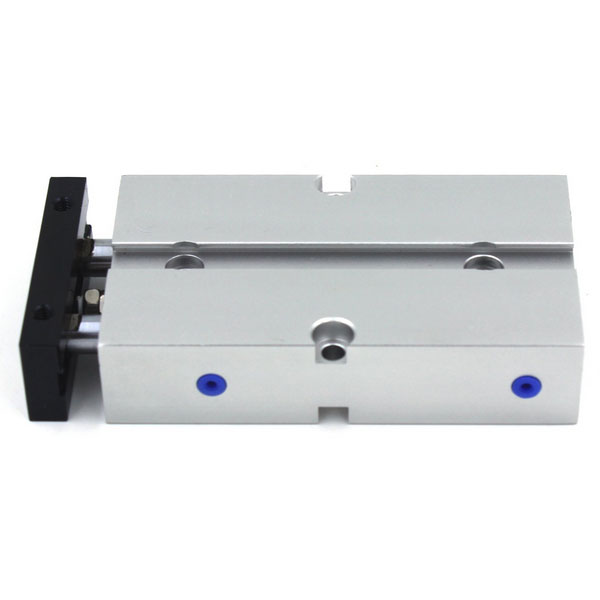

Overview for TDA Pneumatic Cylinder
TDA Pneumatic Cylinder provide high resistance to bending and torsion, ensuring the
Dual Rod Cylinder's life and excellent steering performance. Use embedded installation, does not require any accessories to achieve space saving. Designed with simple assembly method for easy assembly and disassembly and maintenance. The mounting groove is reserved around the body, making the magnetic switch very simple when it is mounted and adjusted. When the working load changes, the Dual Rod Cylinder with sufficient output force should be selected. Under high temperature conditions, the corresponding high temperature resistant cylinder should be selected.

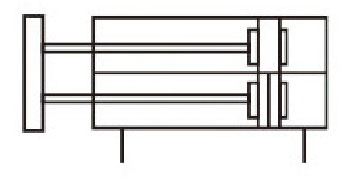

Symbol for TDA Pneumatic Cylinder

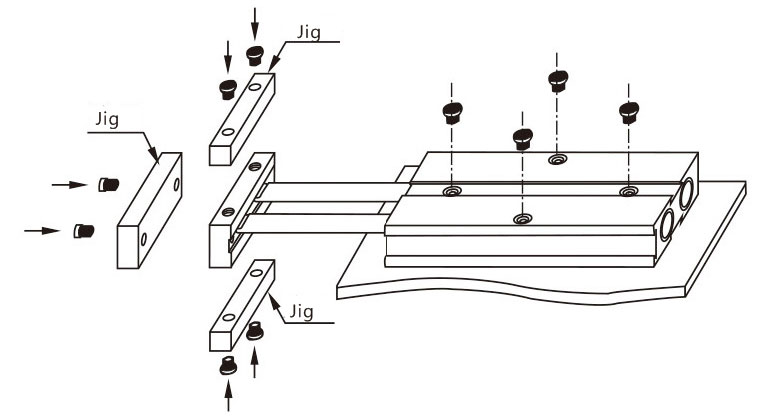

Product Feature for TDA Pneumatic Cylinder
1. Implement enterprise standards
2. Embedded body installation fixed form, saving installation space;
3. Double Rod Cylinder has a certain anti-bending and anti-torsion performance, can withstand a certain lateral load;
4. Fixing plate has mounting holes on three sides, easy for multi-position loading;
5. Body front anti-collision pad can adjust the cylinder stroke, and ease the impact;
6. This series of cylinder standard configuration with magnetic, no magnetic optional.

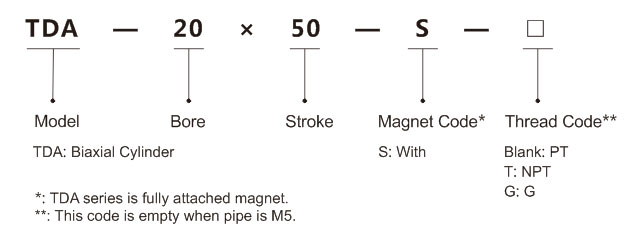

Ordering Code
Specification for Dual Rod Cylinder
| Bore (mm) |
10 |
16 |
20 |
25 |
32 |
| Motion Pattern |
Double-acting |
| Working Medium |
Air |
| Operating Pressure |
0.1~1.0MPa(14~145psi) |
| Proof Pressure |
1.5MPa(215psi) |
| Ambient Temp. |
-20~70 ℃ |
| Speed Range mm/s |
30~500 |
| Adjusting stroke mm |
-10~0 |
| Stroke tolerance range |
+1.0/0 |
| Buffer type |
Bumper |
| *Non-turning accuracy |
±0.4° |
±0.3° |
| **Port Size |
M5×0.8 |
PT1/8 |
* When the rotary accuracy is the full recovery of the cylinder, the angle of the cylinder fixed plate can be turned;
** Pipe thread has NPT, G to choose;
Another: TN series is attached to the magnet.
Stroke for Dual Rod Cylinder
| Bore (mm) |
Standard Stroke (mm) |
Max. Stroke |
| 10 |
10 20 30 40 50 60 70 80 90 100 |
100 |
| 16, 20, 25, 30 |
10, 20, 30, 40, 50, 60, 70, 80, 90, 100, 125, 150, 175, 200 |
200 |
Fixed Type
Cylinder theory output table
| Bore (mm) |
Piston rod O.D. (mm)
|
Motion Pattern |
Compression area
(mm²) |
Air Pressure (MPa) |
| 0.1 |
0.2 |
0.3 |
0.4 |
0.5 |
0.6 |
0.7 |
| 6 |
4 |
Double-acting |
Extend |
56.5 |
5.7 |
11.3 |
17.0 |
22.6 |
28.3 |
33.9 |
39.6 |
| Return |
31.4 |
3.1 |
6.3 |
9.4 |
12.6 |
15.7 |
18.8 |
22.3 |
| 10 |
6 |
Double-acting |
Extend |
157.1 |
15.7 |
31.4 |
47.1 |
62.8 |
78.5 |
94.2 |
110.0 |
| Return |
100.5 |
10.1 |
20.1 |
30.2 |
40.2 |
50.3 |
60.3 |
70.4 |
| 16 |
8 |
Double-acting |
Extend |
402.1 |
40.2 |
80.4 |
120.6 |
160.8 |
201.1 |
241.6 |
281.5 |
| Return |
301.6 |
30.2 |
60.3 |
90.5 |
120.6 |
150.8 |
181.0 |
211.1 |
| 20 |
10 |
Double-acting |
Extend |
628.3 |
62.8 |
125.7 |
188.5 |
251.3 |
314.2 |
377.0 |
439.8 |
| Return |
471.2 |
47.1 |
94.2 |
151.4 |
188.5 |
235.6 |
282.7 |
329.9 |
| 25 |
12 |
Double-acting |
Extend |
981.7 |
98.2 |
196.3 |
294.5 |
392.7 |
490.9 |
589.0 |
687.2 |
| Return |
755.6 |
75.6 |
151.1 |
226.7 |
302.2 |
377.8 |
453.3 |
528.9 |
| 32 |
16 |
Double-acting |
Extend |
1608.5 |
160.8 |
321.7 |
482.5 |
643.4 |
804.2 |
965.1 |
1125.9 |
| Return |
1206.4 |
120.6 |
241.3 |
361.9 |
482.5 |
603.2 |
712.8 |
844.5 |
Dimension (mm)

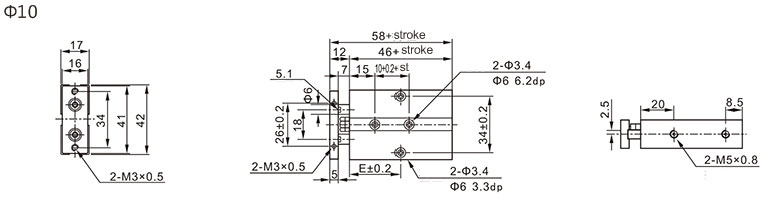

Φ10
| Bore/Symbol |
10 |
20 |
30 |
40 |
50 |
60 |
70 |
80 |
90 |
100 |
| E |
30 |
30 |
35 |
40 |
45 |
50 |
55 |
60 |
65 |
70 |

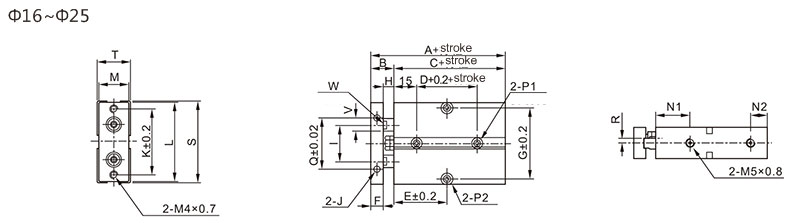

Φ16~Φ25
| Bore/Symbol |
A |
B |
C |
D |
St≤ |
10 |
20 |
30 |
40 |
50 |
60 |
70 |
80 |
90 |
100 |
125 |
150 |
175 |
200 |
F |
G |
H |
I |
J |
K |
L |
M |
N1 |
N2 |
P1 |
P2 |
Q |
R |
S |
T |
V |
W |
| 16 |
68 |
15 |
53 |
20 |
E |
30 |
35 |
40 |
45 |
50 |
55 |
60 |
65 |
70 |
75 |
87.5 |
100 |
112.5 |
125 |
8 |
47 |
7 |
24 |
M4×0.7 dp 5 |
47 |
53 |
10 |
22 |
11 |
Both sides:Φ7.5 dp 7.2mm Hole:Φ4.5 |
Both sides:Φ8 dp 4.5mm Hole:Φ4.5 |
34 |
3 |
54 |
21 |
8 |
6.1 |
| 20 |
78 |
20 |
58 |
20 |
35 |
35 |
40 |
45 |
50 |
55 |
60 |
65 |
70 |
75 |
87.5 |
100 |
112.5 |
125 |
10 |
55 |
10 |
28 |
M4×0.7 dp 5 |
55 |
61 |
14 |
25 |
12 |
Both sides:Φ7.5 dp 7.2mm Hole:Φ4.5 |
Both sides:Φ8 dp 4.5mm Hole:Φ4.5 |
44 |
3.5 |
62 |
25 |
10 |
8.1 |
| 25 |
81 |
19 |
62 |
30 |
40 |
40 |
45 |
50 |
55 |
60 |
65 |
70 |
75 |
80 |
92.5 |
105 |
117.5 |
135 |
10 |
66 |
9 |
34 |
M4×0.7 dp 6 |
66 |
72 |
19 |
27 |
12 |
Both sides:Φ7.5 dp 7.2mm Hole:Φ4.5 |
Both sides:Φ8 dp 4.5mm Hole:Φ4.5 |
56 |
6 |
73 |
30 |
12 |
10.1 |

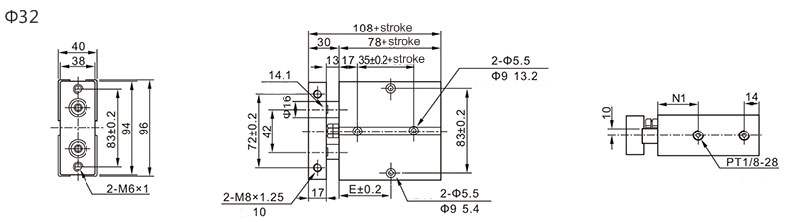

Φ32
| Bore/Symbol |
10 |
20 |
30 |
40 |
50 |
60 |
70 |
80 |
90 |
100 |
125 |
150 |
175 |
200 |
| E |
45 |
50 |
55 |
60 |
65 |
70 |
75 |
80 |
85 |
90 |
102.5 |
115 |
127.5 |
140 |
| N1 |
35 |
40 |
