Standard Pneumatic Cylinder

Standard Pneumatic Cylinder (Standard AIR Cylinders) refer to the cylinders which specifications are commonly used and construct are manufactured easily, supplied to the market by the China manufacturer as the universal product.
Standard Cylinder is applied in all walks of life, dedicated to the general dedusting equipment supporting the lifting valve and the electromagnetic pulse valve is used, the company according to customers' specific requirements and needs, customize the Standard Air Cylinders of different bore and stroke.

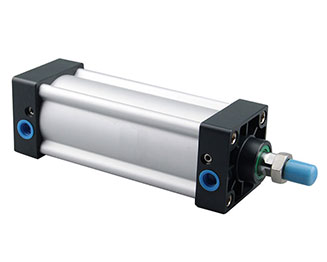

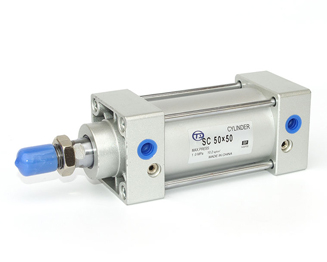

Standard Pneumatic Cylinder SC

SC Standard Cylinder is the most commonly used Standard Cylinder in China. It is the most cost-effective, economical and convenient to install a variety of accessories. SC Standard Cylinder is suitable for use in a variety of different industries, specifically for use on dust removal devices.

Bore: 32, 40, 50, 63, 80, 100mm
Motion Pattern: Double-acting
Operating pressure: 0.1~1.0MPa
Piston speed: 30~800mm/s
Ambient and fluid temperature: -20~80℃
Learn more

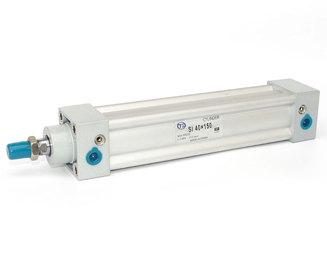

Standard Pneumatic Cylinder SI

SI Air Cylinder is the AirTAC type standard cylinder. The main types are: SI standard double acting cylinder, SID biax double-acting cylinder, SCJ biax double-acting stroke-adjustable cylinder.

Bore: 32, 40, 50, 63, 80, 100, 125, 160, 200mm
Motion Pattern: Double-acting
Operating pressure: 0.1~1.0MPa
Piston speed: 30~800mm/s (bore:32~100mm); 30~500mm/s (bore:125~200mm)
Ambient and fluid temperature: -20~80℃
Learn more

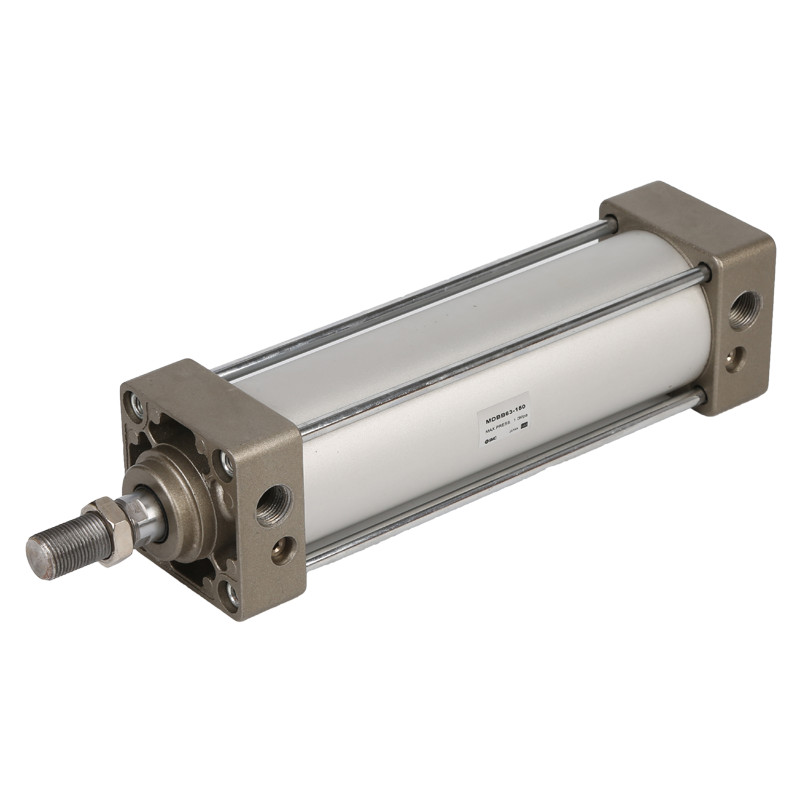

Standard Pneumatic Cylinder MBB

The piston seal of MBB Standard Cylinder adopts special-shaped two-way sealing structure, has compact dimension and oil storage function; MBB Air Cylinder is meter-shaped aluminum tube, no pull rod and has good corrosion resistance; The cylinder buffer adjustment is stable.

Bore: 32, 40, 50, 63, 80, 100, 125mm
Motion Pattern: Double-acting
Operating pressure: 0.1~1.0MPa
Piston speed: 30~800mm/s(Bore: 32~100mm); 30~500mm/s(Bore: 125mm)
Ambient and fluid temperature: -20~80°C
Learn more
Standard Pneumatic Cylinder MB

MB Air Cylinder has no lubrication, oil-containing bearings are used. The piston rod need not be lubricated except for the fixed buffer. High temperature sealing material can make the cylinder work normally under the high temperature of 150 ℃.

Bore: 32, 40, 50, 63, 80, 100, 125mm
Motion Pattern: Double acting
Operating pressure: 0.05~1.0MPa
Piston speed: 50~1000mm/s(bore:32~100mm); 50~700mm/s(bore:125mm)
Ambient and fluid temperature: -10~+70°C
Learn more
Standard Pneumatic Cylinder DNC

Seal ring of DNC Standard Cylinder adopts two Y-type one-way sealing structure, with compensation function, long service life and low starting pressure. It is square cylinder barrel, no rod, good corrosion resistance, buffer adjustment for cylinders.

Bore: 32, 40, 50, 63, 80, 100, 125mm
Motion Pattern: Double-acting
Operating pressure: 0.1~1.0MPa
Piston speed: 50~800mm/s
Ambient and fluid temperature: -5~+70°C
Learn more
Standard Pneumatic Cylinder SU

SU Standard Cylinder's action type is double acting type; buffer type is adjustable buffer, buffering adjustment is stable; can choose high-temperature sealing material, high-temperature resistance. The installation and fixing forms are various.

Bore: 32, 40, 50, 63, 80, 100mm
Motion Pattern: Double-acting
Operating pressure: 0.1~1.0MPa
Piston speed: 30~800mm/s
Ambient and fluid temperature: -10~+80°C
Learn more

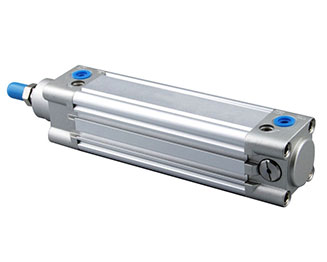

Standard Pneumatic Cylinder VDMA

VDMA ISO 6431 Cylinder is manufactured according to international standard ISO-VDMA. VDMA 24562 Cylinder has no fastening rod and most parts can be replaced by each other. The fixed groove of embedded induction switch is designed on all four sides of the cylinder tube.

Bore: 32, 40, 50, 63, 80, 100mm
Motion Pattern: Single-acting
Operation pressure: 1~10Bbar
Sealing ring material: NBR
Ambient and fluid temperature: -20~+80°C
Learn more

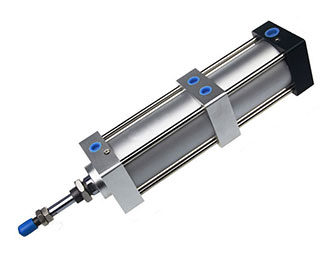

Standard Pneumatic Cylinder SCT

The SCT Pneumatic Cylinder adopts high-temperature sealing materials, so that the cylinder can work normally at 150℃; Adopt special connector, each stroke range can be graded by the system control, producing multiple working positions.

Bore: 32, 40, 50 ,63, 80, 100mm
Motion Pattern: Double-acting
Operating pressure: 0.1~1.0MPa
Piston speed: 30~800mm/s
Ambient and fluid temperature: -20~80℃
Learn more
Standard Pneumatic Cylinder CA

The piston seal of CA Mounting Cylinder adopts a special-shaped two-way seal structure, which is compact in size and has oil storage function. Aluminum tube type, no rod, good corrosion resistance; Cylinder cushioning adjustment is stable.

Bore: 20, 25, 32, 40mm
Motion Pattern: Double-acting, Single-acting (Spring Return/Spring Extend)
Operating pressure: 0.1~0.9MPa
Piston speed: 50~800mm/s
Ambient and fluid temperature: -10~+60°C
Learn more

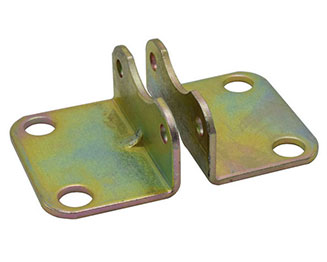

Standard Air Cylinder Accessories

Learn more
