Standard Pneumatic Cylinder SU

SU Standard Cylinder's action type is double acting type; buffer type is adjustable buffer, buffering adjustment is stable; can choose high-temperature sealing material, high-temperature resistance. The installation and fixing forms are various.

Bore: 32, 40, 50, 63, 80, 100mm
Motion Pattern: Double-acting
Operating pressure: 0.1~1.0MPa
Piston speed: 30~800mm/s
Ambient and fluid temperature: -10~+80°C

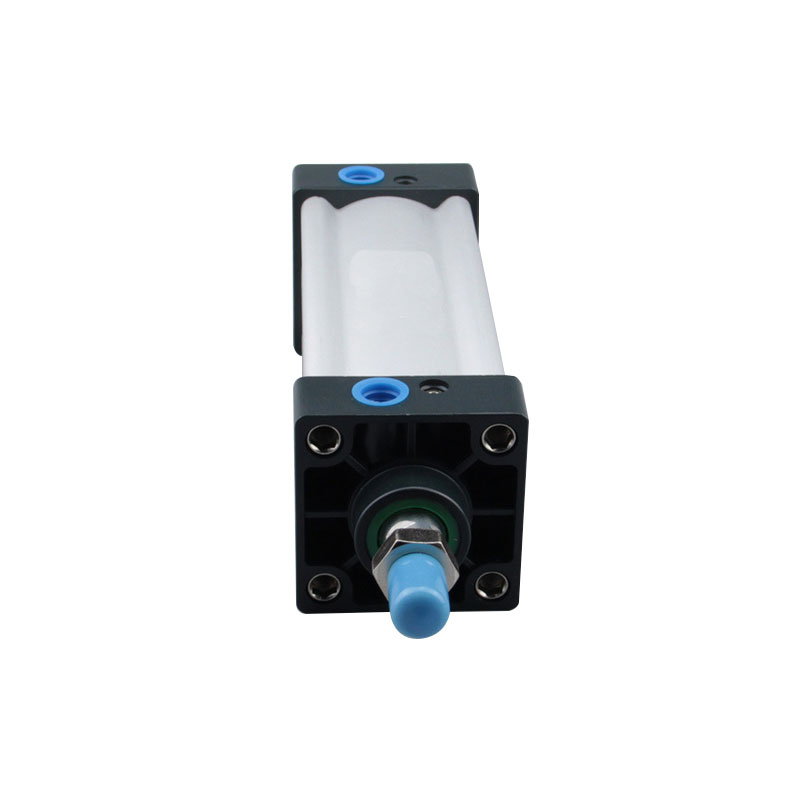

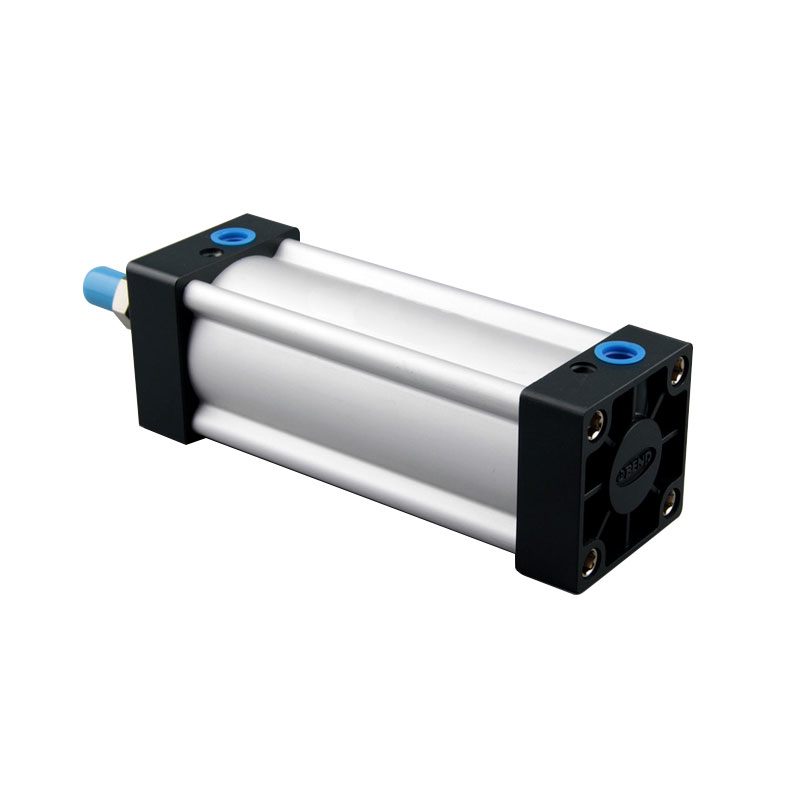

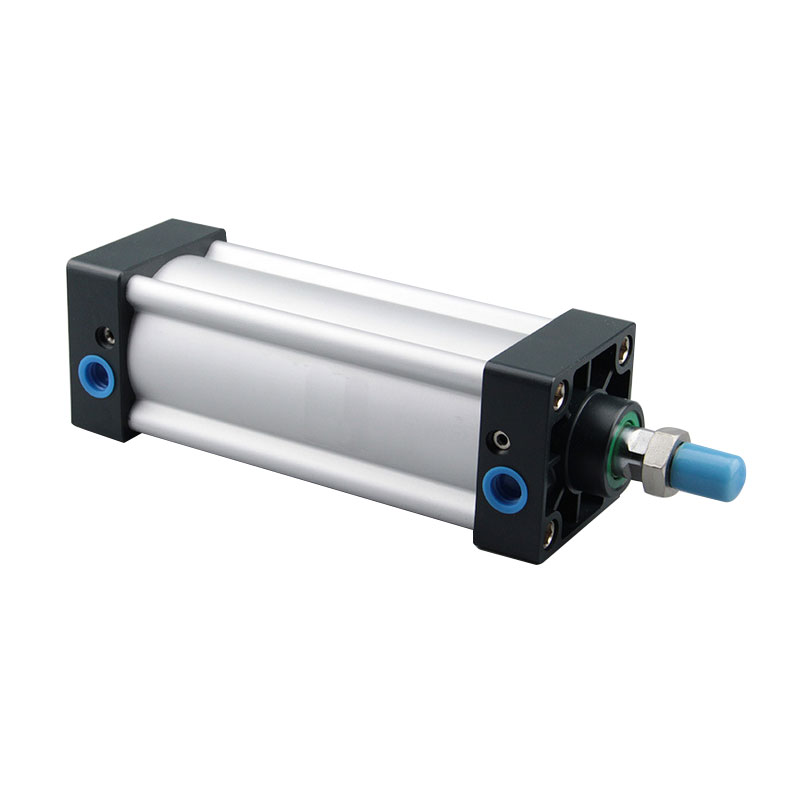

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Overview for SU Standard Cylinder

SU Standard Cylinder's action type is double acting type; buffer type is adjustable buffer, buffering adjustment is stable; can choose high-temperature sealing material, high-temperature resistance. The installation and fixing forms are various, including front double-eared, single-eared, double-eared, front flange, rear flange and prop stand type.
SU Standard Cylinder piston adopts special-shaped two-way sealing structure, compact size, with oil storage function; the profile of cylinder tube is aluminum tube double-cross-shaped type which can hide the rod, the rod is built-in and has good corrosion resistance; compared with ISO15552 Standard Cylinder, the length of SU Standard Cylinde with the same bore is shorter.
1. Free lubrication: oil-containing bearings are used to make the piston rods need no lubrication;
2. Adjustable cushioning: In addition to the fixed cushioning, the SU cylinder terminal also has adjustable cushioning, so that the cylinder is stable and no impact when reserving;
3. High-temperature resistance: SU Standard Air Cylinder adopts high-temperature sealing materials, so that the cylinder can work normally at 150℃;
4. Installation diversity: A variety of installation accessories for customers to choose;
5. Magnetic: The SU Standard Air Cylinder piston is equipped with a permanent magnet that triggers an inductive switch mounted on the cylinder to sense the motion position of the cylinder.
The installation accessories of SU Standard Air Cylinder are shared with SC series standard cylinders. It can be customized with special specifications.

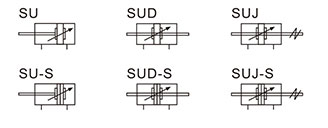

Symbol for SU Standard Cylinder

Product Feature for SU Standard Cylinder

1. The enterprise Standard Cylinder;
2. Piston seal with special-shaped two-way seal, compact size, with oil storage function;
3. Aluminum tube for the meter-shaped, no rod, good anti-corrosion performance;
4. Compared with ISO15552 standard cylinder, SU series cylinder length is shorter than the one of the same bore;
5. Cylinder buffer adjustment is smooth;
6. Cylinder mounting accessories are shared with SC series cylinders;
7. Select the high temperature sealing material, can guarantee the normal work of cylinder at 150℃.

Specification for SU Standard Air Cylinder

Bore (mm) 32 40 50 63 80 100
Motion Pattern Double-acting
Working Medium Air (Filtered by 40 μm filter mesh)
Fixed Type SU Basic Type FA FB CA CB LB TC TCM1
SUD, SUJ Basic Type FA LB TC TCM1
Pressure Range 0.1~1.0MPa(14~146Psi)
Proof Pressure 1.5MPa(215Psi)
Working temperature ℃ -20~80
Speed Range mm/s 30~800
Stroke tolerance range 0~250 (+1.0/0); 251~1000 (+1.4/0);1001~1500 (+1.8/0)
Buffer Type Adjustable buffer
Buffer stroke mm 21 28 29
Port Size PT1/8 PT1/4 PT3/8 PT1/2

Stroke

Series Bore (mm) Standard Stroke Max. Stroke Allowable Stroke
SU
SUD
SUJ		 32 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 1000 1800
40 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 1200 1800
50 1200 1800
63 1500 1800
80 1500 1800
100 1500 1800

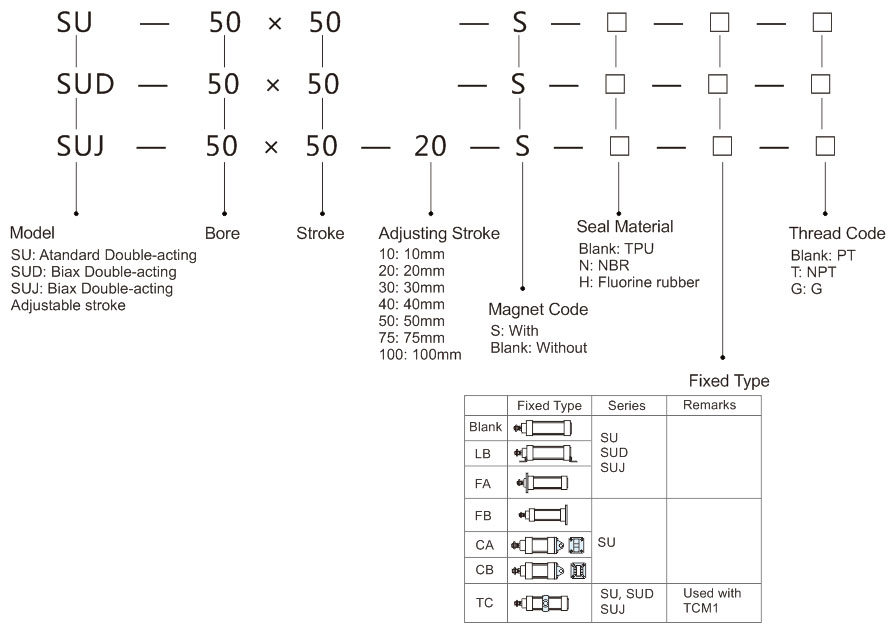

Ordering Code

Overall Dimension

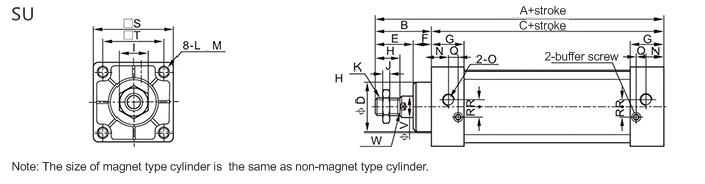

SU

Bore/Symbol A B C D E F G H I J K L M N O P Q R S T V W
32 140 47 93 28 32 15 27.5 22 17 6 M10×1.25 M6×1 9.5 14 PT1/8 5.5 6 6.5 45 33 12 10
40 142 49 93 32 34 15 27.5 24 17 7 M12×1.25 M6×1 9.5 15 PT1/4 6 5 8.5 50 37 16 14
50 150 57 93 38 42 15 27.5 32 23 8 M16×1.5 M6×1 9.5 17 PT1/4 8.5 2.5 10 62 47 20 17
63 153 57 96 38 42 15 27.5 32 23 8 M16×1.5 M8×1.25 9.5 15 PT3/8 9.5 4 8.5 75 56 20 17
80 182 75 107 47 54 21 33 40 26 10 M20×1.5 M10×1.5 11.5 19.5 PT3/8 10 4.5 14 94 70 25 22
100 188 75 113 47 54 21 33 40 26 10 M20×1.5 M10×1.5 11.5 16.5 PT1/2 11 6.5 14 112 84 25 22

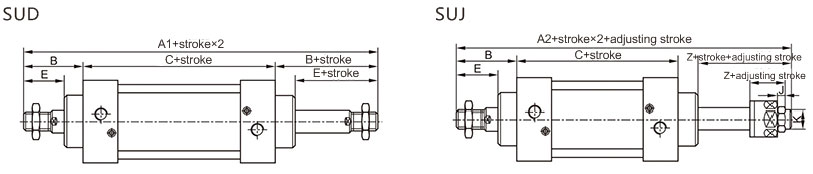

SUD / SUJ

Bore/Symbol A1 A2 B C E Z J K
32 187 182 47 93 32 27 6 M10×1.25
40 191 185 49 93 34 28 7 M12×1.25
50 207 194 57 93 42 29 8 M16×1.5
63 210 197 57 96 42 29 8 M16×1.5
80 257 238.5 75 107 54 35.5 10 M20×1.5
100 263 244.5 75 113 54 35.5 10 M20×1.5

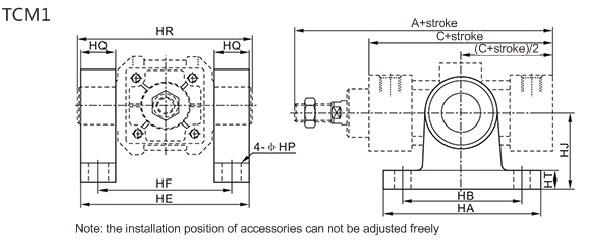

TCM1

Bore/Symbol A C HA HB HE HF HP HQ HR HT HJ
32 140 93 80 60 72 62 9 12 74 11 40
40 142 93 103 80 109 86 11 23 113 12 50
50 150 93 103 80 122 99 11 23 126 12 50
63 153 96 103 80 134 111 11 23 138 12 50
80 182 107 110 85 160 137 13 23 164 12 70
100 188 113 110 85 178 155 13 23 182 12 70

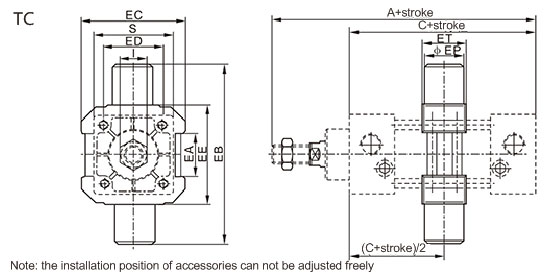

TC

Bore/Symbol A C EA EB EC ED EE EP ET I S
32 140 93 20 74 52 33 50 12 22 17 45
40 142 93 27 113 65 37 63 25 28 17 50
50 150 93 31 126 75 47 75 25 28 23 62
63 153 96 42 138 90 56 88 25 30 23 75
80 182 107 54 164 112 70 114 25 32 26 94
100 188 113 68 182 135 84 132 25 38 26 112
