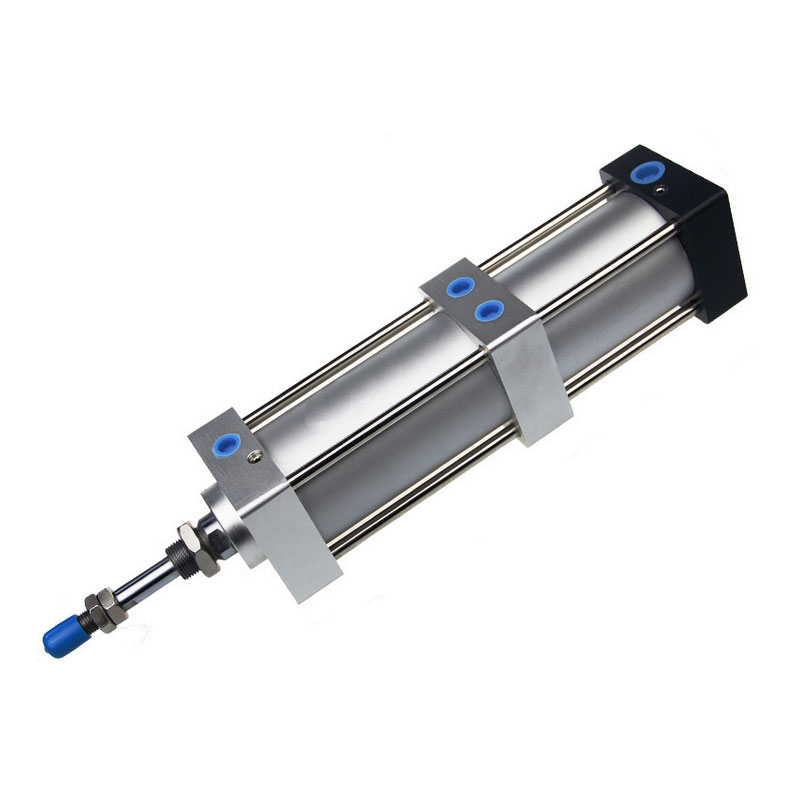

Standard Pneumatic Cylinder SCT

The SCT Pneumatic Cylinder adopts high-temperature sealing materials, so that the cylinder can work normally at 150℃; Adopt special connector, each stroke range can be graded by the system control, producing multiple working positions.

Bore: 32, 40, 50 ,63, 80, 100mm
Motion Pattern: Double-acting
Operating pressure: 0.1~1.0MPa
Piston speed: 30~800mm/s
Ambient and fluid temperature: -20~80℃

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Overview for SCT Standard Cylinder

Features of SCT Standard Cylinder:
1. Free lubrication: oil-containing bearings are used to make the piston rods need no lubrication;
2. Adjustable cushioning: In addition to the fixed cushioning, the SU cylinder terminal also has adjustable cushioning, so that the SCT Pneumatic Cylinder is stable and no impact when reserving;
3. High-temperature resistance: The SCT Pneumatic Cylinder adopts high-temperature sealing materials, so that the cylinder can work normally at 150℃;
4. Magnetic: The cylinder piston is equipped with a permanent magnet that triggers an inductive switch mounted on the Standard Cylinder to sense the motion position of the cylinder;
5. Adopt special connector, each stroke range can be graded by the system control, producing multiple working positions.

Symbol for SCT Standard Cylinder

Product Feature for SCT Pneumatic Cylinder

1. The enterprise standard cylinder;
2. Piston seal with special-shaped two-way sealed structure, compact size, with oil storage function;
3. For the rod-type cylinder, front and rear cover is connected with aluminum tube cylinder by pillar, good reliability;
4. Piston rod in the whole movement process, can achieve a number of location positioning;
5. Cylinder buffer adjustment is stable;
6. A variety of specifications of the SCT Pneumatic Cylinder and cylinder installation accessories available for customers to choose and use;
7. Select the high temperature sealing material to ensure that the normal work of cylinder at 150 ℃.

Specification of SCT Pneumatic Cylinder

Bore (mm) 32 40 50 63 80 100
Motion Pattern Double-acting
Working Medium Air (Filtered by 40 μm filter mesh)
Fixed type Basic type LB-type
Operating pressure range 0.1~1.0MPa(14~145Psi)
Proof Pressure 1.5MPa(215Psi)
Operating Temperature -20~80℃
Speed Range 30~800mm/s
Stroke tolerance range 0~250 (+1.0/0); 251~1000 (+1.4/0); 1001~1500 (+1.8/0)
Buffer type Adjustable buffer
Buffer stroke mm 21 28 29
Port Size PT1/8 PT1/4 PT3/8 PT1/2

Stroke

Bore (mm) Standard Stroke Max. Stroke Allowable Stroke
32 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 500 800
40 500 800
50 500 800
63 500 800
80 500 800
100 500 800

Note: In the maximum stroke range, if the stroke ≥ 800mm, for non-standard processing, please contact the company for other special stroke.

Ordering Code for SCT Pneumatic Cylinder

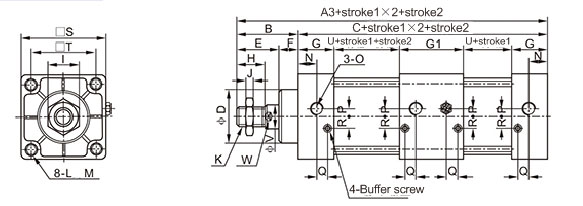

Overall Dimension for SCT Pneumatic Cylinder

Bore/Symbol A3 B C D E F G G1 H I J K L M N O P Q R S T V U W
32 233 47 186 28 32 15 27.5 55 22 17 6 M10×1.25 M6×1.0 9.5 14 PT1/8 5.5 6 6.5 45 33 12 38 10
40 235 49 186 32 34 15 27.5 55 24 17 7 M12×1.25 M6×1.0 9.5 15 PT1/4 6 5 8.5 50 37 16 38 14
50 243 57 186 38 42 15 27.5 55 32 23 8 M16×1.5 M6×1.0 9.5 17 PT1/4 8.5 2.5 10 62 47 20 38 17
63 249 57 192 38 42 15 27.5 55 32 23 8 M16×1.5 M8×1.25 9.5 15 PT3/8 9.5 4 8.5 75 56 20 41 17
80 296 75 221 47 54 21 33 73 40 26 10 M20×1.5 M10×1.5 11.5 19.5 PT3/8 10 4.5 14 94 70 25 41 22
100 308 75 233 47 54 21 33 73 40 26 10 M20×1.5 M10×1.5 11.5 16.5 PT1/2 11 6.5 14 112 84 25 47 22

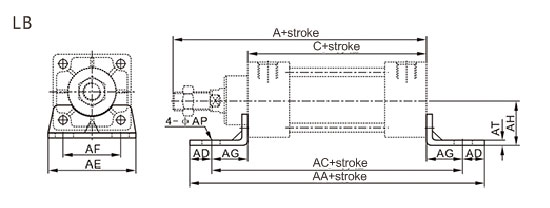

Bore/Symbol A C AA AC AD AE AF AG AH AP AT
32 140 93 153 134 9.5 50 33 20.5 28 9 3
40 142 93 169 140 14.5 57 36 23.5 30 12 3
50 150 93 173 149 12 68 47 28 36.5 12 3
63 153 96 184 158 13 80 56 31 41 12 3
80 182 107 199 167 16 97 70 30 49 14 4
100 188 113 209 173 18 112 84 30 57 14 4

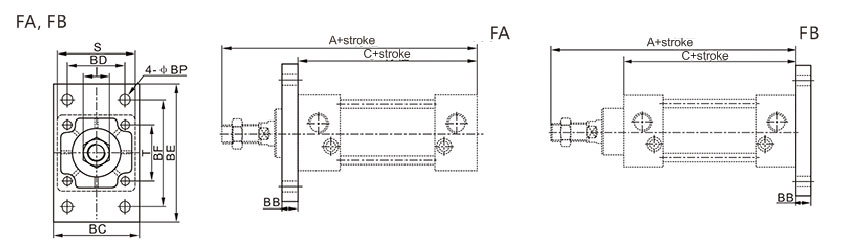

Bore/Symbol A C BB BC BD BE BF BP I S T
32 140 93 10 47 33 80 58 7 17 45 33
40 142 93 10 53 36 90 70 7 17 50 37
50 150 93 10 65 47 104 86 9 23 62 47
63 153 96 12 75 56 118 98 9 23 75 56
80 182 107 16 95 70 140 119 11 26 94 70
100 188 113 16 115 84 160 138 11 26 112 84

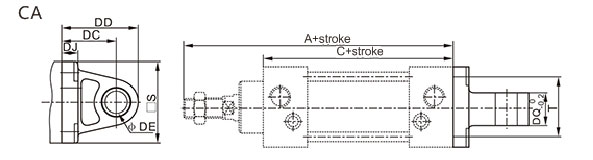

Bore/Symbol A C DC DD DE DJ DQ S T
32 140 93 34 44.5 12 9 16 45 33
40 142 93 34 44.5 14 9 20 49 37
50 150 93 34 46 14 10 20 61 47
63 153 96 34 46.5 14 10 20 74 56
80 182 107 48 64.5 20 14 32 93 70
100 188 113 48 65 20 14 32 111 84

表格

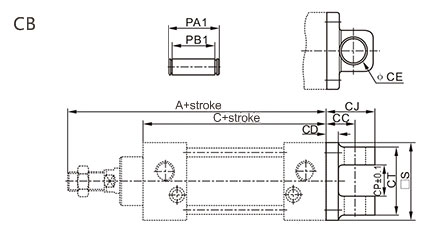

Bore/Symbol A C S CC CD CE CJ CP CT PA1 PB1
32 140 93 45 19 9 12 29.5 16.3 32 37 32.8
40 142 93 49 19 9 14 30.5 20.3 44 51 44.8
50 150 93 61 19 10 14 31 20.3 52 59 52.8
63 153 96 74 19 10 14 31.5 20.3 52 59 52.8
80 182 107 93 32 14 20 48.5 32.3 64 73 64.8
100 188 113 111 32 14 20 49 32.3 64 73 64.8

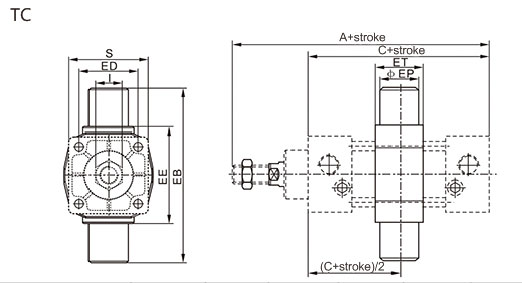

Bore/Symbol A C EB ED EE EP ET I S
32 140 93 87 33 55 16 22 17 45
40 142 93 113 37 63 25 28 17 50
50 150 93 126 47 76 25 28 23 62
63 153 96 138 56 88 25 30 23 75
80 182 107 164 70 114 25 32 26 94
100 188 113 182 84 132 25 38 26 112

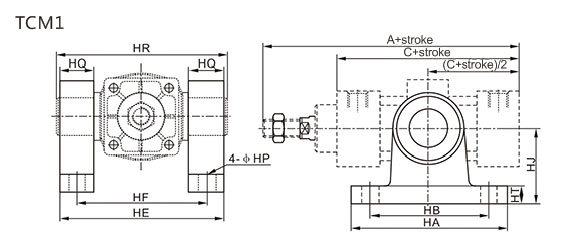

Bore/Symbol A C HA HB HE HF HP HQ HR HT HJ
32 140 93 100 75 90 71 12 16 87 11 54
40 142 93 103 80 109 86 11 23 113 12 50
50 150 93 103 80 122 99 11 23 126 12 50
63 153 96 103 80 134 111 11 23 138 12 50
80 182 107 110 85 160 137 13 23 164 12 70
100 188 113 110 85 178 155 13 23 182 12 70
