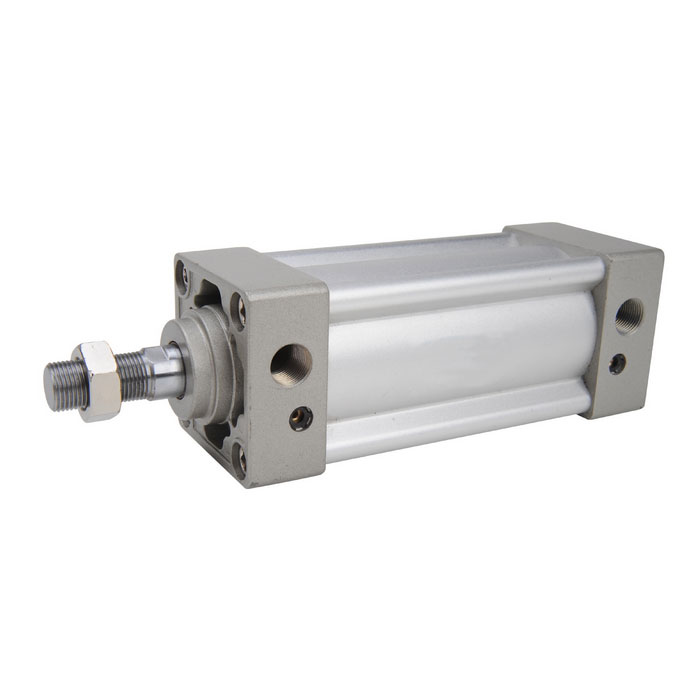

Standard Pneumatic Cylinder MBB

The piston seal of MBB Standard Cylinder adopts special-shaped two-way sealing structure, has compact dimension and oil storage function; MBB Air Cylinder is meter-shaped aluminum tube, no pull rod and has good corrosion resistance; The cylinder buffer adjustment is stable.

Bore: 32, 40, 50, 63, 80, 100, 125mm
Motion Pattern: Double-acting
Operating pressure: 0.1~1.0MPa
Piston speed: 30~800mm/s(Bore: 32~100mm); 30~500mm/s(Bore: 125mm)
Ambient and fluid temperature: -20~80°C

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Overview for MBB Standard Cylinder

MBB Standard Cylinder medium duty tie rod cylinder offers an improved design that enhances cylinder operation and ease of use. The standard air cushion utilizes a floating cushion seal to eliminate piston rod bouncing. The cushion volume has been elevated permitting about 30% more allowable kinetic energy absorption. The port and captive cushion adjustment valve are located on the same side of cap for heightened access. MBB Air Cylinder is available with many standard options, which include stroke adjustment, tandem, high/low temperature seals, heavy rod scraper, non-rotating rod, double rod and many more.

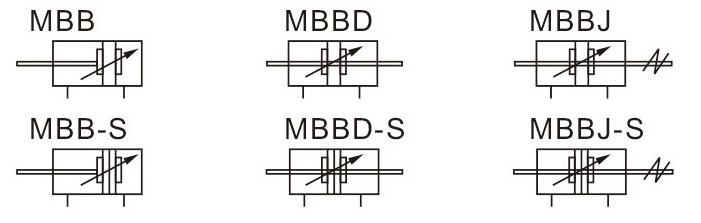

Symbol for MBB Air Cylinder

Product Feature for MBB Air Cylinder

1. MBB Standard Cylinder
2. The piston seal of MBB standard cylinder adopts special-shaped two-way sealing structure, has compact dimension and oil storage function;
3. MBB Air Cylinder is meter-shaped aluminum tube, no pull rod and has good corrosion resistance;
4. Compared with the ISO15552 standard cylinder, the MBB Standard Cylinder with the same bore is smaller in length;
5. The cylinder buffer adjustment is stable;
6. Various specifications of cylinder and cylinder installation accessories are available for customers to choose. Customers choose to use;
7. Choose high temperature resistant sealing material to ensure that the cylinder works normally at 150℃.

Specification for MBB Air Cylinder

Bore (mm) 32 40 50 63 80 100 125
Motion Pattern Double-acting
Working Medium Air (Filtered by 40 μm filter)
Fixed
Type		 MBB Basic type FA FB CA CB CR LB TC TCM1 TCM2
MBBD, MBBJ Basic type FA LB TC TCM1 TCM2
Operating pressure range 0.1~1.0MPa(14~145psi)
Proof Pressure 1.5MPa(215psi)
Ambient Temp. ℃ -20~80
Operating Speed mm/s 30~800 30~500
Stroke tolerance range 0~250 (+1.0/0); 251~1000 (+1.4/0); 1001~1500(+1.8/0)
Buffer type Adjustable buffer
Buffer Stroke mm 24 32 37.5 40
Port Size PT1/8 PT1/4 PT3/8 PT1/2

Stroke

Bore (mm) Standard Stroke Max Stroke Allowable Stroke
32 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 1000 1800
40 25 50 75 80 100 125 150 160 175 200 250 300 350 400
450 500 600 700 800 900 1000		 1200 1800
50 1200 1800
63 1500 1800
80 1500 1800
100 1500 1800
125 1500 1800

Note: please contact our company for any other special stroke.

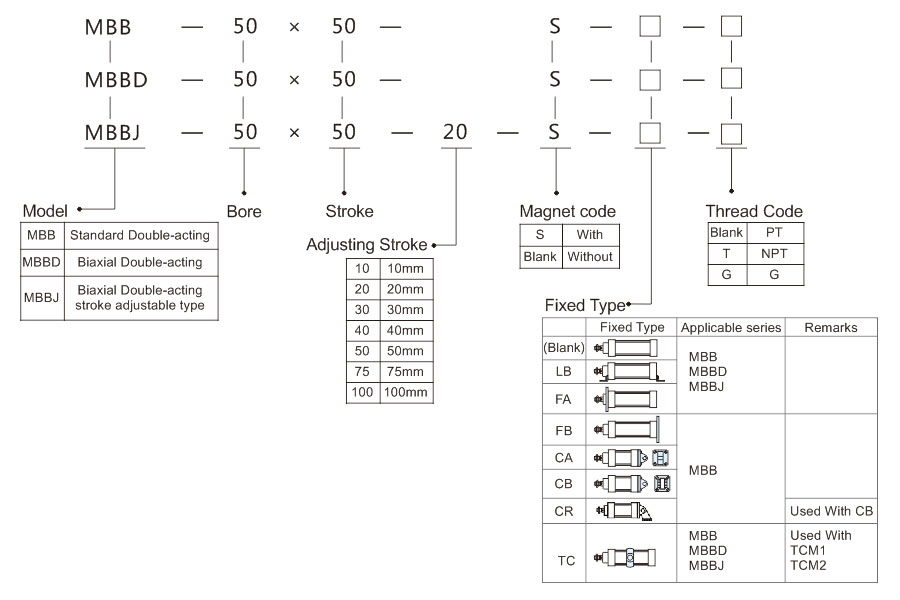

Ordering Code for MBB Standard Cylinder

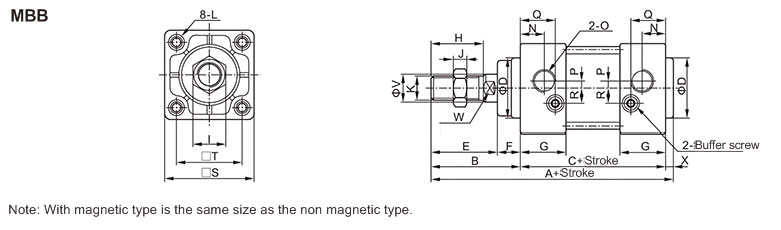

Overall Dimension

Symbol / Bore A B C D E F G H I J K L N O P Q R S T V W X
32 135 47 84 30 34 13 27 22 17 6 M10×1.25 M6 13 PT1/8 4 20.5 6.5 46 32.5 12 10 4
40 139 51 84 35 38 13 27 30 19 8 M14×1.5 M6 14 PT1/4 4 20.5 9 52 38 16 14 4
50 156 58 94 40 44 14 31.5 35 27 11 M18×1.5 M8 15.5 PT1/4 5 23 10.5 65 46.5 20 18 4
63 156 58 94 45 44 14 30.5 35 27 11 M18×1.5 M8 16.5 PT3/8 9 23 12 75 56.5 20 18 4
80 190 72 114 45 52 20 38 40 32 13 M22×1.5 M10 19 PT3/8 11.5 26.5 14 95 72 25 22 4
100 190 72 114 55 52 20 38 40 36 13 M26×1.5 M10 19 PT1/2 17 28.5 15 114 89 30 26 4
125 223 97 120 60 70 27 38 54 41 13.5 M27×2 M12 19 PT1/2 17 29 15 137 110 32 27 6

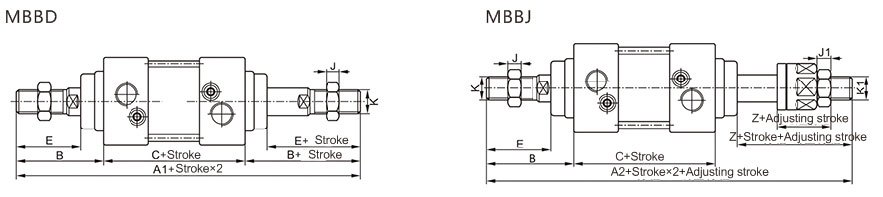

Symbol / Bore A1 A2 B C E J J1 Z K K1
32 178 171 47 84 34 6 6 27 M10×1.25 M10×1.25
40 186 176 51 84 38 8 7 28 M14×1.5 M12×1.25
50 210 195 58 94 44 11 8 29 M14×1.5 M16×1.5
63 210 195 58 94 44 11 8 29 M18×1.5 M16×1.5
80 258 241.5 72 114 52 13 10 35.5 M22×1.5 M20×1.5
100 258 248.5 72 114 52 13 13.5 42.5 M26×1.5 M27×2
125 314 286.5 97 120 70 13.5 13.5 42.5 M27×2 M27×2

Note: 1. the magnetic type is the same size as the non magnetic type.
2. the dimensions not marked are the same as those of MBB Standard Cylinder.

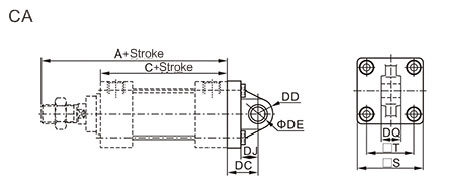

Symbol / bore A C S T DC DD DE DJ DQ
32 131 84 46 32.5 23 10.5 10 13 13.8
40 135 84 52 38 23 11 10 13 13.8
50 152 94 65 46.5 30 15 14 17 19.8
63 152 94 75 56.5 30 15 14 17 19.8
80 186 114 95 72 42 23 22 27 29.8
100 186 114 114 89 42 23 22 27 29.8
125 217 120 136 110 50 28 25 28 31.8

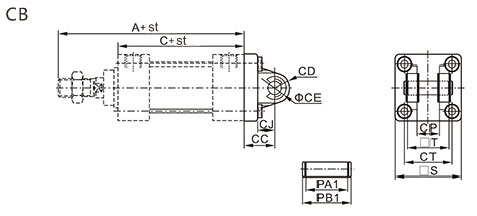

Symbol / bore A C CC CD CE CJ CP CT PA1 PB1 S T
32 131 84 23 10.5 10 14 14.2 32.5 28.8 34.6 46 28
40 135 84 23 11 10 14 14.2 38 28.8 34.6 52 28
50 152 94 30 15 14 18 20.2 46.5 40.8 47 65 40
63 152 94 30 15 14 18 20.2 56.5 40.8 47 75 40
80 186 114 42 23 22 27 30.2 72 60.8 69.2 95 60
100 186 114 42 23 22 27 30.2 89 60.8 69.2 114 60
125 217 120 50 28 25 32 32.2 110 64.8 73.2 136 64

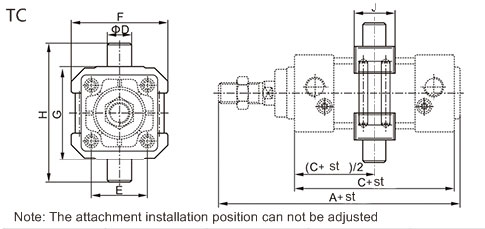

Symbol / bore A C D E F G H I
32 135 84 12 32.5 52 50 74 22
40 139 84 16 38 65 63 95 28
50 156 94 16 46.5 75 75 107 28
63 156 94 20 56.5 90 90 130 30
80 190 114 20 72 112 110 150 32
100 190 114 25 89 135 132 182 38
125 223 120 25 110 170 160 210 40

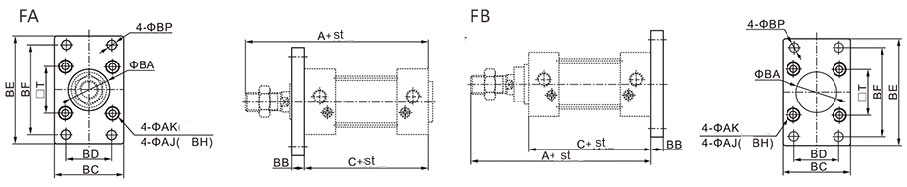

Symbol / bore A C AJ AK BA BB BC BD BE BF BH BP T
32 131 84 11 6.5 30.5 10 47 32 80 64 6.5 7 32.5
40 135 84 11 6.5 35.5 10 53 36 90 72 6.5 9 38
50 152 94 14 9 40.5 12 65 45 108 90 8.5 9 46.5
63 152 94 14 9 45.5 12 75 50 118 100 8.5 9 56.5
80 186 114 17 11 45.5 16 95 63 150 126 10.5 12.5 72
100 186 114 17 11 55.5 16 115 75 176 150 10.5 14.5 89
125 217 120 19 13 60.5 20 138 102 216 180 12.5 14 110

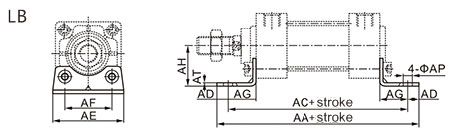

Symbol / bore AA AC AD AE AF AG AH AP AT
32 146 128 9 50 32 22 30 7 3
40 154 132 11 55 38 24 33 9 3
50 170 148 11 70 46 27 40 9 3
63 176 148 14 80 56 27 45 12 4
80 202 174 14 100 72 30 55 12 5
100 210 178 16 120 89 32 65 14 5
125 250 210 20 136 90 45 81 14 8

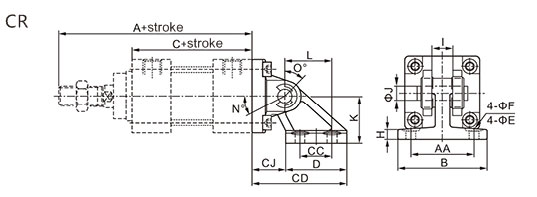

Symbol / bore A AA B C CC CD CJ D E F H I J K L N O N+O+90°
32 131 44 62 84 22 65 23 42 6.6 12 7 13.8 10 33 32 25 45 160
40 135 44 62 84 22 65 23 42 6.6 12 7 13.8 10 33 32 25 45 160
50 152 60 70 94 30 84.5 31.5 53 9 15 8 19.8 14 45 43 40 60 190
63 152 60 70 94 30 84.5 31.5 53 9 15 8 19.8 14 45 43 40 60 190
80 186 86 111 114 45 120 47 73 11 18 10 29.8 22 65 64 30 55 175
100 186 86 111 114 45 120 47 73 11 18 10 29.8 22 65 64 30 55 175
125 217 110 136 120 60 143 53 90 13.5 20 14 31.8 25 75 78 30 50 170

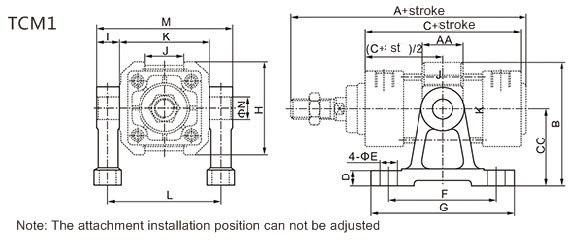

Symbol / bore A AA B C CC D E F G H I J K L M N
32 135 22 66 84 40 11 9 60 80 52 12 20 50 62 77 12
40 139 28 86.5 84 54 11 12 75 100 65 16 27 63 79 98 16
50 156 28 91.5 94 54 11 12 75 100 75 16 31 75 91 110 16
63 156 30 115 94 70 11 12 85 110 90 20 42 90 110 133 20
80 190 32 126 114 70 11 12 85 110 112 20 54 110 130 153 20
100 190 38 157.5 114 90 19 18 115 155 135 25 68 132 157 185 25
125 223 40 175 120 90 19 18 115 155 170 25 80 160 185 213 25

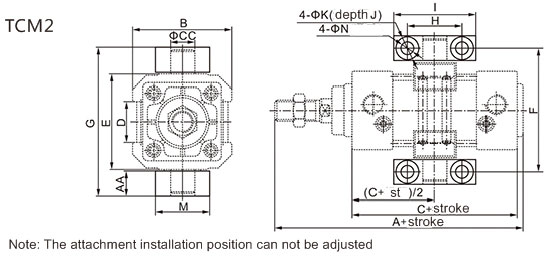

Symbol / bore A AA B C CC D E F G H I J K M N
32 135 14 52 84 12 20 50 66 80 32 46 6.8 11 30 7
40 139 17 65 84 16 27 63 82 99 36 55 9 15 36 9
50 156 17 75 94 16 31 75 94 111 36 55 9 15 36 9
63 156 20.5 90 94 20 42 90 113.5 134 42 65 11 18 40 11
80 190 20.5 112 114 20 54 110 133.5 154 42 65 11 18 40 11
100 190 24.5 135 114 25 68 132 159.5 184 50 75 14 20 50 14
125 223 24.5 170 120 25 80 160 187.5 212 50 75 14 20 50 14
