Double Rod Air Cylinder CXS

CXS Dual Rod Cylinders have thin double cylinder structure, high non-rotation accuracy and 2 times the output force, strong resistance to side load; cylinder can be fixed with screws in four directions, the position of the air supply port can be selected.

Bore: 6, 10, 15, 20, 25, 32mm
Motion Pattern: Double-acting
Operating pressure: 0.05~0.7MPa
Non-rotating accuracy: ± 0.1°
Ambient and fluid temperature: -10~+60°C (No Freezing)

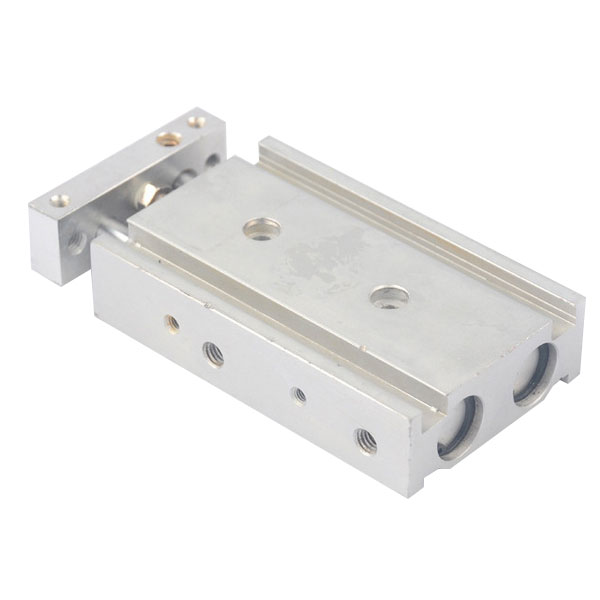

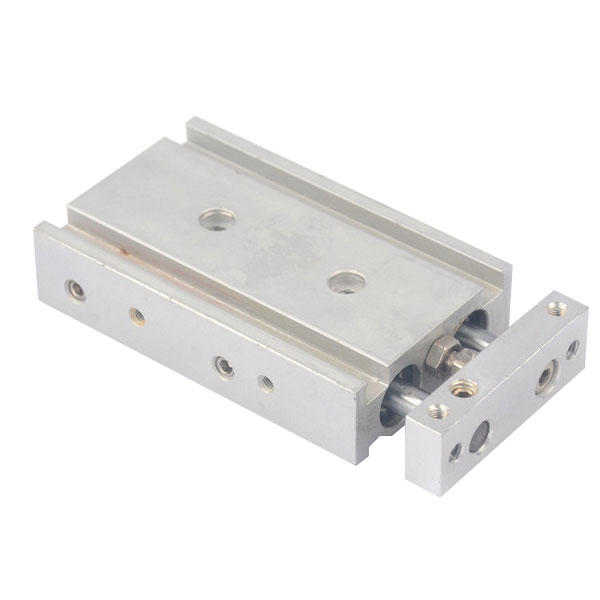

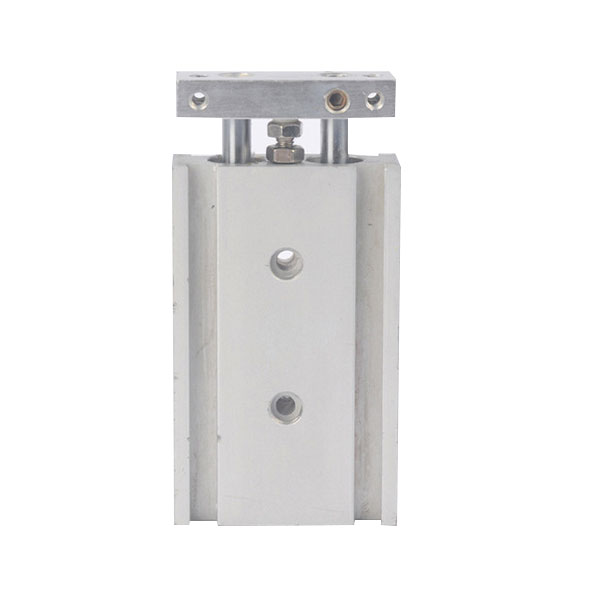

Product Images

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

Product Specifications
Product Details
Size Weight
Related Data
Product Video

Overview for CXS Dual Rod Cylinders

CXS Dual Rod Cylinders have thin double cylinder structure, high non-rotation accuracy and 2 times the output force, strong resistance to side load; cylinder can be fixed with screws in four directions, the position of the air supply port can be selected. The front end collision pad can adjust the stroke of the cylinder and relieve the impact. CXS Double Rod Cylinder is magnetically attached by default. CXS Dual Rod Cylinders is magnetically attached by default.

Specification for CXS Dual Rod Cylinders

Bore (mm)		6	10	15	20	25	32
Working Medium		Air
Motion Pattern		Double-acting
Max. Operating Pressure		0.7
Min. Operating Pressure		0.15	0.1		0.05
Ambient and Fluid Temp.		-10~60℃ (No Freezing)
Buffer		Rubber Bumper on Both Ends
Piston Speed mm/s		30~300	30~800	30~700		30~600
Structure		Double cylinder (2 times output force)
Lubrication		Non-lube
Stroke adjustment range		Retraction stroke 0~-5mm
Bearing		Sliding bearing/Ball bearing
Non-rotating accuracy of piston rod	Sliding bearing	±0.1°
	Ball bearing	±0.1°
Port Size Rc		M5×0.8				1/8

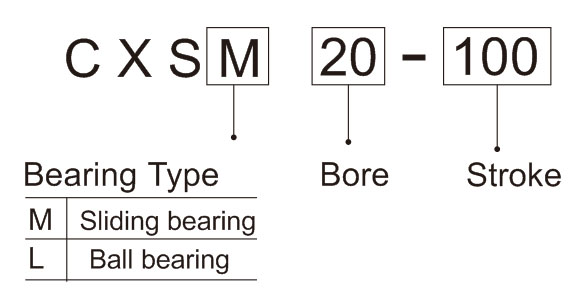

Ordering Code for CXS Dual Rod Cylinders

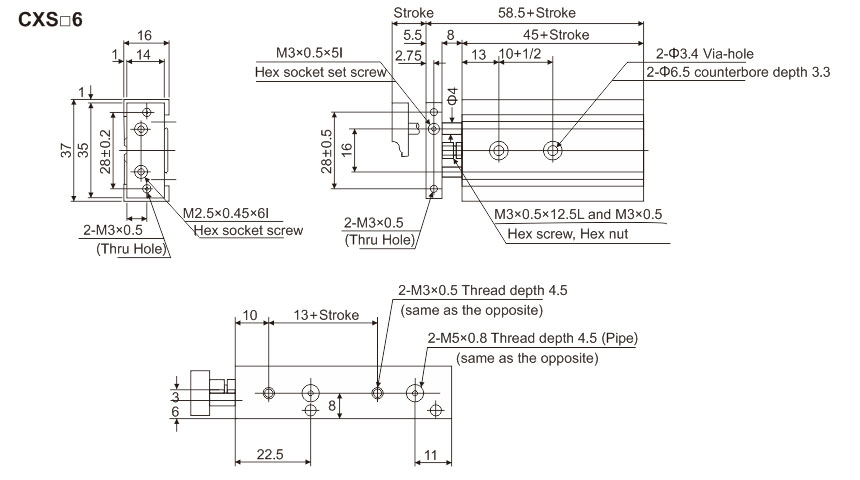

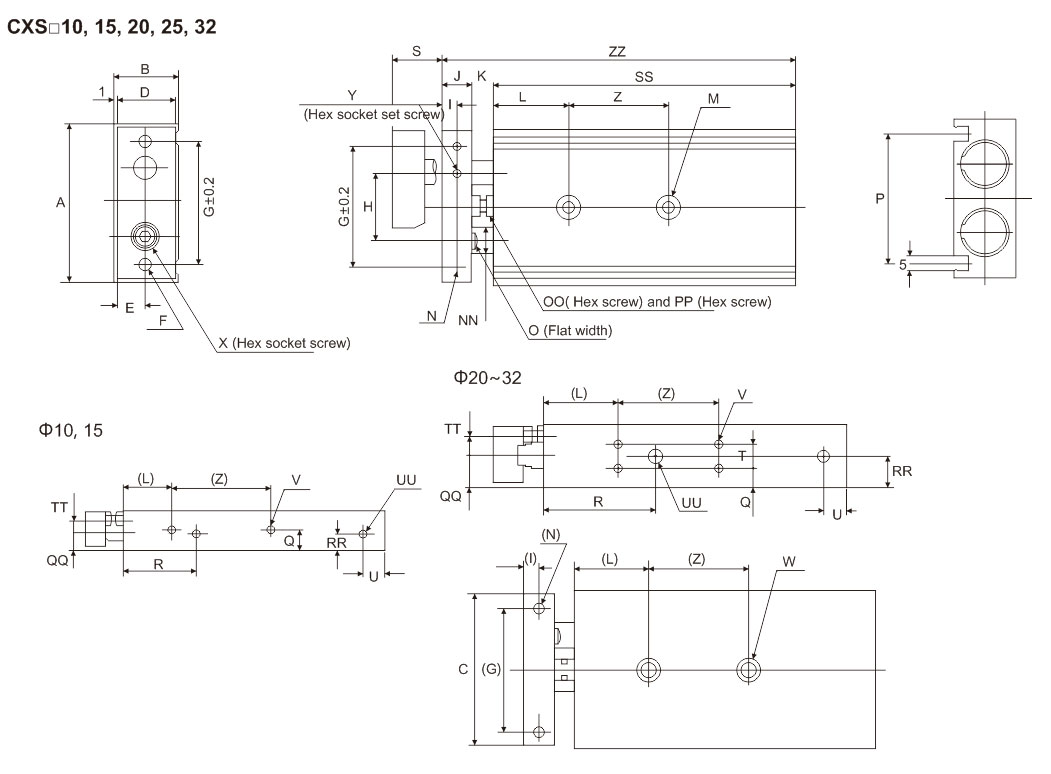

Dimension (mm) for CXS Dual Rod Cylinders

Model	Stroke	10+1/2 Stroke	13+Stroke	45+Stroke	58.5+Stroke
CXS□6-10	10	15	23	55	68.5
CXS□6-20	20	20	33	65	78.5
CXS□6-30	30	25	43	75	88.5
CXS□6-40	40	30	53	85	98.5
CXS□6-50	50	35	63	95	108.5

Model	A	B	C	D	E	F	G	H	I	J	K	L	M	N	NN	O	OO	P	PP	Q	QQ	R	RR	S	SS	T	TT	U	UU	V	W	X	Y	Z	ZZ
CXS□10-10 CXS□10-20 CXS□10-30 CXS□10-40 CXS□10-50	46	17	44	15	7.5	2-M4×0.7 (Thru Hole)	35	20	4	8	9	20	2-Φ3.4 Thru Hole 2-Φ6.5 Counterbore depth 3.3	2-M3×0.5 Thread depth 5	Φ6	5	M4×0.7×14.5L	33.6	M4×0.7	8.5	7	30	7	10 20 30 40 50	65 75 85 95 105	-	5	8	4-M5×0.8 Thread depth 4.5 (Air inlet) (same as the opposite)	4-M3×0.5 Thread depth 4.5 (same as the opposite)	2-M4×0.7 Thread depth 6	M3×0.5×10L	M3×0.5×5L	30	82
																																			92
																																			102
																																		40	112
																																			122
CXS□15-10 CXS□15-20 CXS□15-30 CXS□15-40 CXS□15-50	58	20	56	18	9	2-M5×0.8 (Thru Hole)	45	25	5	10	9	30	2-Φ4.3 Thru Hole 2-Φ8 Counterbore depth 4.4	2-M4×0.7 Thread depth 6	Φ8	6	M4×0.7×14.5L	48	M4×0.7	10	10	38.5	10	10 20 30 40 50	70 80 90 100 110	-	5	8	4-M5×0.8 Thread depth 4.5 (Air inlet) (same as the opposite)	4-M4×0.7 Thread depth 5 (same as the opposite)	2-M4×0.7 Thread depth 6	M5×0.8×10L	M4×0.7×4L	25	89
																																			99
																																			109
																																		35	119
																																			129
CXS□20-10 CXS□20-20 CXS□20-30 CXS□20-40 CXS□20-50 CXS□20-75 CXS□20-100	64	25	62	23	11.5	2-M5×0.8 (Thru Hole)	50	28	6	12	12	30	2-Φ5.5 Thru Hole 2-Φ9.5 Counterbore depth 5.3	2-M4×0.7 Thread depth 6	Φ10	8	M6×1.0×18.5L	53	M6×1.0	7.75	12.5	45	7.75	10 20 30 40 50 75 100	80 90 100 110 120 145 170	9.5	6.5	8	4-M5×0.8 Thread depth 4.5 (Air inlet) (same as the opposite)	8-M4×0.7 Thread depth 6 (same as the opposite)	2-M4×0.7 Thread depth 6	M6×1.0×12L	M5×0.8×5L	30	104
																																			114
																																		40	124
																																			134
																																			144
																																		60	169
																																			194
CXS□25-10 CXS□25-20 CXS□25-30 CXS□25-40 CXS□25-50 CXS□25-75 CXS□25-100	80	30	78	28	14	2-M6×1.0 (Thru Hole)	60	35	6	12	12	30	2-Φ6.9 Thru Hole 2-Φ11 Counterbore depth 6.3	2-M5×0.8 Thread depth 7.5	Φ12	10	M6×1.0×18.5L	64	M6×1.0	8.5	15	46	15	10 20 30 40 50 75 100	82 92 102 112 122 147 172	13	9	9	4-1/8 Thread depth 6.5 (Air inlet) (same as the opposite)	8-M5×0.8 Thread depth 7.5 (same as the opposite)	2-M4×0.7 Thread depth 6	M6×1.0×14L	M6×1.0×5L	30	106
																																			116
																																		40	126
																																			136
																																			146
																																		30	171
																																			196
CXS□32-10 CXS□32-20 CXS□32-30 CXS□32-40 CXS□32-50 CXS□32-75 CXS□32-100	98	38	96	36	18	2-M6×1.0 (Thru Hole)	75	44	8	16	14	30	2-Φ6.9 Thru Hole 2-Φ11 Counterbore depth 6.3	2-M5×0.8 Thread depth 8	Φ16	13	M8×1.25×23L	76	M8×1.25	9	19	56	19	10 20 30 40 50 75 100	92 102 112 122 132 157 182	20	11.5	10	4-1/8 Thread depth 6.5 (Air inlet) (same as the opposite)	8-M5×0.8 Thread depth 7.5 (same as the opposite)	2-M8×1.25 Thread depth 12	M8×1.25×16L	M8×1.25×8L	40	122
																																			132
																																		60	142
																																			152
																																			162
																																		70	187
																																			212
