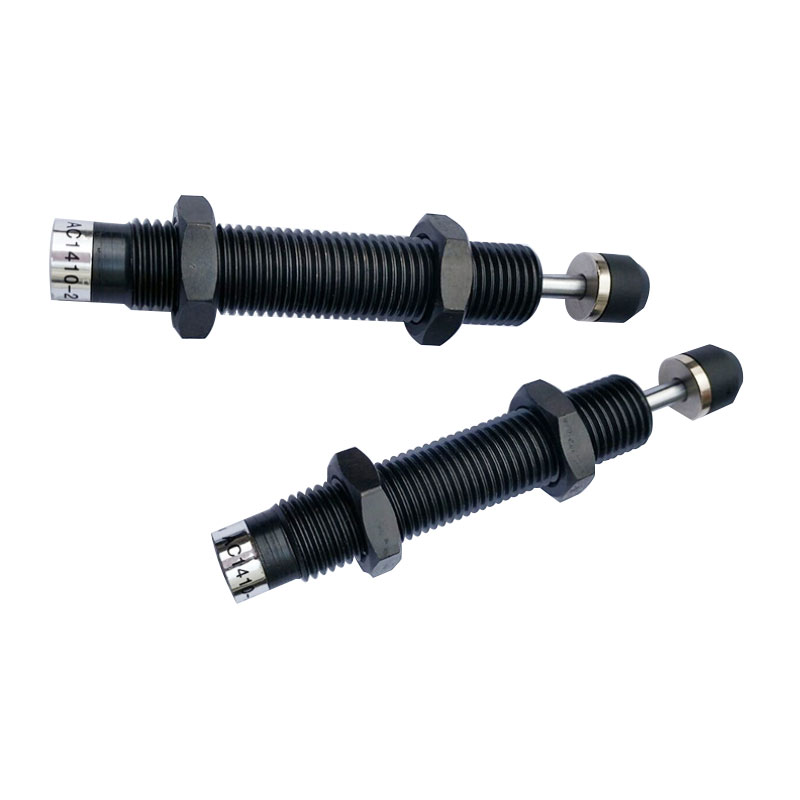

Overview for Pneumatic Air Lubricator Oil Sprayer AC
1. Eliminate the force required for non mechanical vibration, impact damage and other shocks;
2. Reduce noise;
3. Speed up mechanical action frequency and increase production capacity;
4. Extend the mechanical life;
5. Scope of application: manipulator, mechanical arm, feeding equipment, screen printing machine, conveyor and other machinery.

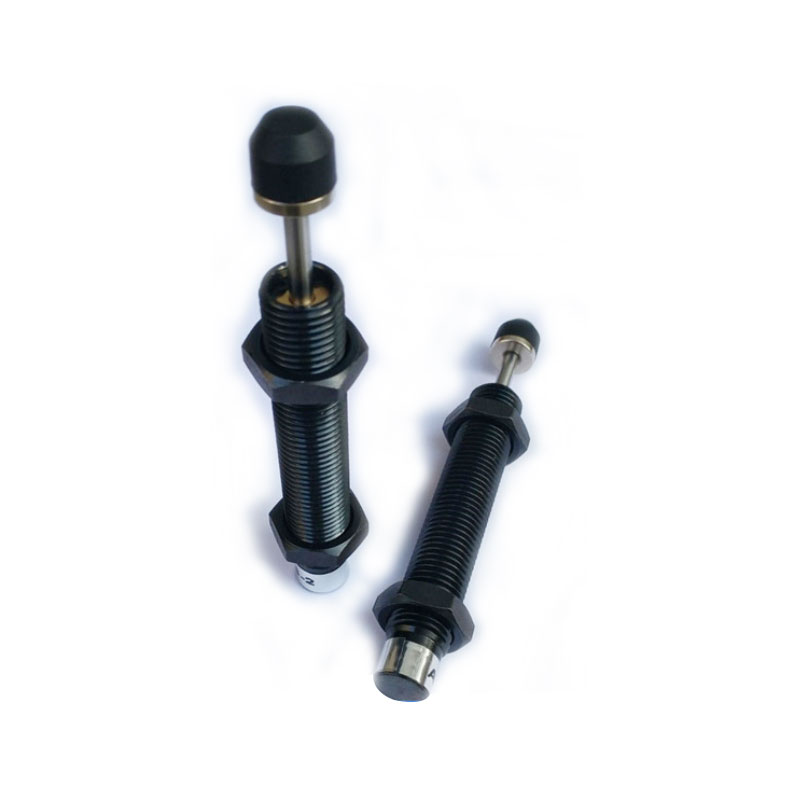

Technical Parameters for Pneumatic Air Lubricator Oil Sprayer AC
Stroke (mm): 5,6,8,10,12,16,20,25,40,50,60
Max. absorbed energy: 2,3,4,5,10,15,20,40,60,80,120,250
Working temp: -10~80℃

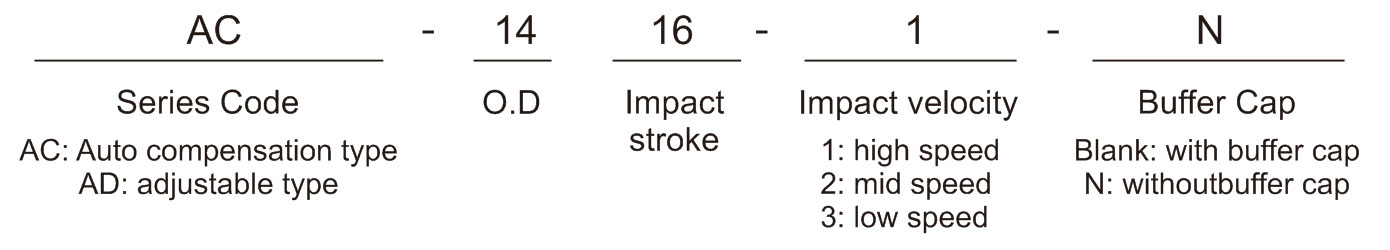

Ordering Code for Pneumatic Air Lubricator Oil Sprayer AC Series
Technical Parameter for Pneumatic Air Lubricator Oil Sprayer AC Series
| Model |
Stroke (mm) |
Max. absorbed energy |
Absorbed energy per hour |
Max. effective weight |
Max. impact velocity m/s |
Working temp.
℃ |
Weight
g |
| 1 |
2 |
3 |
1 |
2 |
3 |
| AC0806 |
6 |
2 |
1200 |
0.5 |
2 |
6 |
2 |
1 |
0.5 |
-10~80 |
11 |
| AC1005 |
5 |
3 |
3600 |
1 |
3 |
7 |
3 |
1.5 |
0.8 |
-10~80 |
14 |
| AC1008 |
8 |
4 |
5000 |
2 |
4 |
9 |
3 |
1.5 |
0.8 |
-10~80 |
20 |
| AC1210 |
10 |
5 |
10000 |
5 |
10 |
30 |
2 |
1.5 |
0.8 |
-10~80 |
31.5 |
| AC1412 |
12 |
15 |
30000 |
8 |
50 |
100 |
3 |
1.5 |
0.8 |
-10~80 |
80 |
| AC1416 |
16 |
20 |
35000 |
10 |
70 |
150 |
3 |
1.5 |
0.8 |
-10~80 |
90 |
| AC2020 |
20 |
40 |
40000 |
30 |
200 |
700 |
3.5 |
2 |
1 |
-10~80 |
215 |
| AC2050 |
50 |
60 |
60000 |
60 |
400 |
1200 |
3.5 |
2 |
1 |
-10~80 |
300 |
| AC2525 |
25 |
80 |
70000 |
200 |
800 |
1500 |
4 |
2.5 |
1 |
-10~80 |
330 |
| AC2540 |
40 |
120 |
75000 |
300 |
1200 |
2000 |
4 |
2.5 |
1 |
-10~80 |
430 |
| AC3660 |
60 |
250 |
120000 |
400 |
1500 |
2400 |
4 |
2.5 |
1 |
-10~80 |
1030 |

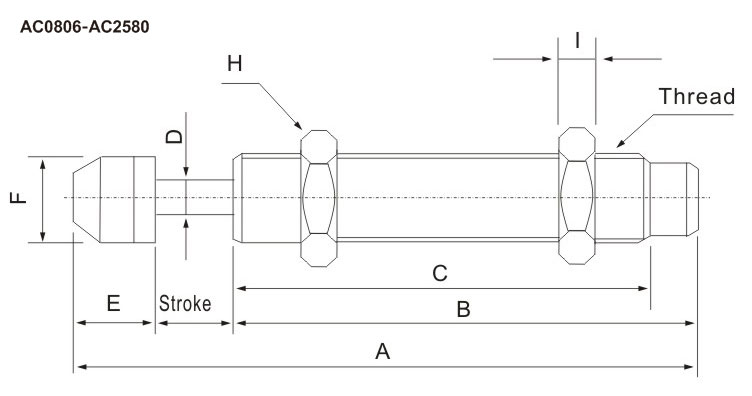

Overall Dimension for Pneumatic Air Lubricator Oil Sprayer AC Series
Specification and selection
| Model |
Nominal thread |
Stroke (mm) |
A |
B |
C |
D |
E |
F |
H |
I |
| AC0806 |
M8×1 |
6 |
50.5 |
38 |
33 |
3 |
6 |
6.6 |
11 |
3 |
| AC1005 |
M10×1 |
5 |
38.7 |
27.7 |
22.9 |
3 |
6 |
8.6 |
14 |
4 |
| AC1008 |
M10×1 |
8 |
57.5 |
43 |
38 |
3 |
6 |
8.6 |
14 |
4 |
| AC1210 |
M12×1 |
10 |
70 |
50 |
45.5 |
3 |
9.5 |
10.3 |
16 |
4 |
| AC1412 |
M14×1.5 |
12 |
103 |
76 |
67 |
4 |
14.3 |
12 |
19 |
5 |
| AC1416 |
M14×1.5 |
16 |
126 |
95 |
86 |
4 |
14.3 |
12 |
19 |
5 |
| AC1420 |
M14×1.5 |
20 |
129.3 |
95 |
86 |
4 |
14.3 |
12 |
19 |
5 |
| AC2016 |
M20×1.5 |
16 |
129.5 |
95 |
84 |
6 |
18 |
18 |
27 |
6 |
| AC2020 |
M20×1.5 |
20 |
148.5 |
110 |
100 |
6 |
18 |
18 |
27 |
6 |
| AC2030 |
M20×1.5 |
30 |
158.5 |
110 |
100 |
6 |
18 |
18 |
27 |
6 |
| AC2050 |
M20×1.5 |
50 |
210.8 |
142.3 |
131.3 |
6 |
18 |
18 |
27 |
6 |
| AC2525 |
M25×1.5 |
25 |
156 |
111 |
101 |
8 |
19.5 |
22 |
32 |
8 |
| AC2550 |
M25×1.5 |
50 |
240.5 |
170.5 |
100 |
8 |
19.5 |
22 |
32 |
8 |
| AC2580 |
M25×1.5 |
80 |
337 |
237 |
100 |
8 |
19.5 |
22 |
32 |
8 |

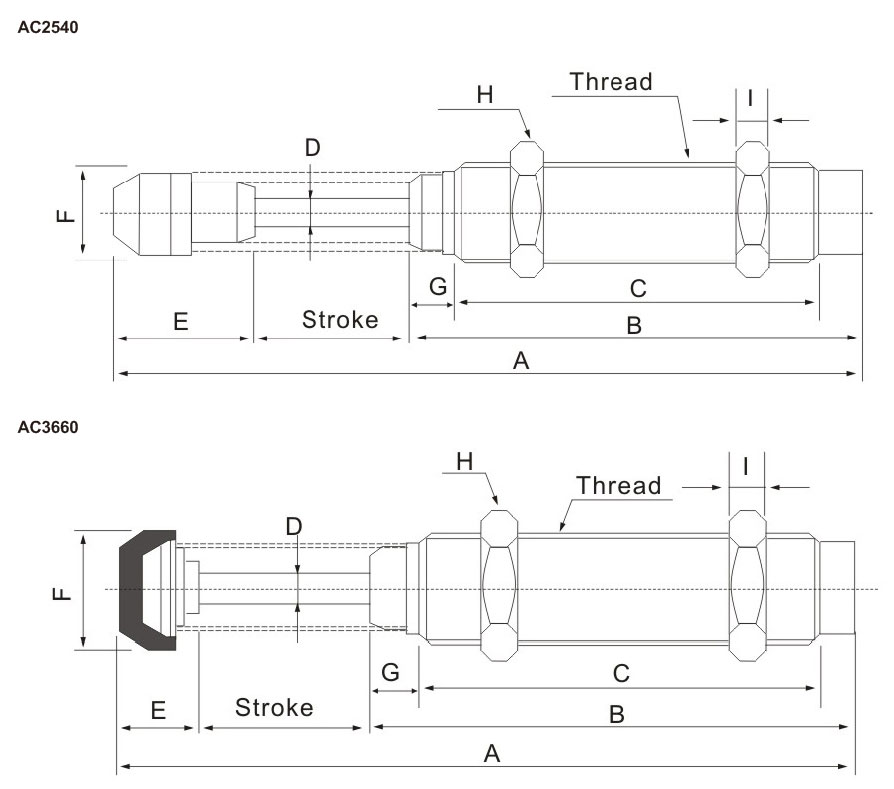

| Model |
Nominal thread |
Stroke (mm) |
A |
B |
C |
D |
E |
F |
G |
H |
I |
| AC2540 |
M25×1.5 |
40 |
212.7 |
127 |
115 |
8 |
25.6 |
22 |
9.4 |
32 |
10 |
| AC3660 |
M36×1.5 |
60 |
248.5 |
162 |
134 |
10 |
26 |
35 |
17 |
46 |
15 |
