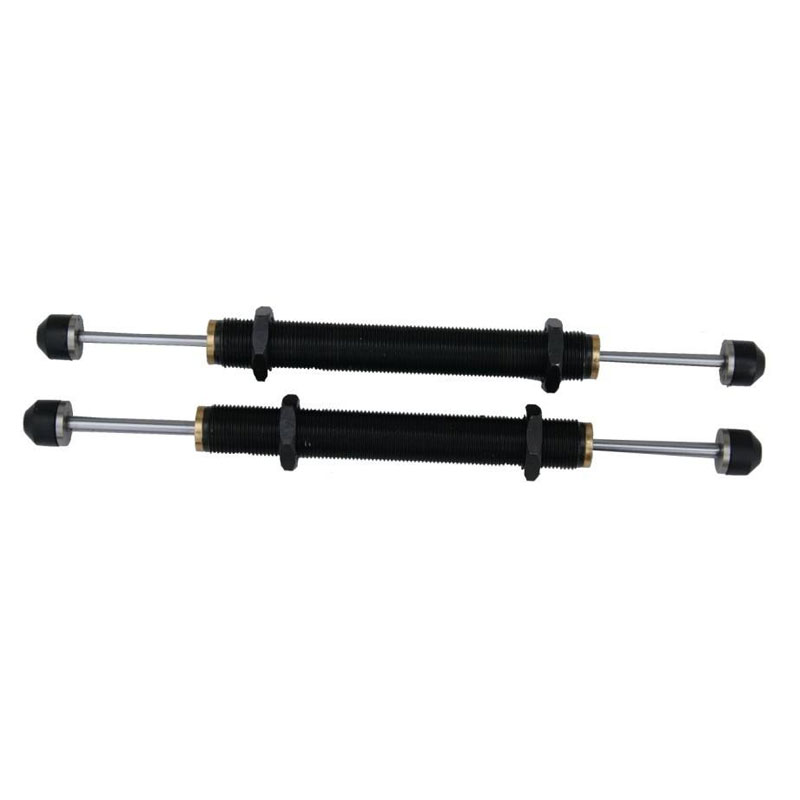

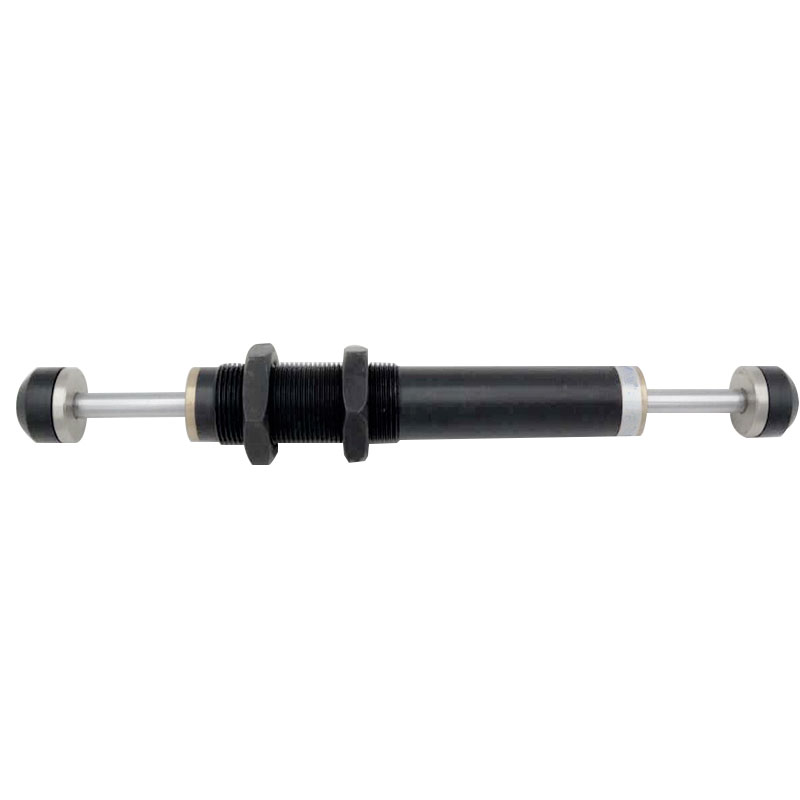

Overview for Pneumatic Air Lubricator Oil Sprayer ACD
The oil buffer can effectively absorb the vibration and noise generated by high-speed motion, convert kinetic energy into heat energy and release it into the atmosphere, so tthe object can stop balanced and effectively in each action.
In the mechanical devices, an impact occurs when a moving body stops rapidly. It will bring several problems:
1. Produce impact noise;
2. Loosen the coupling fasteners;
3. Generate vibration to reduce the positioning accuracy of the device;
4. Deformation, etc., to reduce the service life of the device;
5. Shock and vibration, easy to make the electrical switch of the device malfunction, resulting in accidents.
Technical Parameters for Pneumatic Air Lubricator Oil Sprayer ACD
Stroke (mm): 30,35MM
Max. absorbed energy: 45,52
Absorbed energy per hour: 54000,62400
Tempreture: -10~80℃

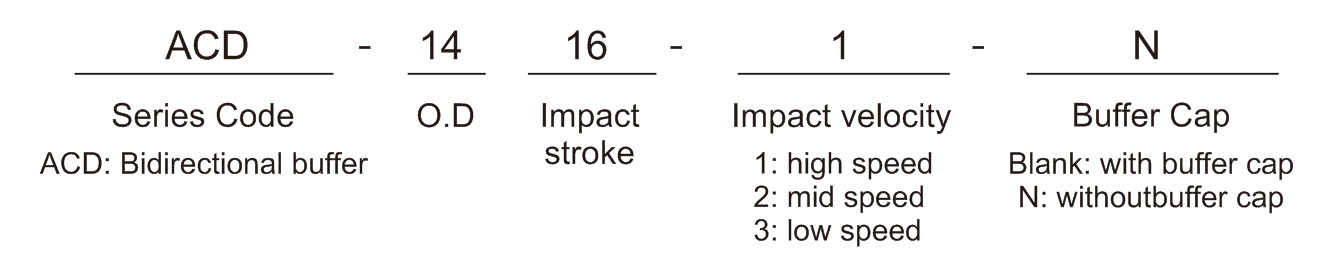

Ordering Code for Pneumatic Air Lubricator Oil Sprayer ACD Series
Technical Parameter for Pneumatic Air Lubricator Oil Sprayer ACD Series
| Model |
Stroke
(mm) |
Max. absorbed energy |
Absorbed energy per hour |
Max. effective weight |
Max. impact velocity m/s |
Tempreture ℃ |
| ACD-2030-1 |
30 |
45 |
54000 |
40 |
3.5 |
-10~80 |
| ACD-2030-2 |
30 |
45 |
54000 |
300 |
2.0 |
-10~80 |
| ACD-2035-1 |
35 |
52 |
62400 |
40 |
3.5 |
-10~80 |
| ACD-2035-2 |
35 |
52 |
62400 |
200 |
2.0 |
-10~80 |

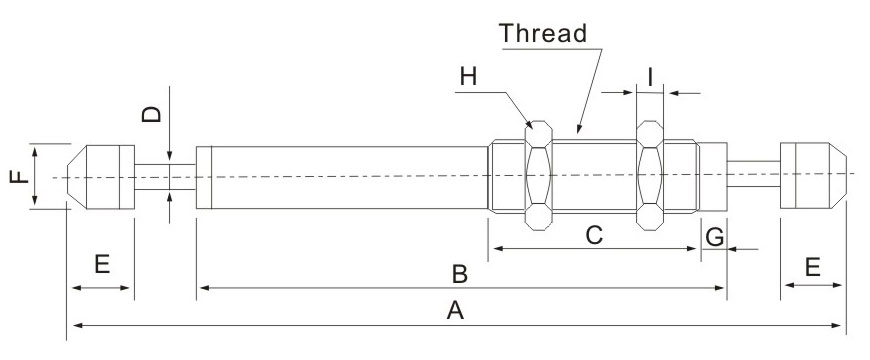

Overall Dimension for Pneumatic Air Lubricator Oil Sprayer ACD Series
| Model |
Nominal thread |
Stroke (mm) |
A |
B |
C |
D |
E |
F |
G |
H |
I |
| ACD2030-1 |
M20×1.5 |
30 |
189 |
123 |
44 |
6 |
18 |
18 |
3 |
26 |
8 |
| ACD2030-2 |
M20×1.5 |
30 |
189 |
123 |
44 |
6 |
18 |
18 |
3 |
26 |
8 |
| ACD2035-1 |
M20×1.5 |
35 |
223 |
123 |
40 |
6 |
15 |
18 |
5 |
26 |
8 |
| ACD2035-2 |
M20×1.5 |
35 |
223 |
123 |
40 |
6 |
15 |
18 |
5 |
26 |
8 |
