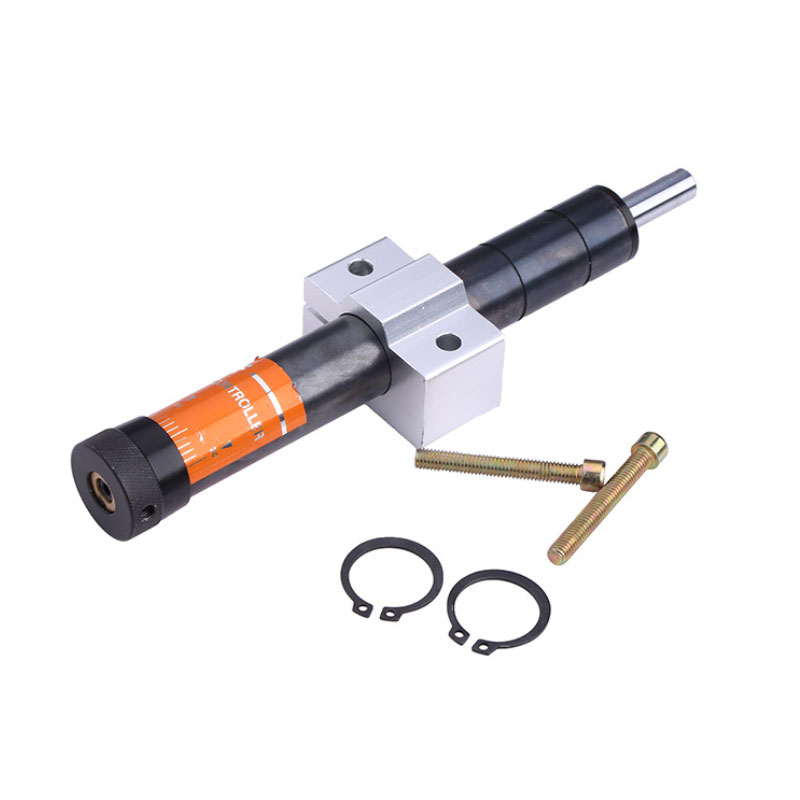

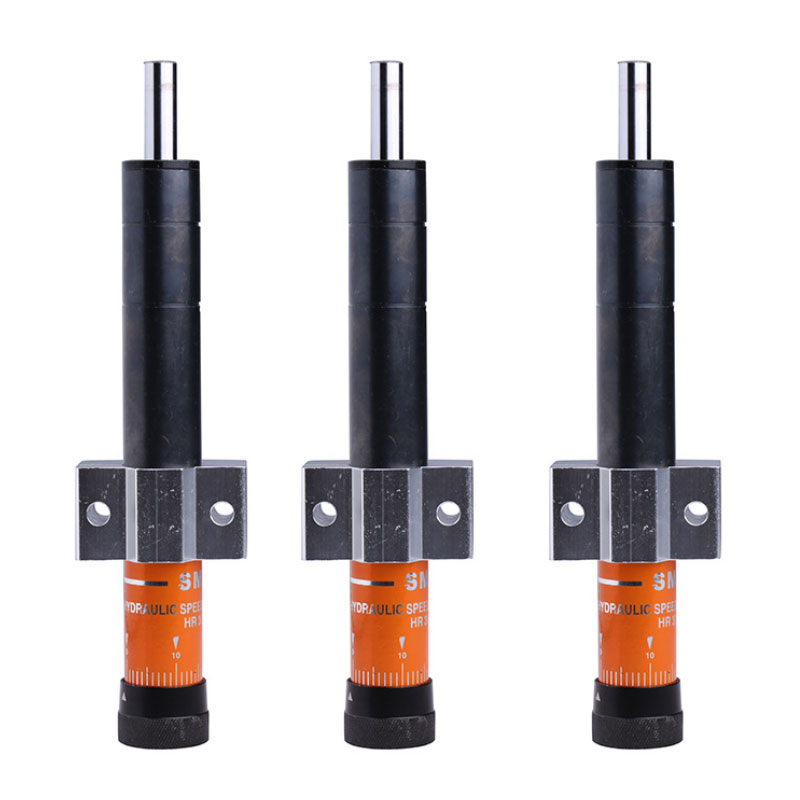

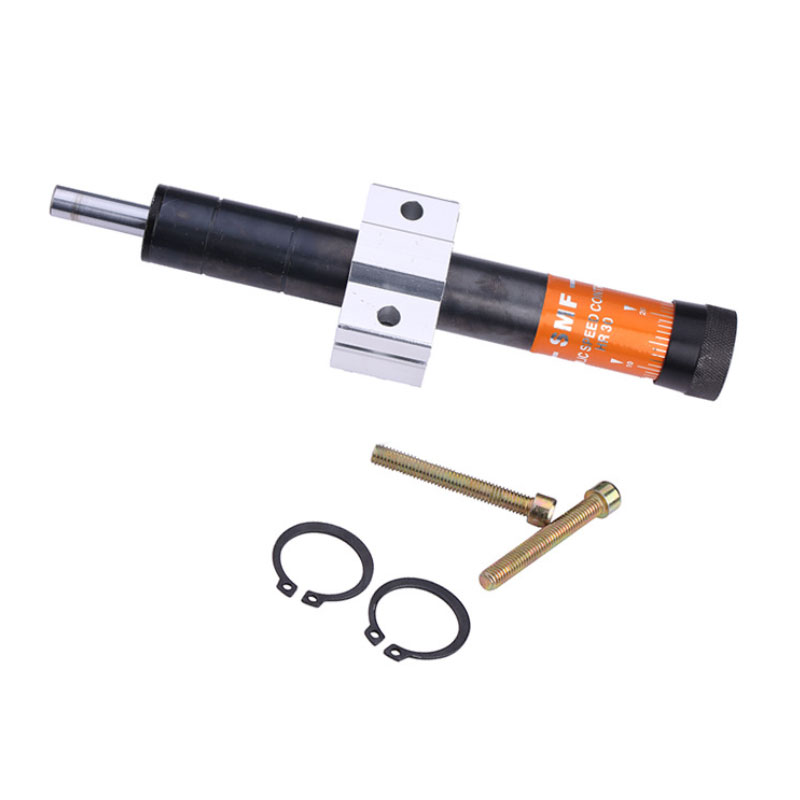

Overview for Pneumatic Air Lubricator Oil Sprayer SR
1. It can control continuously and stably for a long time, and the stroke adopts spring return.
2. It adopts a completely sealed structure and does not leak oil, and has a dustproof effect, which is suitable for various special environments.
3. When using, the viscosity of the hydraulic oil is still quite stable under the change of temperature, so the speed stabilization function is very strong.
4. Small size, easy to install, suitable for manipulators, pneumatic cylinder automatic machinery, speed control drilling machine, grinding machine and cutting machine.
Technical Parameters for Pneumatic Air Lubricator Oil Sprayer SR
Max. stroke (mm): 15,30,60,80,100
Max. load: 15~350kg/f
Working temperature: 0~60℃

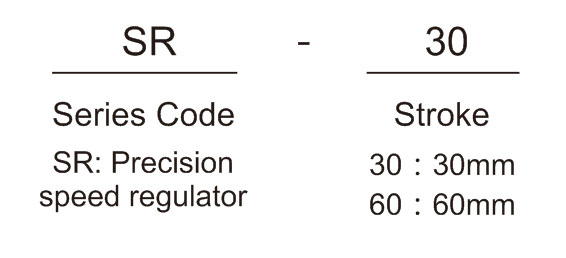

Ordering Code for Pneumatic Air Lubricator Oil Sprayer SR Series

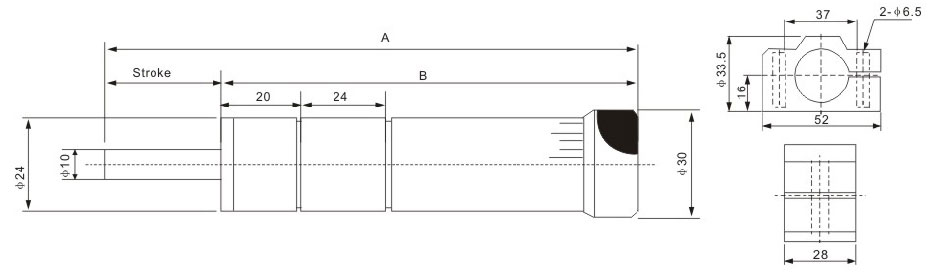

Overall Dimension for Pneumatic Air Lubricator Oil Sprayer SR Series
Specification and selection for Pneumatic Air Lubricator Oil Sprayer SR Series
| Model |
A |
B |
Max. stroke (mm) |
Working temperature (℃) |
Max. load (kg/f) |
Weight (g) |
| SR15 |
151 |
136 |
15 |
0~60 |
15~350 |
470 |
| SR30 |
202 |
172 |
30 |
0~60 |
15~350 |
495 |
| SR60 |
286 |
225 |
60 |
0~60 |
15~350 |
615 |
| SR80 |
337 |
256 |
80 |
0~60 |
15~350 |
690 |
| SR100 |
390 |
290 |
100 |
0~60 |
15~350 |
765 |
