Filter Regulator Lubricator - Pneumatic Air Lubricator | AL10

Pneumatic Air Lubricator | AL



In pneumatic components, cylinders, pneumatic motors or valves often have internal sliding parts, in order to make its movement flexible, durable, generally need to add lubricating oil. Pneumatic Air Lubricator | AL is a special oiling device. Its function is to atomize the lubricating oil and inject it into the air, with the air flow into the parts needing lubrication, to achieve the purpose of lubrication.

Working principle: when the compressed air passes through the Pneumatic Air Lubricator, it produces a pressure drop between the oil chamber and the oil monitor, which causes the oil to rise through the oil suction pipe and is injected into the compressed air through the nozzle, the oil droplets are atomized and flow out with the compressed air.The main performance indexes of the Pneumatic Air Lubricator are flow characteristics, fogging air flow and oil mist particle.

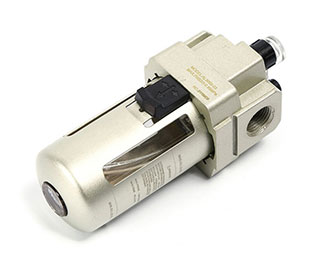

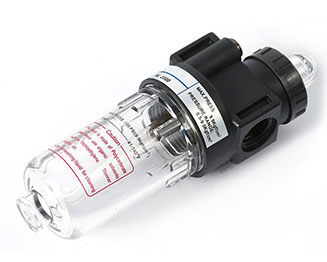

  • Pneumatic Air Lubricator AL

    The oil dropping structure of AL Lubricator adopts the clearance seal form, to make the oil supply regulation more stable and reliable. Oil supply regulation can also rotate a circle, the volume of the oil is basically linear, the oil volume can be estimated roughly according to the calibration position.

    Working Medium: Compressed Air
    Proof Pressure: 1.5MPa
    Ambient temperature: 5~60℃
    Filtration aperture: 40μm(routine) or 5μm(customized)
    Range of pressure regulation: 0.05~0.85MPa
    Learn more

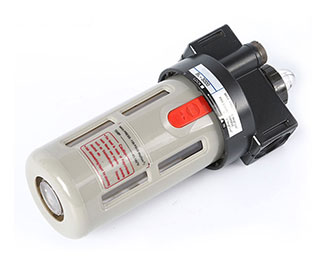

  • Pneumatic Air Lubricator AL/BL

    Lubricator A/B Series uses balanced air intake, equipped with overflow device. It has the advantages of stable pressure precision, sensitive reaction and firm locking. Lubricator A/B Series can be freely combined with other air source treatment products.

    Working Medium: Compressed Air
    Proof Pressure: 1.5MPa
    Ambient temperature: 5~60℃
    Filtration aperture: 40μm(routine) or 5μm(customized)
    Lubrication: ISO VG32
    Learn more

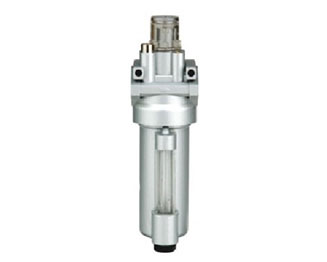

  • Pneumatic Air Lubricator AL (New)

    AL Air Lubricators are the special oiling device. It atomizes the lubricator and injects it into the air, as the compressed air flows into the lubrication part, it achieves the purpose of lubrication.

    Working Medium: Compressed Air
    Proof Pressure: 1.5MPa
    Ambient temperature: 5~60℃
    Lubrication: ISO VG32
    Range of pressure regulation: 0.05~0.85MPa
    Learn more

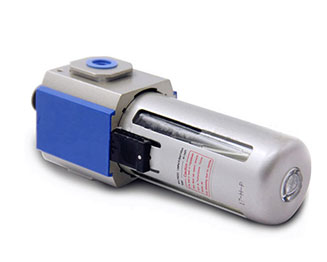

  • Pneumatic Air Lubricator GL

    GL Air Lubricators can lubricate the moving parts of the body, lubricate the parts which are inconvenient to add lubricant, prolong the service life of the body greatly. When installing, please pay attention to cleaning connection pipes and joints, and avoid dirt coming into the piping.

    Working Medium: Compressed Air
    Proof Pressure: 1.5MPa
    Ambient temperature: -20~70℃
    Filtration aperture: 40μm(routine) or 5μm(customized)
    Max. Operating Pressure: 0.85MPa
    Learn more

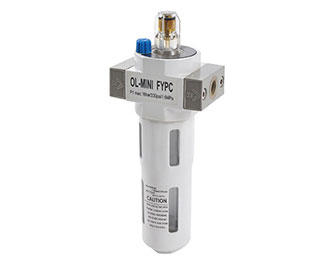

  • Mini Pneumatic Air Lubricator L200A

    Miniature Lubricator L200A is a special oiling device. Its function is to atomize the lubricating oil and inject it into the air, with the air flow into the parts needing lubrication, to achieve the purpose of lubrication.

    Working Medium: Compressed Air
    Proof Pressure: 1.0MPa
    Ambient temperature: -10~60℃
    Lubrication: ISO VG32 or the same grade oil
    Max. Operating Pressure: 0.8MPa
    Learn more

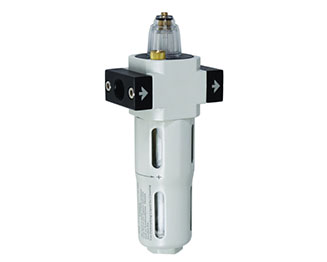

  • Pneumatic Air Lubricator L

    L Series Compressed Air Lubricator is a special oiling device. Its function is to atomize the lubricating oil and inject it into the air, with the air flow into the parts needing lubrication, to achieve the purpose of lubrication.

    Working Medium: Compressed Air
    Proof Pressure: 1.6MPa
    Ambient temperature: 5~60℃
    Filtration aperture: 40μm(routine) or 5μm(customized)
    Max. Operating Pressure: 1.2MPa
    Learn more

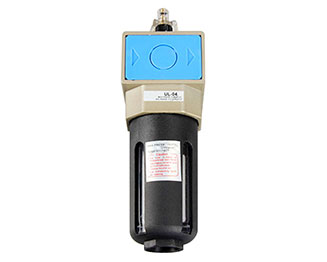

  • Pneumatic Air Lubricator UL

    Air Lubricators is the last process in compressed air treatment equipment, the atomized lubricating oil is added to clean instrument air to lubricate the equipment and instruments which are not easy to add lubricating oil and prolong the service life of the equipment.

    Working Medium: Compressed Air
    Proof Pressure: 1.5MPa
    Ambient temperature: -10~60℃
    Lubrication: ISO VG32 or the same grade oil
    Max. Operating Pressure: 0.9MPa
    Learn more

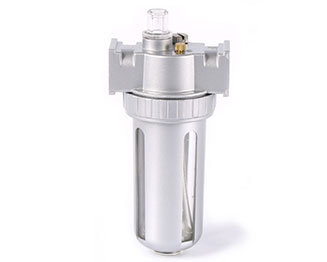

  • Pneumatic Air Lubricator NL (Explosion Proof)

    Air Lubricator NL is a special oiling device. Its function is to atomize the lubricating oil and inject it into the air, with the air flow into the parts needing lubrication, to achieve the purpose of lubrication.

    Working Medium: Compressed Air
    Proof Pressure: 1.5MPa
    Ambient temperature: 5~60℃
    Lubrication: ISO VG32
    Max. Operating Pressure: 1.0MPa
    Learn more
  • Pneumatic Air Lubricator SL

    SL200 Air Lubricator is the last working procedure in compressed air treatment equipment, the atomized lubricating oil is added to clean instrument air to lubricate the equipment and instruments which are not easy to add lubricating oil and prolong the service life of the equipment.

    Working Medium: Compressed Air
    Proof Pressure: 1.5MPa
    Ambient temperature: 5~60℃
    Lubrication: ISO VG32
    Max. Operating Pressure: 0.85MPa
    Learn more

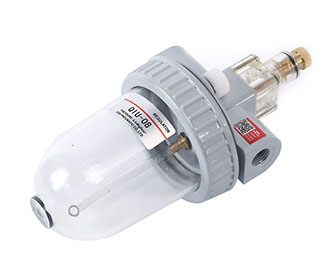

  • Pneumatic Air Lubricator QIU

    The oil window of QIU-10 Pneumatic Lubricator is transparent, and the oil dropping situation can be clearly observed. The oil bowl is made of transparent material, which can clearly observe the amount of oil.

    Working Medium: Compressed Air
    Proof Pressure: 1.5MPa
    Ambient temperature: 5~60℃
    Lubrication: ISO VG32
    Max. Operating Pressure: 0.8MPa
    Learn more
