Pneumatic Air Lubricator AL

The oil dropping structure of AL Lubricator adopts the clearance seal form, to make the oil supply regulation more stable and reliable. Oil supply regulation can also rotate a circle, the volume of the oil is basically linear, the oil volume can be estimated roughly according to the calibration position.

Working Medium: Compressed Air
Proof Pressure: 1.5MPa
Ambient temperature: 5~60℃
Filtration aperture: 40μm(routine) or 5μm(customized)
Range of pressure regulation: 0.05~0.85MPa

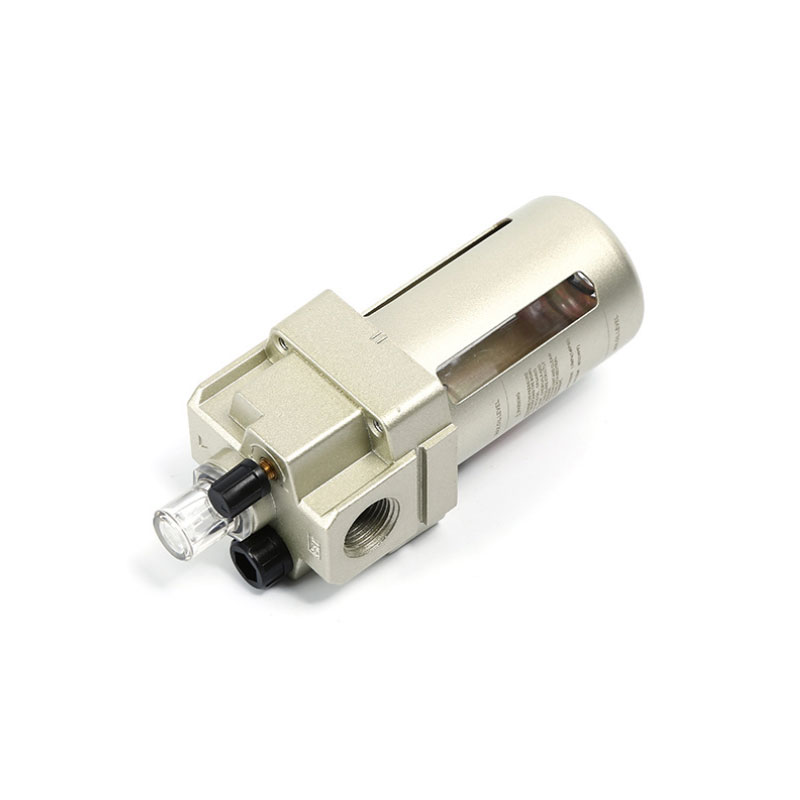

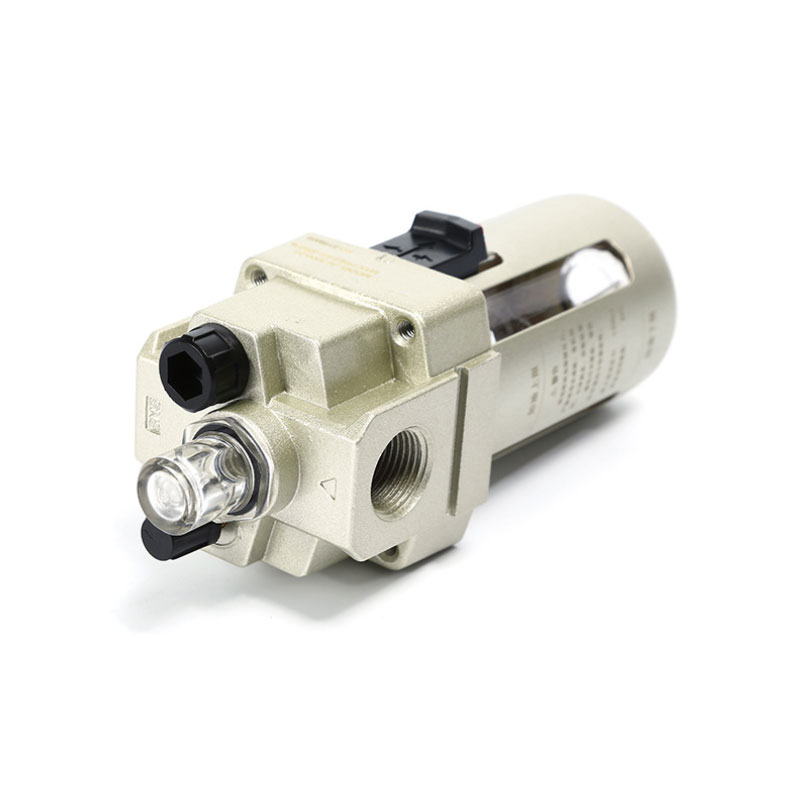

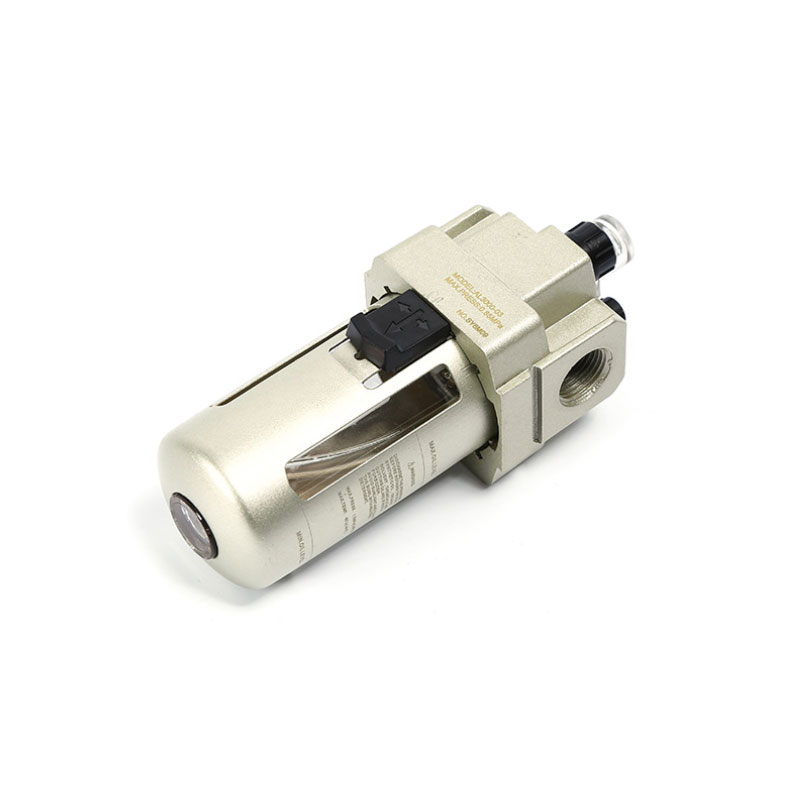

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Product Features for AL Lubricator

The oil dropping structure of AL Lubricator adopts the clearance seal form, to make the oil supply regulation more stable and reliable.
Oil supply regulation can also rotate a circle, the volume of the oil is basically linear, the oil volume can be estimated roughly according to the calibration position.
AL2000 Lubricator from Pneumatic Air Lubricator AL China Manufacturer Suppliers uses the special drip nozzle structure to make negative pressure generated at the outlet of the dripping oil and the flow rate is low.
The capacity of the oil bowl is large.

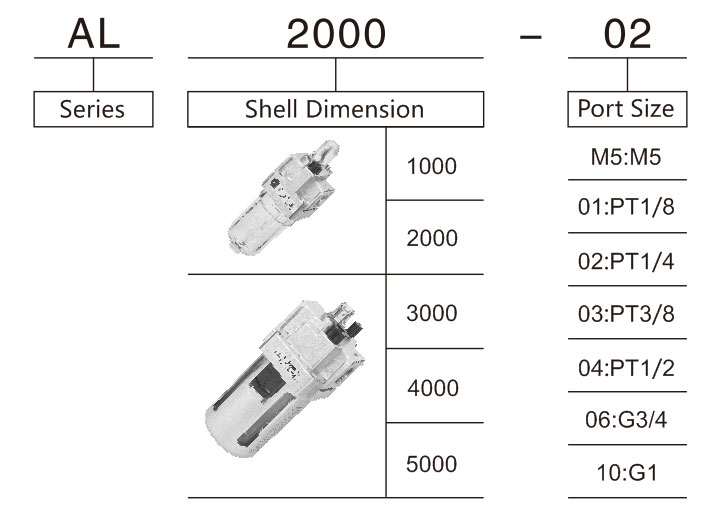

Ordering Code for AL Lubricator

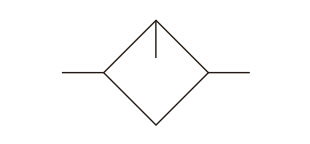

Symbol for AL Lubricator

Technical Parameter for AL Lubricator

Model AL1000-M5 AL2000-01 AL2000-02 AL3000-02 AL3000-03 AL4000-03 AL4000-04 AL4000-06 AL5000-06 AL5000-10
Port Size M5×0.8 PT1/8 PT1/4 PT1/4 PT3/8 PT3/8 PT1/2 PT3/4 G3/4 G1
Capacity of oil bowl (ml) 7 25 25 50 50 130 130 130 130 130
Rated Flow (L/min) 95 800 800 1700 1700 5000 5000 6300 7000 7000
Working Medium Compressed Air
Proof Pressure 1.5MPa
Max. Operating Pressure 0.85MPa
Ambient temperature 5~60℃
Lubrication ISO VG32
Bracket (1) B240A
Main parts material Body material Aluminium Alloy
Bowl material PC
Bowl guard AL1000~AL2000: no; AL3000~AL5000: yes (iron)

Note: Rated flow is at the supply pressure of 0.7MPa.

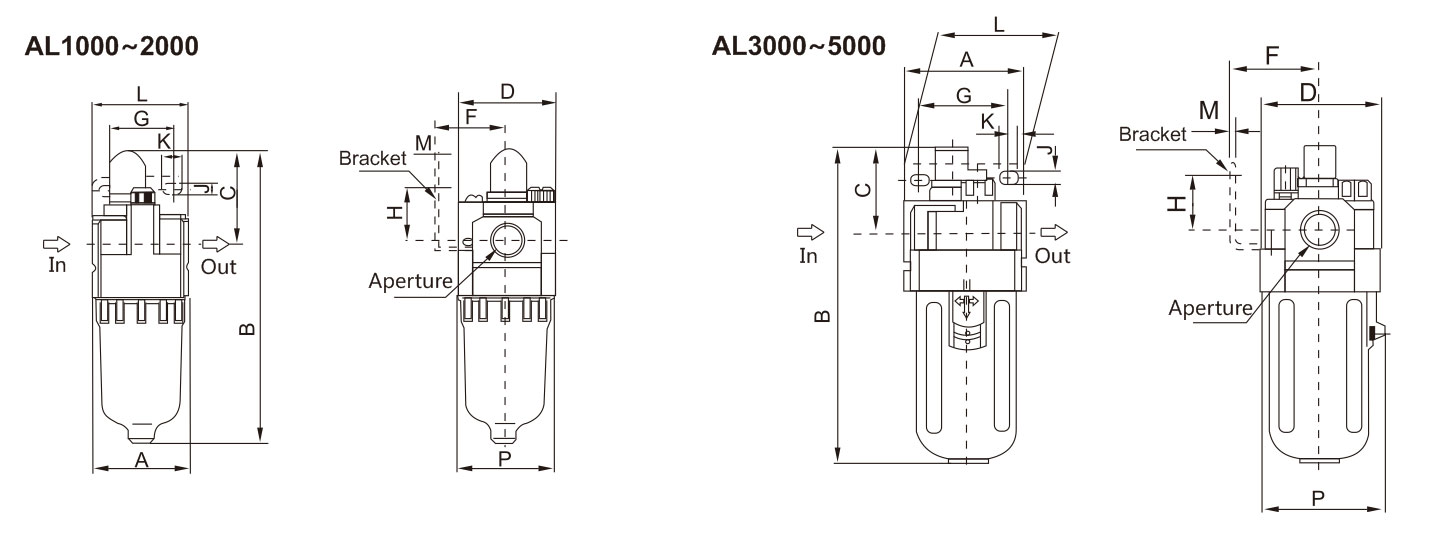

Overall Dimension

Model Aperture A B C D F G H J K L M P
AL1000 M5×0.8 25 81.5 25.5 25 - - - - - - - 27
AL2000 PT1/8,PT1/4 40 122 38 40 30 27 22 5.4 8.4 40 2.3 40
AL3000 PT1/4,PT3/8 53 152 38 53 41 40 23 6.5 8.0 53 2.3 56
AL4000 PT3/8,PT1/2 70 177 41 70 50 54 26 8.5 10.5 70 2.3 73
AL4000-06 G3/4 75 177 39 70 50 54 25 8.5 10.5 70 2.3 73
AL5000 G3/4,G1 90 254 45 90 70 66 35 11 13 90 3.2 90
