Pneumatic Air Lubricator AL/BL

Lubricator A/B Series uses balanced air intake, equipped with overflow device. It has the advantages of stable pressure precision, sensitive reaction and firm locking. Lubricator A/B Series can be freely combined with other air source treatment products.

Working Medium: Compressed Air
Proof Pressure: 1.5MPa
Ambient temperature: 5~60℃
Filtration aperture: 40μm(routine) or 5μm(customized)
Lubrication: ISO VG32

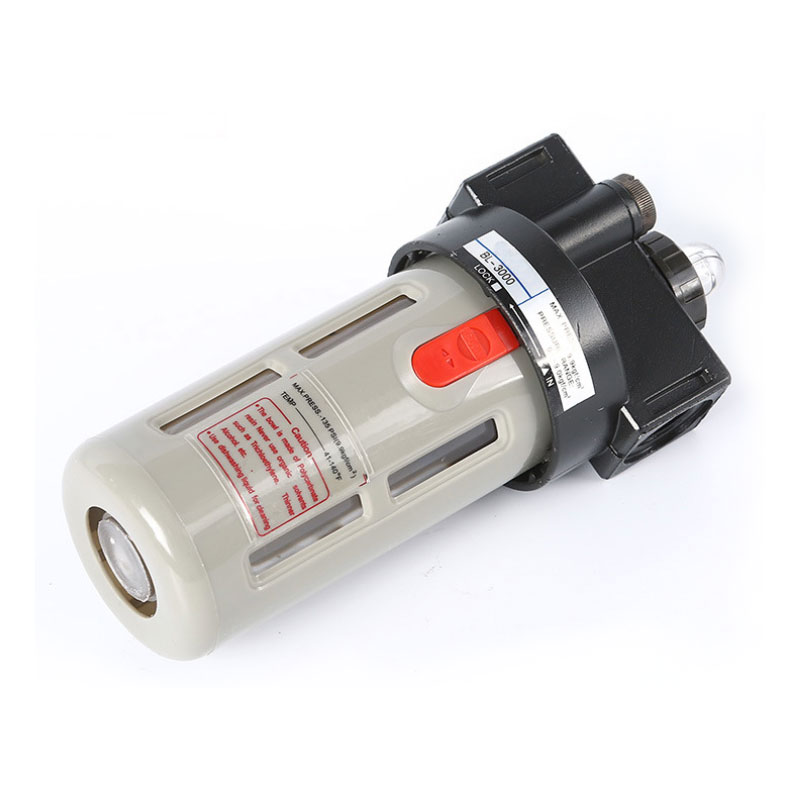

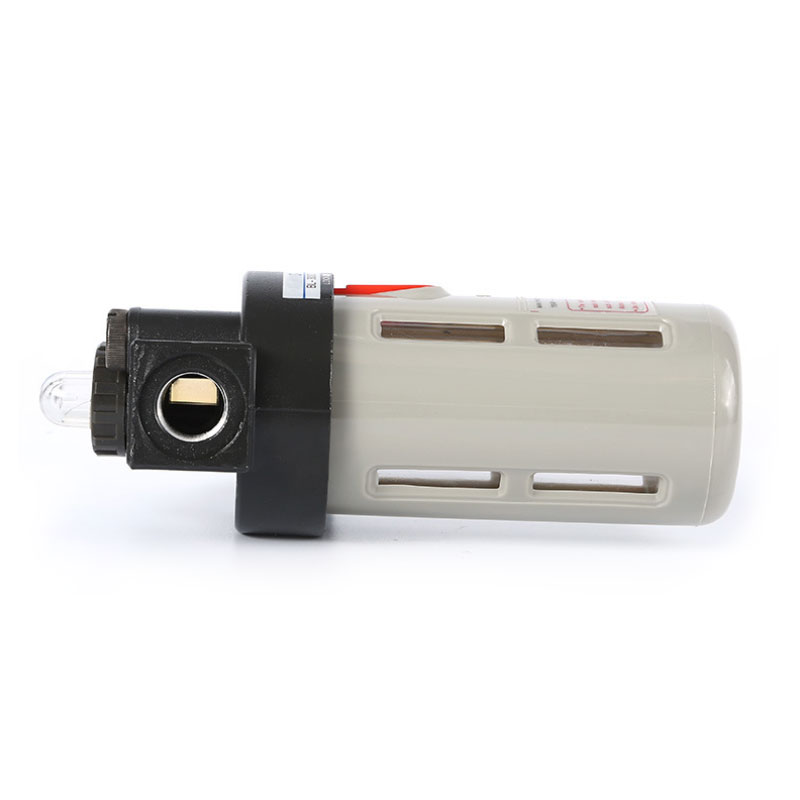

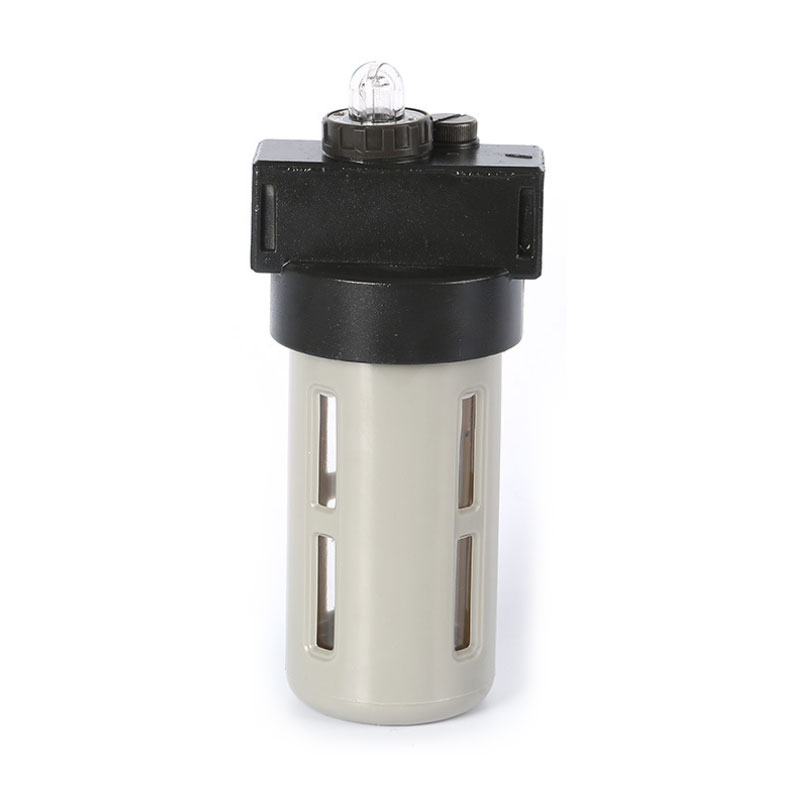

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Overview for Lubricator A/B Series

Lubricator A/B Series uses balanced air intake, equipped with overflow device. It has the advantages of stable pressure precision, sensitive reaction and firm locking. Lubricator A/B Series from Pneumatic Air Lubricator AL China Manufacturer Suppliers can be freely combined with other air source treatment products.

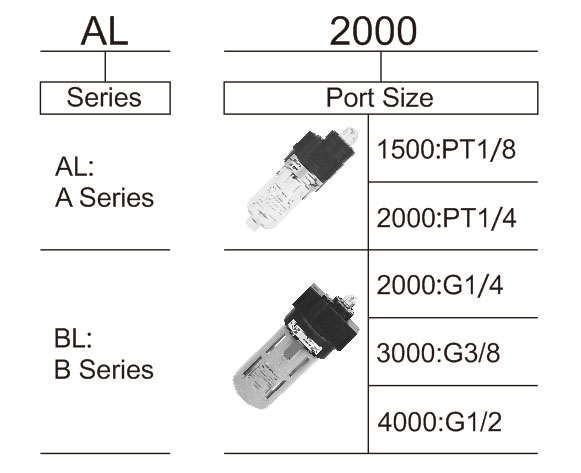

Ordering Code for Lubricator A/B Series

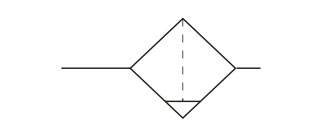

Symbol for Lubricator A/B Series

Technical Parameter for Lubricator A/B Series

Model AL1500 AL2000 BL2000 BL3000 BL4000
Port Size PT1/8 PT1/4 G1/4 G3/8 G1/2
Working Medium Compressed Air
Proof Pressure 1.5MPa
Ambient temperature 5~60℃
Lubrication ISO VG32
Capacity of oil bowl 15ml 90ml
Main parts material Body material Aluminium Alloy
Bowl material PC
Bowl guard AL1500~AL2000: no; BL2000~BL4000: yes (Plastics)

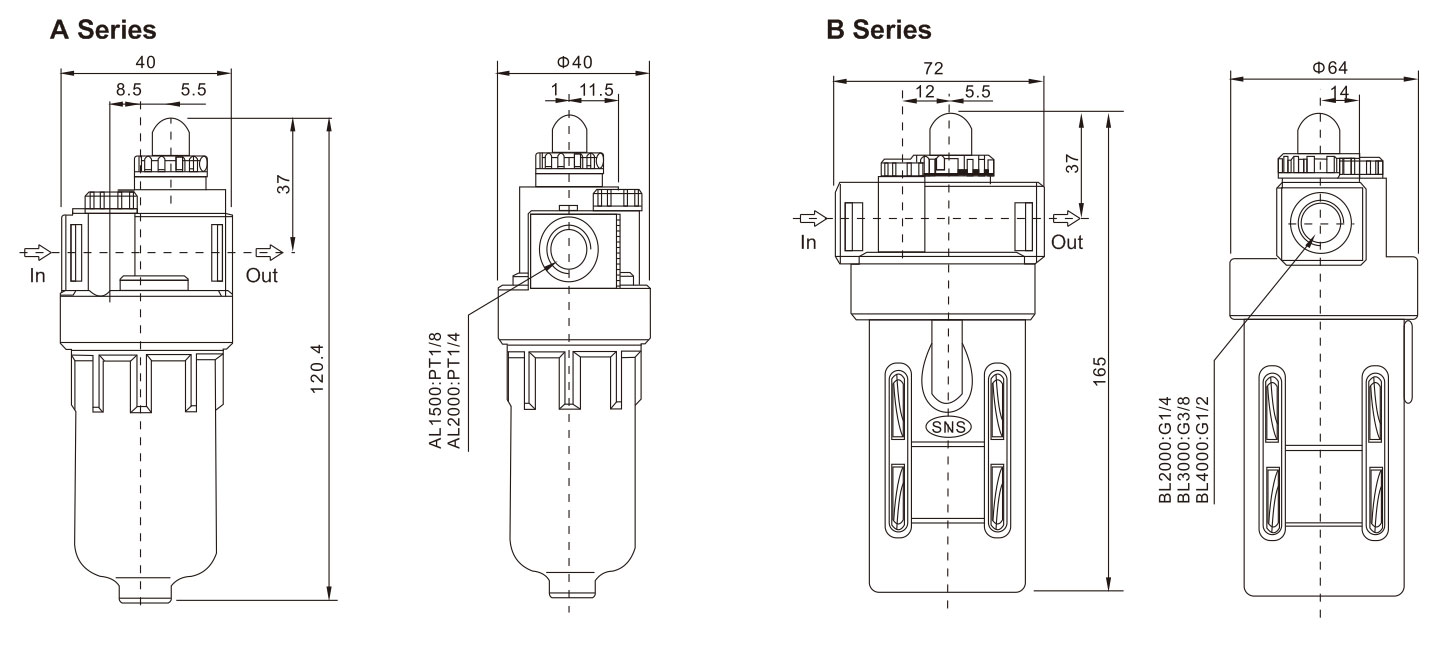

Overall Dimension

Keywords:

Lubricator A/B Series
