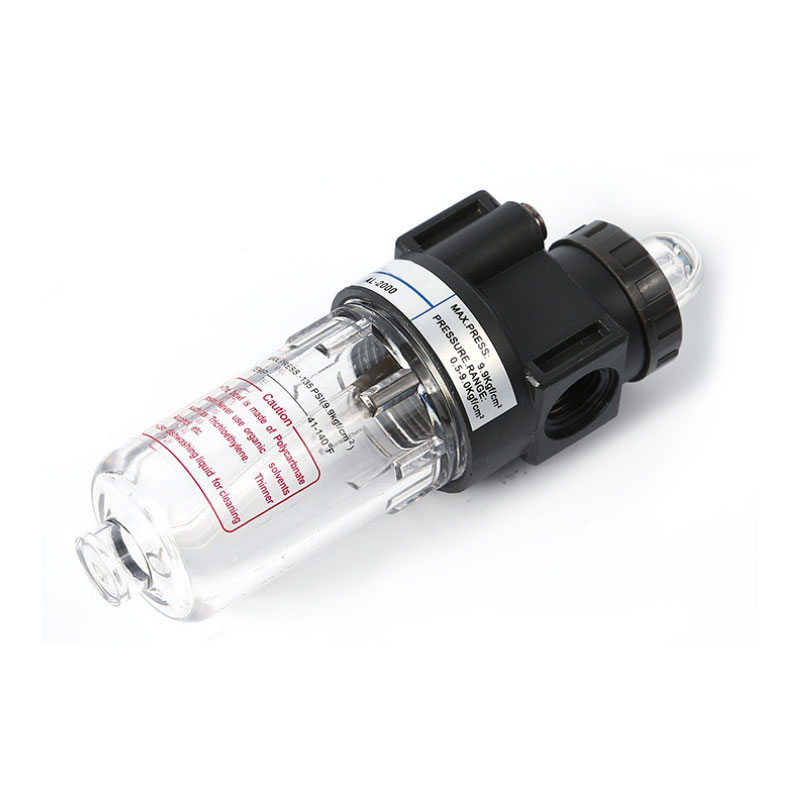

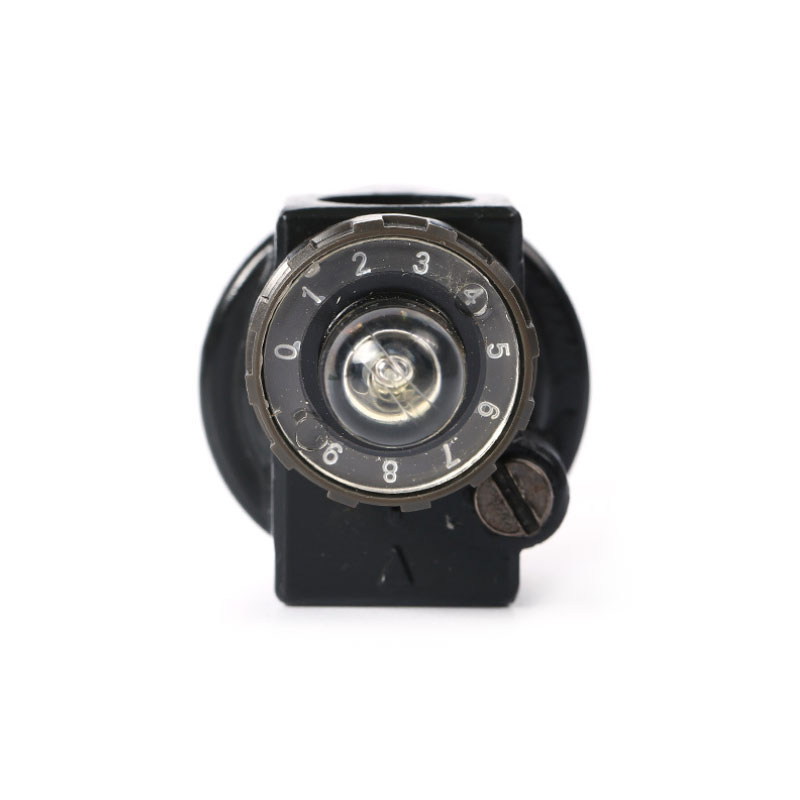

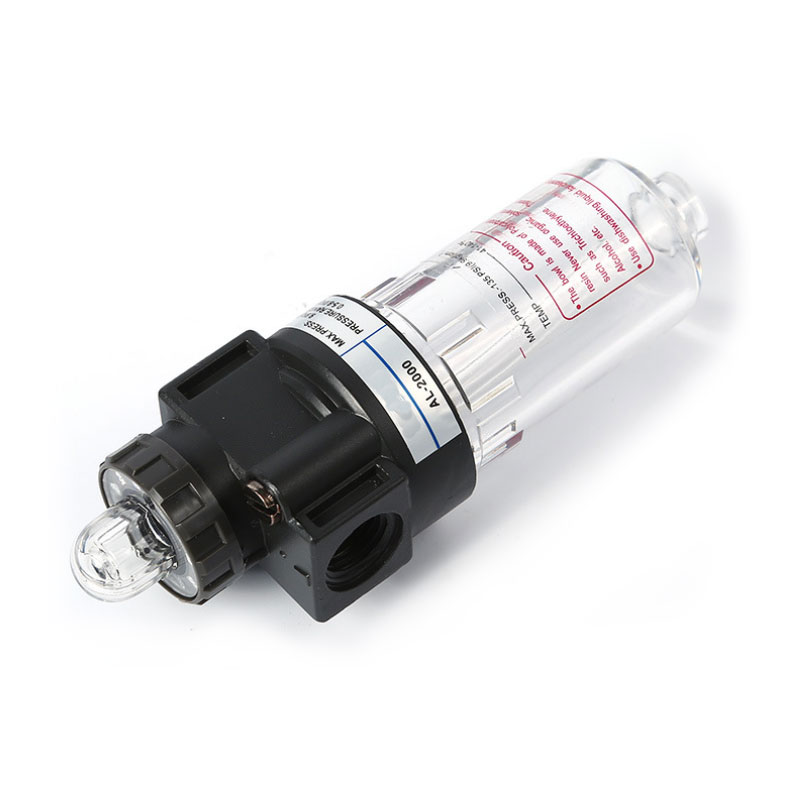

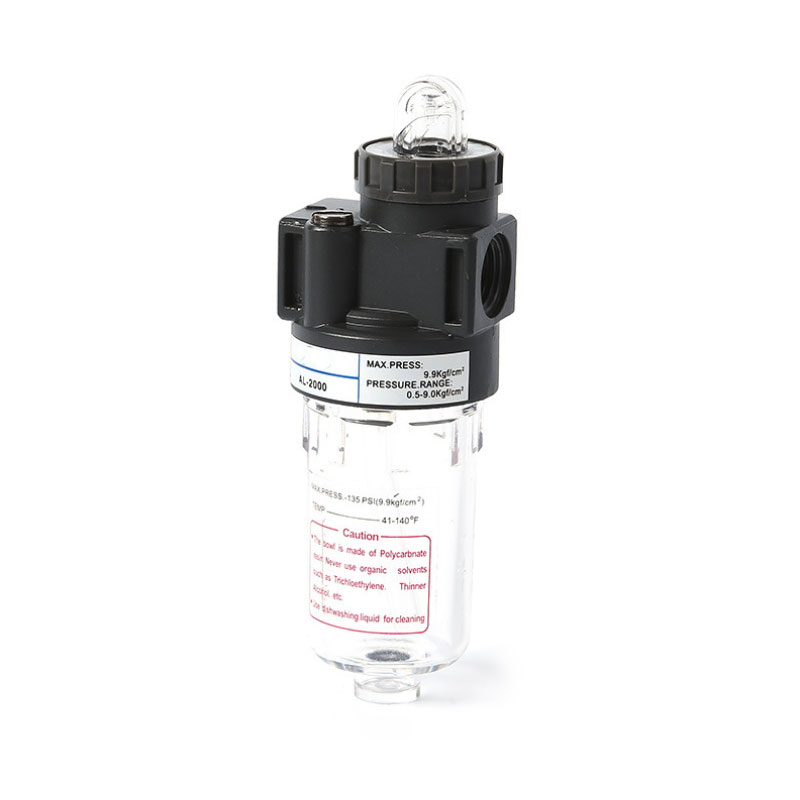

Overview for AL Air Lubricators
AL2000-01, AL2000-02, AL3000-02, AL3000-03, AL4000-03, AL4000-04, AL4000-06, AL5000-06, AL5000-10.
AL Air Lubricators are the special oiling device. It atomizes the lubricator and injects it into the air, as the compressed air flows into the lubrication part, AL Air Lubricators from
Pneumatic Air Lubricator AL China Manufacturer Suppliers achieve the purpose of lubrication.
Product Features for AL Air Lubricators
1. The structure is light and compact, easy to install and use.
2. The pressing self locking mechanism can prevent the setting pressure from being disturbed by external disturbances.
3. The pressure loss is small and the water separation efficiency is high.
4. Transparent inspection for oil mass.
5. in addition to the standard type, there is another low pressure can be selected (Max. adjustable pressure 0.4MPa).

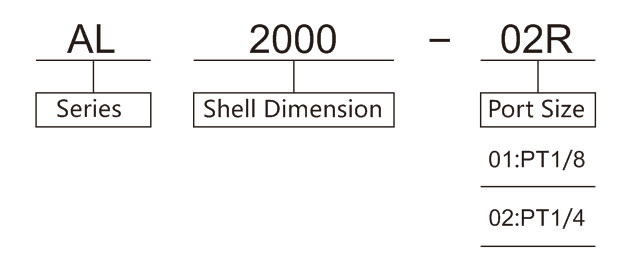

Ordering Code for AL Air Lubricators
Symbol for AL Air Lubricators
Technical Parameter for AL Air Lubricators
| Model |
AL2000-01R |
AL2000-02R |
| Port Size |
PT1/8 |
PT1/4 |
| Capacity of oil bowl (ml) |
25 |
25 |
| Rated Flow (L/min) |
800 |
800 |
| Working Medium |
Compressed Air |
| Proof Pressure |
1.5MPa |
| Max. Operating Pressure |
0.85MPa |
| Ambient temperature |
5~60℃ |
| Lubrication |
ISO VG32 |
| Bracket (1) |
B240A |
| Main parts material |
Body material |
Aluminium Alloy |
| Bowl material |
PC |

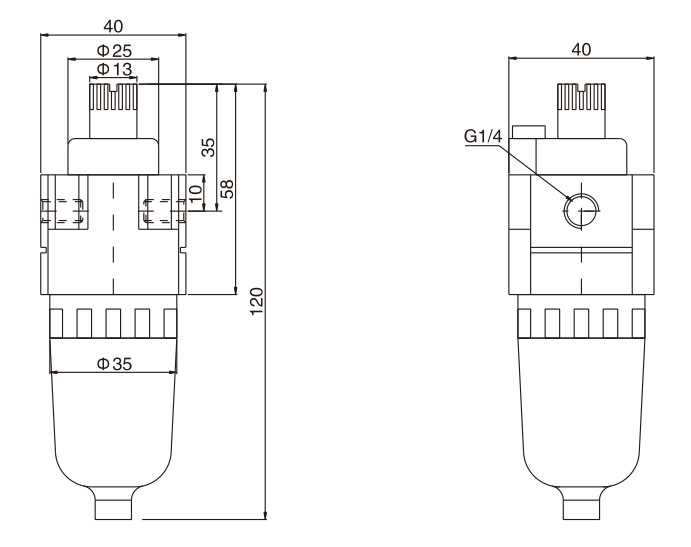

Overall Dimension

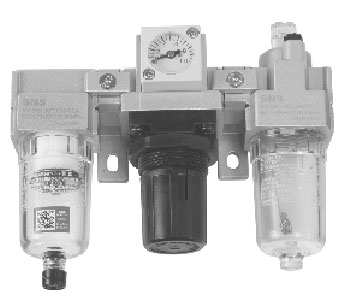

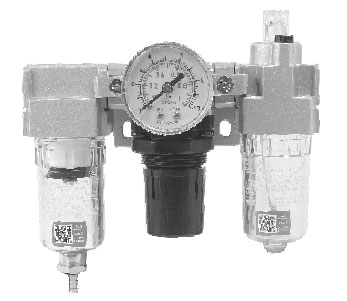

Other Series
| Model |
AC2000K-02 (R) |
AC2000-02 (R) |
AC2010K-02 (R) |
AC2010-02 (R) |
| Product drawing |
 |
 |
 |
 |
Note: This Lubricator can be replaced by AL200-01/02. If you need this Lubricator or combination two units and combination three units, please add "R" after the original model when ordering.
Keywords:
SMC AL2000 | AL Air Lubricators
