Pneumatic Air Lubricator GL

Overview for GL Air Lubricators

The GL Air Lubricators can lubricate the moving parts of the body, lubricate the parts which are inconvenient to add lubricant, and prolong the service life of the body greatly. When installing, please pay attention to cleaning connection pipes and joints, and avoid dirt coming into the air piping. When installing, please pay attention to whether the direction of air flow is consistent with the arrow direction on the body, and whether the pipe and the joint thread are correct. Fixing of filter, regulator (pressure regulating filter) and Lubrication Unit: The convex groove of the fixed support is matched with the concave grains on the main body, and then the locking plate and the screw are tightly locked. Fixing when using the regulator and the pressure regulating filter separately: Rotate the fixing ring to lock the attached special fixing piece.
The adjustment of GL Lubrication Unit output and speed is very easy. The operating speed of the cylinder is generally less than 1M/S, faster than that of hydraulic and electrical.
Use air compressibility and store energy to realize centralized gas supply. It can release energy in short time to obtain high speed response in intermittent motion. Buffer can be achieved. Lubrication Unit from Pneumatic Air Lubricator AL China Manufacturer Suppliers has strong adaptability to impact load and overload. Under certain conditions, the self retaining ability of the pneumatic device can be achieved.

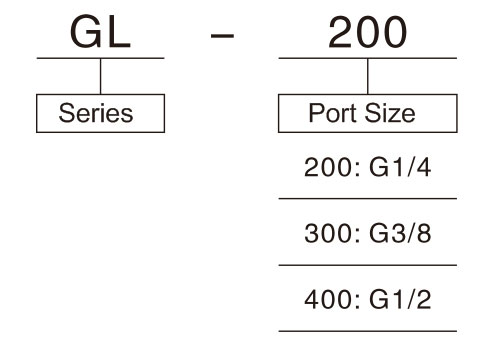

Ordering Code for GL Air Lubricators

Symbol for GL Air Lubricators

Technical Parameter for GL Air Lubricators

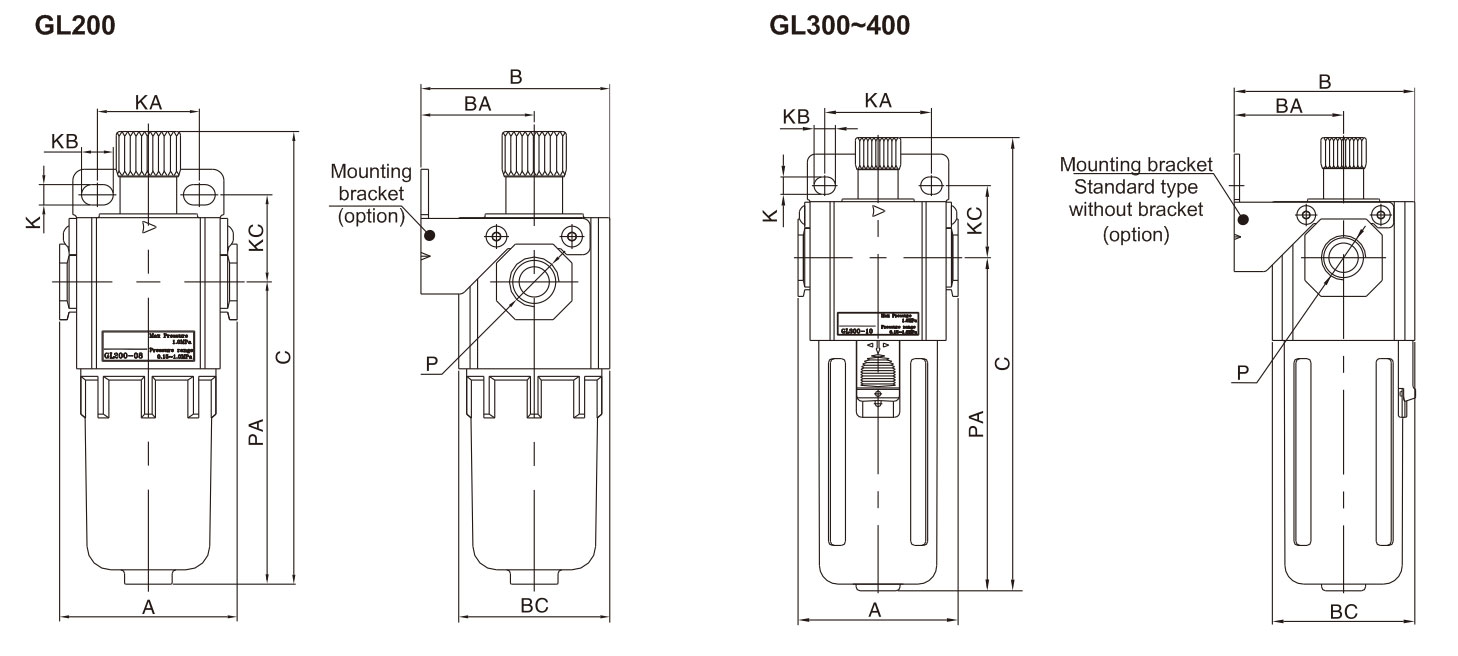

Overall Dimension for GL Lubrication Unit
