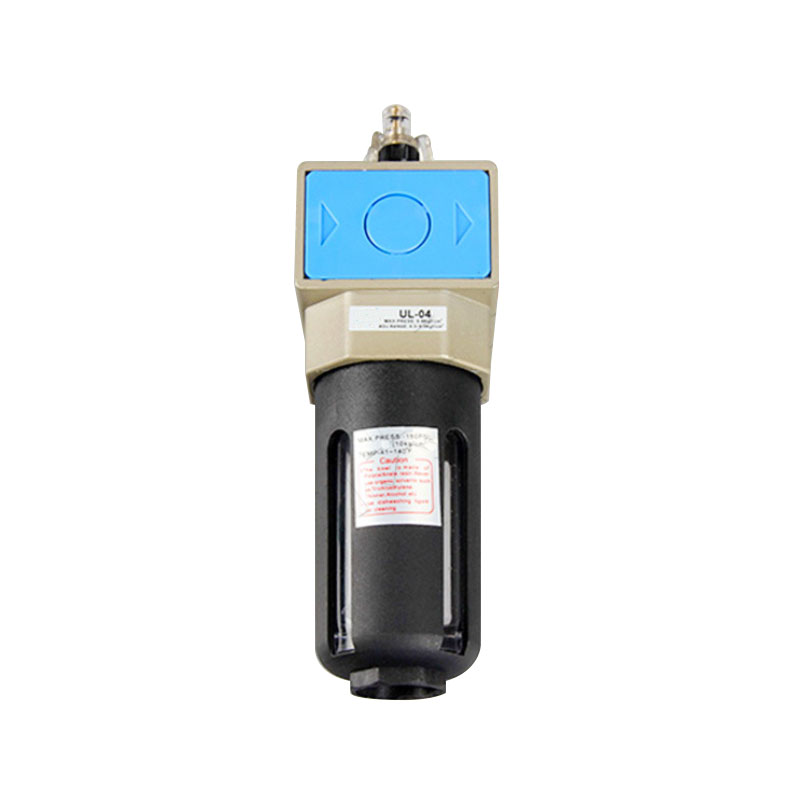

Overview for UL lubricator
UL lubricator has the specific type of common bowl and metal bowl specific models are: UL-02 Air Lubricators; UL-02J metal bowl; UL-03 Air Lubricators; UL-03J metal bowl; UL-04 Air Lubricators; UL-04J metal bowl; UL-06 Air Lubricators; UL-08 Air Lubricators. Air Lubricators is the last process in compressed air treatment equipment, the atomized lubricating oil is added to clean instrument air to lubricate the equipment and instruments which are not easy to add lubricating oil and prolong the service life of the equipment. (Metal bowl lubricator: It can be used in worse environment, the bowl body is not easy to break and not easy to aging, compared with the corresponding transparent bowl, more suitable for use at low or high temperatures.) Air Lubricators from
Pneumatic Air Lubricator AL China Manufacturer Suppliers are also called: metal bowl lubricator, compressed air lubricator, air lubricator, air refueling, air source lubricator, instrument air lubricator.

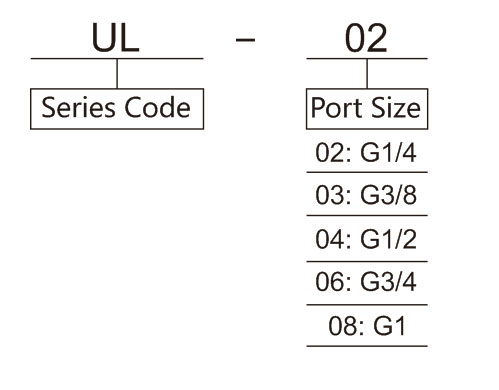

Ordering Code for UL lubricator
Symbol for UL lubricator
Technical Parameter for UL lubricator
| Model |
UL-02 |
UL-03 |
UL-04 |
UL-06 |
UL-08 |
| Port Size |
G1/4 |
G3/8 |
G1/2 |
G3/4 |
G1 |
| Working Medium |
Compressed Air |
| Max. Proof Pressure |
1.5MPa |
| Max. Operating Pressure |
0.9MPa |
| Max. Flow |
2080L/min |
2100L/min |
2600L/min |
7940L/min |
8200L/min |
| Capacity of oil bowl |
125ml |
235ml |
| Lubrication |
ISO VG32 or the same grade oil |
| Ambient Temperature |
-10~60℃ |
| Main material |
Body: Die cast aluminum; Bowl: PC |

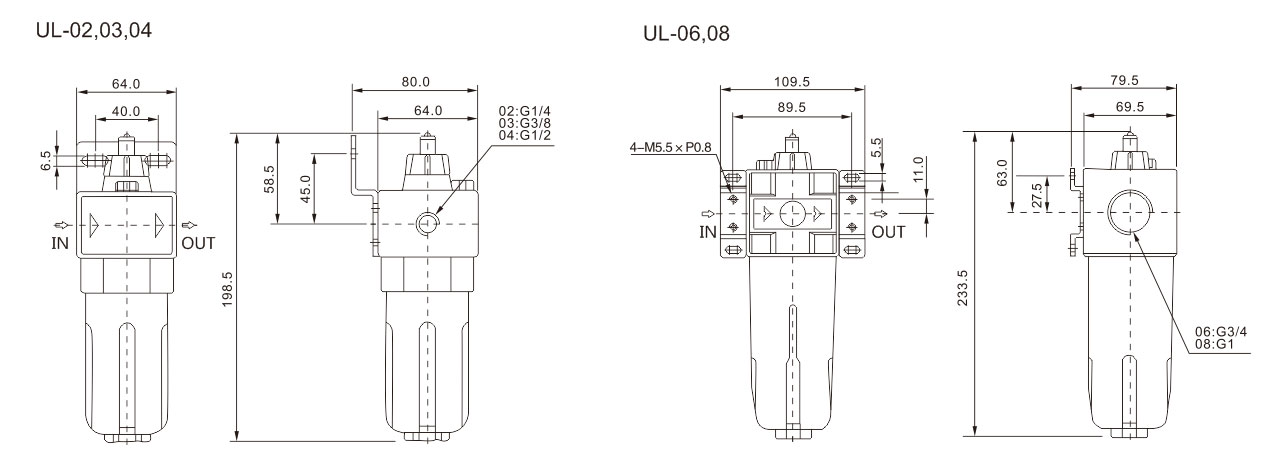

Overall Dimension
