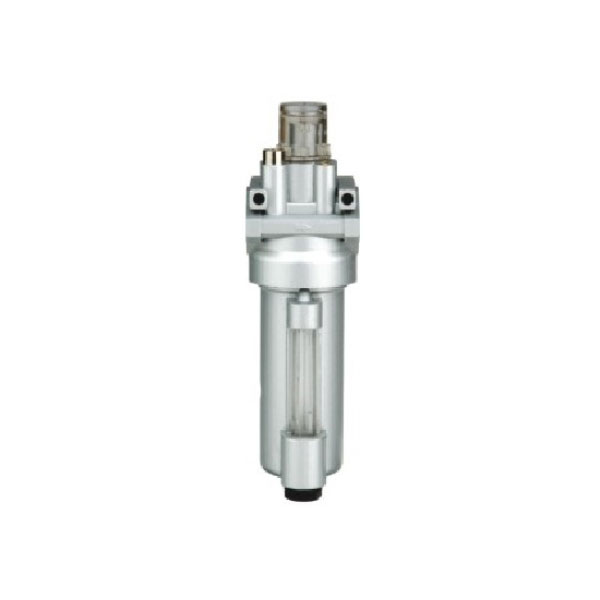

Pneumatic Air Lubricator NL (Explosion Proof)

Overview for Air Lubricator NL

In pneumatic components, cylinders, pneumatic motors or valves often have internal sliding parts, in order to make its movement flexible, durable, generally need to add lubricating oil. Air Lubricator NL is a special oiling device. Its function is to atomize the lubricating oil and inject it into the air, with the air flow into the parts needing lubrication, to achieve the purpose of lubrication.
Working principle: when the compressed air passes through the Compressed Air lubricator, it produces a pressure drop between the oil chamber and the oil monitor, which causes the oil to rise through the oil suction pipe and is injected into the compressed air through the nozzle, the oil droplets are atomized and flow out with the compressed air.
The main performance indexes of the Compressed Air lubricator from Pneumatic Air Lubricator AL China Manufacturer Suppliers are flow characteristics, fogging air flow and oil mist particle.

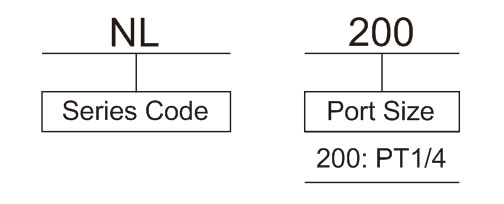

Ordering Code for Air Lubricator NL

Symbol for Air Lubricator NL

Technical Parameter for Compressed Air lubricator

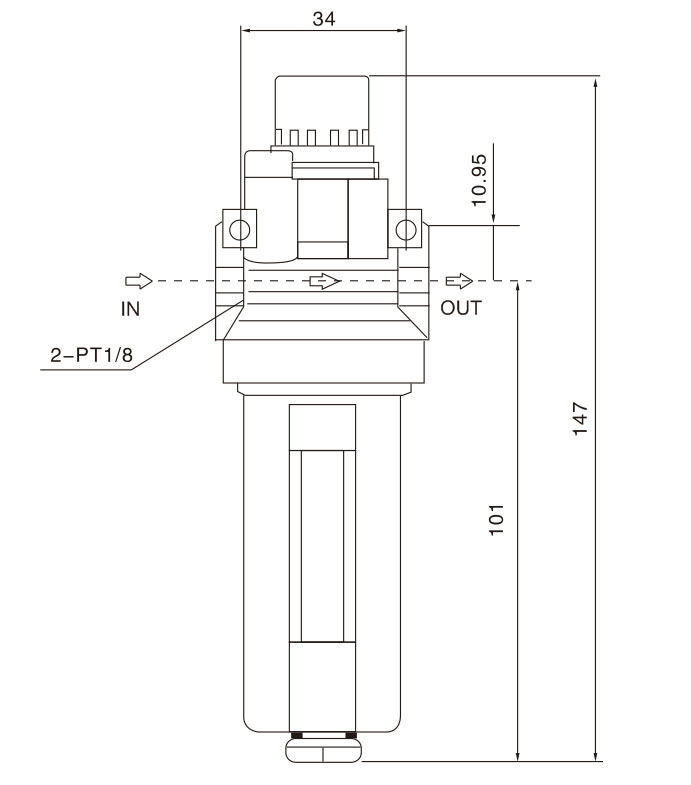

Overall Dimension for Compressed Air lubricator
