Overview for Miniature Lubricator L200A
In pneumatic components, cylinders, pneumatic motors or valves often have internal sliding parts, in order to make its movement flexible, durable, generally need to add lubricating oil.
Miniature Lubricator L200A is a special oiling device. Its function is to atomize the lubricating oil and inject it into the air, with the air flow into the parts needing lubrication, to achieve the purpose of lubrication.
Working principle: when the compressed air passes through the Pneumatic Air Lubricator, it produces a pressure drop between the oil chamber and the oil monitor, which causes the oil to rise through the oil suction pipe and is injected into the compressed air through the nozzle, the oil droplets are atomized and flow out with the compressed air.
The main performance indexes of the Pneumatic Air Lubricator from
Pneumatic Air Lubricator AL China Manufacturer Suppliers are flow characteristics, fogging air flow and oil mist particle.

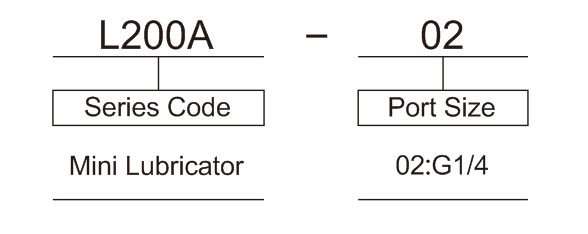

Ordering Code for Miniature Lubricator L200A
Symbol for Miniature Lubricator L200A
Technical Parameter for Miniature Lubricator L200A
| Model |
R200A-02 |
| Port Size |
G1/4 |
| Working Medium |
Compressed Air |
| Max. Proof Pressure |
1.0MPa |
| Max. Operating Pressure |
0.8MPa |
| Max. Flow |
2249L/min |
| Oil bowl capacity |
35ml |
| Lubrication |
ISO VG32 or the same grade oil |
| Ambient Temperature |
-10~60℃ |
| Main Material |
Body: Engineering rubber; Bowl: PC |

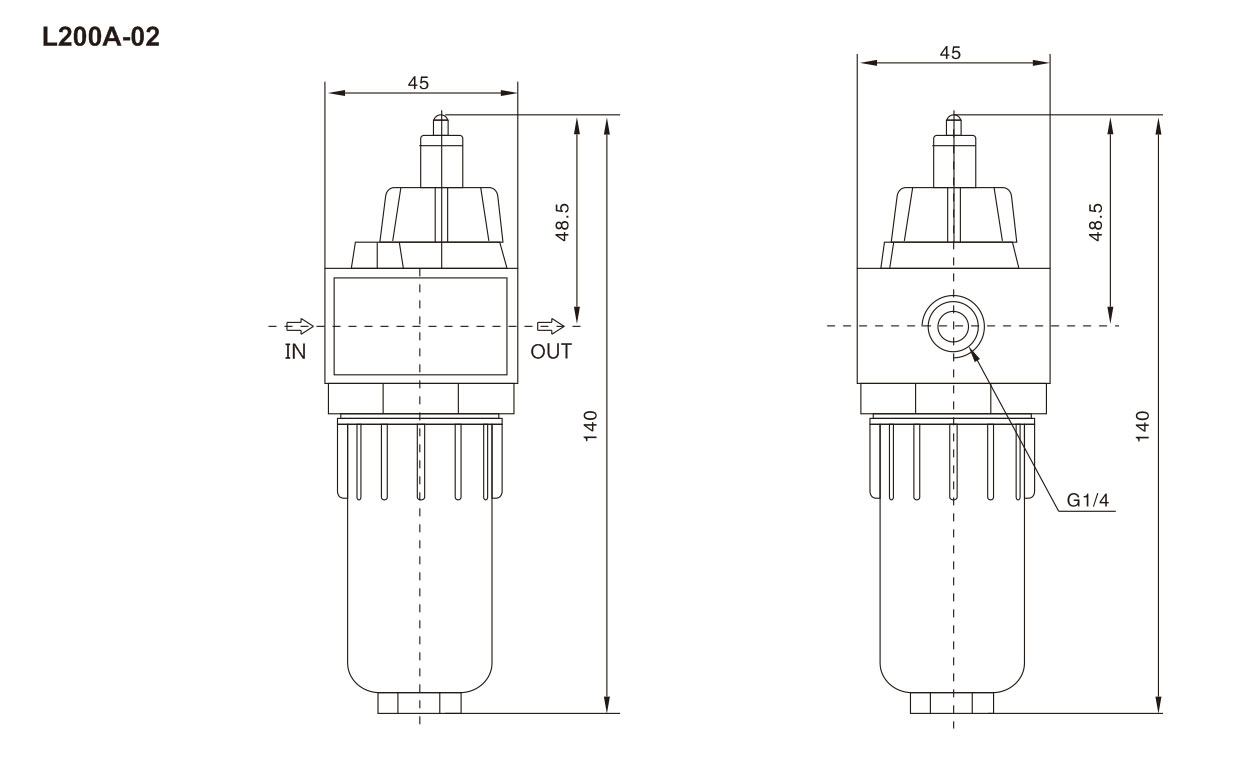

Overall Dimension for Miniature Lubricator L200A
