Pneumatic Air Lubricator QIU

The oil window of QIU-10 Pneumatic Lubricator is transparent, and the oil dropping situation can be clearly observed. The oil bowl is made of transparent material, which can clearly observe the amount of oil.

Working Medium: Compressed Air
Proof Pressure: 1.5MPa
Ambient temperature: 5~60℃
Lubrication: ISO VG32
Max. Operating Pressure: 0.8MPa

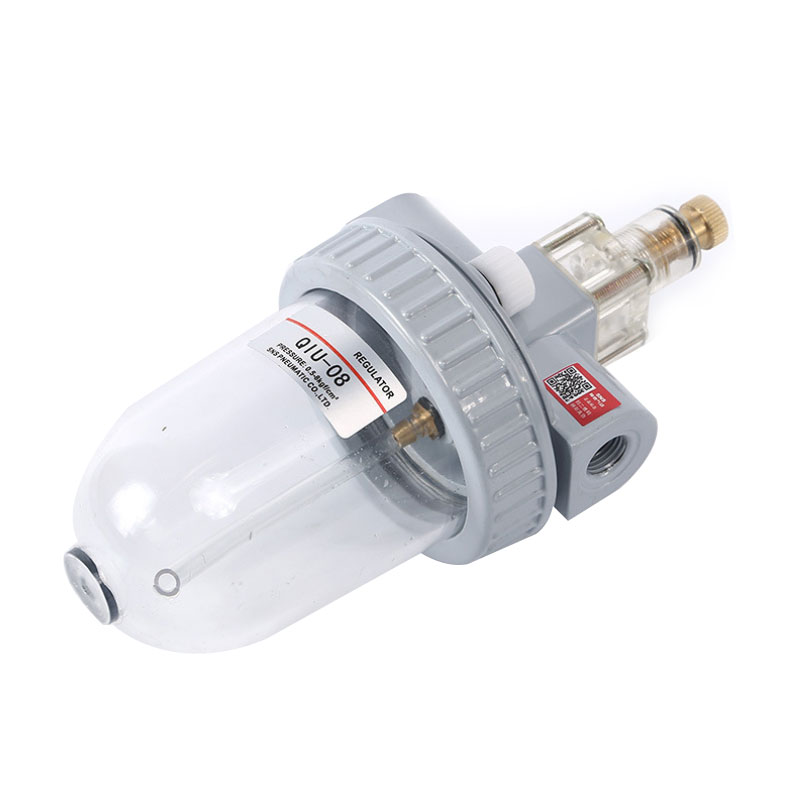

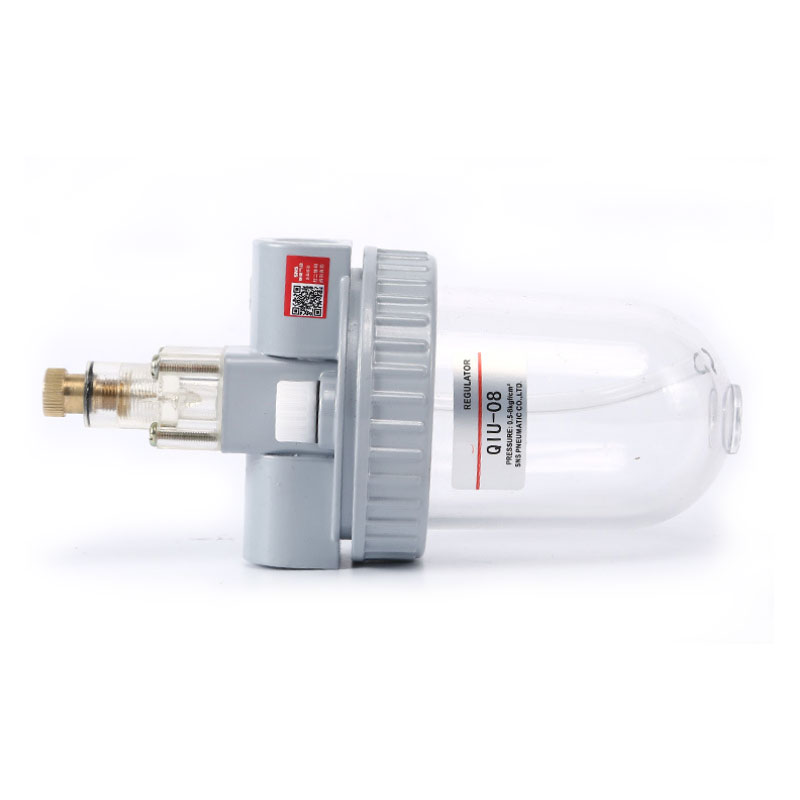

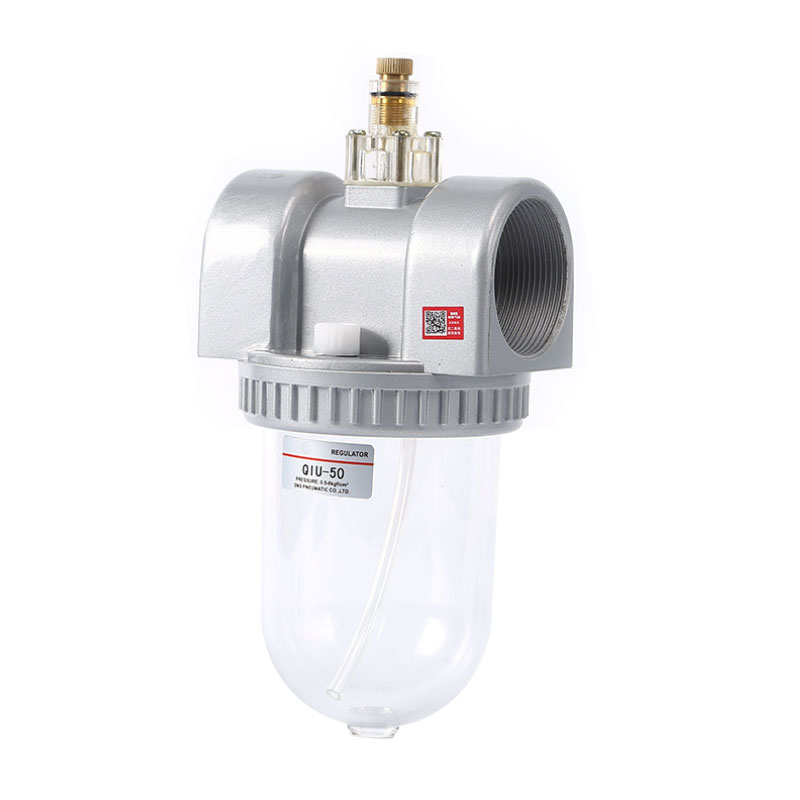

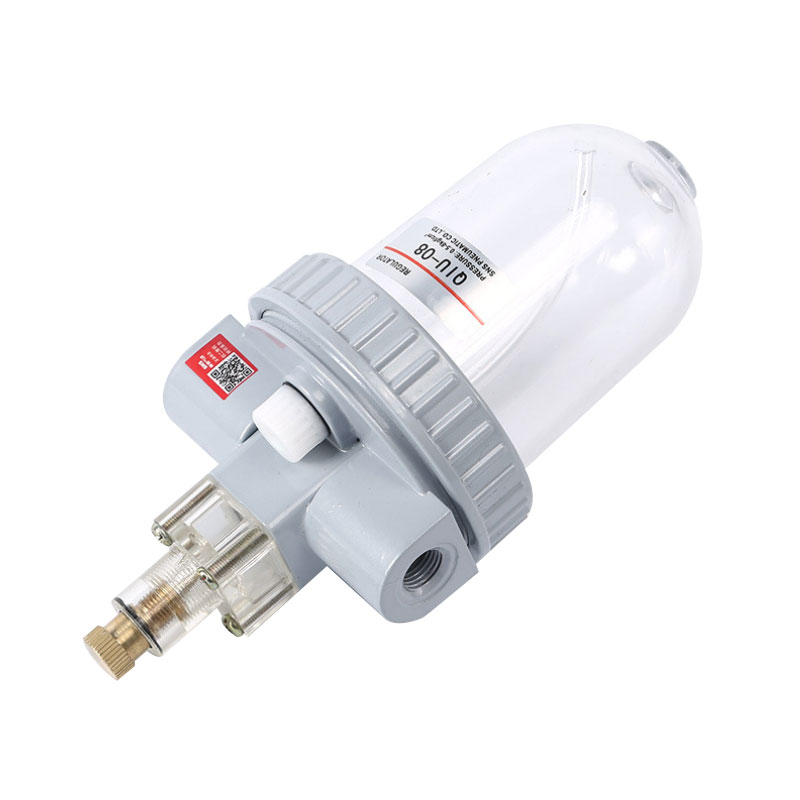

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Product Features for QIU-10 Pneumatic Lubricator

1. When the air piping is not closed, fill in the lubricating oil at any time.
2. The oil bowl is made of transparent material, which can clearly observe the amount of oil.
3. Pneumatic Air Lubricator AL China Manufacturer Suppliers remind that the amount of drip oil can be adjusted at will.
4. The oil window of QIU-10 Pneumatic Lubricator is transparent, and the oil dropping situation can be clearly observed.

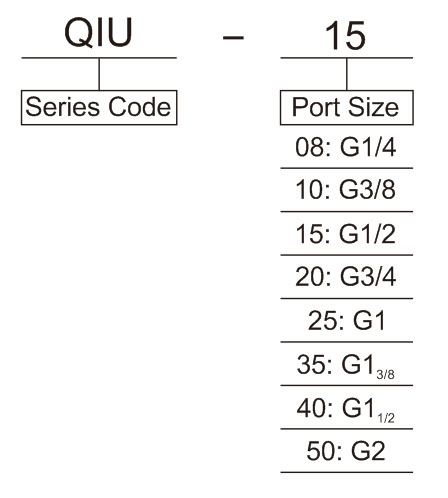

Ordering Code for QIU-10 Pneumatic Lubricator

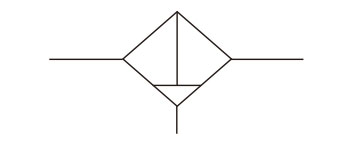

Symbol for QIU-10 Pneumatic Lubricator

Technical Parameter for QIU-10 Pneumatic Lubricator

Model QIU-08 QIU-10 QIU-15 QIU-20 QIU-25 QIU-35 QIU-40 QIU-50
Port Size G1/4 G3/8 G1/2 G3/4 G1 G1(3/8) G1(1/2) G2
Working Medium Compressed Air
Proof Pressure 1.5MPa
Max. Operating Pressure 0.8MPa
Ambient Temperature 5~60℃
Lubrication ISO VG32
Main parts material Body material Aluminium Alloy
Bowl material PC

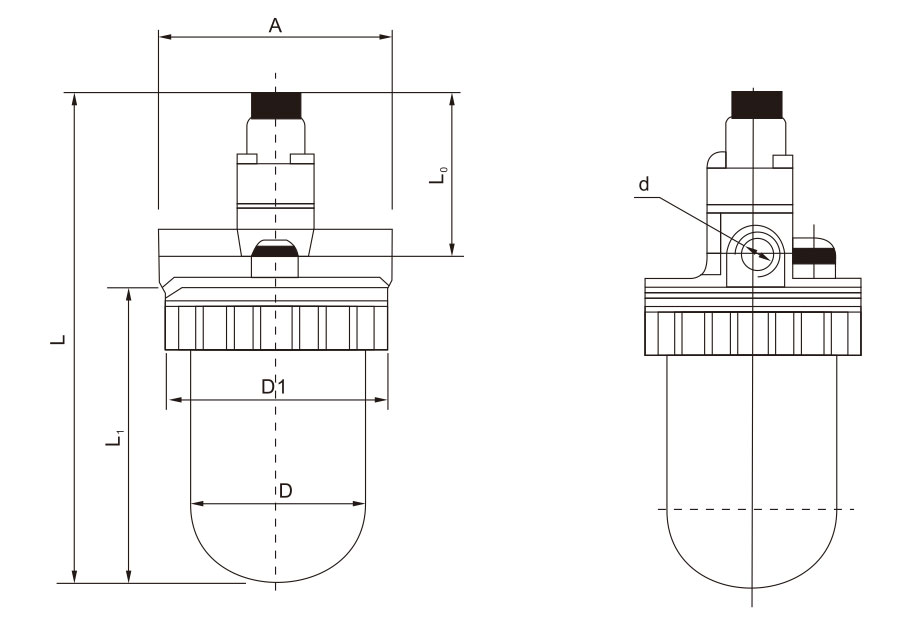

Overall Dimension

Model Port Size A D D1 d L0 L1 L
QIU-08 G1/4 91 62 Φ68 Φ31 55 115 195
QIU-10 G3/8 91 62 Φ68 Φ31 55 115 195
QIU-15 G1/2 91 62 Φ68 Φ31 55 115 195
QIU-20 G3/4 116 84 Φ90 Φ45 55 150 245
QIU-25 G1 116 84 Φ90 Φ45 55 150 245
QIU-35 G1(3/8) 125 84 Φ90 Φ63 55 150 265
QIU-40 G1(1/2) 125 84 Φ90 Φ63 55 150 265
QIU-50 G2 125 84 Φ90 Φ63 55 150 265
