Pneumatic Cylinder Actuator - Free Mount Cylinder2

Free Mount Cylinder



Free Mount Cylinder from China manufacturer is a kind of cylinder with short stroke. Free Mount Cylinder barrel and the rod cover are cast into one body, and the rodless side end cover is fixed with an elastic retainer. Free Mount Cylinder block is rectangular, which can be installed directly from any directions without any brackets, so it is called free mounting type cylinder. Free Mount Cylinder not only saves space, but also has high installation accuracy and strength enhancement.

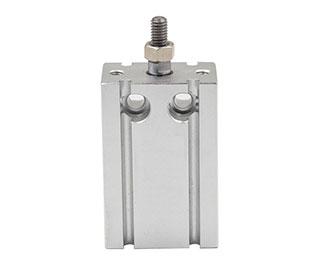

  • Mini Free Mount Cylinder CUJB

    CUJB Mini Free Mount Cylinder has integrated structure, installation accuracy and installation strength is relatively high. The buffering form is rubber buffer at both ends, and the buffer adjustment is stable.

    Bore: 4, 6, 8, 10mm
    Motion Pattern: Double-acting/Single-acting
    Operating pressure: 0.1~0.7MPa
    Piston speed: 50~500mm/s
    Ambient and fluid temperature: -10~+70°C
    Learn more

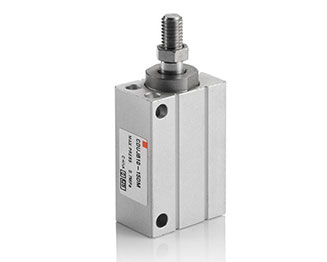

  • Miniature Free Mount Cylinder CU/CUK

    CU/CUK Miniature Free Mount Cylinder has flexible and accurate installation, Multi Mounted Cylinder can be installed in any direction, saving installation space, high fixed precision; The use of self-lubricating bearings make the piston rods need no lubrication.

    Bore: 6, 10, 16, 20, 25, 32mm
    Motion Pattern: Double-acting/Single-acting
    Lubrication: Non-lube
    Piston speed: 50~500mm/s
    Ambient and fluid temperature: -10~+70°C
    Learn more
