Miniature Free Mount Cylinder CU/CUK

CU/CUK Miniature Free Mount Cylinder has flexible and accurate installation, Multi Mounted Cylinder can be installed in any direction, saving installation space, high fixed precision; The use of self-lubricating bearings make the piston rods need no lubrication.

Bore: 6, 10, 16, 20, 25, 32mm
Motion Pattern: Double-acting/Single-acting
Lubrication: Non-lube
Piston speed: 50~500mm/s
Ambient and fluid temperature: -10~+70°C

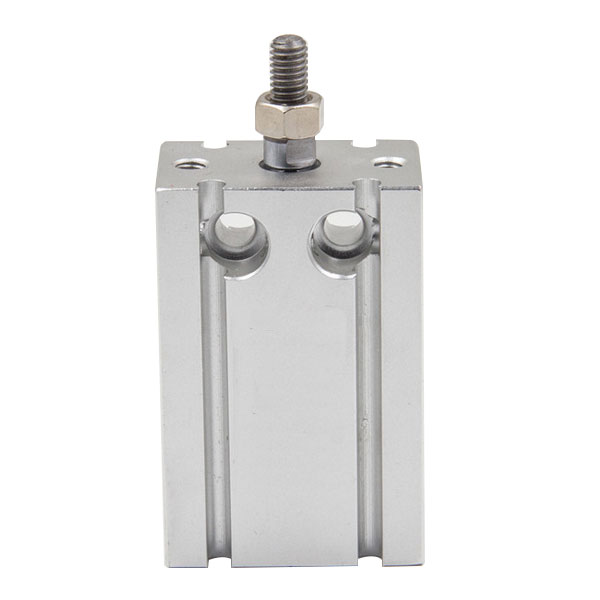

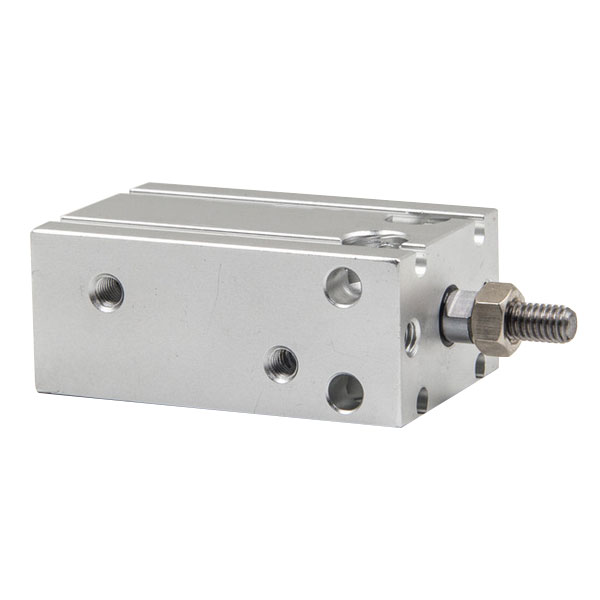

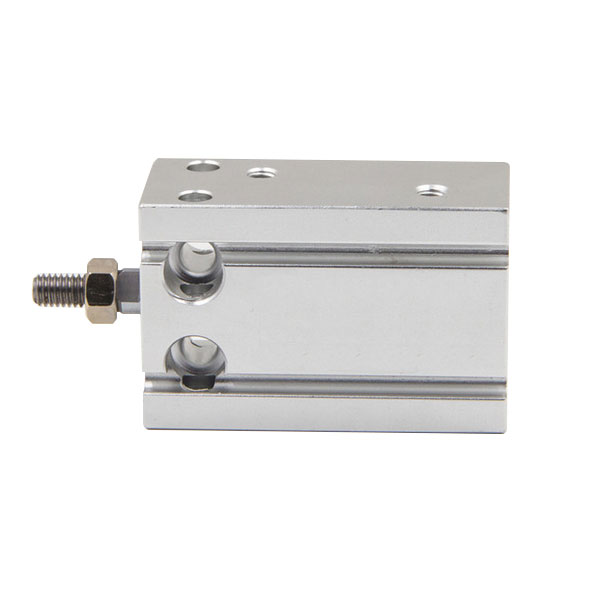

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Overview for Miniature Free Mount Cylinder

CU/CUK Miniature Free Mount Cylinder has the following characteristics: 1. Flexible and accurate installation, Multi Mounted Cylinder can be installed in any direction, saving installation space, high fixed precision; 2. The use of self-lubricating bearings make the piston rods need no lubrication; 3. A permanent magnet is mounted on the cylinder piston to trigger a magnetic switch mounted on the Multi Mounted Cylinder to sense the movement position of the Free Mount Cylinder; 4. High temperature resistant sealing material can be used to make the Multi Mounted Cylinder work normally at 150℃ high temperature; 5. Various cylinder types can be selected.

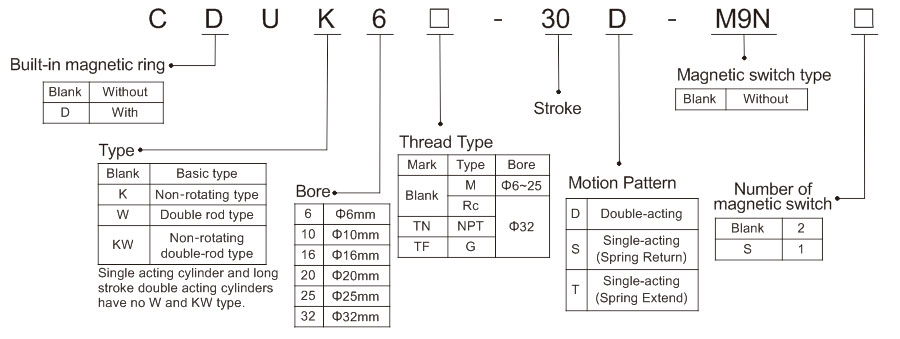

Ordering Code for Miniature Free Mount Cylinder

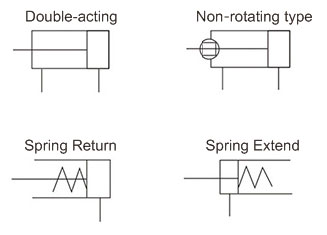

Symbol for Miniature Free Mount Cylinder

Specification for Multi Mounted Cylinder

Bore(mm) 6 10 16 20 25 32
Working Medium Air
Motion Pattern Double acting; Single acting: Spring return/extend
Max. Operating Pressure 0.7MPa
Min. Operating Pressure
MPa		 Double acting Single rod 0.12 0.06 0.05
Double-rod, Non-rotating air buffer 0.15 0.10 0.08
Non-rotating double-rod 0.18 0.13 0.11
Single
acting		 Standard 0.20 0.15 0.13
Non-rotating 0.23 0.18 0.16
Ambient and fluid temperature With magnetic switch：-10~60℃, No magnetic switch：-10~70℃
Cushion Both Side Rubber
Piston speed 50~500mm/s
Stroke Tolerance(mm) +1.0/0
Lubrication Non-lube
Mounting Type Free (multi face mounting)
Irrotational Accuracy of Pistion Rod ±0.8° ±0.5°
Port Size M5X0.8 1/8

Stroke / magnetic switch selection

Bore
(mm)		 Standard Stroke (mm) Long Stroke
(Double-acting)		 *Magnetic Switch Model
(Direct installation)
Double-acting Single-acting
6 5,10,15,20,25,30 5,10,15 40, 50, 60 M9N
M9B
M9P
10
16
20 5,10,15,20,25,30,40,50 60,70,80,90,100
25
32

* Magnetic switch specifications and characteristics can refer to the magnetic switch series.
Wire length mark: no mark -0.5m, L-3m, Z-5m Example: M9N, M9NL.

Adaptable mounting / rectangular cylinder

Installation form Axial mounting (screw holes for mounting) Longitudinal mounting (mounting hole) Lateral mounting (mounting hole)

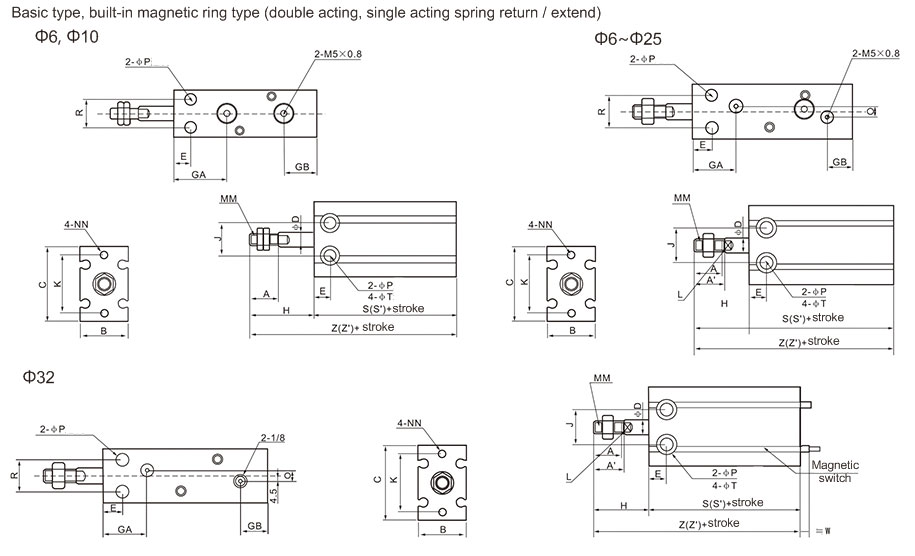

Dimension (mm)

Common size table

Model A A' B C ΦD E GA GB J K L MM NN ΦP Q R ΦT
C□U6 7 - 13 22 3 7 15 10 10 17 - M3×0.5 M3×0.5, 5 3.2 - 7 6, 4.8
C□U10 10 - 15 24 4 7 16.5 10 11 18 - M4×0.7 M3×0.5, 5 3.2 - 9 6, 5
C□U16 11 12.5 20 32 6 7 16.5 11.5 14 25 5 M5×0.8 M4×0.7, 6 4.5 4 12 7.6, 6.5
C□U20 12 14 26 40 8 9 19 12.5 16 30 6 M6×1.0 M5×0.8, 8 5.5 9 16 9.3, 8
C□U25 15.5 18 32 50 10 10 21.5 13 20 38 8 M8×1.25 M5×0.8, 8 5.5 9 20 9.3, 9
C□U32 19.5 22 40 62 12 11 23 13 24 48 10 M10×1.25 M6×1.0, 9 6.5 13.5 24 11, 11.5

Double acting size table

Model H Basic Type Built-in magnet type
S Z W S' Z'
C□U6-□D 13 33 46 2.5 33 46
C□U10-□D 16 36 52 1 36 52
C□U16-□D 16 30 46 0 40 56
C□U20-□D 19 36 55 1 46 65
C□U25-□D 23 40 63 -1 50 73
C□U32-□D 27 42 69 -4 52 79

Single acting (spring return) size table

Model H Basic Type Built-in magnet type
S Z W S' Z'
5st 10st 15st 5st 10st 15st 5st 10st 15st 5st 10st 15st
C□U6-□S 13 38 43 48 51 56 61 2.5 38 43 48 51 56 61
C□U6-□S 16 41 46 56 57 62 72 1 41 46 56 57 62 72
C□U6-□S 16 35 40 50 51 56 66 0 45 50 60 61 66 76
C□U6-□S 19 41 46 56 60 65 75 1 51 56 66 70 75 85
C□U6-□S 23 45 50 60 68 73 83 -1 55 60 70 78 83 93
C□U6-□S 27 47 52 62 74 79 89 -4 57 62 72 84 89 99

Single acting (spring extend) size table

Model H Basic Type Built-in magnet type
S Z W S' Z'
5st 10st 15st 5st 10st 15st 5st 10st 15st 5st 10st 15st 5st 10st 15st
C□U6-□T 18 23 28 38 43 48 56 66 76 2.5 38 43 48 56 66 76
C□U10-□T 21 26 31 41 46 56 62 72 87 1 41 46 56 62 72 87
C□U16-□T 21 26 31 35 40 60 56 76 91 0 45 50 60 66 76 91
C□U20-□T 24 29 34 41 46 56 65 75 90 1 51 56 66 75 85 100
C□U25-□T 28 33 38 45 50 60 73 83 98 -1 55 60 70 83 93 108
C□U32-□T 32 37 42 47 52 62 79 89 104 -4 57 62 72 89 99 114

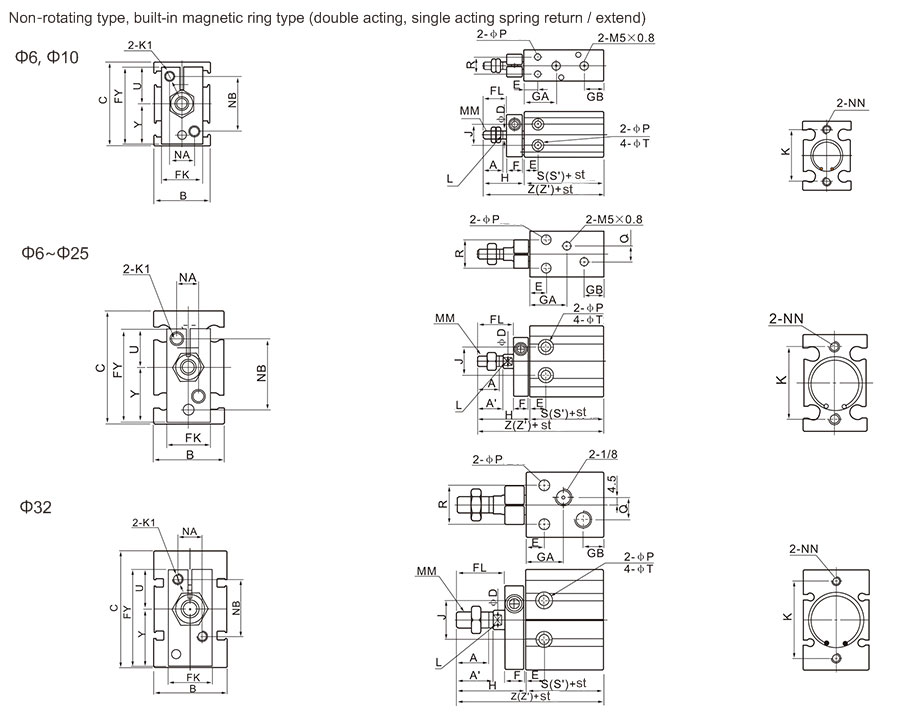

Common size table

Model A A' B C ΦD E F FL FK FY GA GB H J K L MM NA NB NN ΦP Q R ΦT U Y
C□UK6 7 - 13 22 3 7 8 9 11 20.5 15 10 18 10 17 - M3×0.5 6 14 M3×0.5, 5 3.2 - 7 6, 4.8 10 10.5
C□UK10 10 - 15 24 4 7 8 12 12 22 16.5 10 21 11 18 - M4×0.7 7 15 M3×0.5, 5 3.2 - 9 6, 5 10.5 11.5
C□UK16 11 12.5 20 32 6 7 8 17 13 28 16.5 11.5 26 14 25 5 M5×0.8 6 18 M4×0.7, 6 4.5 4 12 7.6, 6.5 12.5 15.5
C□UK20 12 14 26 40 8 9 8 20 16 33 19 12.5 29 16 30 6 M6×1.0 8 20 M5×0.8, 8 5.5 9 16 9.3, 8 13.5 19.5
C□UK25 15.5 18 32 50 10 10 10 22 20 43.5 21.5 13 33 20 38 8 M8×1.25 10 28 M5×0.8, 8 5.5 9 20 9.3, 9 19 24.5
C□UK32 19.5 22 40 62 12 11 12 29 24 51.5 23 12.5 42 24 48 10 M10×1.25 12 32 M6×1.0, 9 6.6 13.5 24 11, 11.5 21 30.5

Double acting size table

Model H No magnet Built-in magnet type
S Z W S' Z'
C□UK6-□D 18 33 51 2.5 33 51
C□UK10-□D 21 36 57 1 36 57
C□UK16-□D 26 30 56 0 40 66
C□UK20-□D 29 36 65 1 46 75
C□UK25-□D 33 40 73 -1 50 83
C□UK32-□D 42 42 84 -4 52 94

Single acting (spring return) size table

Model H No magnet Built-in magnet type
S Z W S' Z'
5st 10st 15st 5st 10st 15st 5st 10st 15st 5st 10st 15st
C□UK6-□S 18 38 43 48 56 61 66 2.5 38 43 48 56 61 66
C□UK10-□S 21 41 46 56 62 67 77 1 41 46 56 62 67 77
C□UK16-□S 26 35 40 50 61 66 76 0 45 50 60 71 76 86
C□UK20-□S 29 41 46 56 70 75 85 1 51 56 66 80 85 85
C□UK25-□S 33 45 50 60 78 83 93 -1 55 60 70 88 93 103
C□UK32-□S 42 47 52 62 89 94 104 -4 57 62 72 99 104 114

Single acting (spring extend) size table

Model H ΦT U Y Basic type Built-in magnet type
S Z W S' Z'
5st 10st 15st 5st 10st 15st 5st 10st 15st 5st 10st 15st 5st 10st 15st
C□UK6-□T 23 28 33 6 D4.8 10 10.5 38 43 48 61 71 81 2.5 38 43 48 61 71 81
C□UK10-□T 26 31 36 6 D5 10.5 11.5 41 46 56 67 77 92 1 41 46 56 67 77 92
C□UK16-□T 31 36 41 7.6 D6.5 12.5 15.5 35 40 60 76 86 101 0 45 50 60 76 86 101
C□UK20-□T 34 39 44 9.5 D8 13.5 19.5 41 46 56 75 85 100 1 51 56 66 85 95 110
C□UK25-□T 38 43 48 9.5 D9 19 24.5 45 50 60 83 93 108 -1 55 60 70 93 103 118
C□UK32-□T 47 52 57 11 D11.5 21 30.5 47 52 62 94 104 119 -4 57 62 72 104 114 129
