Mini Free Mount Cylinder CUJB

CUJB Mini Free Mount Cylinder has integrated structure, installation accuracy and installation strength is relatively high. The buffering form is rubber buffer at both ends, and the buffer adjustment is stable.

Bore: 4, 6, 8, 10mm
Motion Pattern: Double-acting/Single-acting
Operating pressure: 0.1~0.7MPa
Piston speed: 50~500mm/s
Ambient and fluid temperature: -10~+70°C

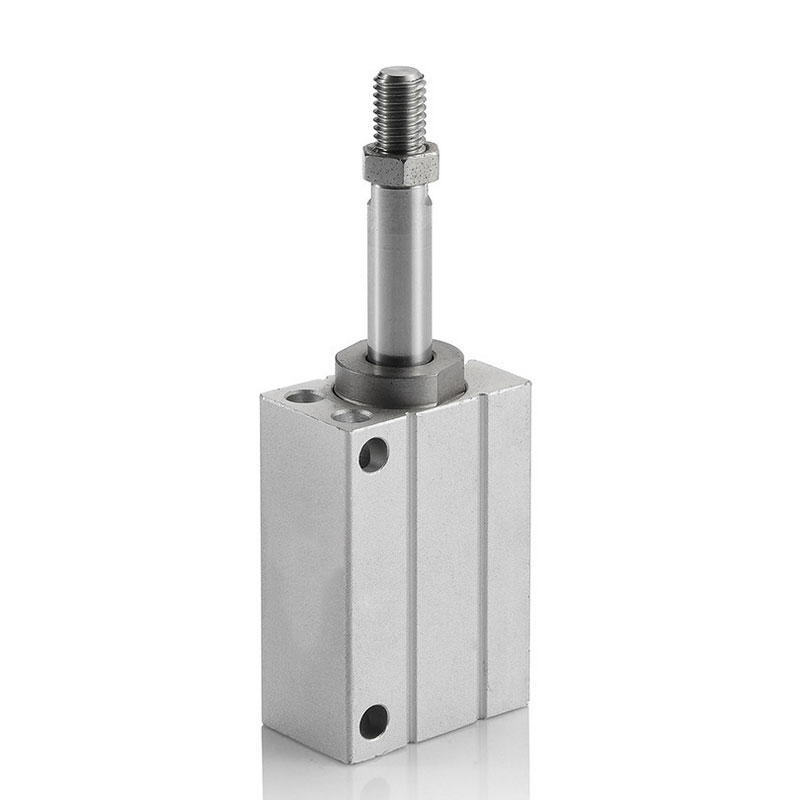

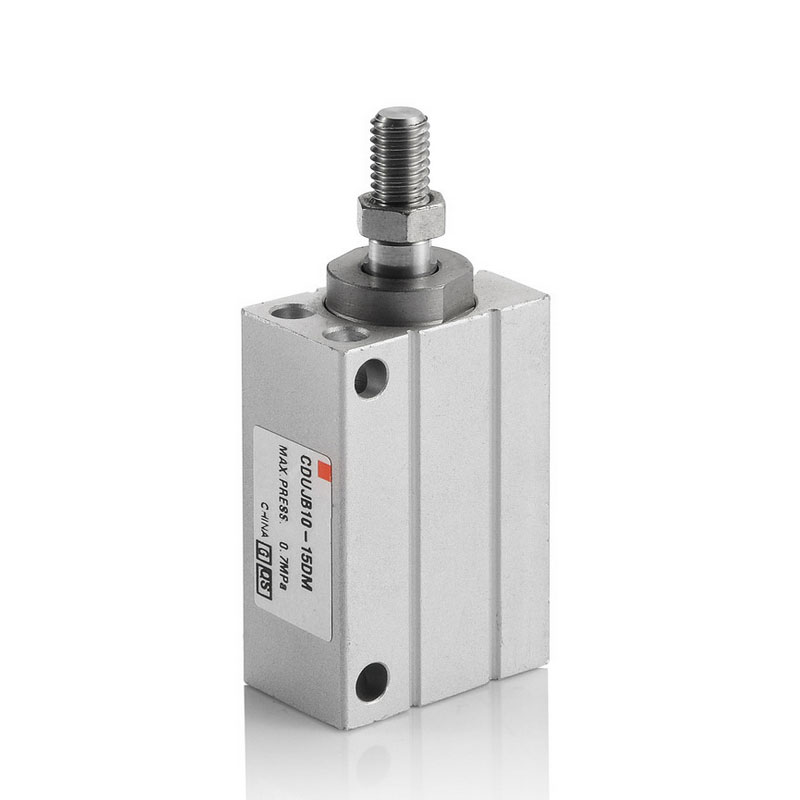

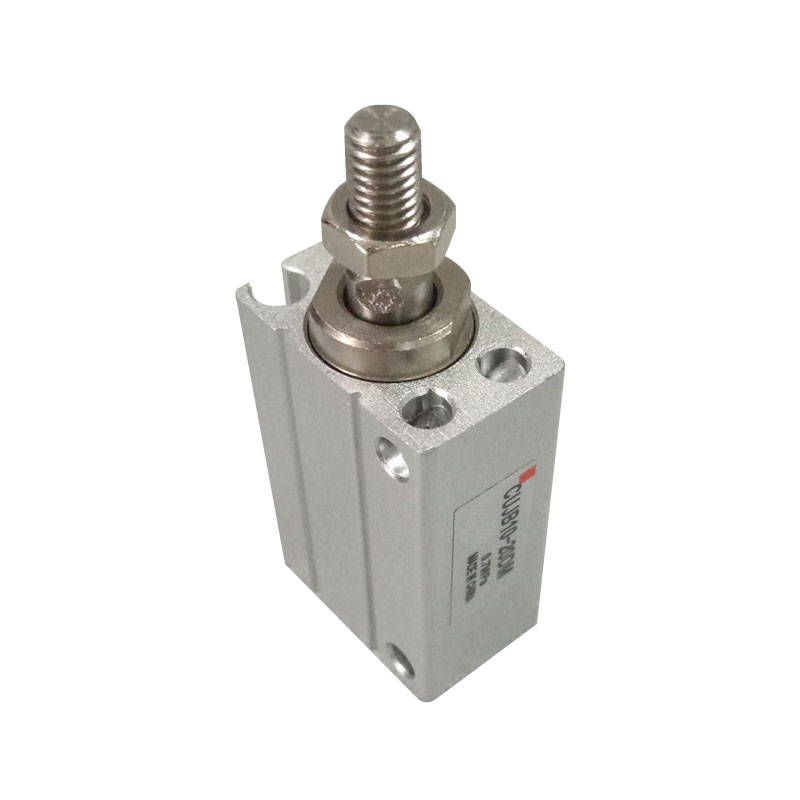

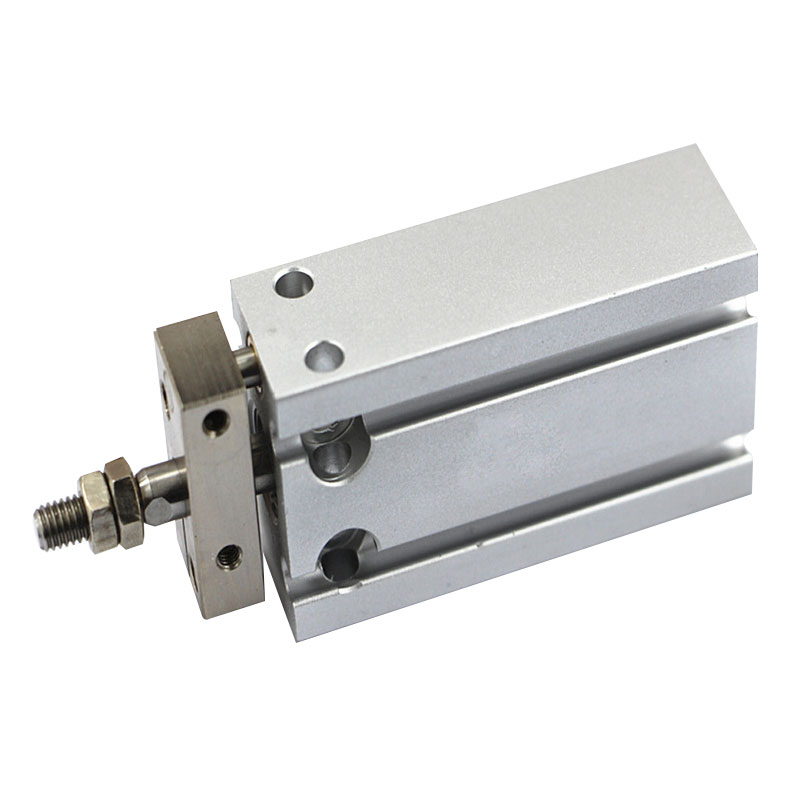

Product Images

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

Product Specifications
Product Details
Size Weight
Related Data
Product Video

Overview for CUJB Mini Free Mount Cylinder

CUJB Mini Free Mount Cylinder has integrated structure, installation accuracy and installation strength is relatively high. The buffering form is rubber buffer at both ends, and the buffer adjustment is stable.
The most important advantage of the CU Mini Free Mount Cylinder is its free installation, it can be installed directly from any direction: Free Mount Cylinder has mounting holes on the front and rear ends for axial installation; in its side and front are also installed with through holes, so it can be vertical installation and lateral installation. And the cylinder body and the cylinder head are integrated, the structure is compact, square, greatly saving installation space.

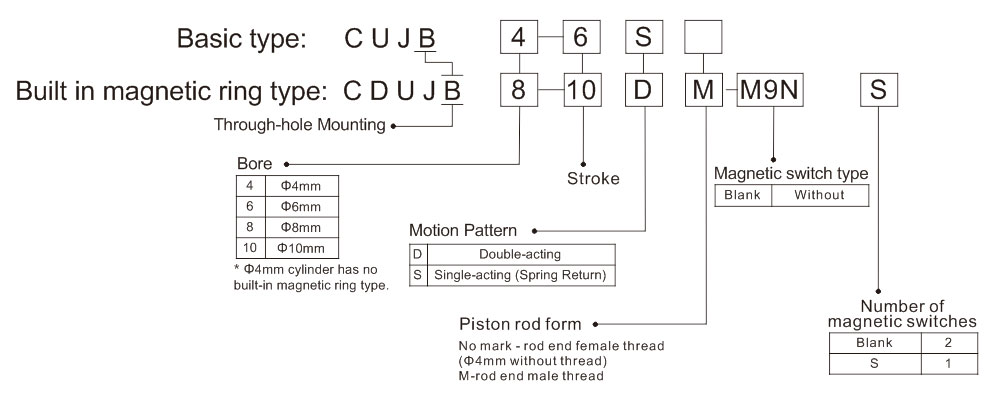

Ordering Code for CUJB Mini Free Mount Cylinder

Specification for CUJB Mini Free Mount Cylinder

Bore (mm)		4	6	8	10
Working Medium		Air
Motion Pattern		Double-acting/Single-acting (Spring Return)
Max. Operating Pressure		0.7MPa
Min. Operating Pressure	Double-acting	0.15MPa			0.1MPa
	Single-acting	0.35MPa	0.3MPa		0.2MPa
Ambient and Fluid Temp.		Magnetic switch：-10~60℃，Non-Magnetic switch：-10~70℃
Buffer		No
Piston velocity		50~500mm/s
Stroke tolerance mm		+0.5/0
Lubrication		Non-lube
Installation form		Through hole, free (multi face) mounting
Port Size		M3×0.5

Symbol for CUJB Mini Free Mount Cylinder

Stroke / magnetic switch type table

Bore (mm)	Standard Stroke (mm)		Rail mounting
Bore (mm)	Double-acting	Single-acting	*Magnetic switch type
4	4, 6, 8, 10, 15, 20	4, 6	M9N M9P M9B
6	4, 6, 8, 10, 15, 20, 25, 30	4, 6, 8
8	4, 6, 8, 10, 15, 20, 25, 30	4, 6, 8, 10
10	4, 6, 8, 10, 15, 20, 25, 30	4, 6, 8, 10

*Specifications for magnetic switches refer to the magnetic switches series. Behind the magnetic switch model, the length of the wire is indicated as "Blank-0.5m", "L-3m", "Z-5m"

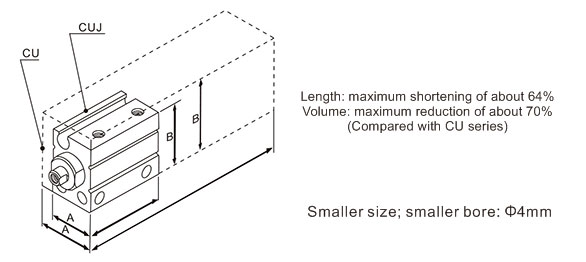

Mini Free Mounting Cylinder

Bore	A	B	C
4	10	15	13
6	13(13)	19(22)	13(33)
8	13	21	13
10	13.5(15)	22(24)	13(36)

（）：Size of CU Series

Spacing is shortened

（Easy to use side by side）

Bore	E
4	10
6	13
8	13
10	13.5

Boss with rod (h9)

4 sides can be installed

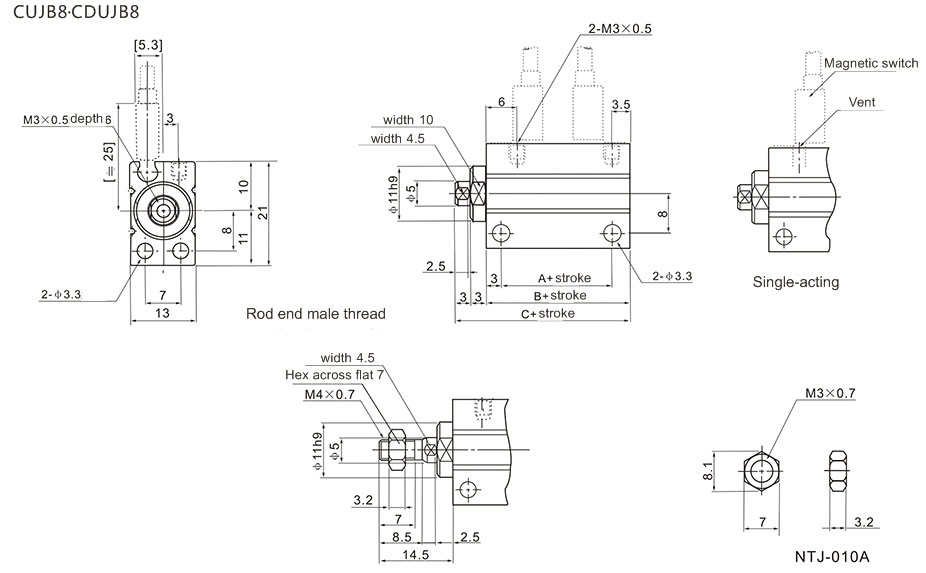

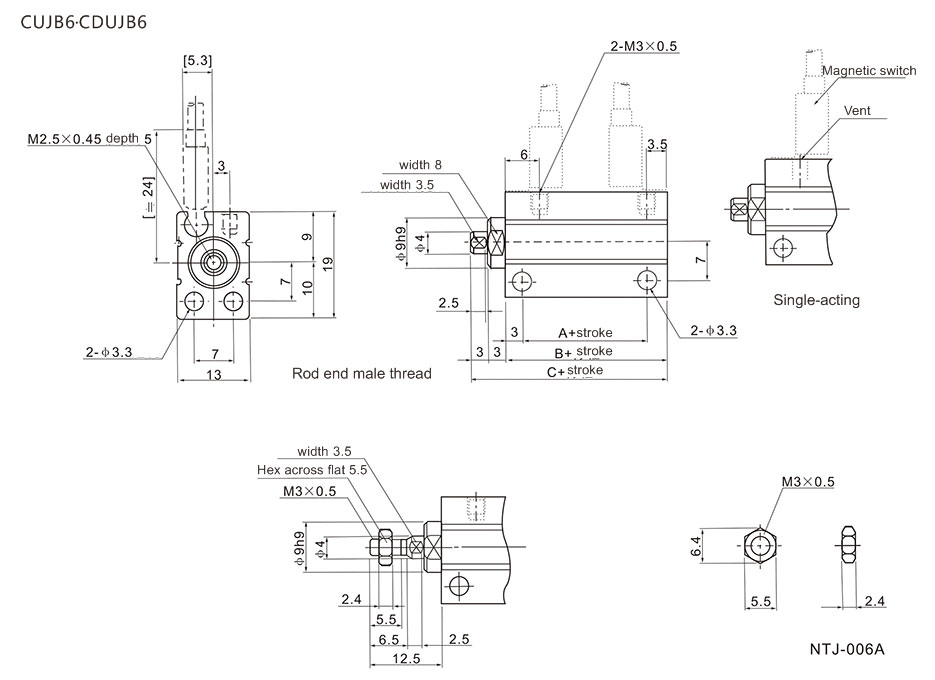

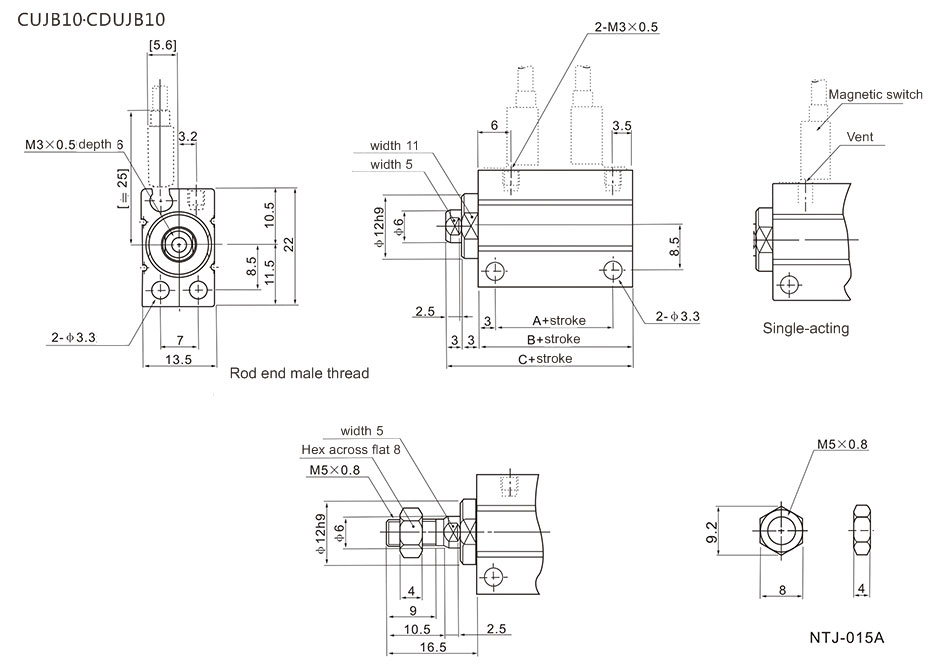

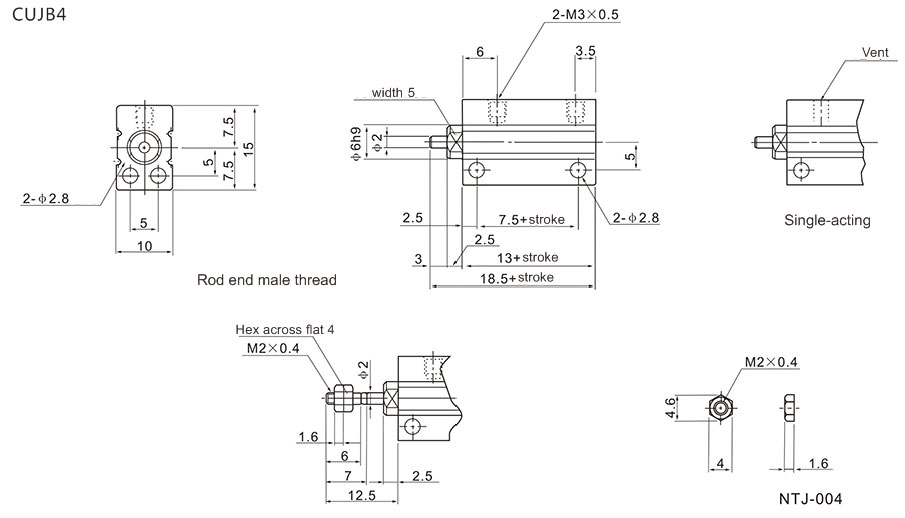

Overall Dimension

Model	A	B	C
CUJB6	6.5	13	19
CDUJB6	11.5	18	24

Model	A	B	C
CUJB8	6.5	13	19
CDUJB8	11.5	18	24

Model	A	B	C
CUJB10	6.5	13	19
CDUJB10	11.5	18	24
