LA2000 High Speed Electric Linear Actuator

LA2000 Linear Hydraulic Actuator

LA2000 High Speed Electric Linear Actuator, also known as Linear Hydraulic Actuator. The High Speed Electric Linear Actuator is an electric drive device that converts the rotational motion of motor into high-speed linear reciprocating motion of push rod.

Operating voltage: DC12 / DC24V / DC36V / DC48V
Max. load: 2000N
Max. stroke: 800mm
Max. speed: 96mm/s
Mounting Distance: S (stroke) +100mm standard

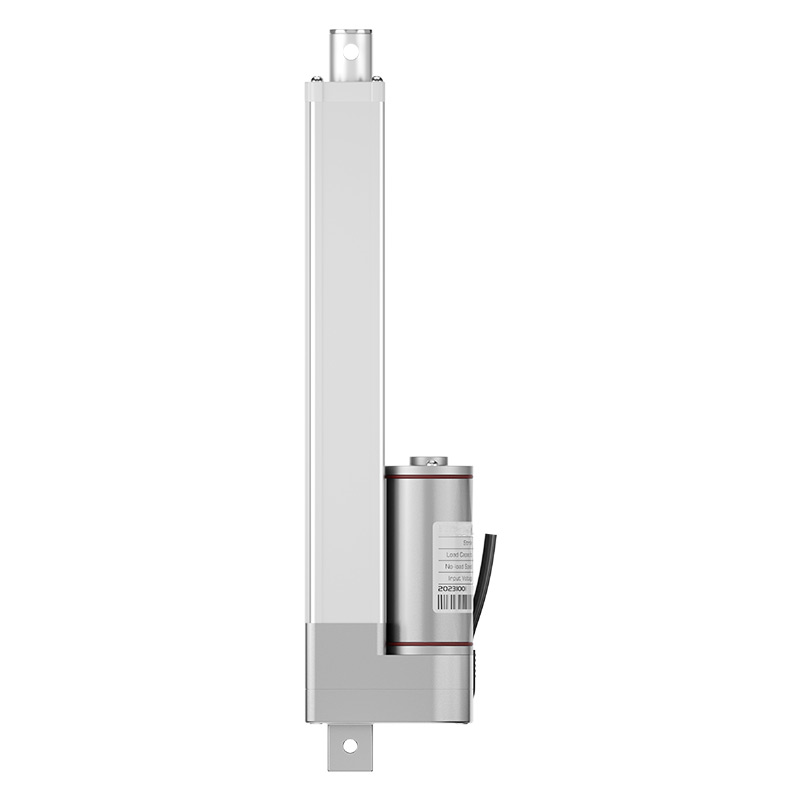

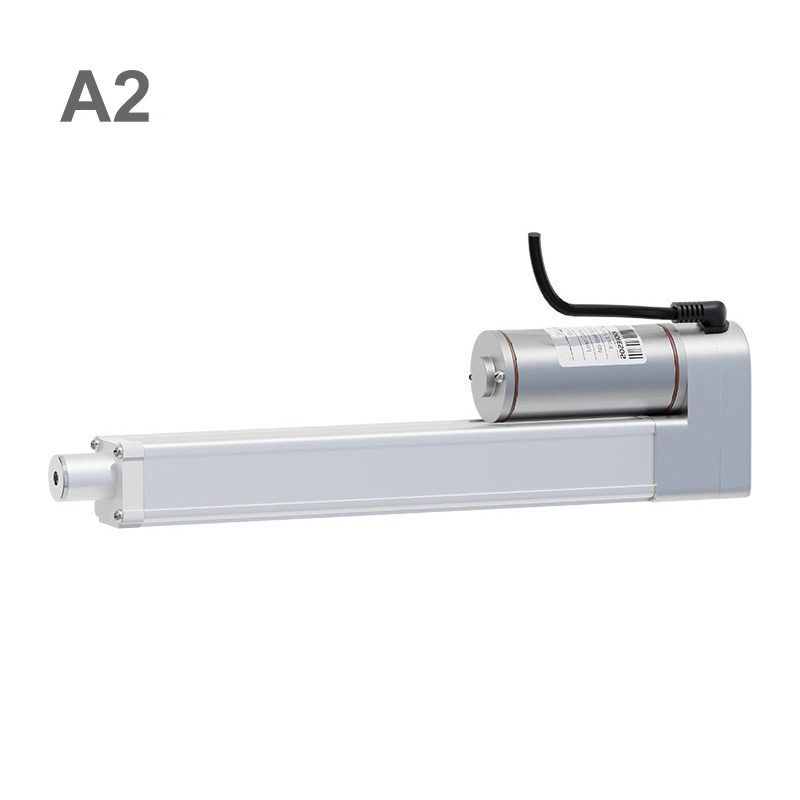

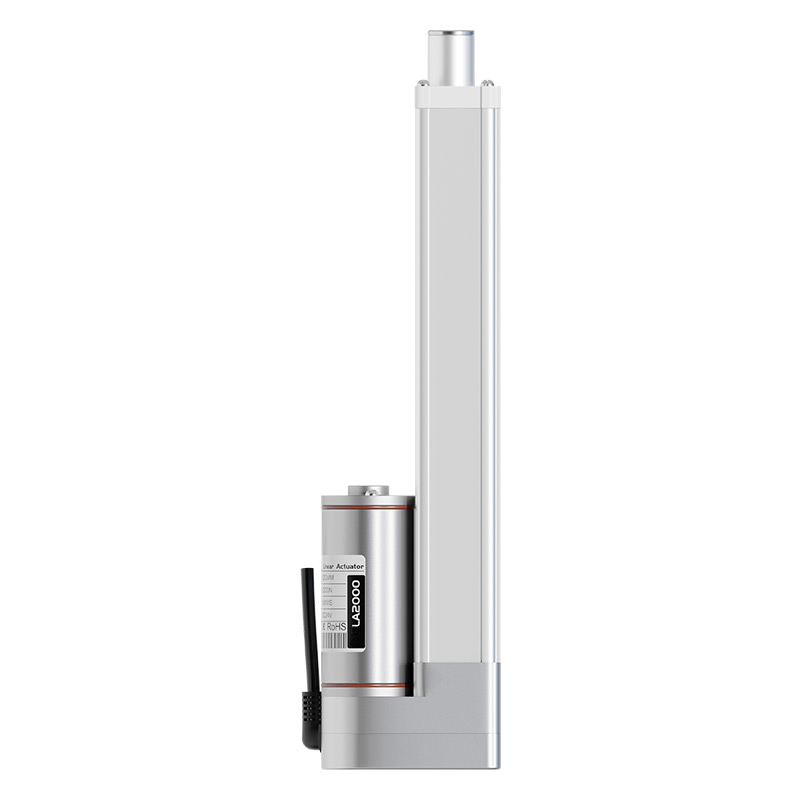

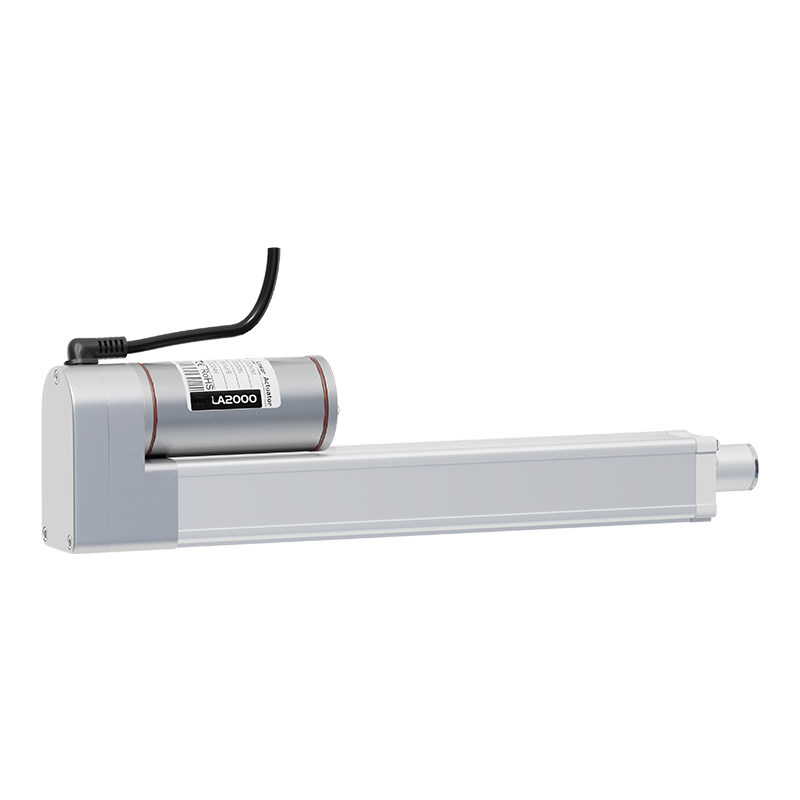

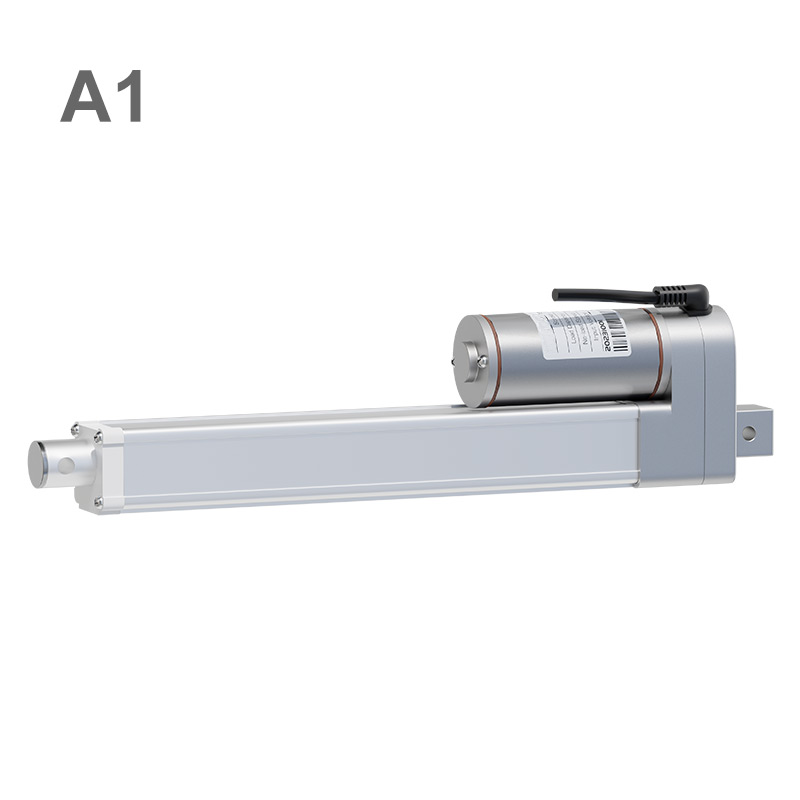

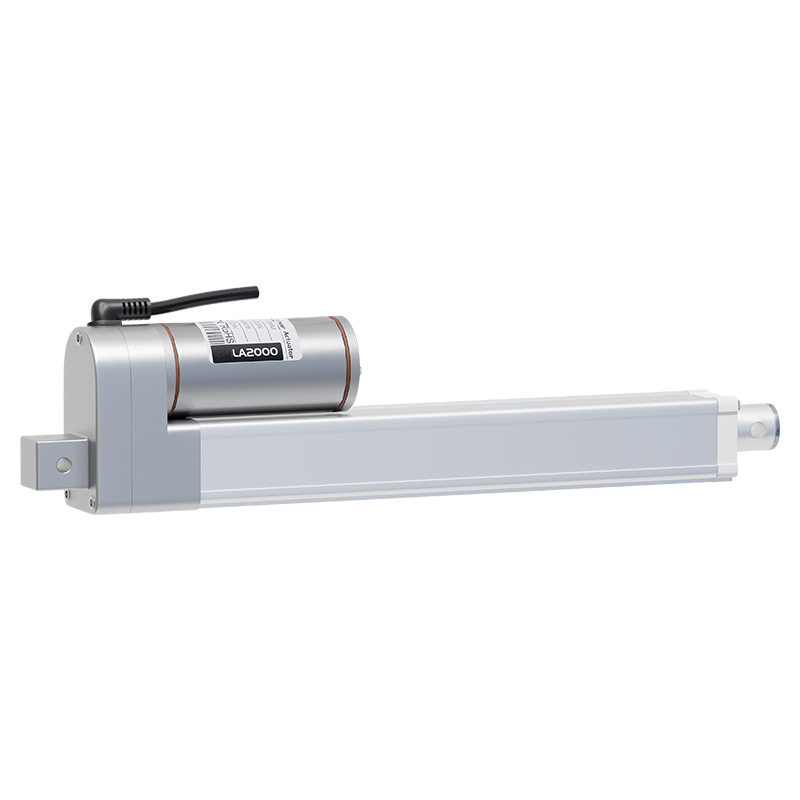

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Technical Data

LA2000 High Speed Electric Linear Actuator, also known as Linear Hydraulic Actuator. The High Speed Electric Linear Actuator is an electric drive device that converts the rotational motion of motor into high-speed linear reciprocating motion of push rod. Linear Hydraulic Actuator can be used as an actuator in various simple or complex process to achieve remote control, centralized control or automatic control.
LA2000 High Speed Linear Actuator has the characteristics of energy saving and environmental protection, reliable performance, sensitive movement, stable operation, the same push and pull force, good environmental adaptability and so on. Novel and exquisite design, small size, high precision, complete synchronization, good self-locking performance, health, DC motor direct drive, gas source without piping, oil circuit, has been widely used in production lines, automobiles, ventilation window opening, military, stage, textile, sewage treatment and other industries and equipment.

Technical Data

LA2000 High Speed Electric Linear Actuator | Linear Hydraulic Actuator
Operating voltage: DC24~32V / DC12~19V
Max. load: 2000N
Max. stroke: 800mm
Max. speed: 55mm/s
Operating Temperature: 0°C~+50°C
Mounting Distance: S (stroke) +100mm standard
Operating Frequency: 10% max 2min. continuous use
Internal limit switches
Aluminum alloy inner and outer tubes
All metal powder metallurgy gearbox
IP Grade: IP54
Maintenance-free

Scope Of Application

SLA2000 electric linear actuator uses 30dB low-noise plastic motor gear, maximum load can reach 2000N, maximum speed 55MM/S, Can add Hall Sensor, upper and lower limit feedback, built-in magnetic induction, etc., Suitable for medical, furniture, industrial and other fields.
It can be installed in the automatic control system of Windows such as construction vehicles, cleaning vehicles, ships and cargo holds.Small capacity, compact design, high protection level.

Technical Parameters

Voltage DC24~32V / DC12~19V
Speed (MM/S) 5 6 12 20 40 55
Load Pull Capacity(N) 2000 1500 1000 500 300 200
Load Push Capacity(N) 2000 1500 1000 500 300 200
Self-locking Capacity(N) 2000 1500 1000 500 300 200
Stroke Length 100mm-800mm
Color Silver grey
Limit switch Built-in
Usage Frequency 10% max 2min. continuous use
Use ambient temperature 0°C~+50°C
Optional Configuration:           1.Hall Sensor       2.Magnetic Induction Switch            3.Upper and lower limit feedback

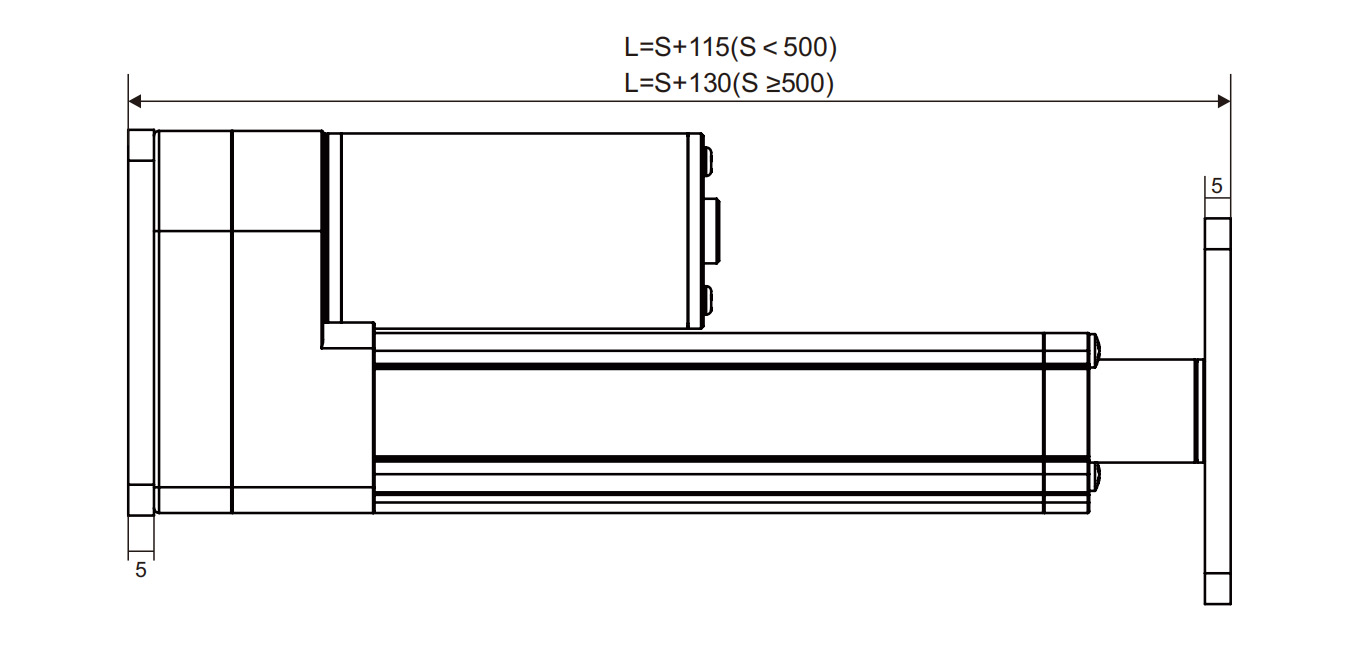

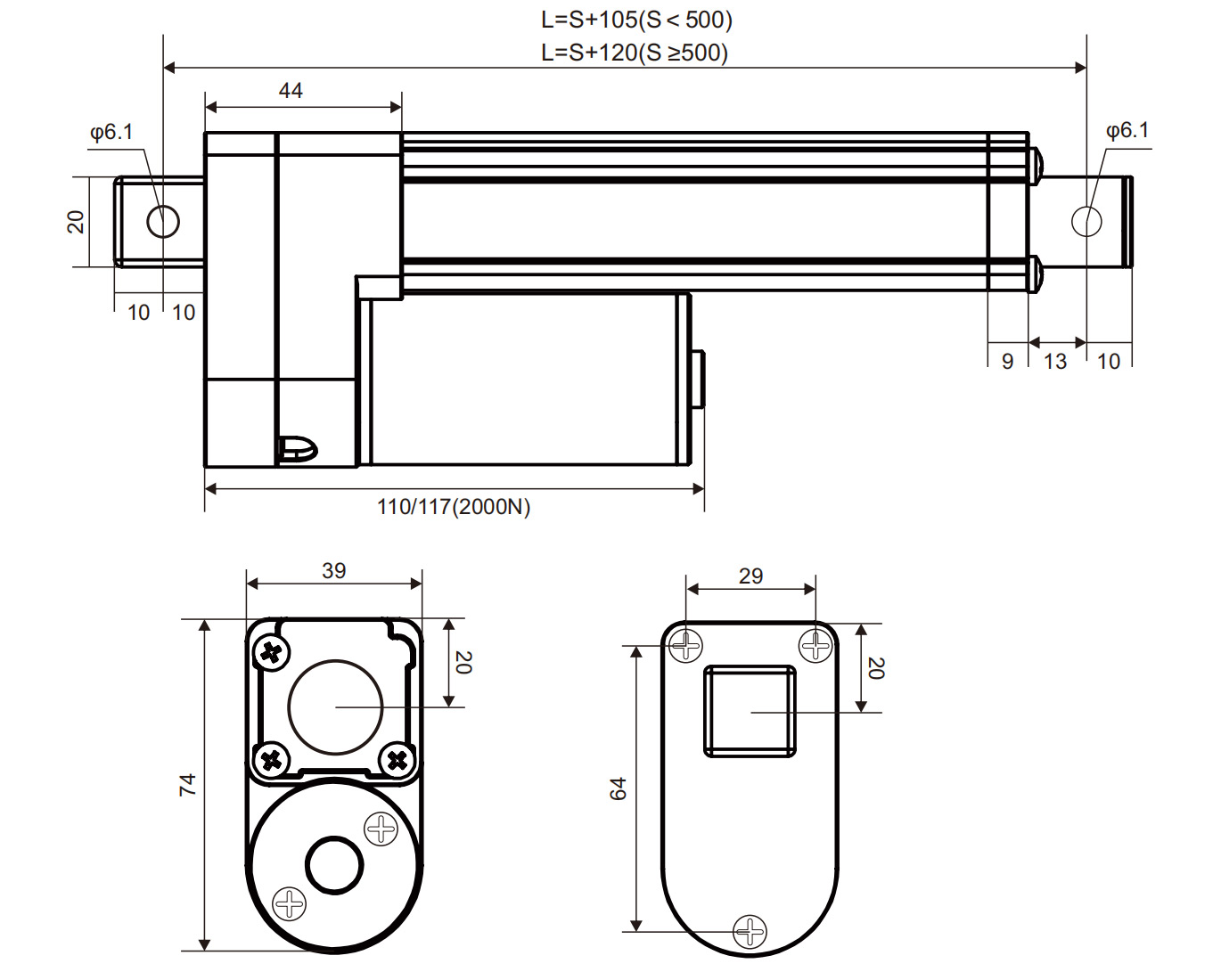

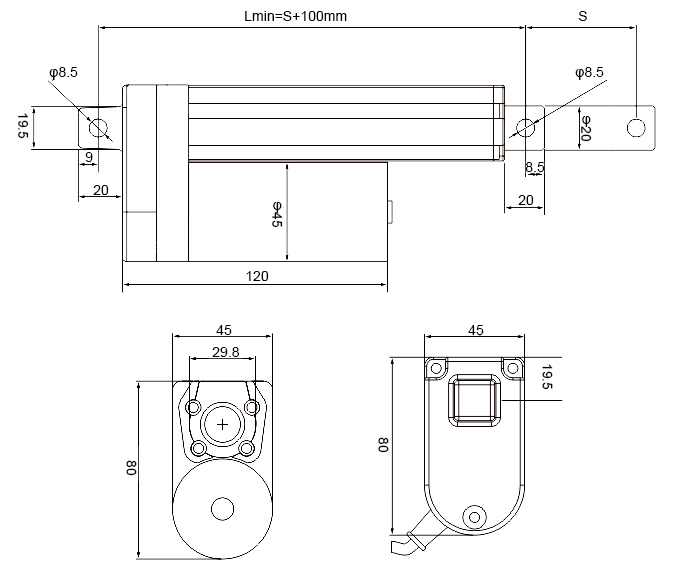

Outline Dimensional Drawing
