Filter Regulator Lubricator - Pneumatic Air Filter | AF7

Pneumatic Air Filter | AF



The compressed air from the air source contains excessive water vapor and oil droplets, as well as solid impurities, such as rust, sand, pipe sealants, etc., which will damage the cylinder piston seal ring and block the small vent holes of the cylinder products, shorten the life of the cylinder or make it ineffective.

The function of Pneumatic Air Filter | AF is to separate liquid water and liquid oil droplets from compressed air, and filter out dust and solid impurities in the air, but can not remove gaseous water and oil.

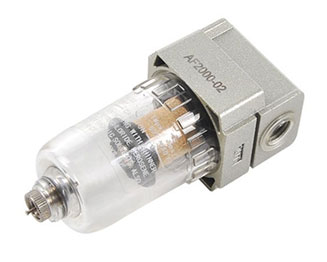

  • Pneumatic Air Filter AF

    AF2000-02 Series AF Air Filter is one of the compressed air source treatment components, is to separate the water and solid particles in the compressed air to achieve the purification function, thus providing a clean gas source for the gas equipment.

    Working Medium: Compressed Air
    Proof Pressure: 1.5MPa
    Ambient temperature: 5~60℃
    Filtration aperture: 40μm(routine) or 5μm(customized)
    Range of pressure regulation: 0.05~0.85MPa
    Learn more

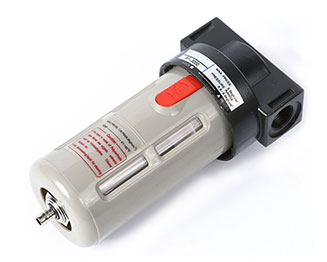

  • Pneumatic Air Filter AF/BF

    The function of the A/B Series Air Filter is to filter out all kinds of impurities such as solid particles, moisture and oil in the air. The air further clears the solid particles through the filter element, and the clean air outputs from the output port.

    Working Medium: Compressed Air
    Proof Pressure: 1.5MPa
    Ambient temperature: 5~60℃
    Filtration aperture: 40μm(routine) or 5μm(customized)
    Range of pressure regulation: 0.05~0.85MPa
    Learn more

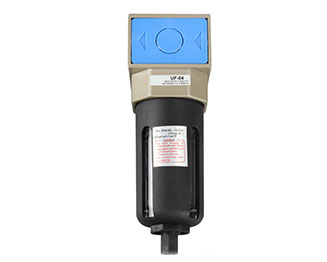

  • Pneumatic Air Filter UF

    UF Air Filter is one of the compressed air source treatment components, Pneumatic Air Filter AF separates the water and solid particles in compressed air to achieve the purification function, thus providing clean air for the equipment.

    Working Medium: Compressed Air
    Proof Pressure: 1.5MPa
    Ambient temperature: -10~60℃
    Filtration aperture: 40μm(routine) or 5μm(customized)
    Max. Operating Pressure: 0.9MPa
    Learn more

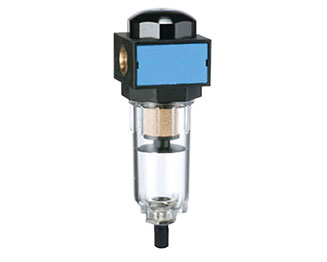

  • Pneumatic Air Filter F200A

    The structure of Compressed Air Filters is light and compact, F200A Mini Air Filter is easy to install and use. The pressing self locking mechanism of Mini Air Filters can prevent the setting pressure from being disturbed by external disturbances.

    Working Medium: Compressed Air
    Proof Pressure: 1.0MPa
    Ambient temperature: -10~60℃
    Filtration aperture: 40μm(routine) or 5μm(customized)
    Max. Operating Pressure: 0.8MPa
    Learn more

  • Pneumatic Air Filter F

    Unique diversion structure of Compressed Air Filters F Series makes the flowing air rotate properly, so that the liquid in the air can be separated more effectively and the solid particles can be filtered reliably.

    Working Medium: Compressed Air
    Proof Pressure: 1.6MPa
    Ambient temperature: 5~60℃
    Filtration aperture: 40μm(routine) or 5μm(customized)
    Max. Operating Pressure: 1.2MPa
    Learn more

  • Pneumatic Air Filter GF

    Air Filter has low pressure loss, high water separation efficiency and large capacity of water bowl. There are three forms of drainage, such as manual, differential pressure and automatic drainage.

    Working Medium: Compressed Air
    Proof Pressure: 1.5MPa
    Ambient temperature: -20~70℃
    Filtration aperture: 40μm(routine) or 5μm(customized)
    Max. Operating Pressure: 0.85MPa
    Learn more

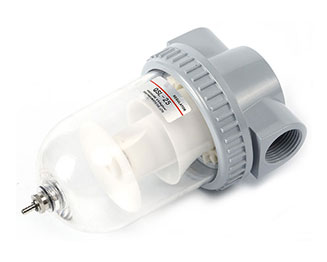

  • Pneumatic Air Filter QSL

    The structure of QSL Air Filters is simple and it is widely used. Pneumatic Air Filter AF uses cyclone blades to separate moisture and impurities. Stainless steel micropores intercept dust.

    Working Medium: Compressed Air
    Proof Pressure: 1.5MPa
    Ambient temperature: 5~60℃
    Filtration aperture: 40μm(routine) or 5μm(customized)
    Max. Operating Pressure: 0.8MPa
    Learn more
