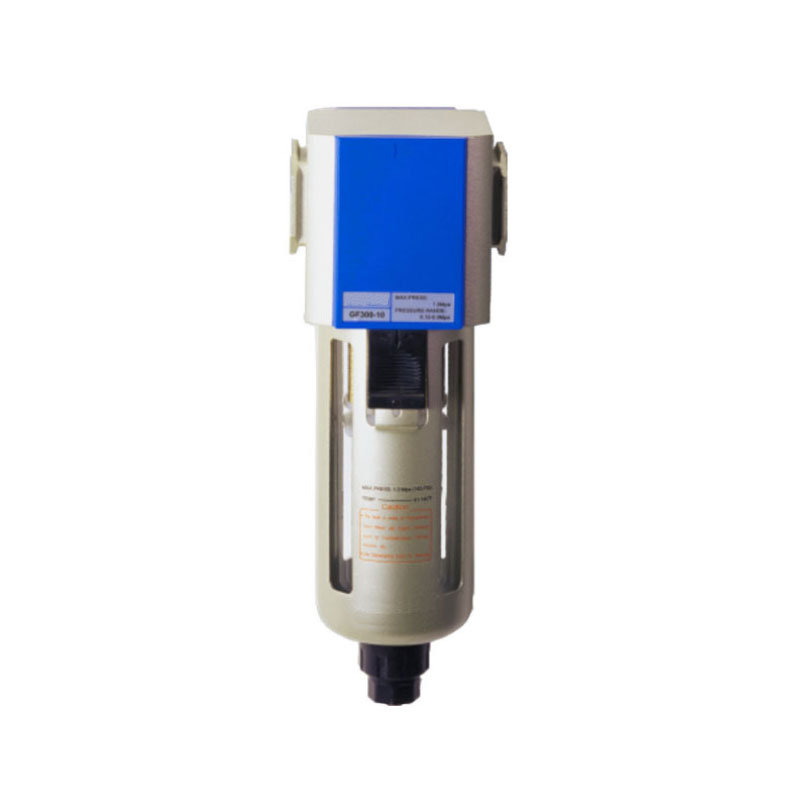

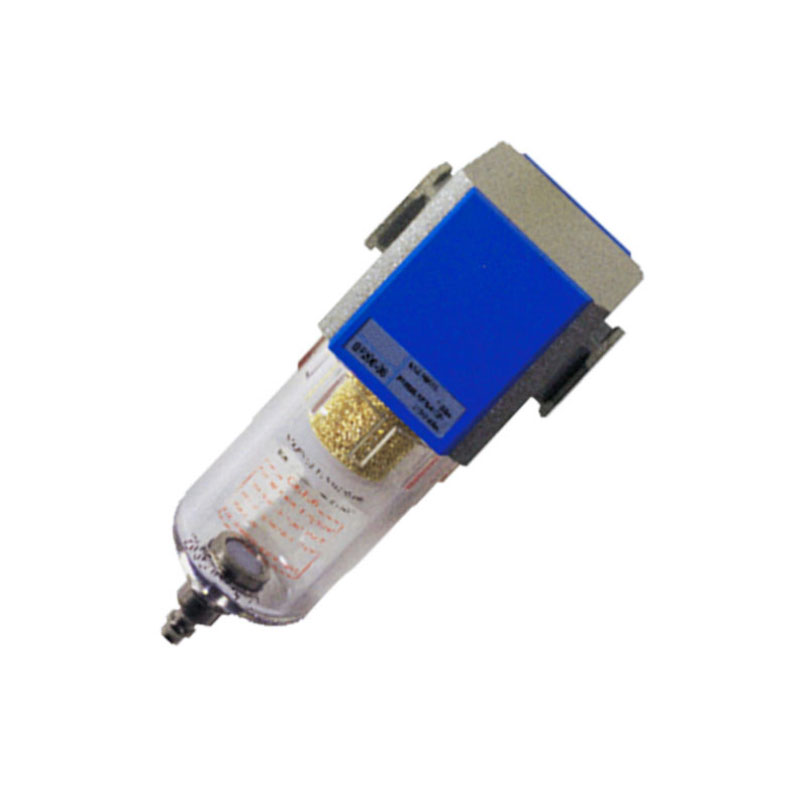

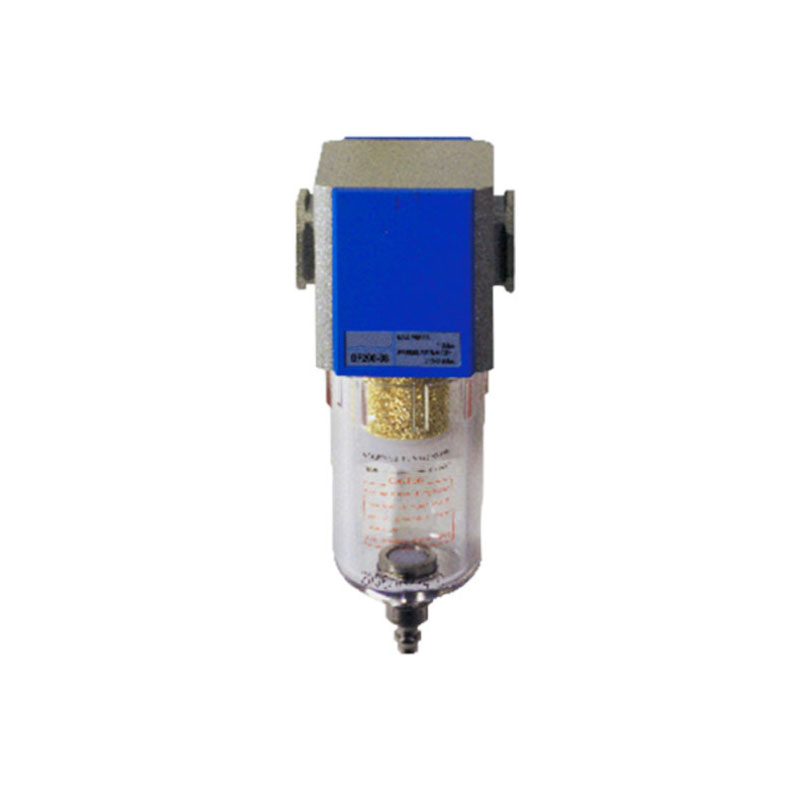

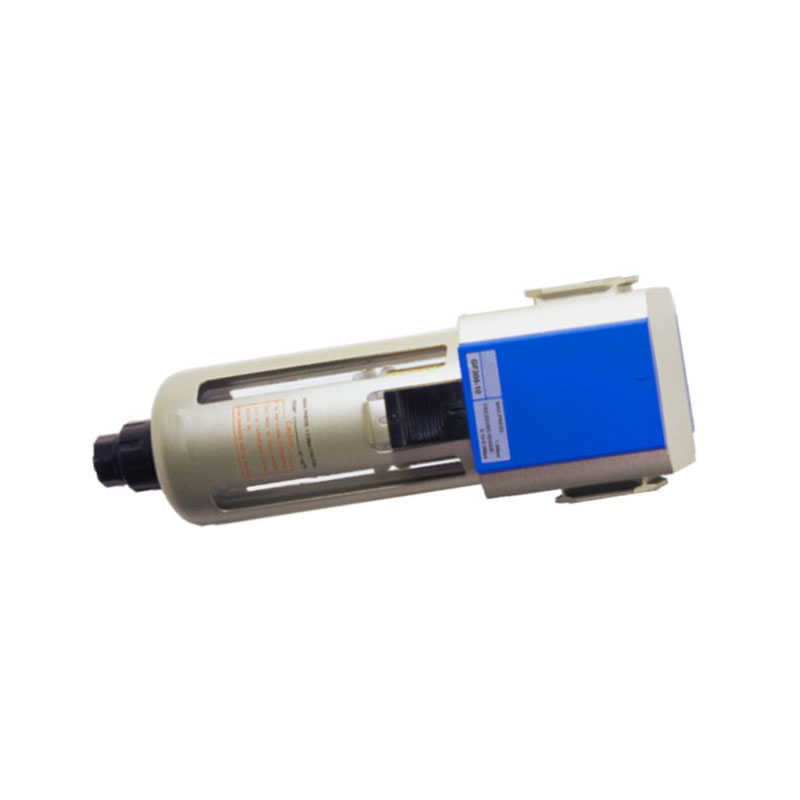

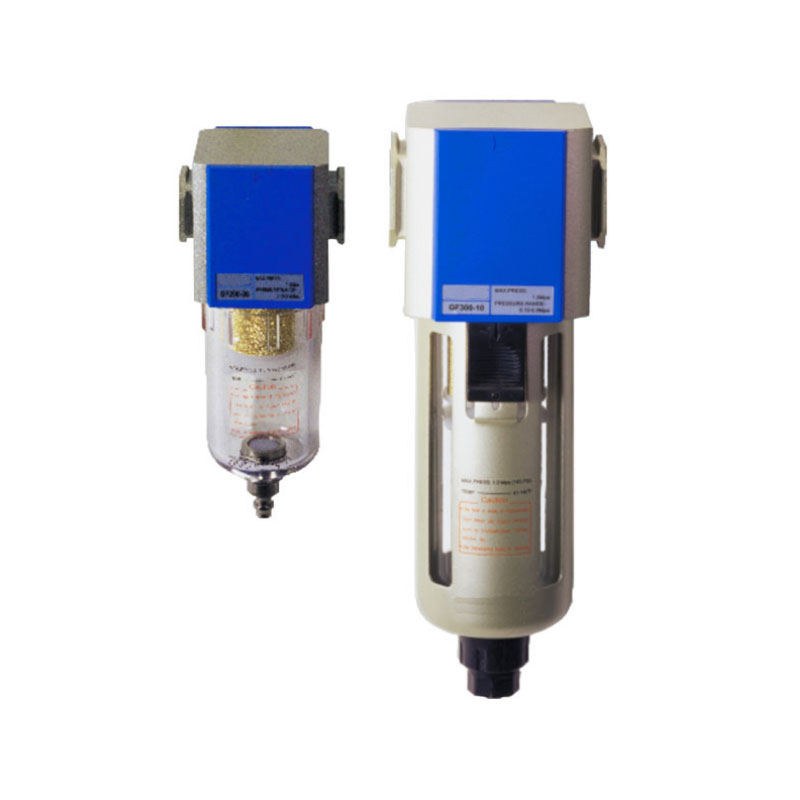

Product Features for Air Filter
1. Unique diversion structure of
Pneumatic Air Filter AF makes the flowing air rotate properly, so that the liquid in the air can be separated more effectively and the solid particles can be filtered reliably.
2.
Air Filter has low pressure loss, high water separation efficiency and large capacity of water bowl.
3. The filtration accuracy has 5um and 40um for selection.
4. There are three forms of drainage, such as manual, differential pressure and automatic drainage.
5. You can choose to use fixed bracket for installation.

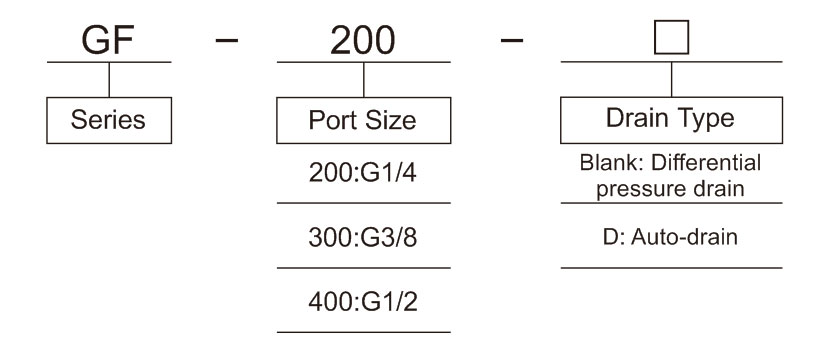

Ordering Code for GF Air Filter
Symbol for Pneumatic Air Filter GF Series
Technical Parameter for GF Air Filter
| Model |
GF-200 |
GF-300 |
GF-400 |
| Working Medium |
Compressed Air |
| Port size |
G1/4 |
G3/8 |
G1/2 |
| Max. Operating Pressure |
1.5MPa |
| Max. Proof Pressure |
0.85MPa |
| Filtration aperture |
40μm(routine) or 5μm(customized) |
| Bowl capacity |
10ml |
40ml |
80ml |
| Ambient temperature |
-20~70℃ |
| Main material |
Body: Aluminium Alloy; Bowl: PC |

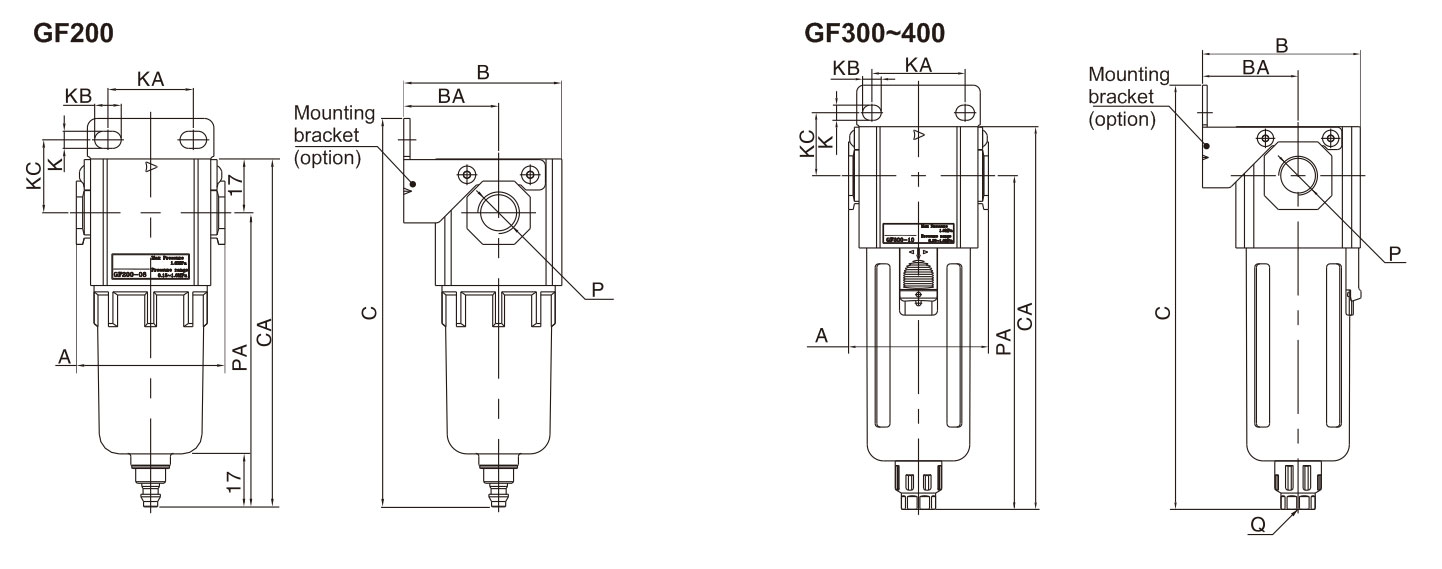

Overall Dimension
| Model |
A |
B |
BA |
C |
CA |
K |
KA |
KB |
KC |
P |
PA |
Q |
| GF200 |
47 |
50 |
30 |
123 |
110 |
5.4 |
27 |
8.4 |
23 |
G1/4 |
93 |
G1/8 |
| GF300 |
80 |
85.5 |
50 |
208 |
191.5 |
8.6 |
55 |
11 |
33.5 |
G3/8 |
166.5 |
G1/4 |
| GF400 |
80 |
85.5 |
50 |
208 |
191.5 |
8.6 |
55 |
11 |
33.5 |
G1/2 |
166.5 |
G1/4 |
Note: due to the different drainage components, the C values in the table will be slightly different. If necessary, please contact the sales department.
