Pneumatic Air Filter F200A

The structure of Compressed Air Filters is light and compact, F200A Mini Air Filter is easy to install and use. The pressing self locking mechanism of Mini Air Filters can prevent the setting pressure from being disturbed by external disturbances.

Working Medium: Compressed Air
Proof Pressure: 1.0MPa
Ambient temperature: -10~60℃
Filtration aperture: 40μm(routine) or 5μm(customized)
Max. Operating Pressure: 0.8MPa

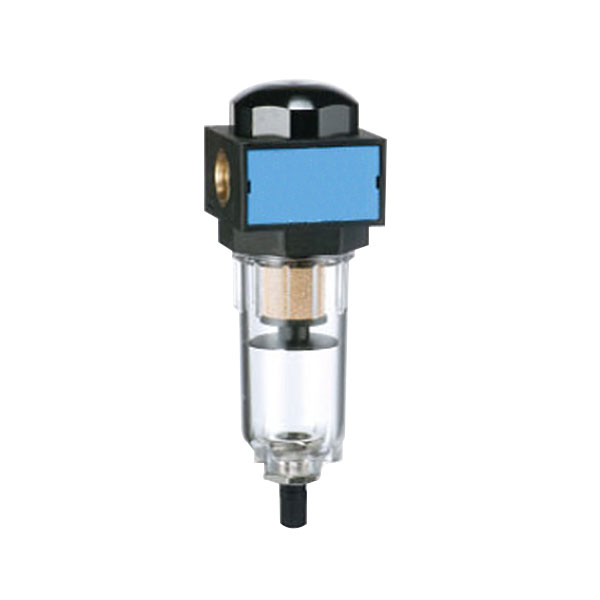

Product Images

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

Product Specifications
Product Details
Size Weight
Related Data
Product Video

Product Features for Compressed Air Filters

1. The structure of Compressed Air Filters is light and compact, F200A Mini Air Filter is easy to install and use.
2. The pressing self locking mechanism of Mini Air Filters can prevent the setting pressure from being disturbed by external disturbances.
3. The pressure loss of F200A Mini Air Filter is small and the water separation efficiency is high.
4. F200A Mini Air Filter has transparent inspection for oil mass.
5. In addition to the standard type of Pneumatic Air Filter AF, there is another low pressure can be selected (Max. adjustable pressure 0.4MPa).

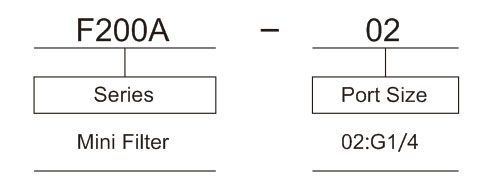

Ordering Code for Compressed Air Filters

Symbol for Compressed Air Filters

Technical Parameter for Mini Air Filters

Model	F200A-02
Port Size	G1/4
Working Medium	Compressed Air
Max. Proof Pressure	1.0MPa
Max. Operating Pressure	0.8MPa
Filtration aperture	40μm(routine) or 5μm(customized)
Max. flow	2036L/min
Bowl capacity	35ml
Ambient temperature	-10~60℃
Main material	Body: Engineering rubber; Bowl: PC

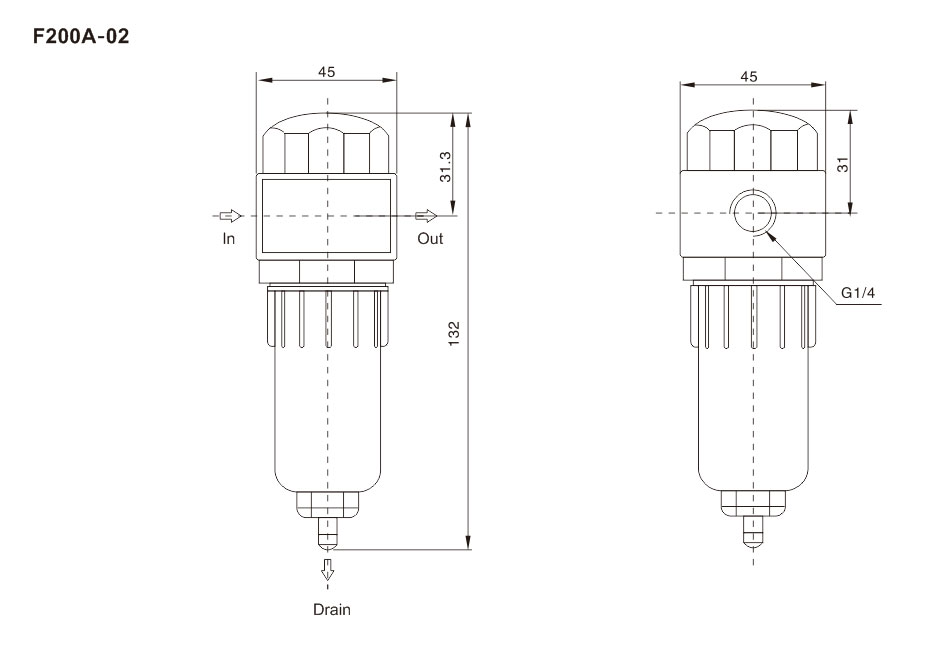

Overall Dimension for Mini Air Filters
