Pneumatic Air Filter AF

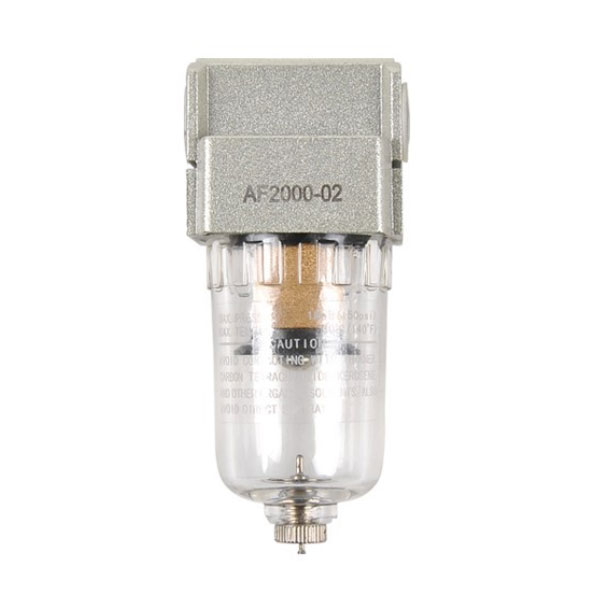

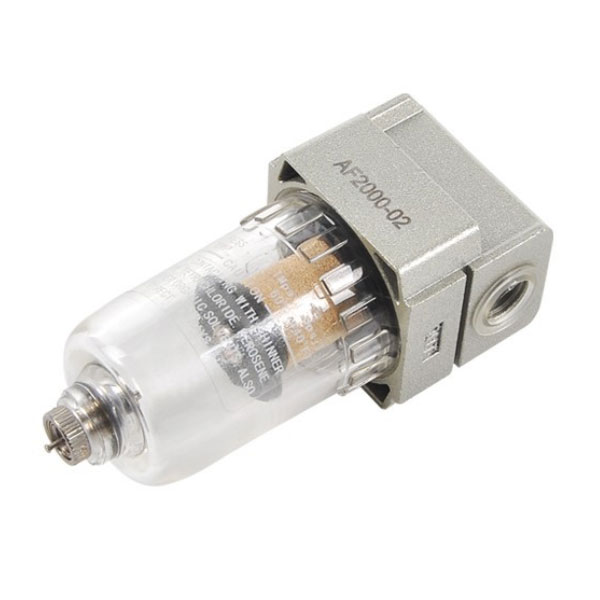

AF2000-02 Series AF Air Filter is one of the compressed air source treatment components, is to separate the water and solid particles in the compressed air to achieve the purification function, thus providing a clean gas source for the gas equipment.

Working Medium: Compressed Air
Proof Pressure: 1.5MPa
Ambient temperature: 5~60℃
Filtration aperture: 40μm(routine) or 5μm(customized)
Range of pressure regulation: 0.05~0.85MPa

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Overview for AF Air Filter

AF Air Filter: AF2000-01; AF2000-02; AF3000-02; AF3000-03; AF4000-03; AF4000-04; AF4000-06; AF5000-06; AF5000-10; AF2000-02 series air filter is one of the compressed air source treatment components, is to separate the water and solid particles in the compressed air to achieve the purification function, thus providing a clean gas source for the gas equipment. Now Pneumatic Air Filter AF is also known as: compressed air filter, air source filter, instrument air filter, water filter, oil-water separator, etc.

Matters needing attention for AF Air Filter

(1) AF Air Filter should be used in situations where pressure is not pulsating.
(2) The pressure drop on both sides of the filter should be measured by differential pressure meter. When the pressure drop is greater than 0.1MPa, the filter element should be replaced.
(3) Vertical installation. When the liquid level is visible from the observation window, the manual drain valve should be opened to drain water.
(4) When using the automatic drainer, the outer diameter of the drain pipe should be 10mm and the length should be less than 5m. If the air compressor power is less than 3.7kW, the normally closed automatic drainer must be used. If you use a normally open automatic drainer, it is possible not to stop outward exhaust.
(5) The AF2000-02 filter on the main pipe can be equipped with a filter core blocking indicator. When the pressure drop at both ends of the AF2000-02 filter is greater than 0.1MPa, the red indicator is completely exposed, and the filter element should be replaced at this time.
Installed in the main pipe. Remove oil, water and dust from compressed air to improve the working efficiency of downstream dryer and prolong the use time of precision filter.

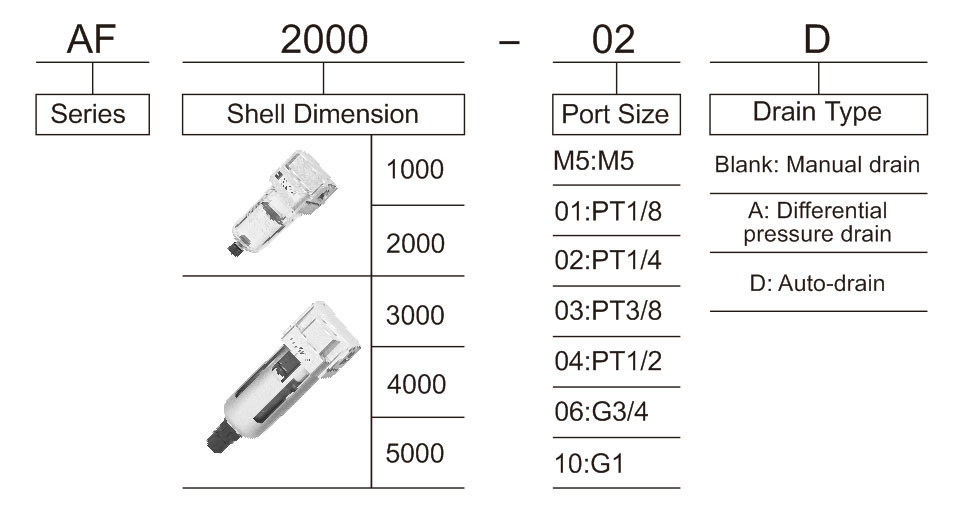

Ordering Code for AF Air Filter

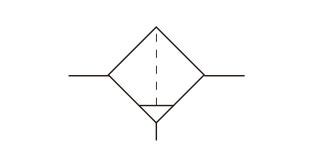

Symbol for AF Air Filter

Technical Parameter for AF Air Filter

Model AF1000-M5 AF2000-01 AF2000-02 AF3000-02 AF3000-03 AF4000-03 AF4000-04 AF4000-06 AF5000-06 AF5000-10
Port Size M5×0.8 PT1/8 PT1/4 PT1/4 PT3/8 PT3/8 PT1/2 PT3/4 G3/4 G1
Capacity of water bowl (ml) 4 15 15 20 20 45 45 45 130 130
Rated flow (L/min) 110 750 750 1500 1500 4000 4000 6000 7000 7000
Working Medium Compressed Air
Proof Pressure 1.5MPa
Max. Operating Pressure 0.85MPa
Ambient temperature 5~60℃
Filtration aperture 40μm(routine) or 5μm(customized)
Bracket (1) - B240A B320A B340A B440A B640A
Main parts material Body material Aluminium Alloy
Bowl material PC
Bowl guide AF1000~AF2000: no; AF3000~AF5000: yes (Iron)

Note: The rated flow is at the supply pressure of 0.7MPa.

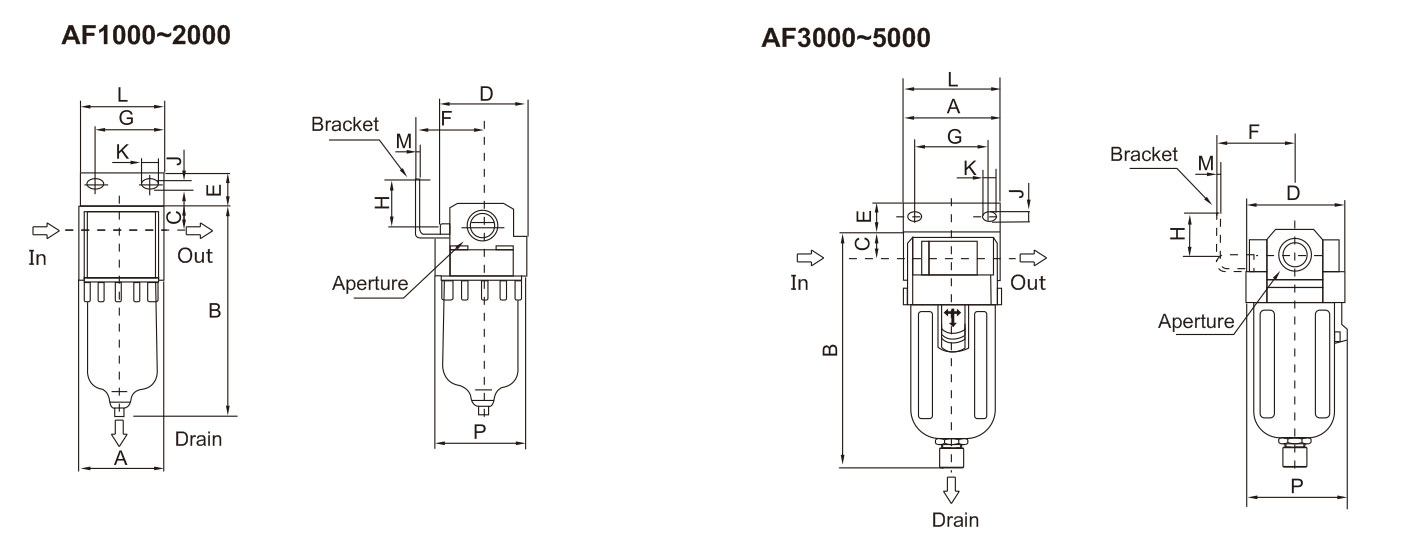

Overall Dimension

Model Aperture A B C D E F G H J K L M P
AF1000 M5×0.8 25 66 7 25 - - - - - - - - 26.5
AF2000 PT1/8,PT1/4 40 97.5 11 40 17 30 27 22 5.4 8.4 40 2.3 40
AF3000 PT1/4,PT3/8 53 132.5 14 53 16 41 40 23 6.5 8 53 2.3 56
AF4000 PT3/8,PT1/2 70 168.5 18 70 17 50 54 26 8.5 10.5 70 2.3 73
AF4000-06 G3/4 85 172.5 20 70 14 50 54 25 8.5 10.5 70 2.3 73
AF5000 G3/4,G1 90 247.5 24 90 23 70 66 35 11 13 90 2.3 90

Note: due to the different drainage components, the B values in the table will be slightly different. If necessary, please contact the sales department.
