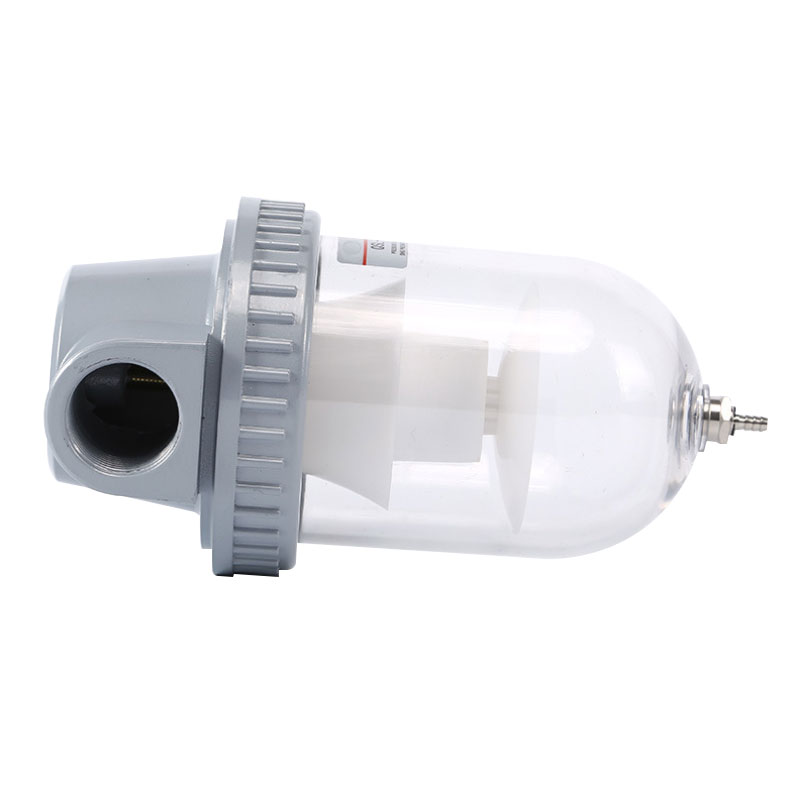

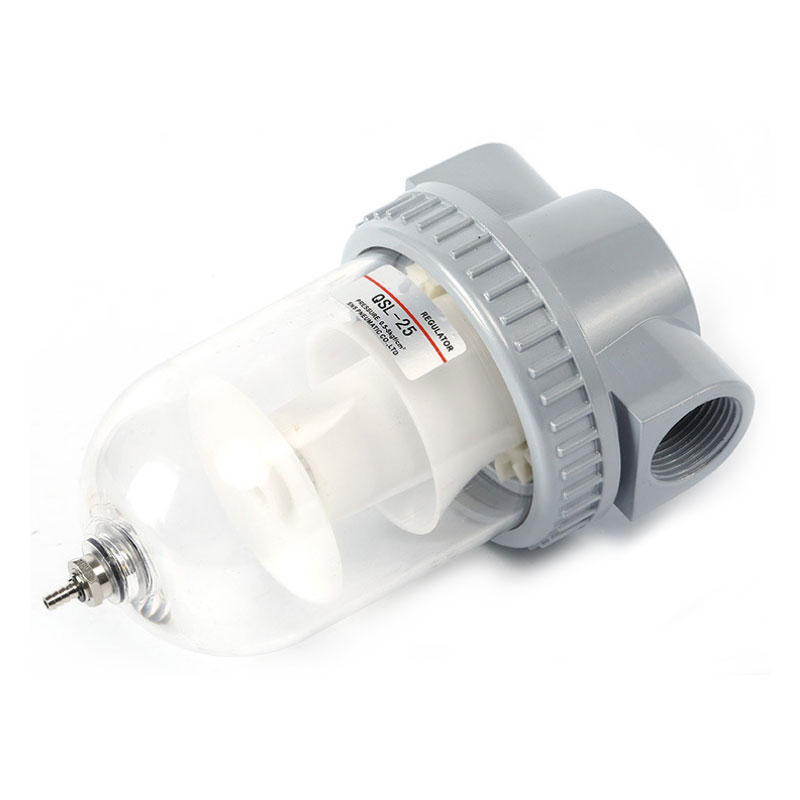

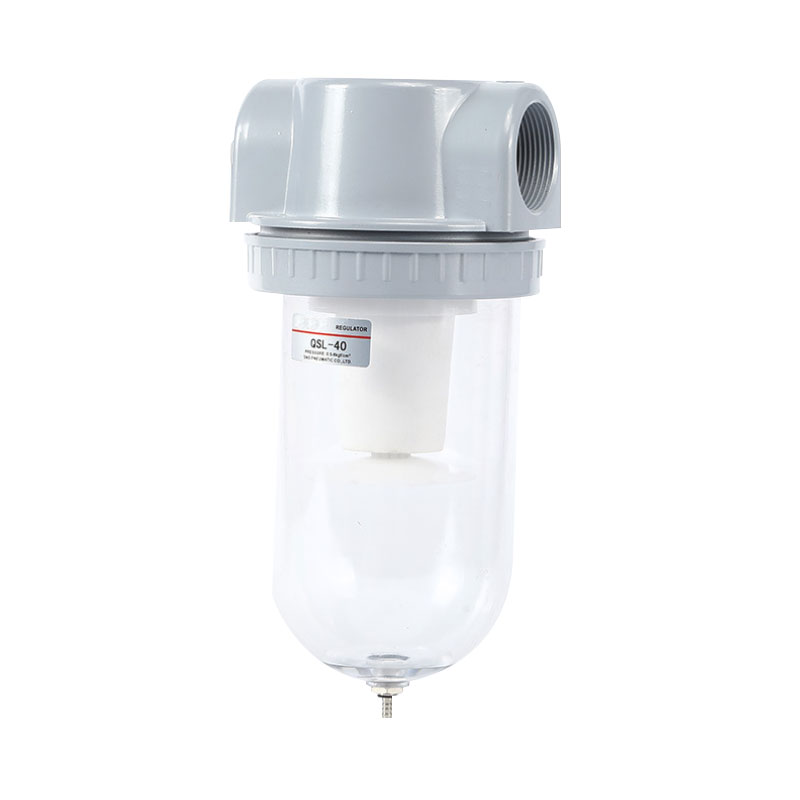

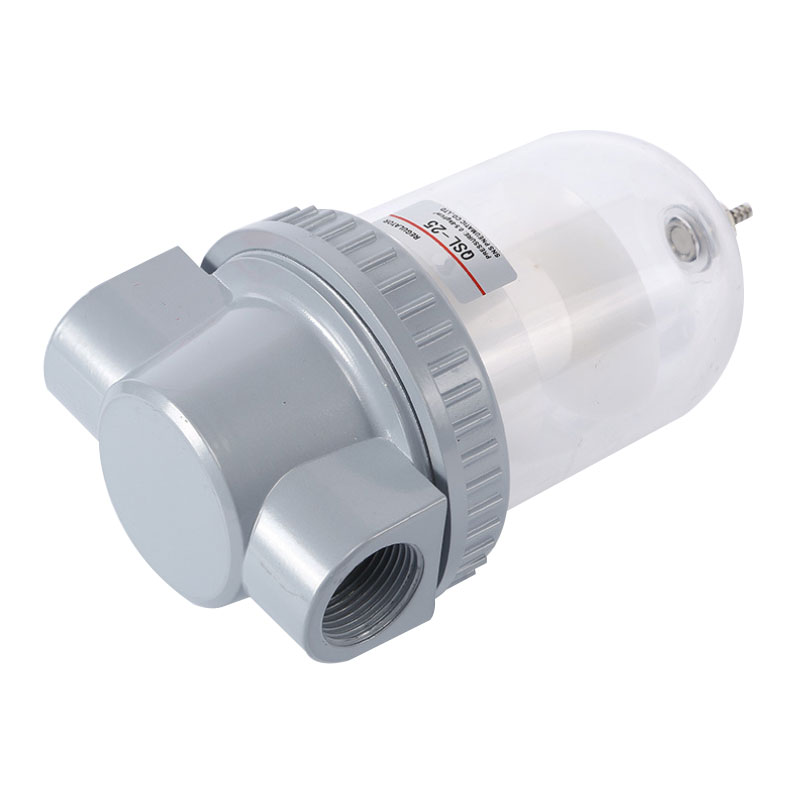

Overview for QSL Air Filters
The structure of
QSL Air Filters is simple and it is widely used.
Pneumatic Air Filter AF uses cyclone blades to separate moisture and impurities. Stainless steel micropores intercept dust.
The water bowl is made of transparent polycarbonate, which can not only meet the proof-pressure requirements, but also clearly observe the amount of water accumulated.
The metal cover can protect the water bowl from breakage caused by external impact.

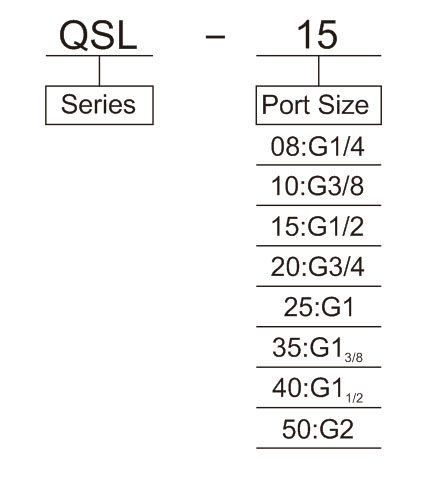

Ordering Code for QSL Air Filters
Symbol for QSL Air Filters
Technical Parameter for QSL Air Filters
| Model |
QSL-08 |
QSL-10 |
QSL-15 |
QSL-20 |
QSL-25 |
QSL-35 |
QSL-40 |
QSL-50 |
| Port size |
G1/4 |
G3/8 |
G1/2 |
G3/4 |
G1 |
G1(3/8) |
G1(1/2) |
G2 |
| Working Medium |
Compressed Air |
| Proof Pressure |
1.5MPa |
| Max. Operating Pressure |
0.8MPa |
| Temperature range |
5~60℃ |
| Filtration aperture |
40μm(routine) or 5μm(customized) |
| Main parts material |
Body material |
Aluminium Alloy |
| Bowl material |
PC |

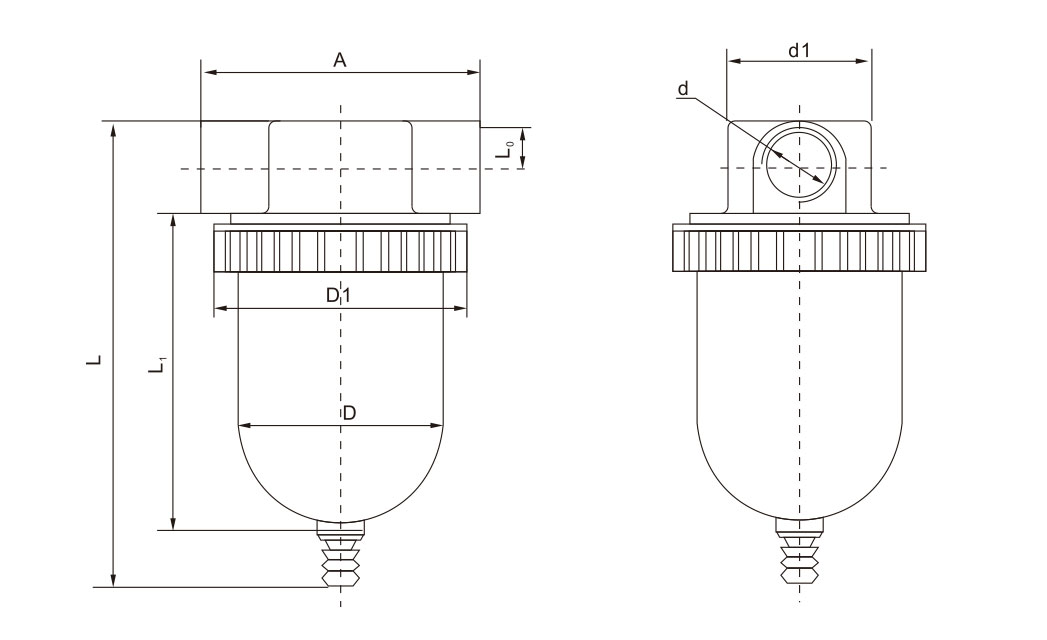

Overall Dimension
| Model |
Port Size |
A |
D |
D1 |
d |
L0 |
L1 |
L |
d1 |
| QSL-08 |
G1/4 |
90 |
62 |
68 |
31 |
15 |
115 |
160 |
55 |
| QSL-10 |
G3/8 |
90 |
62 |
68 |
31 |
15 |
115 |
160 |
55 |
| QSL-15 |
G1/2 |
90 |
62 |
68 |
31 |
15 |
115 |
160 |
55 |
| QSL-20 |
G3/4 |
110 |
80 |
88 |
45 |
23 |
150 |
213 |
65 |
| QSL-25 |
G1 |
110 |
80 |
88 |
45 |
23 |
150 |
213 |
65 |
| QSL-35 |
G1(3/8) |
130 |
102 |
110 |
63 |
31 |
210 |
285 |
90 |
| QSL-40 |
G1(1/2) |
130 |
102 |
110 |
63 |
31 |
210 |
285 |
90 |
| QSL-50 |
G2 |
130 |
102 |
110 |
63 |
31 |
210 |
285 |
90 |
