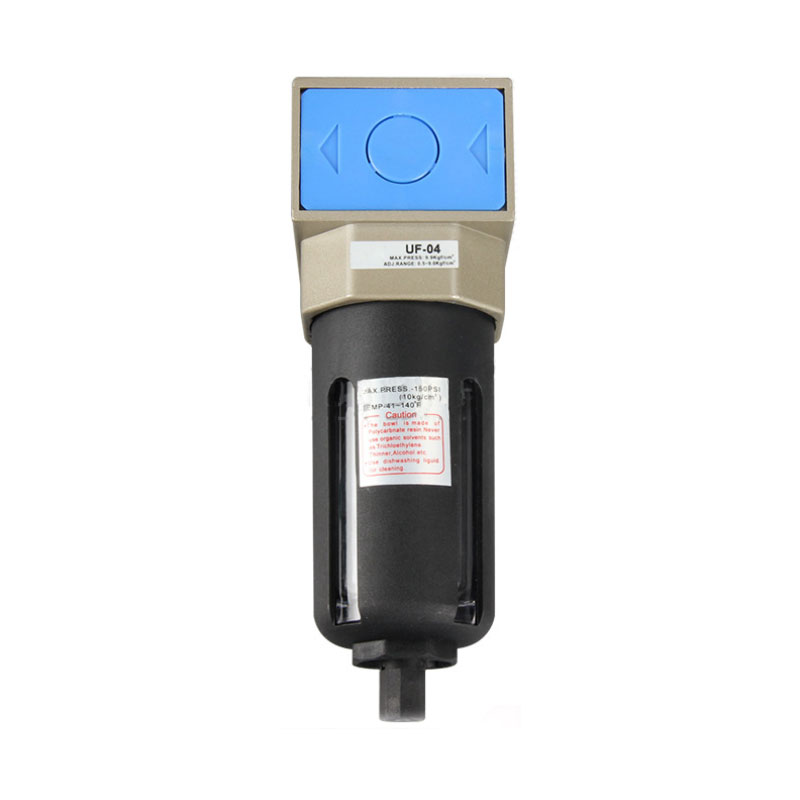

Overview for UF Air Filter
UF Air Filter have: UF-02, UF-02J (metal cup), UF-03, UF-03J (metal cup), UF-04, UF-04J (metal cup), UF-06, UF-08. UF Air Filter is one of the compressed air source treatment components,
Pneumatic Air Filter AF separates the water and solid particles in compressed air to achieve the purification function, thus providing clean air for the equipment. (metal cup filter: can be applied to worse environment, cup body is not easy to break, not easy to aging, longer service life). UF Air Filter is also called: metal cup filters, compressed air filters, air source filters, instrument air filters, deduster, oil-water separator, air filters, filters and so on.

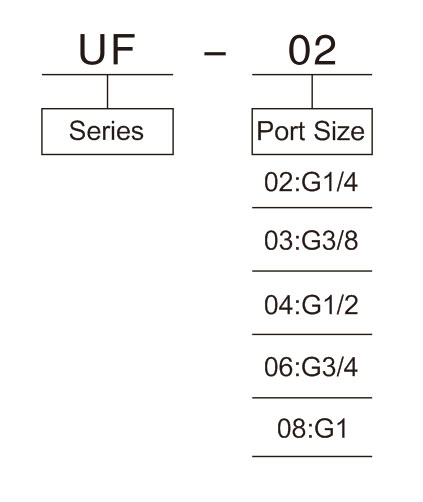

Ordering Code for UF Air Filter
Symbol for UF Air Filter
Technical Parameter for UF Air Filter
| Model |
UF-02 |
UF-03 |
UF-04 |
UF-06 |
UF-08 |
| Port Size |
G1/4 |
G3/8 |
G1/2 |
G3/4 |
G1 |
| Working Medium |
Compressed Air |
| Max. Proof Pressure |
1.5MPa |
| Max. Operating Pressure |
0.9MPa |
| Filtration aperture |
40μm(routine) or 5μm(customized) |
| Maximum flow |
2080L/min |
2100L/min |
2600L/min |
7940L/min |
8200L/min |
| Bowl capacity |
105ml |
210ml |
| Ambient temperature |
-10~60℃ |
| Main material |
Body: Die cast aluminum; Bowl: PC |

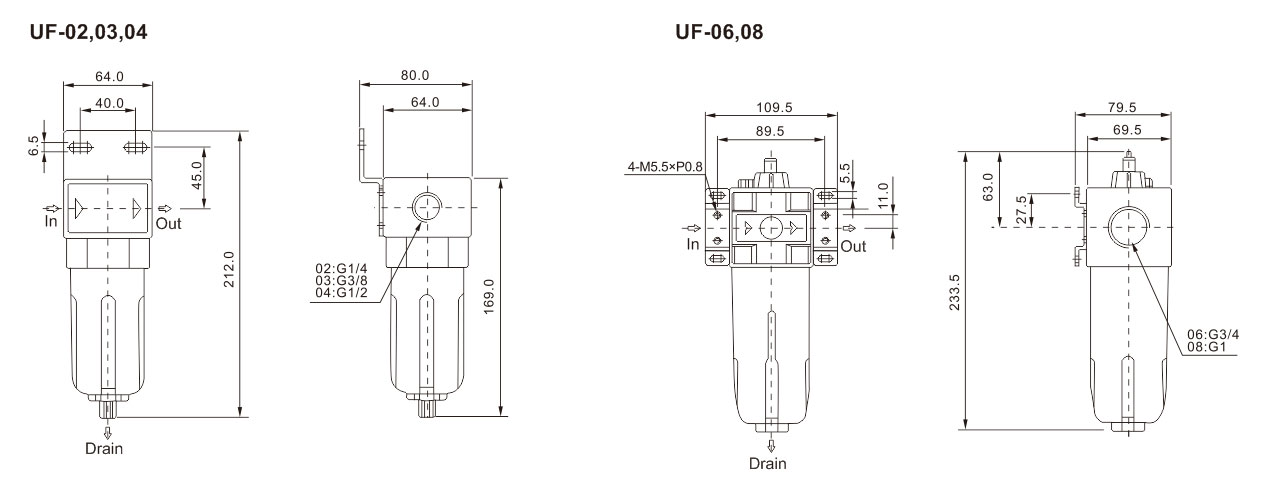

Overall Dimension
