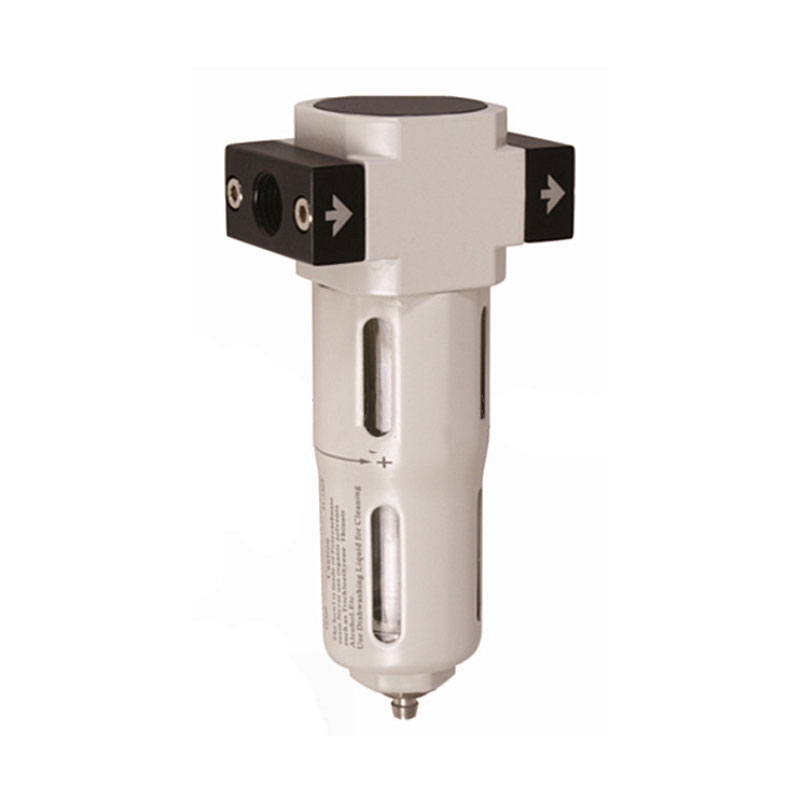

Pneumatic Air Filter F

Unique diversion structure of Compressed Air Filters F Series makes the flowing air rotate properly, so that the liquid in the air can be separated more effectively and the solid particles can be filtered reliably.

Working Medium: Compressed Air
Proof Pressure: 1.6MPa
Ambient temperature: 5~60℃
Filtration aperture: 40μm(routine) or 5μm(customized)
Max. Operating Pressure: 1.2MPa

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Overview for Compressed Air Filters F Series

1. Unique diversion structure of Compressed Air Filters F Series makes the flowing air rotate properly, so that the liquid in the air can be separated more effectively and the solid particles can be filtered reliably.
2. Pneumatic Air Filter AF has low pressure loss, high water separation efficiency and large capacity of water bowl.
3. The filtration accuracy has 5um and 40um for selection.
4. There are three forms of drainage, such as manual, differential pressure and automatic drainage.
5. You can choose to use fixed bracket for installation.

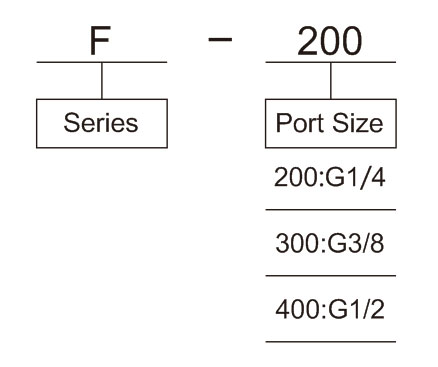

Ordering Code for Compressed Air Filters F Series

Symbol for Compressed Air Filters F Series

Technical Parameter for Compressed Air Filters F Series

Specification F-200 F-300 F-400
Port size G1/4 G3/8 G1/2
Working Medium Compressed Air
Max. Operating Pressure 1.2MPa
Max. Proof Pressure 1.6MPa
Filtration aperture 40μm(routine) or 5μm(customized)
Rated flow 1200L/min 2700L/min 3000L/min
Min. fogging flow 3L/min 6L/min 6L/min
Bowl capacity 22ml 43ml 43ml
Ambient temperature 5~60℃
Mounting type Pipe mounting or bracket mounting
Main material Body: engineering rubber; Bowl: PC

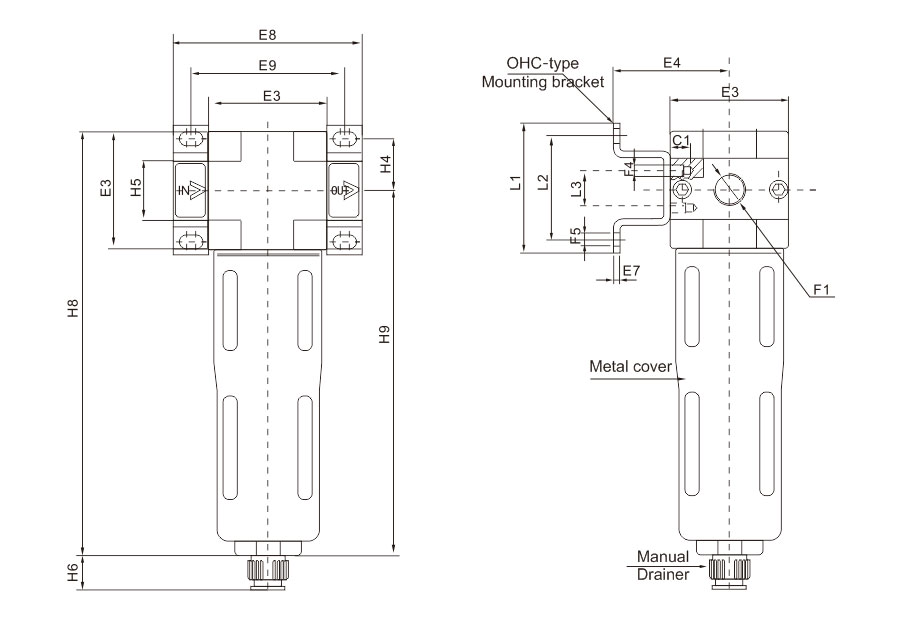

Overall Dimension

Model E3 E4 E7 E8 E9 F1 F4 F5 L1 L2 L3 H4 H5 H6 H8 H9
F-200 40 39 2 64 52 G1/4 M4 4.5 44 35 11 17.5 20 15 144 129
F-300 55 47 3 85 70 G3/8 M5 5.5 71 60 22 24.5 32 15 179 156
F-400 55 47 3 85 70 G1/2 M5 5.5 71 60 22 24.5 32 15 179 156
