Pneumatic Valve - Pneumatic Mechanical Valves6

Pneumatic Mechanical Valves



Pneumatic Mechanical Valves mean that the action of the spool is controlled by machinery, such as: manual directional valve, motor directional valve, etc.
The reaction of the Pneumatic Mechanical Valves is not as fast as pneumatic, but the structure is simpler than the pneumatic, and it needs manual operation.
Manual operation, a variety of structural shape control heads, convenient for use under different conditions.
The cut-off structure has good sealing performance, flexible reversing and no lubrication.Multi position installation, convenient installation and use.

  • Pneumatic Mechanical Valves JM

    JM Pneumatic Mechanical Valves, four-way three-position manual valve. Five-way two-position foot valve FOV-520 fixed, FOV-520A spring-return type, FOV-520C fixed protection cover, FOV-520AC spring return type protection cover

    Port Size: G1/8
    Operating Pressure: 0.8MPa
    Working Environment Temperature: 0~70℃
    Material: Aluminium Alloy,NBR
    Learn more

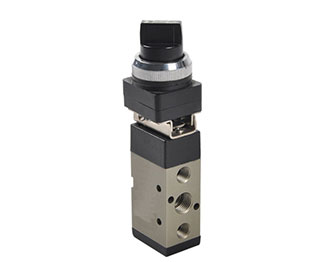

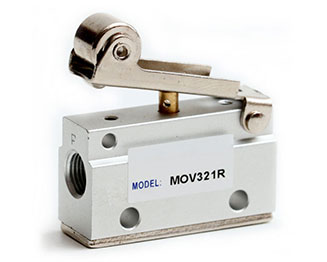

  • Pneumatic Mechanical Valves MOV

    MOV-01 is MOV Pneumatic Mechanical Valves of two-position two-way, G1/8 port, selection knob. MOV-03 is MOV with lock button.

    Port Size: G1/8
    Operating Pressure: 0.8MPa
    Working Environment Temperature: 0~70℃
    Material: Aluminium Alloy,NBR
    Learn more

  • Pneumatic Mechanical Valves MV

    MV Mechanical Valves A variety of structural shape control heads, convenient to use under different conditions

    Port Size: G1/8
    Operating Pressure: Water and oil: 0.8MPa
    Working Environment Temperature: 0~70℃
    Material: Aluminium Alloy,NBR
    Learn more

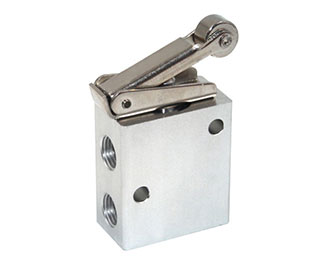

  • Pneumatic Mechanical Valves S3-210

    The external force required for the reversing of S3B, S3R, S3L, and S3V series Mechanical Control Valve is provided by an external mechanism and can be used for position detection or stroke switch.

    Port Size: G1/4,G1/8
    Operating Pressure: 0.8MPa
    Working Environment Temperature: -5~60℃
    Lubrication: Non-lube
    Learn more

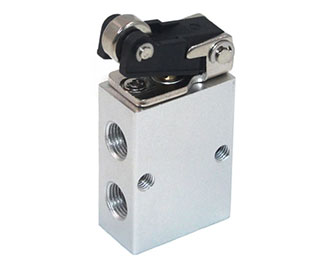

  • Pneumatic Mechanical Valves S3

    Port Size: M5,G1/4,G1/8
    Operating Pressure: 0.8MPa
    Working Environment Temperature: -5~60℃
    Lubrication: Non-lube
    Learn more

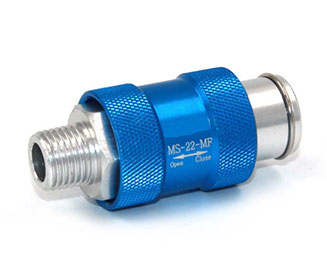

  • Pneumatic Hand Slide Valve MS

    Port Size: 1/4",3/8",1/2"
    Operating Pressure: 0~10kgf/cm²
    Working Environment Temperature: 0~70℃
    Material: MS: Aluminium Alloy, BMS: Copper,NBR
    Learn more
