Pneumatic Mechanical Valves S3

Port Size: M5,G1/4,G1/8
Operating Pressure: 0.8MPa
Working Environment Temperature: -5~60℃
Lubrication: Non-lube

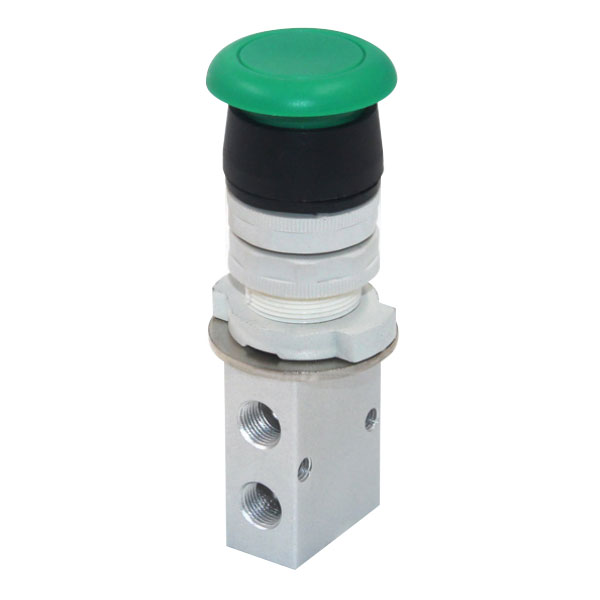

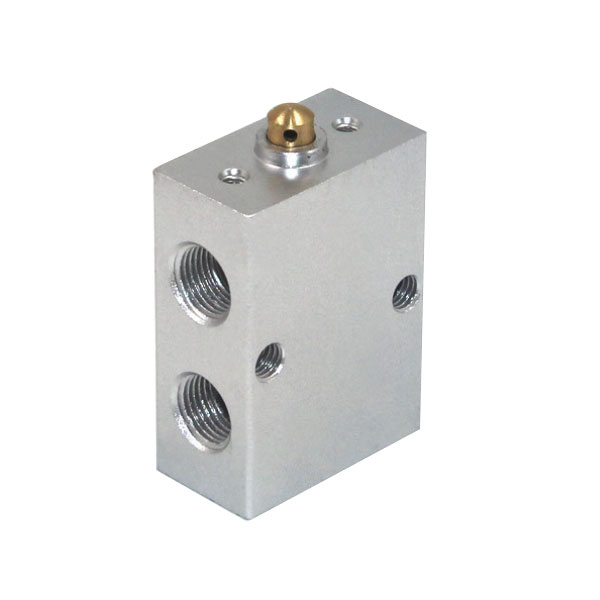

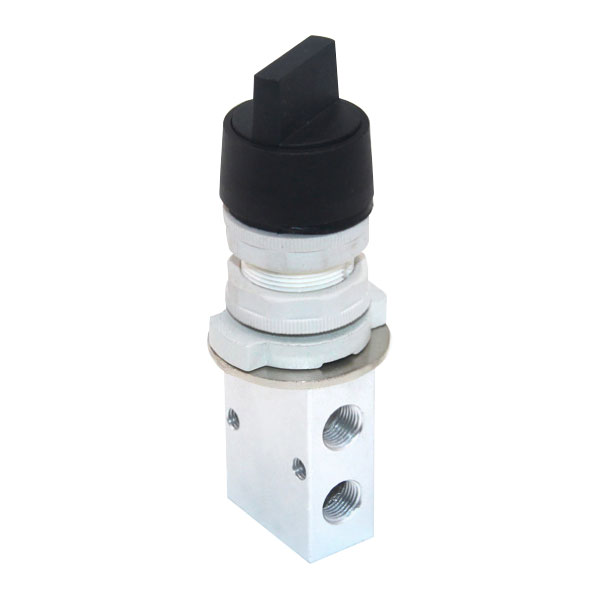

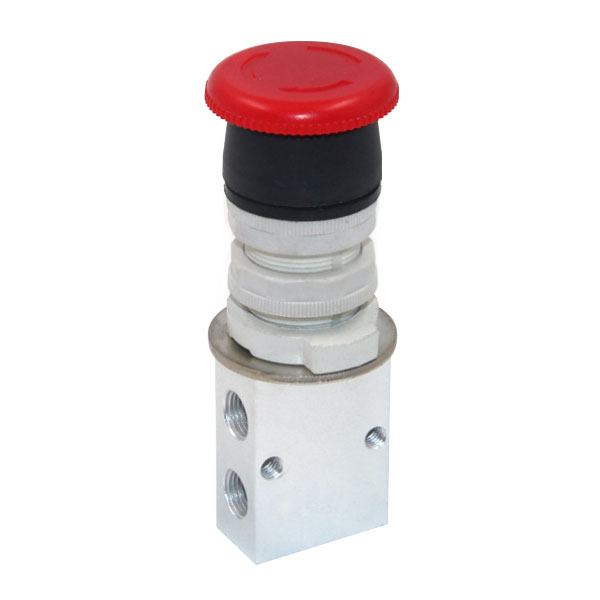

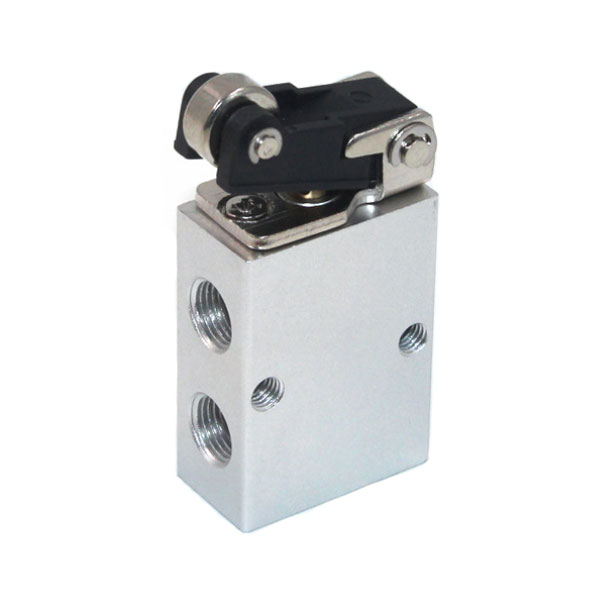

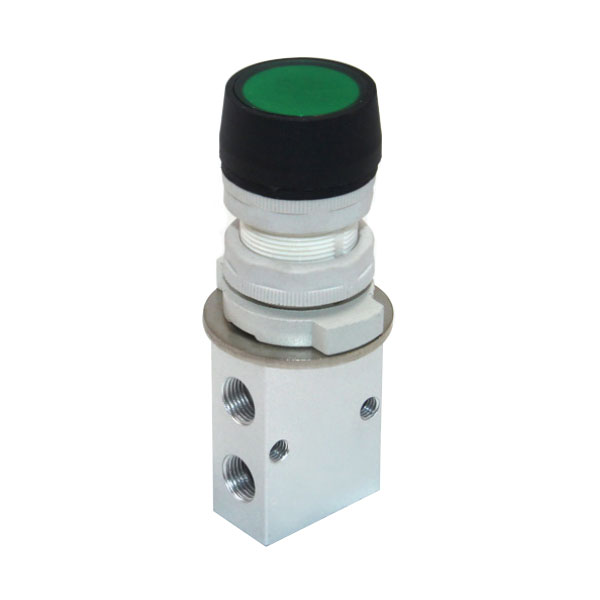

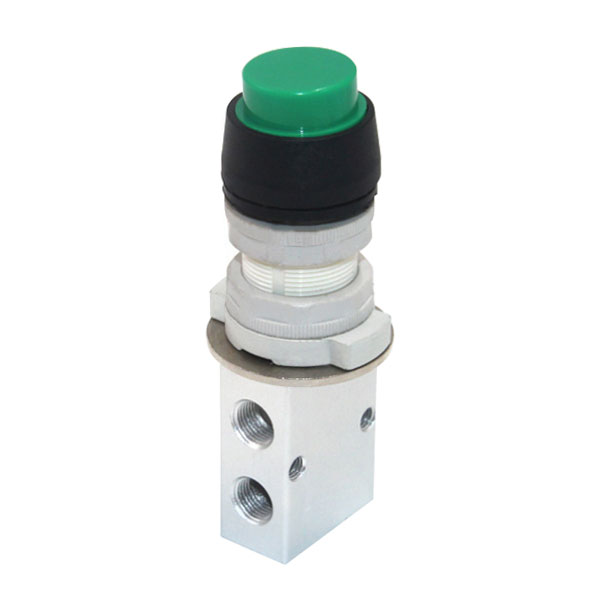

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Technical Parameters for Solenoid Operated Valve

Port Size: M5,G1/4,G1/8
Operating Pressure: 0.8MPa
Working Environment Temperature: -5~60℃
Lubrication: Non-lube

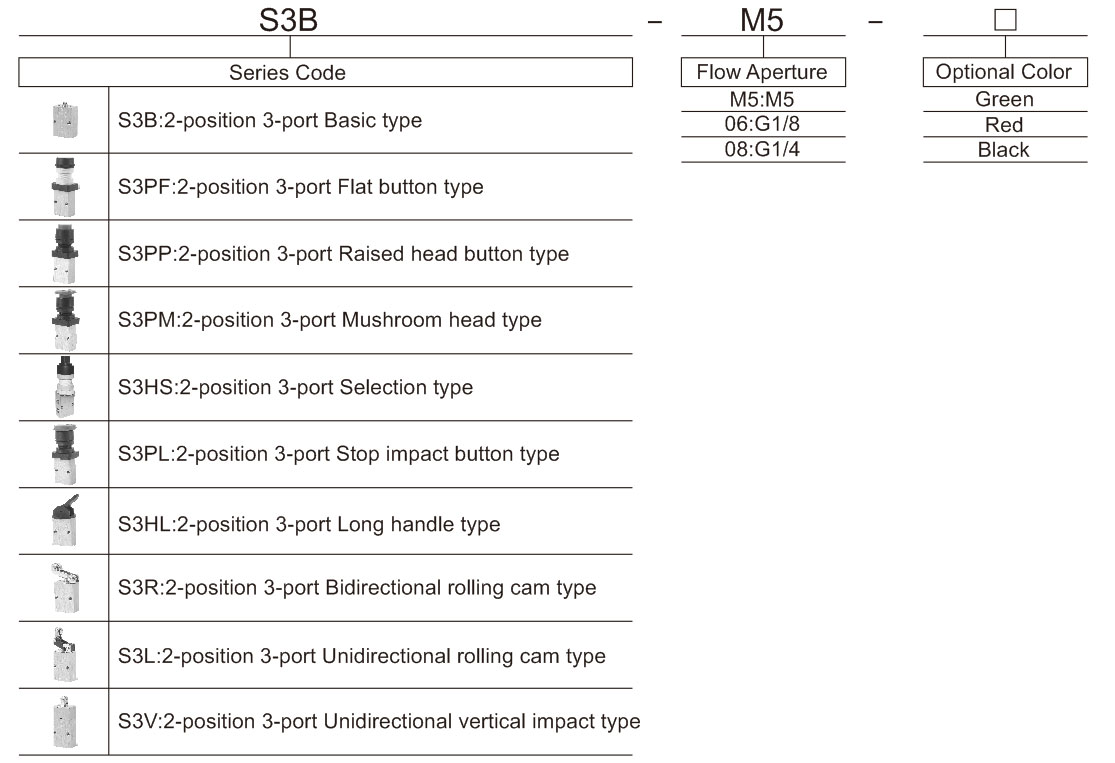

Ordering Code for Mechanical Valve S3

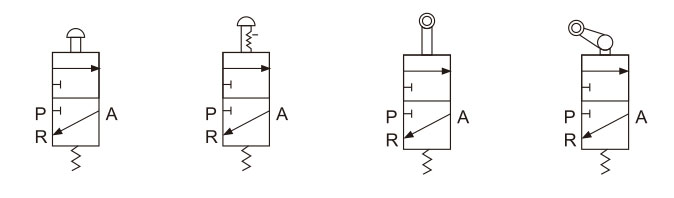

Symbol for Mechanical Valve S3

Technical Parameter for Mechanical Valve S3

Model S3B S3PH S3PP S3PM S3HS S3HL S3PL S3R S3L S3V
Working Medium Compressed Air
Motion Pattern Direct-acting type
Max. Operating Pressure 0.8MPa
Max. Proof Pressure 1.0MPa
Ambient Temperature -5~60℃
Lubrication Non-lube

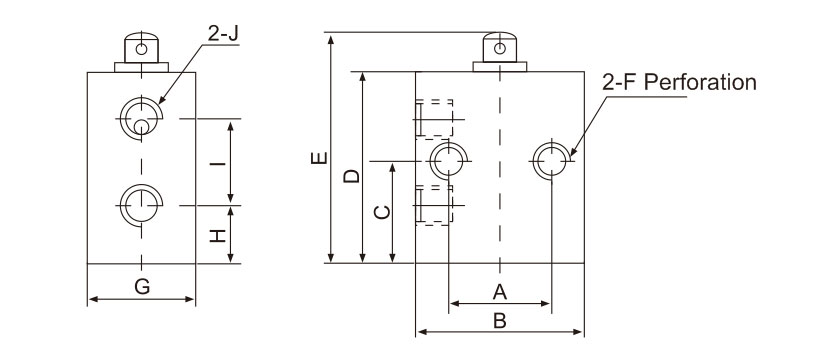

Overall Dimension

Reversing stroke \ Model S3B S3PH S3PP S3PM S3HS S3HL S3PL S3R S3L S3V
Spindle stroke range 2.4~4.0 2.4~3.0 2.4~3.0 2.4~3.8
Button stroke range 2.4~4.0 3.8~5.4 3.8~5.4 5.1~6.7 3.8~5.4 2.4~4.0 5.9~7.5 4.8~6.2 4.5~6.0 3.4~4.8

Model \ Symbol A B C D E F G H I J
M5 16.5 26 15 30 36 M5×0.8 16 9 12.5 M5×0.8
06 21.5 30 20.5 41 47 M5×0.8 18 11.5 17.5 G1/8
08 24 34 22.5 46 52 M5×0.8 18 12 20.5 G1/8
