Overview for Mechanical Valve MOV
The mechanical valve uses mechanical external force to control the valve reversal. When the external force disappears, the valve automatically resets and switches direction.
The knob type and push lock knob type structure has memory function. Usually used as an output signal for controlling pneumatic systems. It can also directly drive the actuation element.
MOV-01 is MOV series Pneumatic Mechanical Valves of two-position two-way, G1/8 port, selection knob.
MOV-03 is MOV series Pneumatic Mechanical Valves of two-position two-way, G1/8 port, with lock button.
MOV-03A is MOV series mechanical valve of two-position two-way, G1/8 port, flat round button.

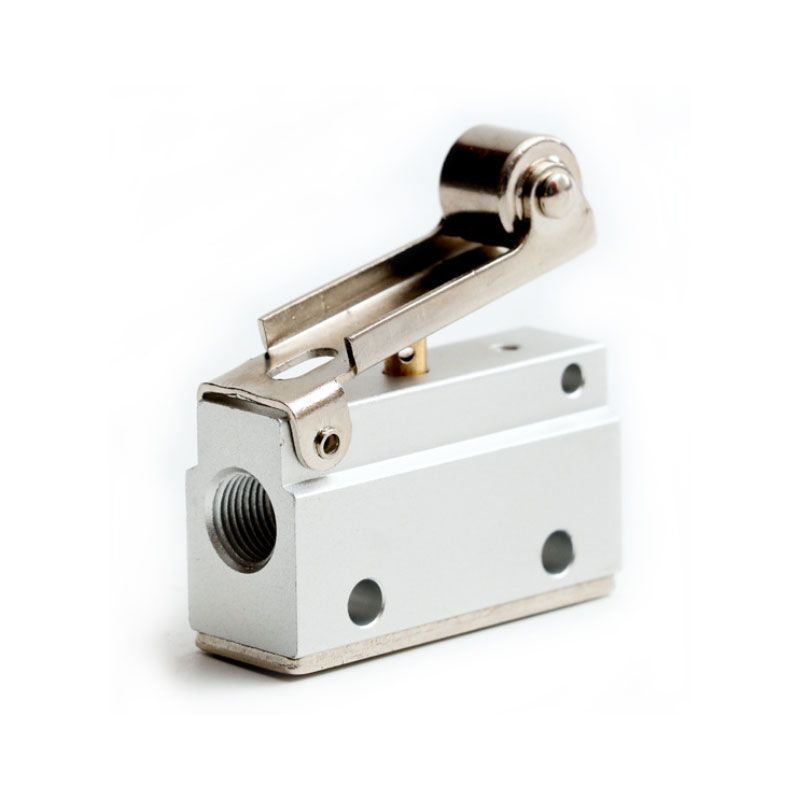

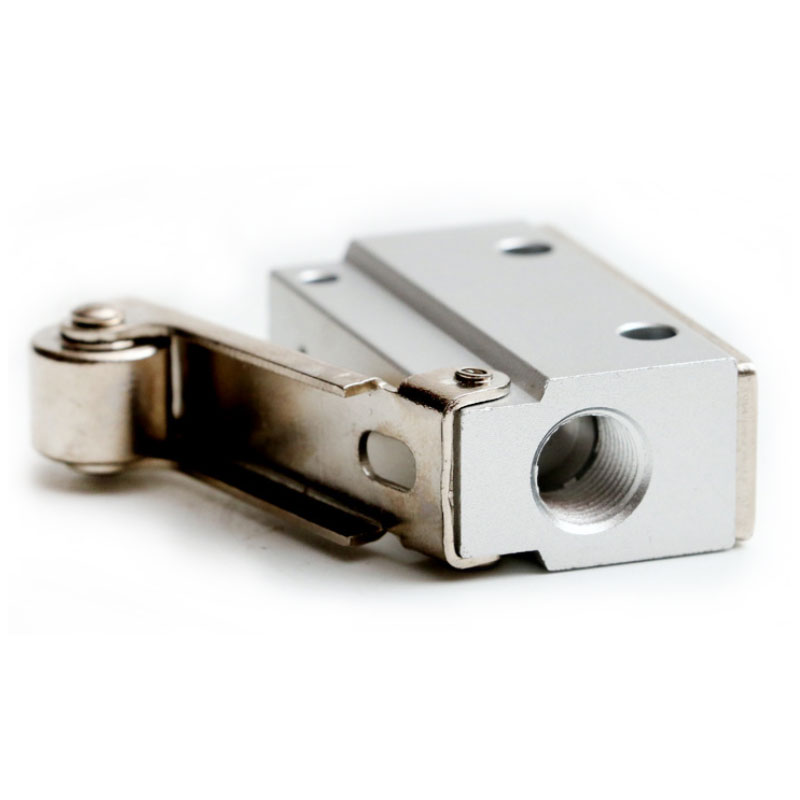

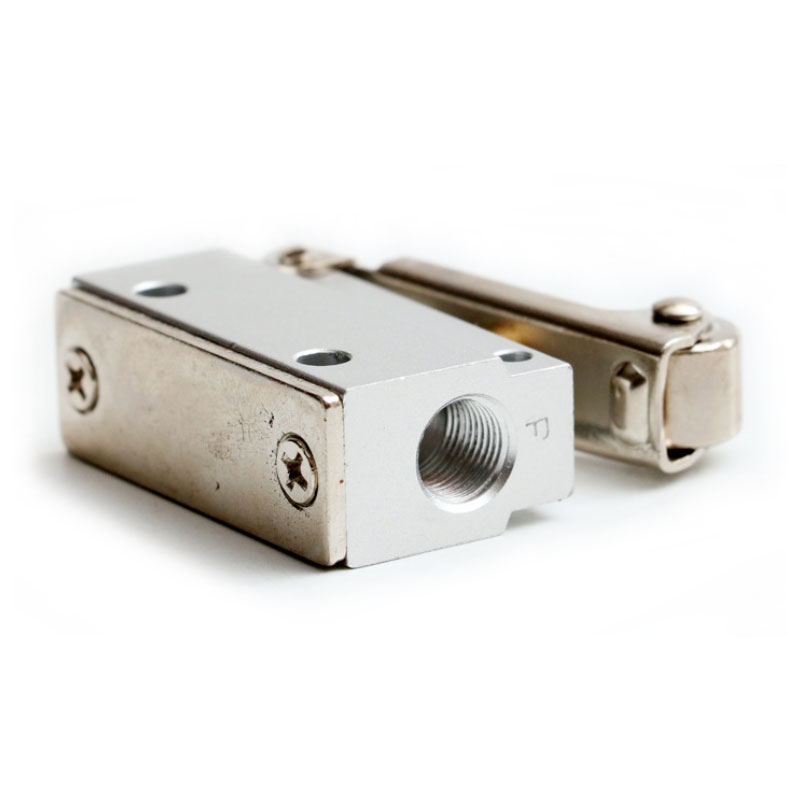

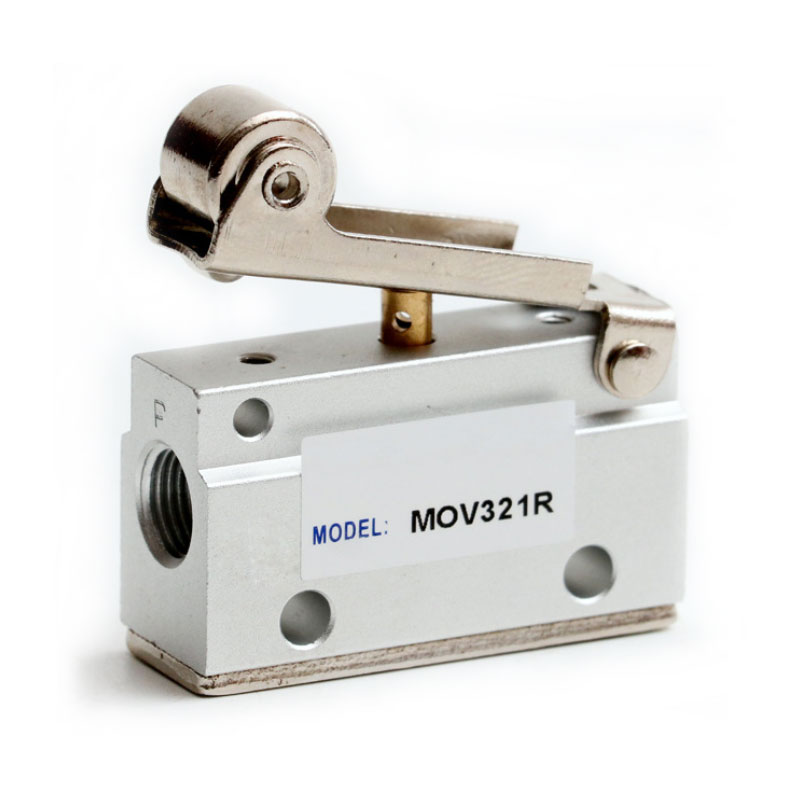

MOV-02 is a mechanical valve of two-position two-way, G1/4 port, roller type (lever roller type machine control valve)
The company produces four series of products: MOV-01, MOV-02, MOV-03, MOV-03A.
Technical Parameters for Mechanical Valve MOV
Port Size: G1/8
Operating Pressure: 0.8MPa
Working Environment Temperature: 0~70℃
Material: Aluminium Alloy,NBR

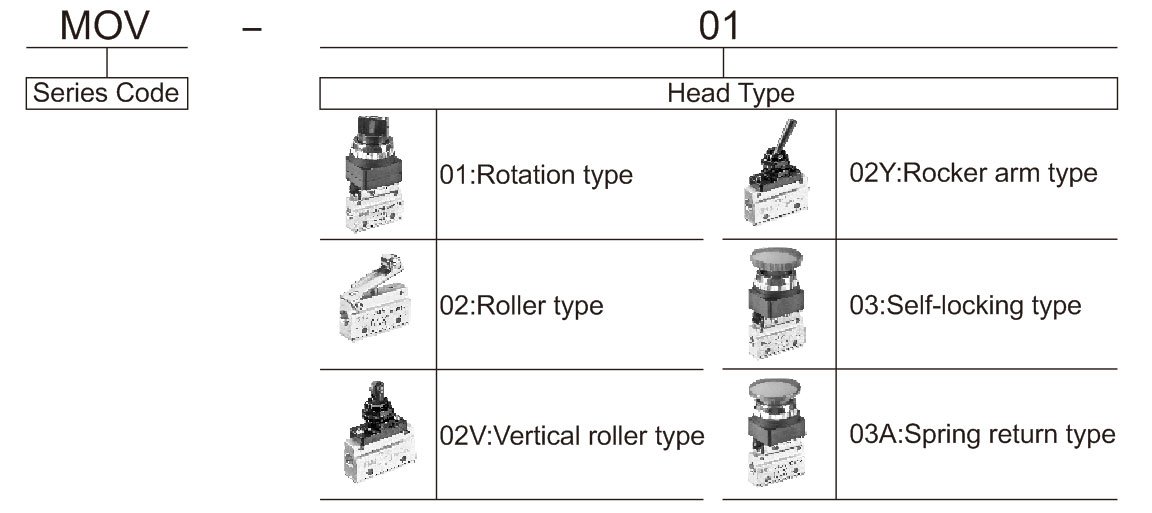

Ordering Code for Mechanical Valve MOV Series

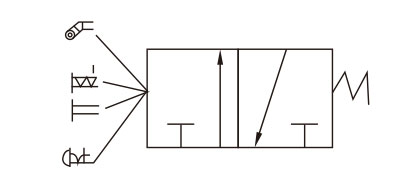

Symbol for Mechanical Valve MOV Series
Technical Parameter for Mechanical Valve MOV Series
| Model |
MOV-01 |
MOV-02 |
MOV-02V |
MOV-02Y |
MOV-03 |
MOV-03A |
| Working Medium |
Compressed Air |
| Max. Operating Pressure |
0.8MPa |
| Max. Proof Pressure |
1.0MPa |
| Ambient Temperature |
0~70℃ |
| Port Size |
G1/8 |
| Main parts material |
Body |
Aluminium Alloy |
| Sealing element |
NBR |

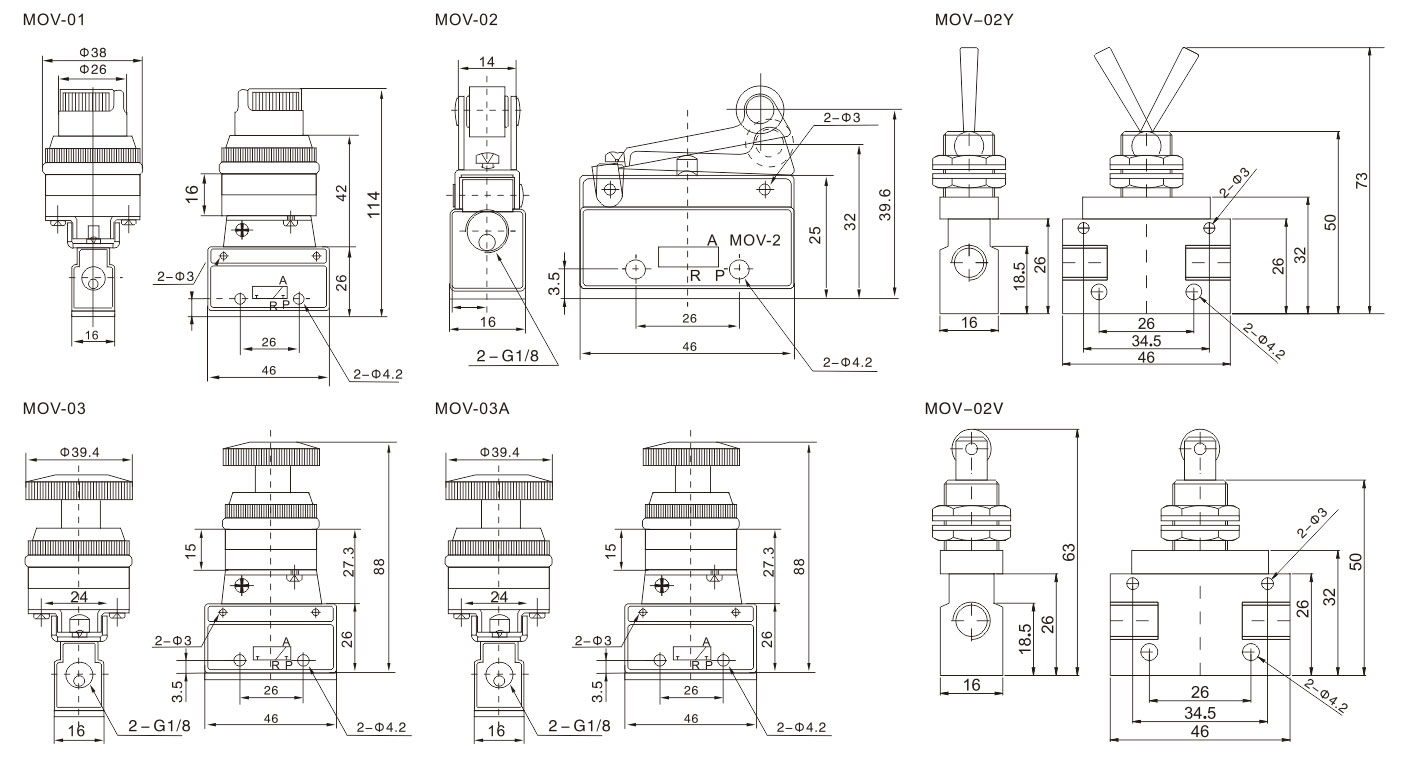

Overall Dimension
