Pneumatic Mechanical Valves S3-210

The external force required for the reversing of S3B, S3R, S3L, and S3V series Mechanical Control Valve is provided by an external mechanism and can be used for position detection or stroke switch.

Port Size: G1/4,G1/8
Operating Pressure: 0.8MPa
Working Environment Temperature: -5~60℃
Lubrication: Non-lube

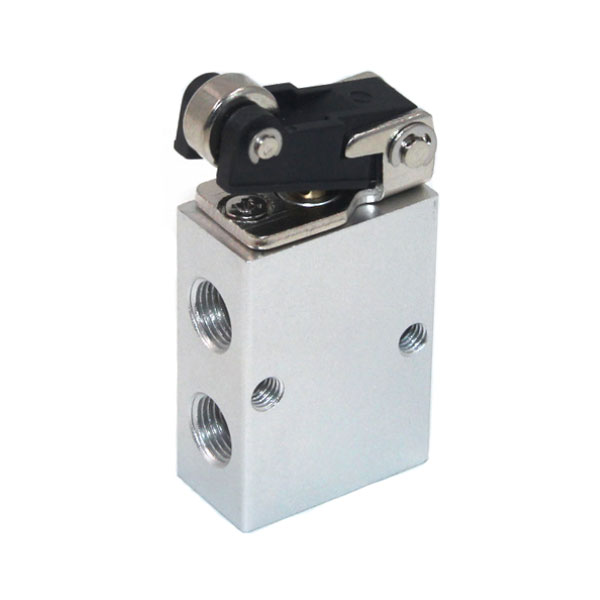

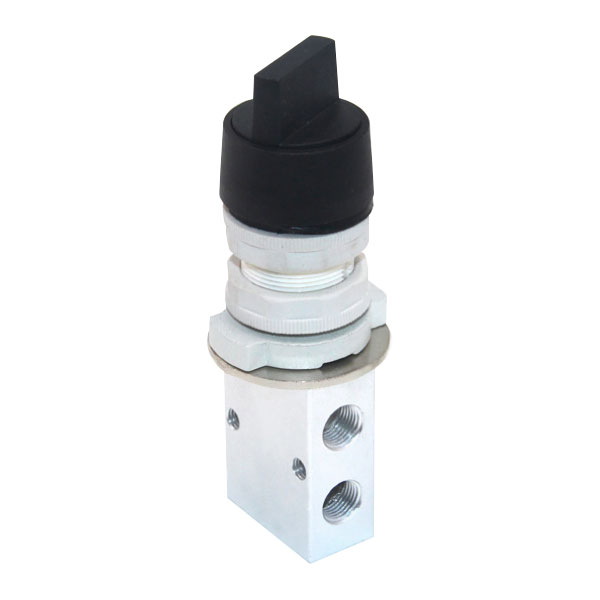

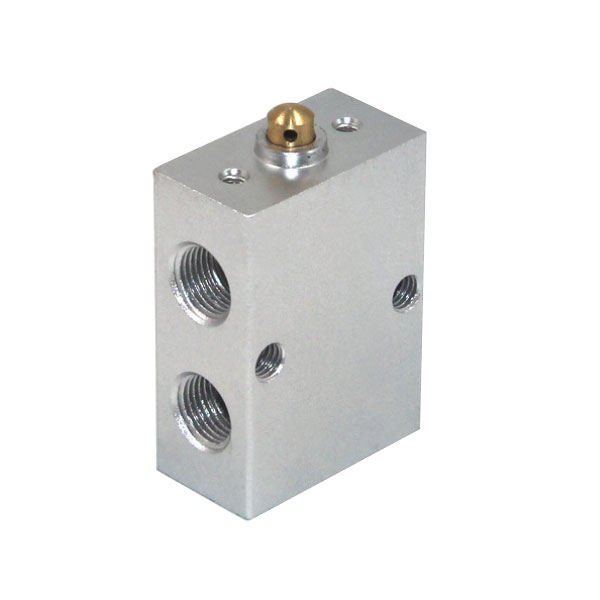

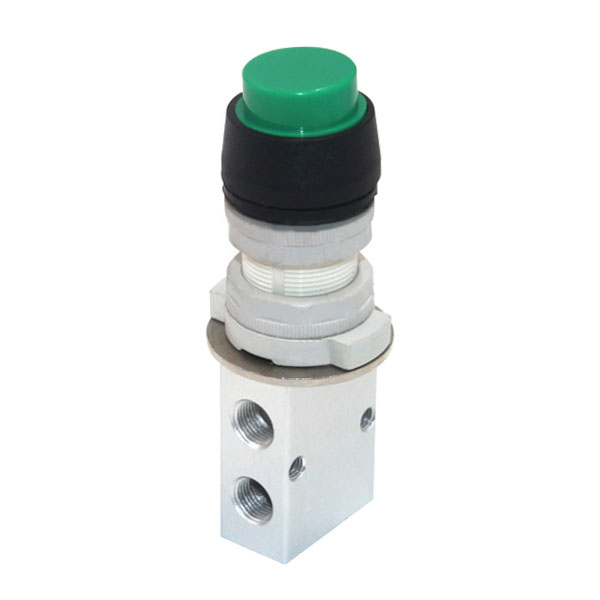

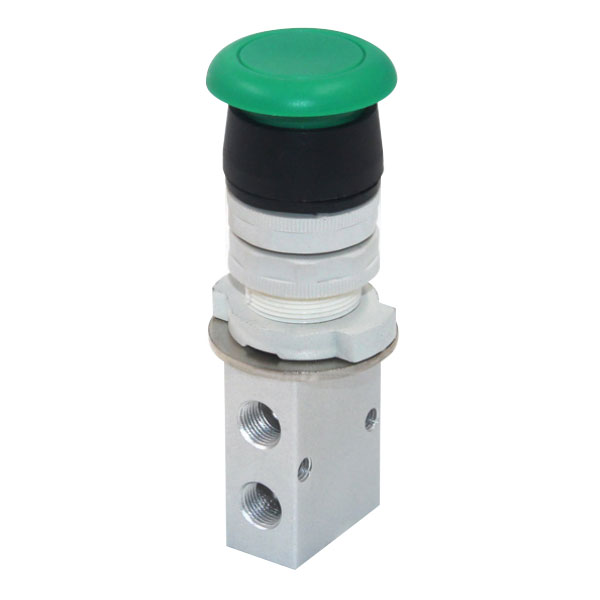

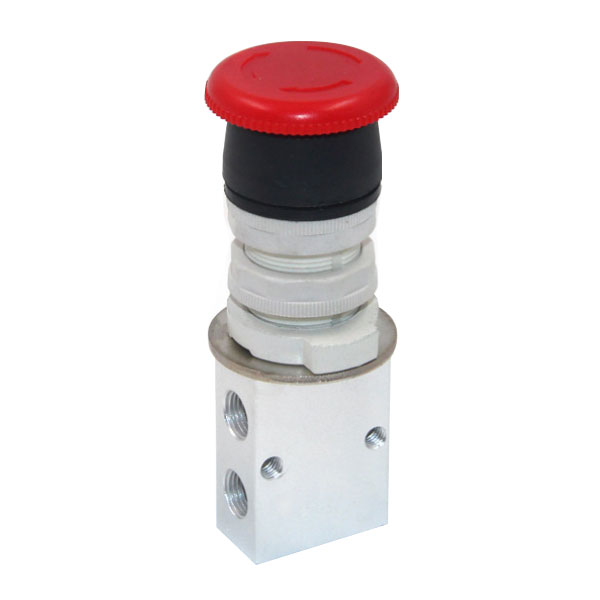

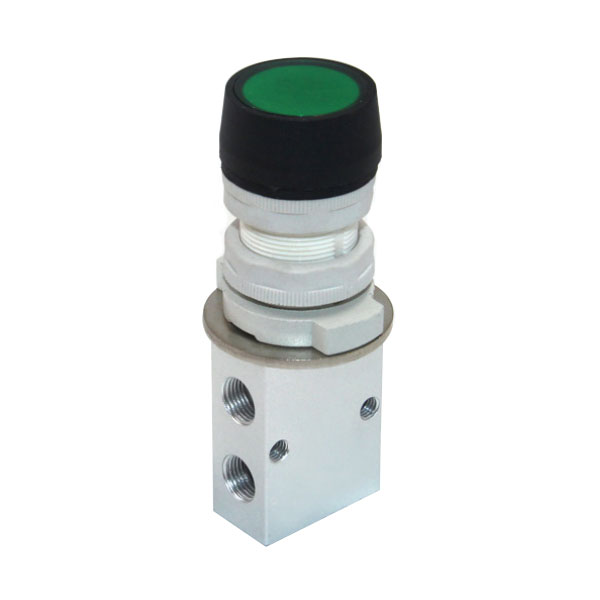

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Overview for Mechanical Control Valve

1. The external force required for the reversing of S3B, S3R, S3L, and S3V series Mechanical Control Valve is provided by an external mechanism and can be used for position detection or stroke switch;
2. S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, S3D series Mechanical Control Valve are manual operation, a variety of structural switch control heads, convenient to use under different conditions;
3. Cut-off structure, good sealing, flexible reversing, no need to lubricate;
4. Multi-position installation, easy to install and use;
5. S3C, S3D, S3Y, S3R, S3L series Mechanical Control Valve control head is made of metal material, long life, more reliable and stable.

Technical Parameters for Mechanical Control Valve

Port Size: G1/4,G1/8
Operating Pressure: 0.8MPa
Working Environment Temperature: -5~60℃
Lubrication: Non-lube

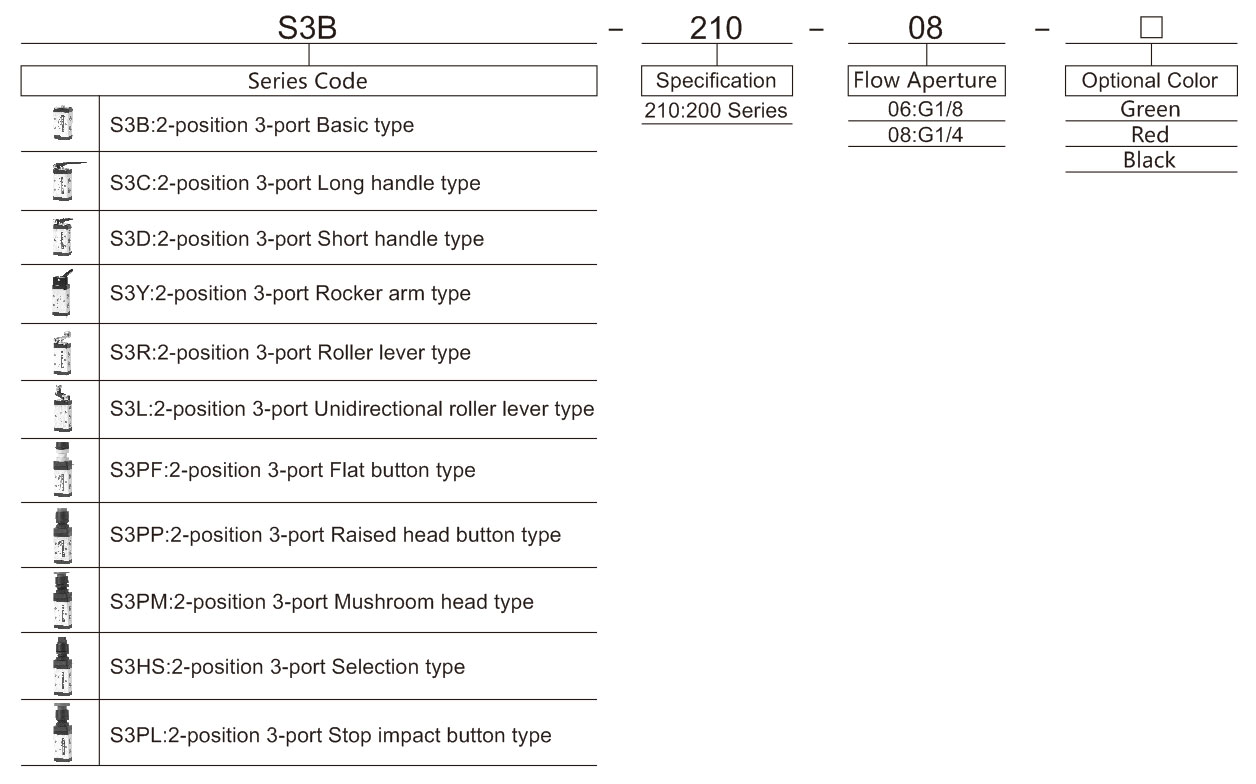

Ordering Code for Mechanical Control Valve S3-210

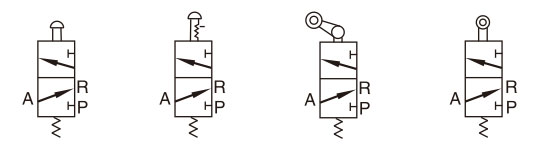

Symbol for Mechanical Control Valve

Technical Parameter for Mechanical Control Valve

Model S3B S3C S3D S3Y S3R S3L S3PF S3PP S3PM S3HS S3PL
Working Medium Compressed Air
Motion Pattern Direct-acting type
Max. Operating Pressure 0.8MPa
Max. Proof Pressure 1.0MPa
Ambient Temperature -5~60℃
Lubrication Non-lube

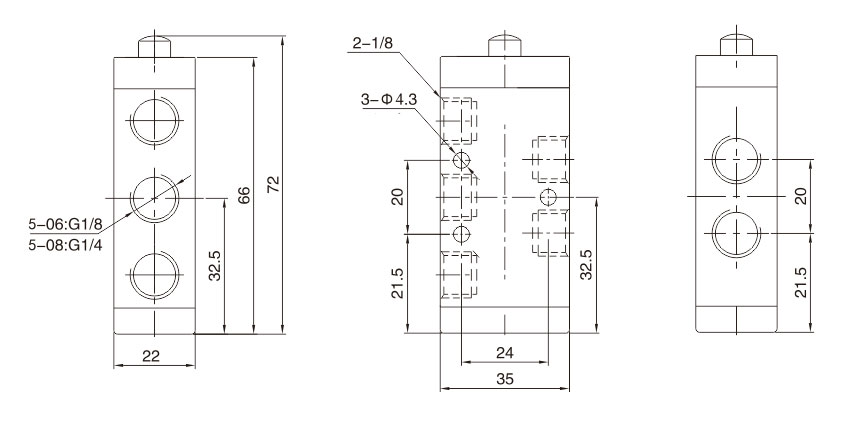

Overall Dimension
