Pneumatic Mechanical Valves JM

JM Pneumatic Mechanical Valves, four-way three-position manual valve. Five-way two-position foot valve FOV-520 fixed, FOV-520A spring-return type, FOV-520C fixed protection cover, FOV-520AC spring return type protection cover

Port Size: G1/8
Operating Pressure: 0.8MPa
Working Environment Temperature: 0~70℃
Material: Aluminium Alloy,NBR

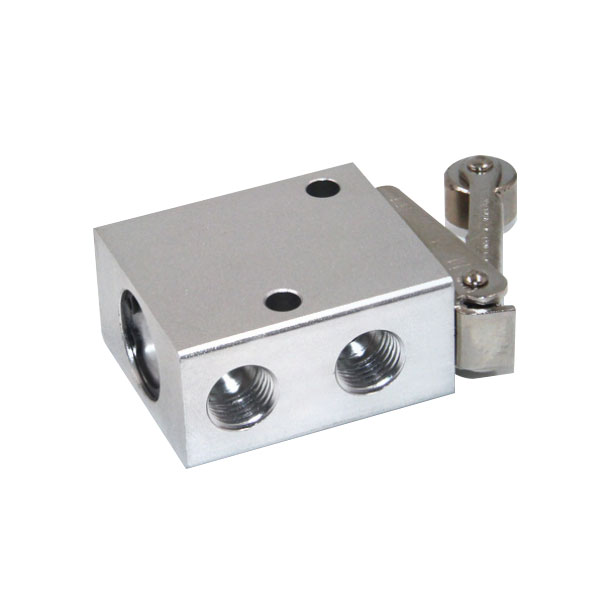

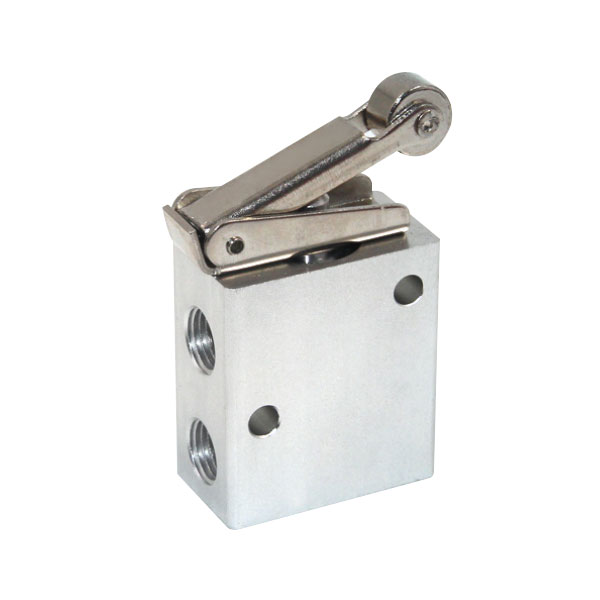

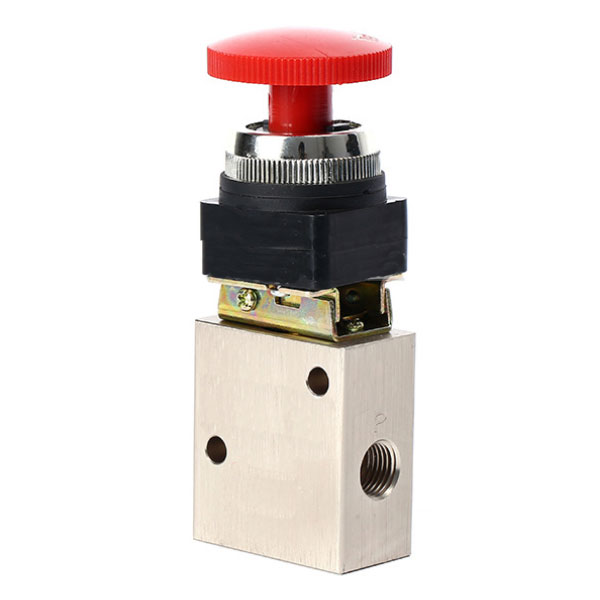

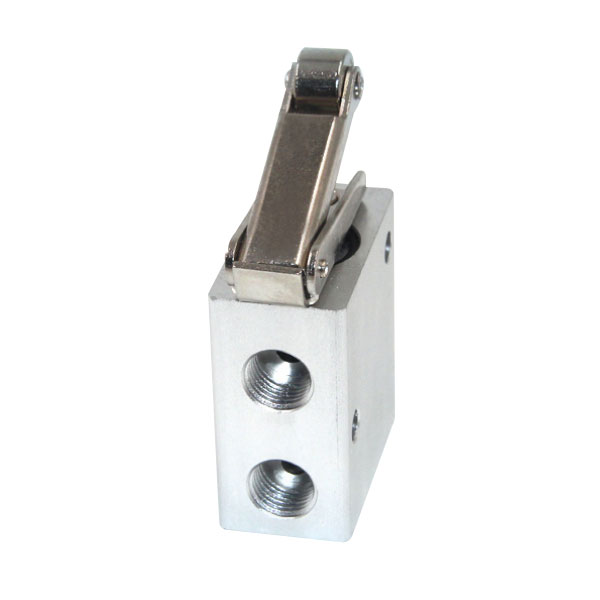

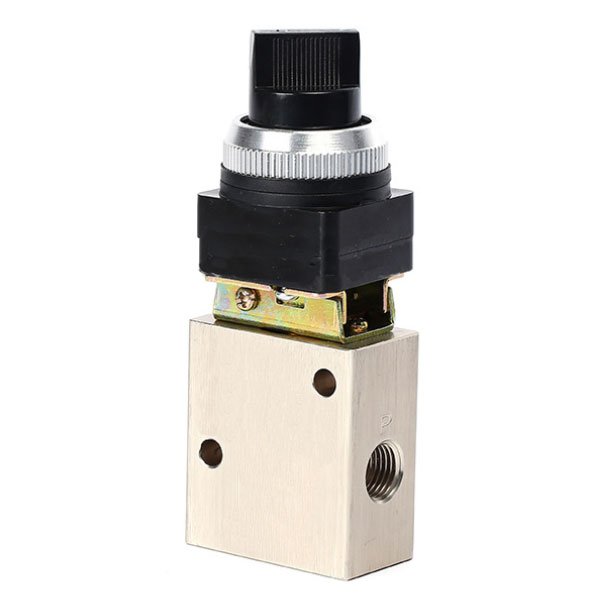

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Overview for JM Mechanical Valve

JM Pneumatic Mechanical Valves, four-way three-position manual valve, HV-02 HV-03 HV-04
Five-way two-position foot valve FOV-520 fixed, FOV-520A spring-return type, FOV-520C fixed protection cover, FOV-520AC spring return type protection cover
Three-way two-position foot valve FV-320
Four-way two-position foot valve FV-420
Three-way two-position mechanical valve MOV-01 MOV-02 MOV-03 MOV-03A
JM-05 JM-06 JM-07

Technical Parameters for Solenoid Operated Valve

Port Size: G1/8
Operating Pressure: 0.8MPa
Working Environment Temperature: 0~70℃
Material: Aluminium Alloy,NBR

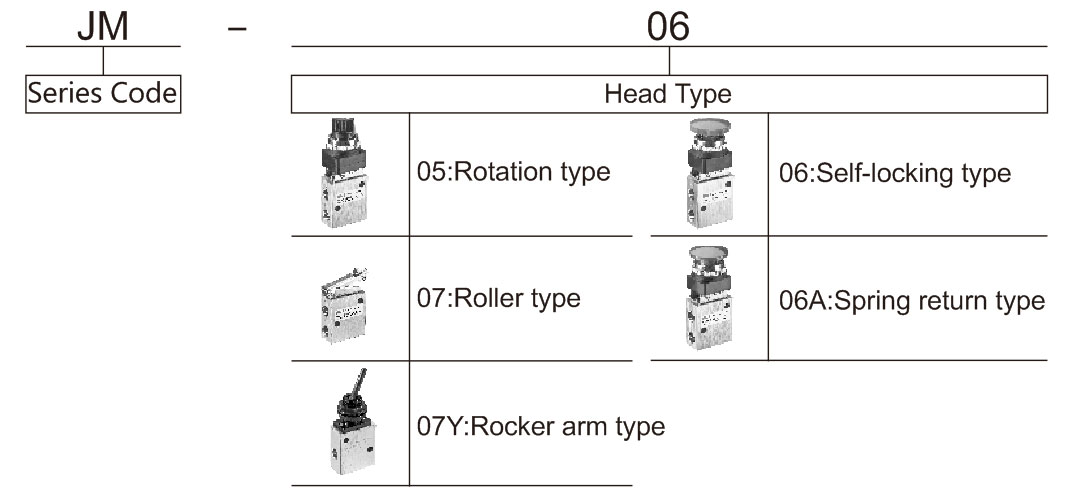

Ordering Code for Mechanical Valve JM Series

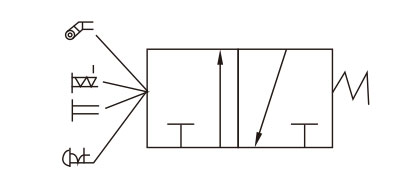

Symbol for Mechanical Valve JM Series

Technical Parameter for Mechanical Valve JM Series

Model JM-05 JM-06 JM-06A JM-07 JM-07Y
Working Medium Compressed Air
Max. Operating Pressure 0.8MPa
Max. Proof Pressure 1.0MPa
Ambient Temperature 0~70℃
Port Size G1/8
Valve Type 2-position 3-port
Main parts material Body Aluminium Alloy
Sealing element NBR

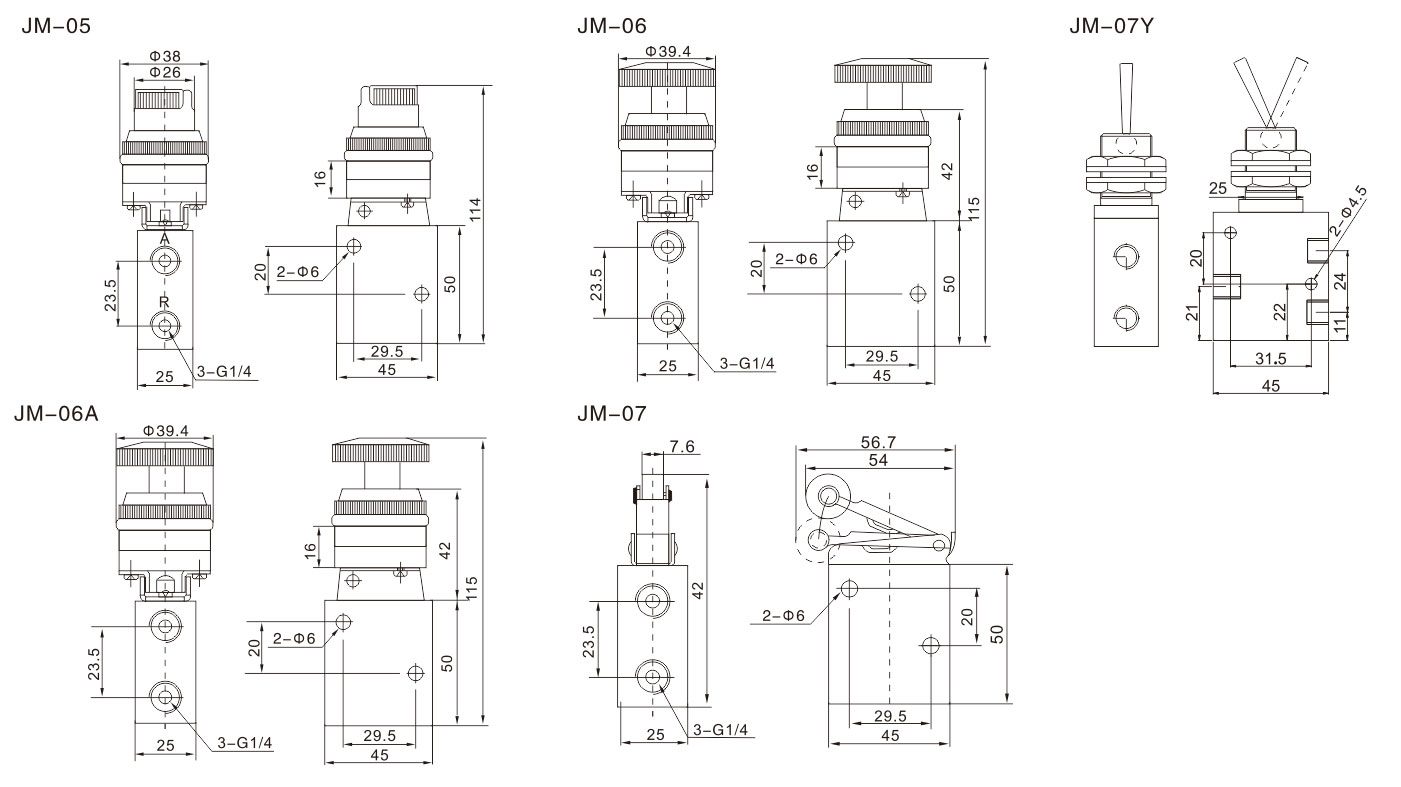

Overall Dimension

Keywords:

JM Mechanical Valve | Pneumatic Mechanical Valves
