Pneumatic Hand Slide Valve MS

Port Size: 1/4",3/8",1/2"
Operating Pressure: 0~10kgf/cm²
Working Environment Temperature: 0~70℃
Material: MS: Aluminium Alloy, BMS: Copper,NBR

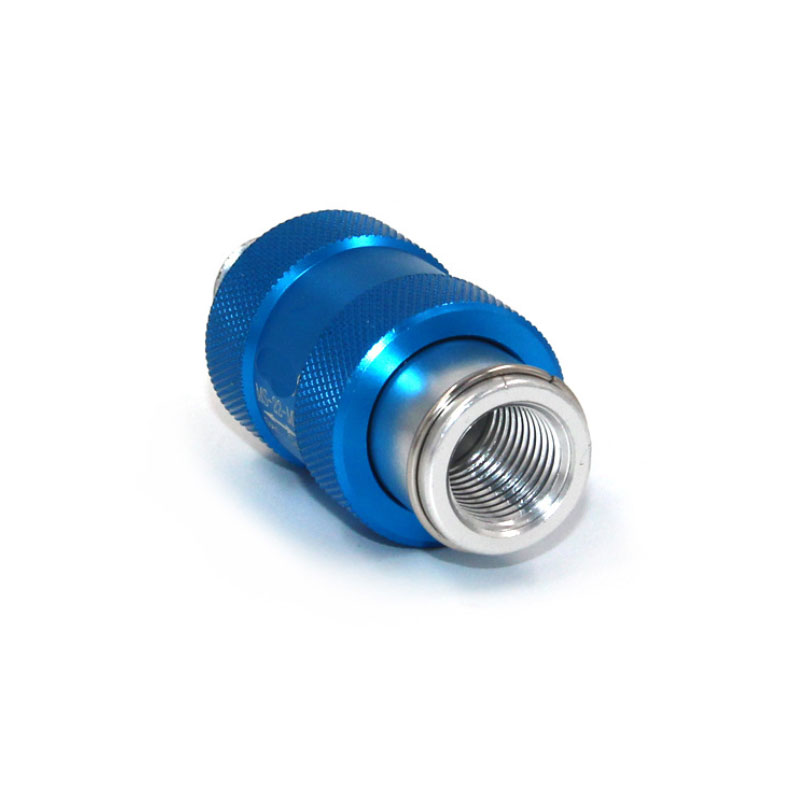

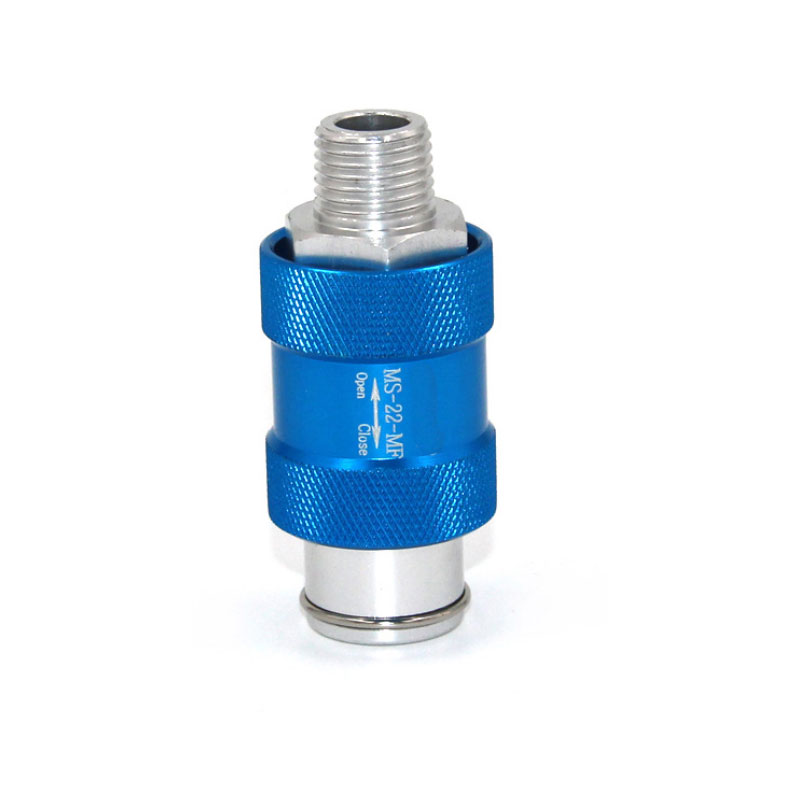

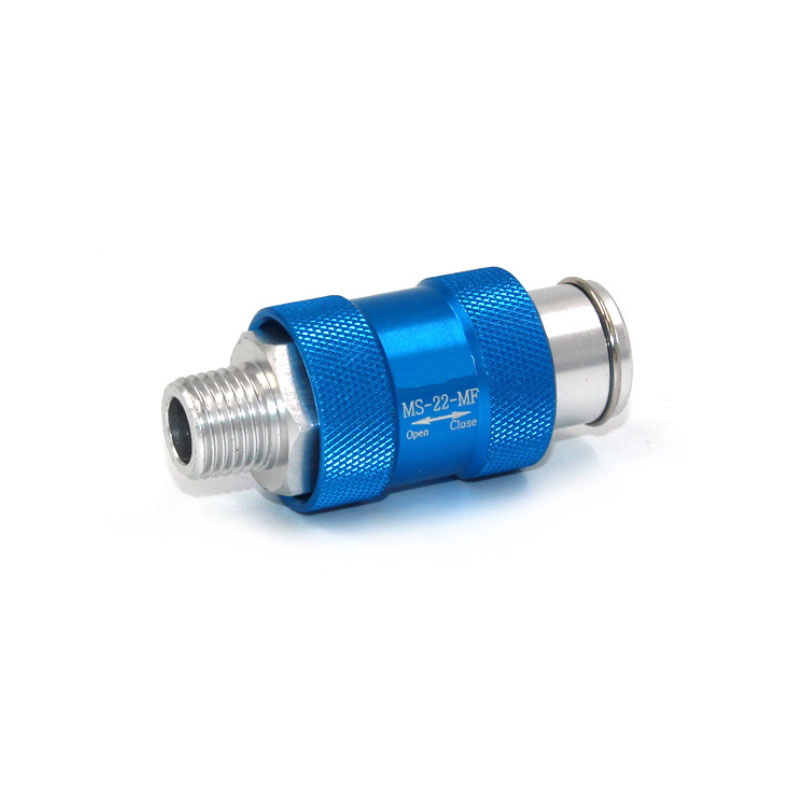

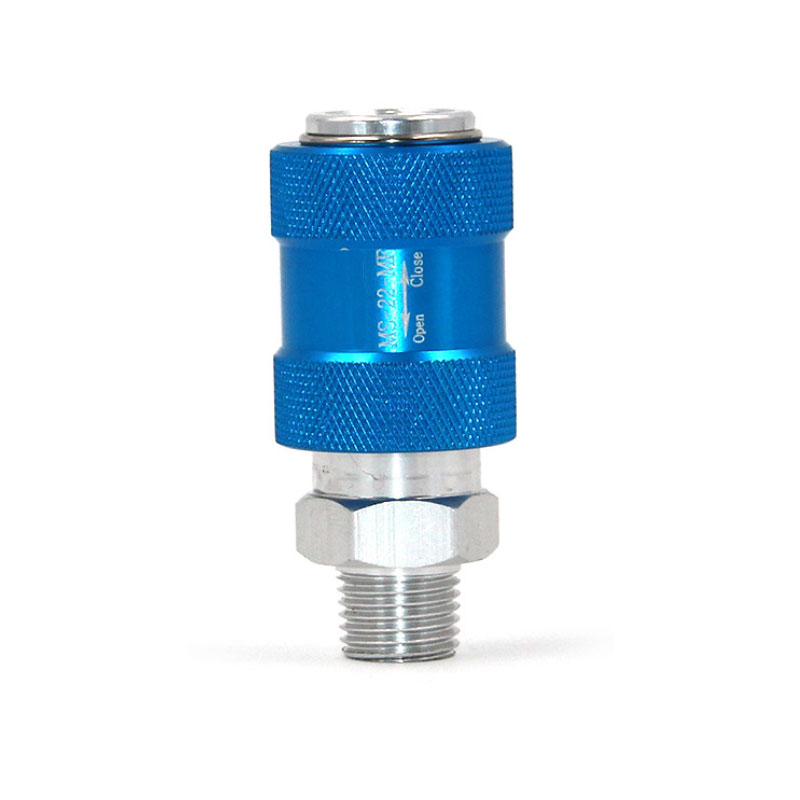

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Technical Parameters for Hand Slide Valve

Port Size: 1/4",3/8",1/2"
Operating Pressure: 0~10kgf/cm²
Working Environment Temperature: 0~70℃
Material: MS: Aluminium Alloy, BMS: Copper,NBR

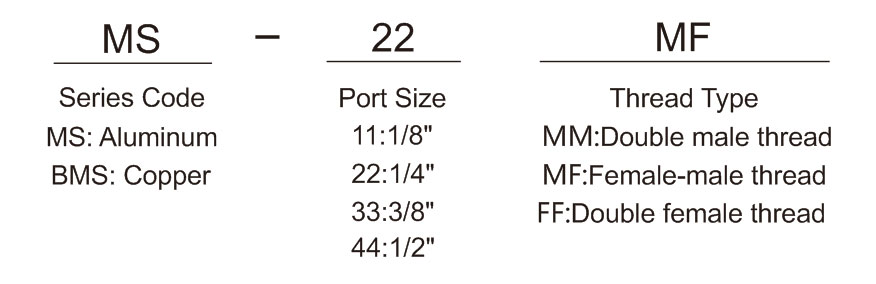

Ordering Code for Pneumatic Hand Slide Valve

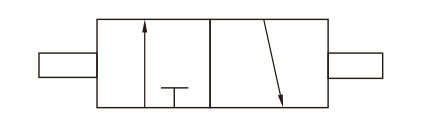

Symbol for Pneumatic Hand Slide Valve MS Series

Technical Parameter for Pneumatic Hand Slide Valve MS Series

Model MS-22MF/MM/FF, BMS-22MF/MM/FF MS-33MF/MM/FF MS-44MF/MM/FF
Working Medium Air
Port Size 1/4" 3/8" 1/2"
Proof Pressure 0~10kgf/cm²
Ambient Temperature 0~70℃
Main parts material Body MS: Aluminium Alloy; BMS: Copper
Sealing element NBR

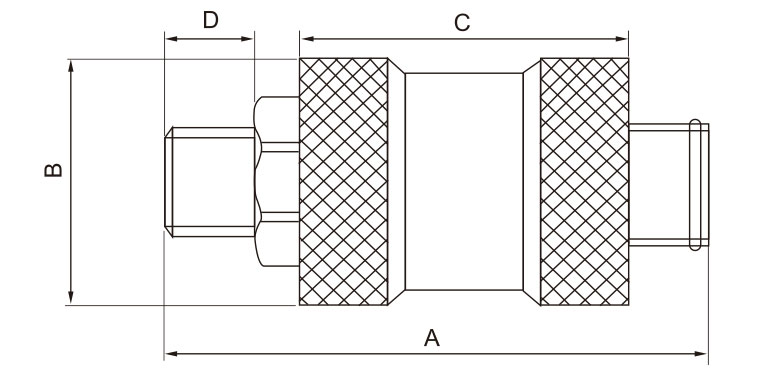

Overall Dimension

Model A B C D
MS-22MF 59 26 32 11.3
MS-33MF 59 31 32 11.3
MS-44MF 91 39 49 12
