Pneumatic Gripper

China Pneumatic Gripper (Air Gripper) is a cylindrical metal part which guides the piston to move straight and reciprocally in the cylinder, used for gripping and clamping workpieces. Pneumatic Gripper usually has sliding rail type, fulcrum open and close type and rotary drive type and other work methods.
Pneumatic Gripper is the modified cylinder. Air Gripper can be used for clamping objects and realizing various actions of a robot hand. In the automation system, Air Gripper is often used in conveying and transferring workpiece mechanism to clamp, pick and place objects.

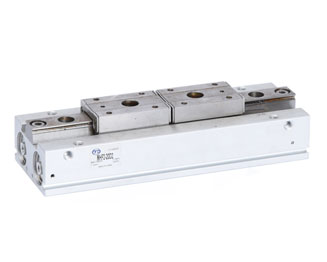

Parallel Opening And Closing Gripper MHF2

MHF2 Parallel Opening And Closing Gripper has low profile design that reduces moment generation. Short, middle, and long strokes are available. Compact, but the double piston mechanism provides it with a strong gripping force.Reduced height of approx. 1/3 of that of the standard gripper.

Bore: 8, 12, 16, 20mm
Motion Pattern: Double-acting
Working Medium: Air
Lubrication: Non-lube
Ambient and fluid temperature: -10~+60°C
Learn more

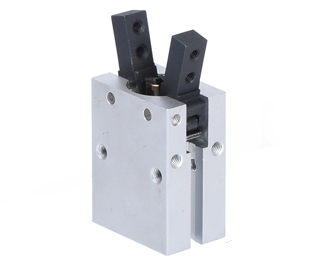

Angular Pneumatic Gripper MHC2

MHC2 Pneumatic Gripper uses a thin cylinder body to process positioning pinholes on the body to install claws and poke rods. When the piston rod is pushed upward or downward by compressed air, the claw or poke rod opens and closes by the pole tip at the upper end of the piston rod.

Bore: 6, 7, 10, 16, 20, 25mm
Motion Pattern: Double-acting / Single-acting
Working Medium: Air
Lubrication: Non-lube
Ambient and fluid temperature: -10~+60°C
Learn more

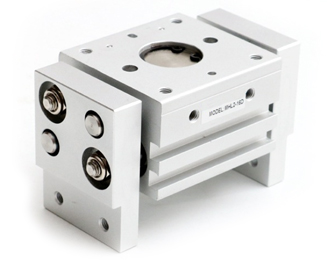

Angular Pneumatic Gripper MHL2

MHL2 Pneumatic Gripper are widely used in automatic assembly lines. The finger stroke is long and suitable for holding large volume objects. The double piston design can increase the retention.

Bore: 10, 16, 20, 25, 32, 40mm
Motion Pattern: Double-acting
Operating pressure: 0.1~0.6MPa
Repeatability: ±0.1mm
Ambient and fluid temperature: -10~+60°C
Learn more

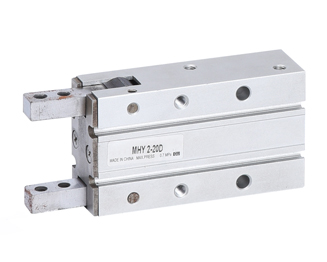

Angular Pneumatic Gripper MHY2

MHY2 Gripper is widely used in automatic manipulator and strong clamping cylinder. Built-in magnetic ring, magnetic switch can be installed. 180° opening and closing, simplifying pick-and-place action.

Bore: 10, 16, 20, 25mm
Motion Pattern: Double-acting
Operating pressure: 0.1~0.6MPa
Repeatability: ±0.2mm
Ambient and fluid temperature: -10~+60°C
Learn more

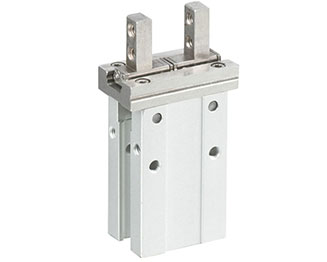

Pneumatic Parallel Gripper MHZ2

MHZ2 Parallel Gripper has a compact structure, can effectively save the installation space, is the executive device that uses compressed air as the power to clamp or grasp the workpiece.

Bore: 6, 10, 16, 20, 25, 32, 40mm
Motion Pattern: Double-acting / Single-acting
Operating pressure: 0.1~0.7MPa
Standard, narrow and flat finger options
Ambient and fluid temperature: -10~+60°C
Learn more

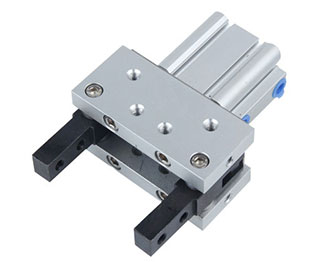

Toggle Type Air Gripper MHT2

MHT2 Parallel Gripper adopts a new cylinder body and small magnetic switches can be installed on all sides. The toggle mechanism ensures a strong and stable clamping force.

Bore: 32, 40, 50, 63mm
Motion Pattern: Double-acting
Operating pressure: 0.1~0.6MPa
Vertical, axial, lateral mounting
Ambient and fluid temperature: 5~60°C
Learn more

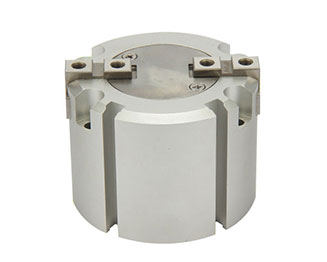

2 Finger Pneumatic Gripper MHS2

MHS2 Parallel Type Air Gripper utilize a wedge cam design to minimize their overall size, 2 Finger Gripper is suitable for pressing and other operations bearing external forces. The repeatability accuracy of these China Pneumatic Grippers is ±0.01mm.

Bore: 16, 20, 25, 32, 40, 50, 63mm
Motion Pattern: Double-acting
Operating pressure: 0.1~0.6MPa
High Repeatability: ±0.01mm
Ambient and fluid temperature: -10~+60°C
Learn more

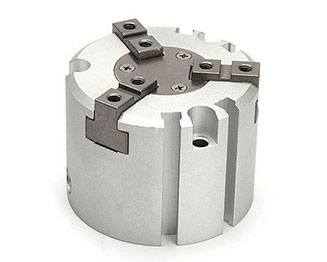

3 Finger Pneumatic Gripper MHS3

The MHS3 Gripper Fingers utilize a wedge cam design and is small in weight size. MH3 Gripper Finger is suitable for pressing and other operations bearing external forces. High repeatability is ±0.01mm.

Bore: 16, 20, 25, 32, 40, 50, 63mm
Motion Pattern: Double-acting
Operating pressure: 0.2~0.6MPa
High Repeatability: ±0.01mm
Ambient and fluid temperature: -10~+60°C
Learn more

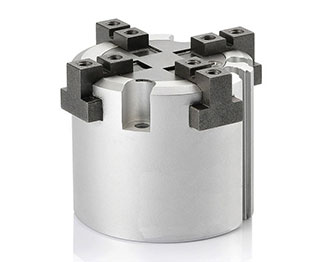

4 Finger Pneumatic Gripper MHS4

MHS4 Parallel Gripper utilize a wedge cam design and is small in height size. China Pneumatic Grippers are suitable for positioning clamping of square workpiece, and facilitate positioning of square workpiece. High repeatability is ±0.01mm.

Bore: 16, 20, 25, 32, 40, 50, 63mm
Motion Pattern: Double-acting
Operating pressure: 0.1~0.6MPa
High Repeatability : ±0.01mm
Ambient and fluid temperature: -10~+60°C
Learn more
