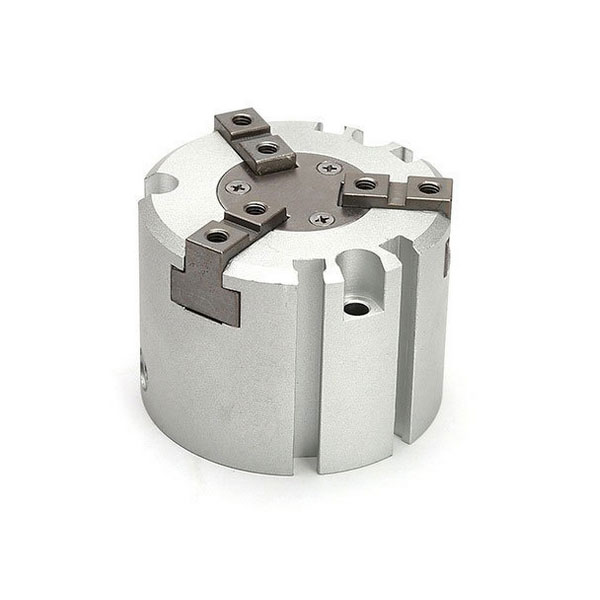

3 Finger Pneumatic Gripper MHS3

The MHS3 Gripper Fingers utilize a wedge cam design and is small in weight size. MH3 Gripper Finger is suitable for pressing and other operations bearing external forces. High repeatability is ±0.01mm.

Bore: 16, 20, 25, 32, 40, 50, 63mm
Motion Pattern: Double-acting
Operating pressure: 0.2~0.6MPa
High Repeatability: ±0.01mm
Ambient and fluid temperature: -10~+60°C

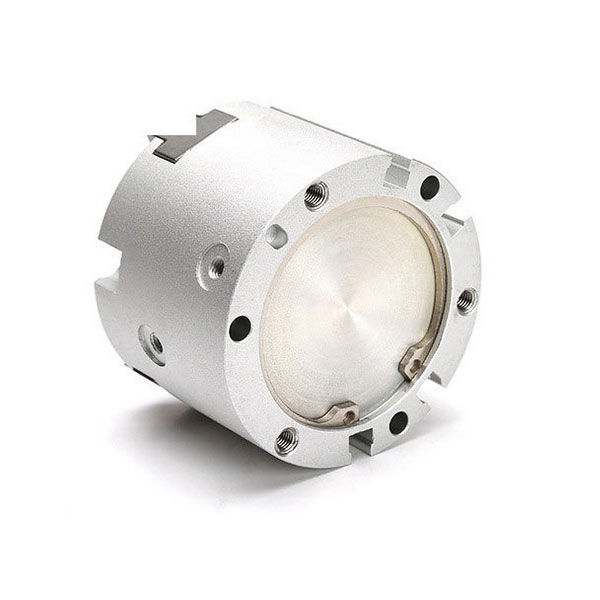

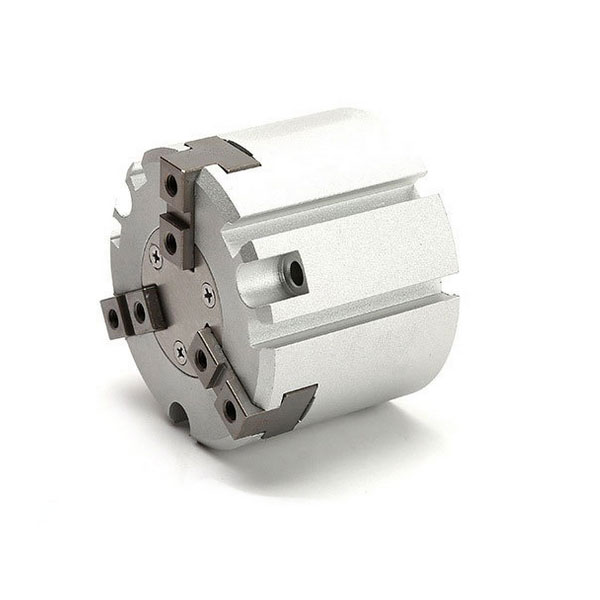

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Overview for MHS3 Gripper Fingers

The MHS3 Gripper Fingers utilize a wedge cam design and is small in weight size. MH3 Gripper Finger is suitable for pressing and other operations bearing external forces. High repeatability is ±0.01mm. Long stroke: The stroke is more than 2 times the standard. The cylindrical workpiece can be clamped. With through hole and center push rod, it can be reliably separated from the workpiece.
The MH3 Gripper Finger are optimal for gripping spherical, cylindrical or round work pieces and loading or unloading of work pieces from the chuck of a machine tool. Its wedge cam design minimizes its overall size while retaining a high holding force making China Pneumatic Grippers suitable for end-of-arm (end effector) or space constrained pick and place applications.

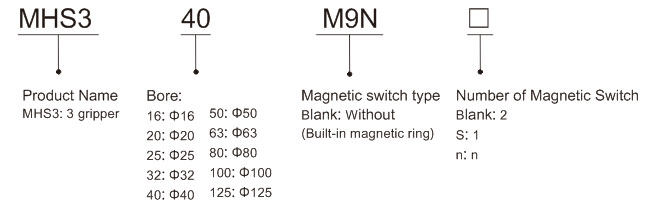

Ordering Code for MHS3 Gripper Fingers

Specification for MHS3 16D Pneumatic Gripper

Model MHS3-16D MHS3-20D MHS3-25D MHS3-32D MHS3-40D MHS3-50D MHS3-63D MHS3-80D MHS3-100D MHS3-125D
Bore mm 16 20 25 32 40 50 63 80 100 125
Working Medium Air
Pressure Range 0.2~0.6MPa 0.1~0.6MPa
Environment and fluid temp. -10~+60℃
Repeatability Precision ±0.01mm
Max. Frequency 120c.p.m 60c.p.m
Lubrication Non-lube
Motion Pattern Double acting
Clamping Force N
Pressure 0.5MPa		 O.D Clamping 14 25 42 74 118 187 335 500 750 1270
I.D Clamping 16 28 47 82 130 204 359 525 780 1320
O.D Clamping with cover 9 21 36 62 97 155 280 400 - -
Finger stroke with cover mm 4 4 6 8 8 12 16 20 24 32
Long stroke finger stroke mm 10 10 12 16 20 28 32 40 48 64
Port Size M3×0.5 M5×0.8


Magnetic Switch Model Built in magnetic ring type

Note) The clamping force when clamping the outer diameter, the clamping point distance of Φ16 ~ Φ25: L=20mm, clamping point distance of Φ32 ~ Φ63: L=30mm, clamping point distance of Φ80 ~ Φ125: L=50mm.
Note) The complete model indicates that the wire length of the magnetic switch is added behind the model (no mark -0.5m, L-3m) Example: WMHS4-16D-M9NL

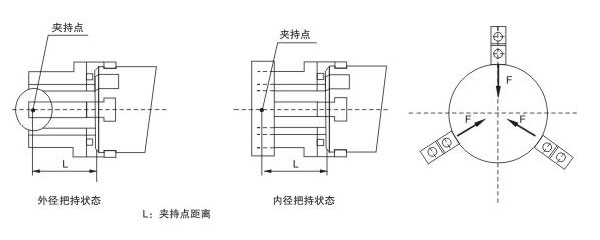

Clamping point for MH3 Gripper Finger

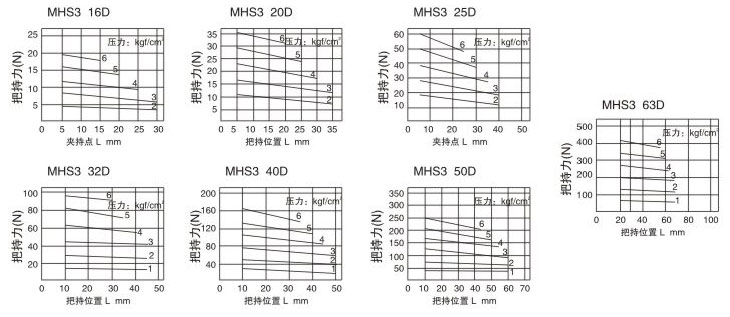

Effective retention for MH3 Gripper Finger

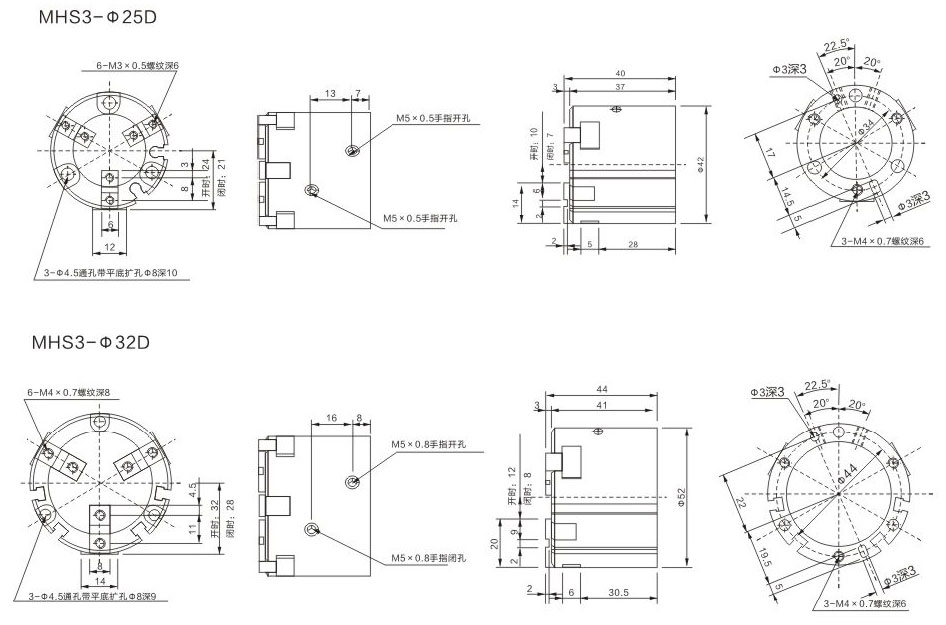

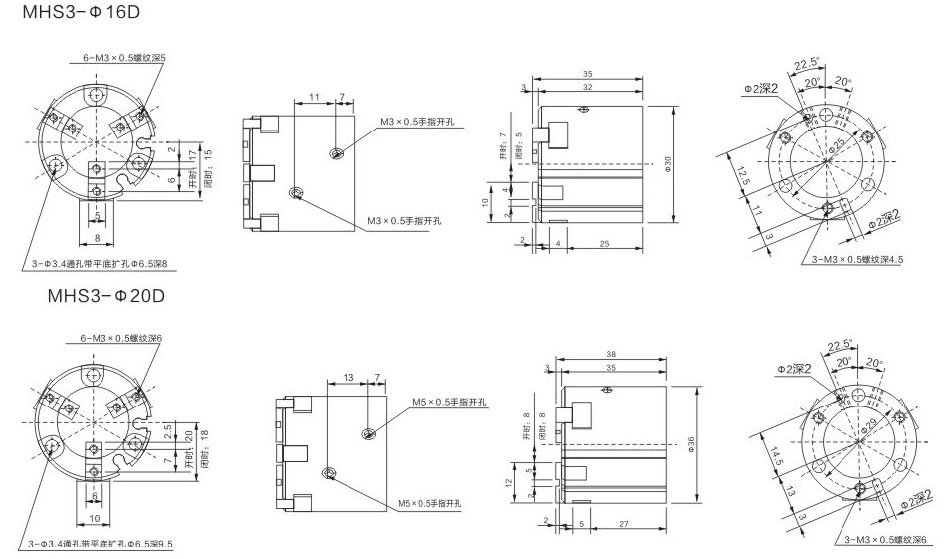

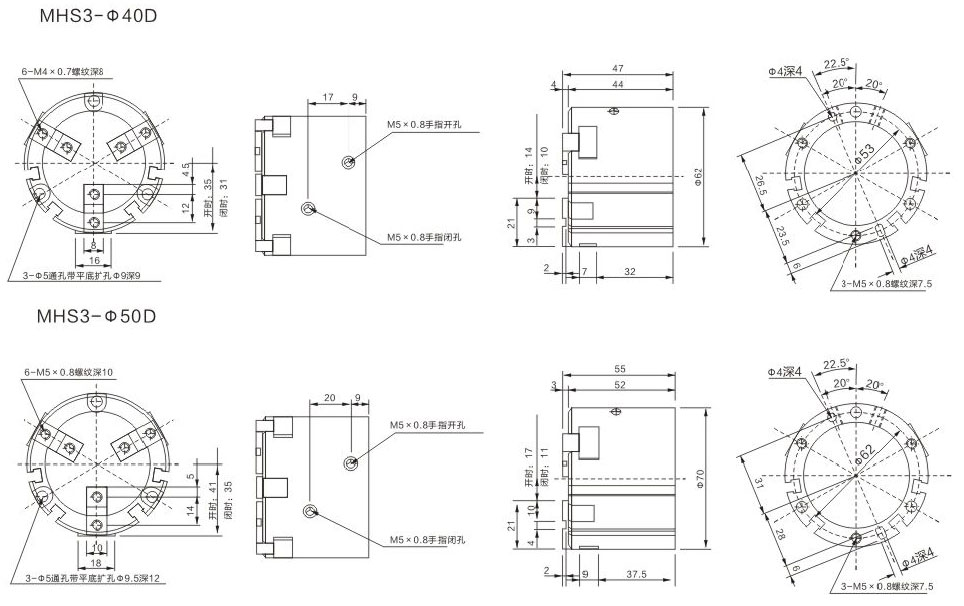

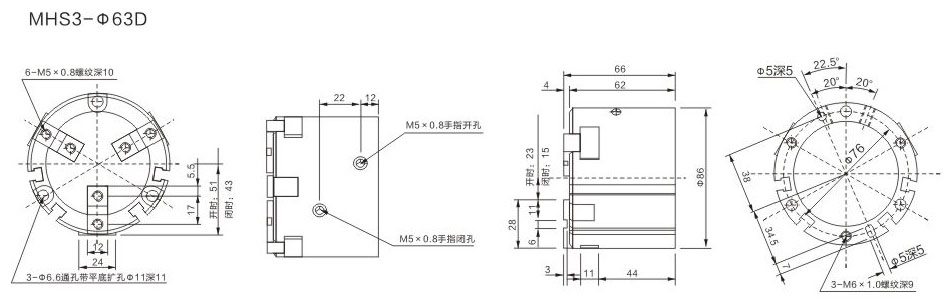

Dimension (mm) for MHS3 Gripper Fingers
