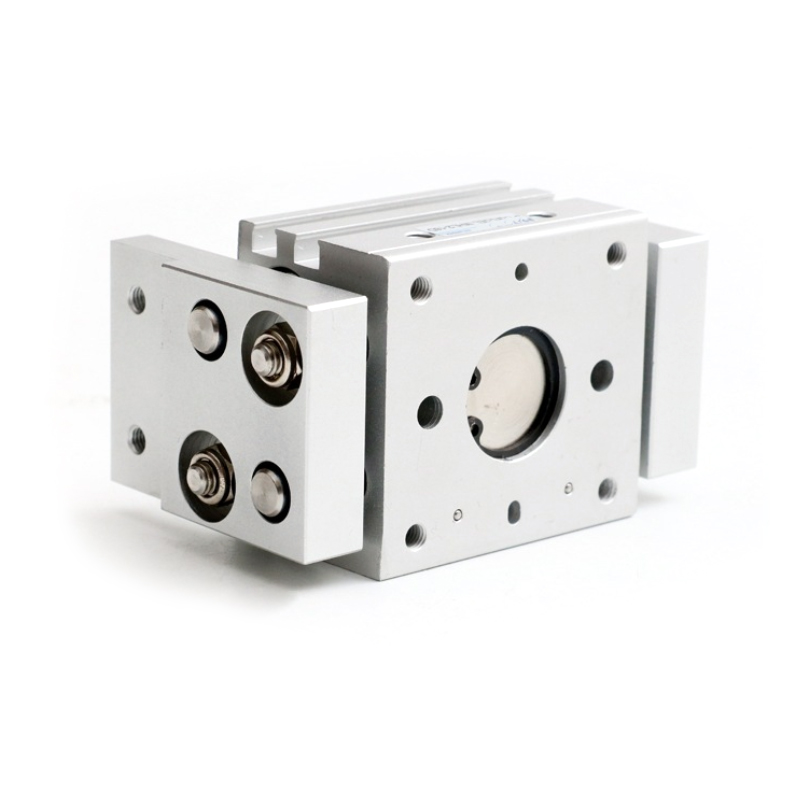

Angular Pneumatic Gripper MHL2

MHL2 Pneumatic Gripper are widely used in automatic assembly lines. The finger stroke is long and suitable for holding large volume objects. The double piston design can increase the retention.

Bore: 10, 16, 20, 25, 32, 40mm
Motion Pattern: Double-acting
Operating pressure: 0.1~0.6MPa
Repeatability: ±0.1mm
Ambient and fluid temperature: -10~+60°C

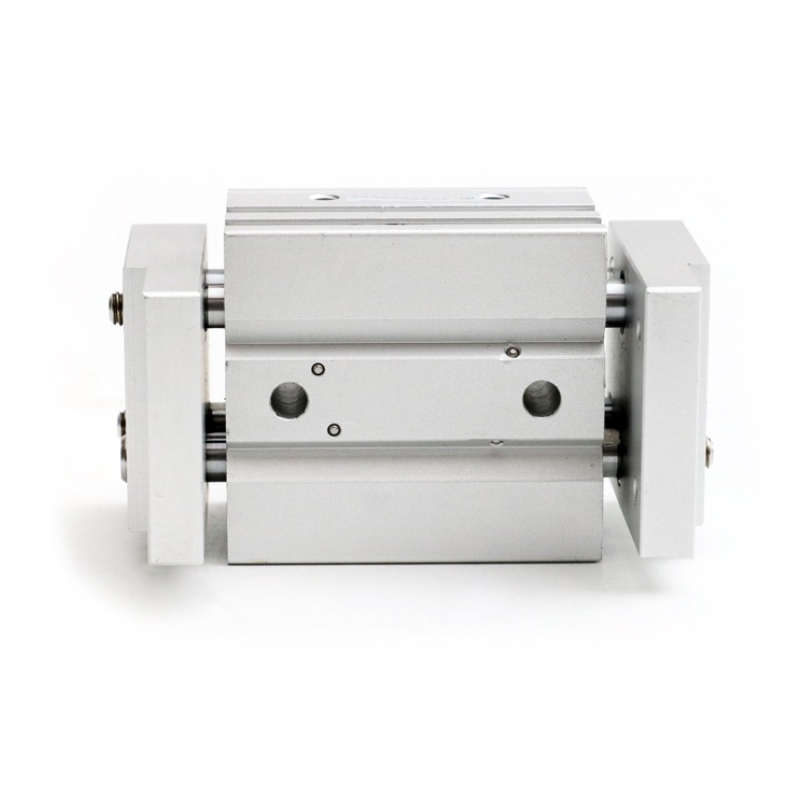

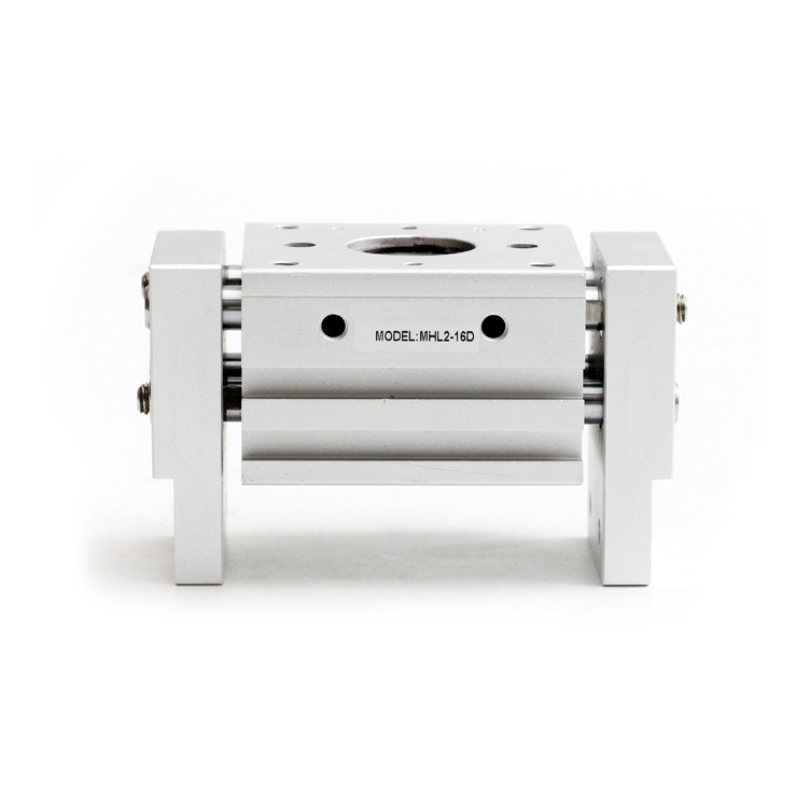

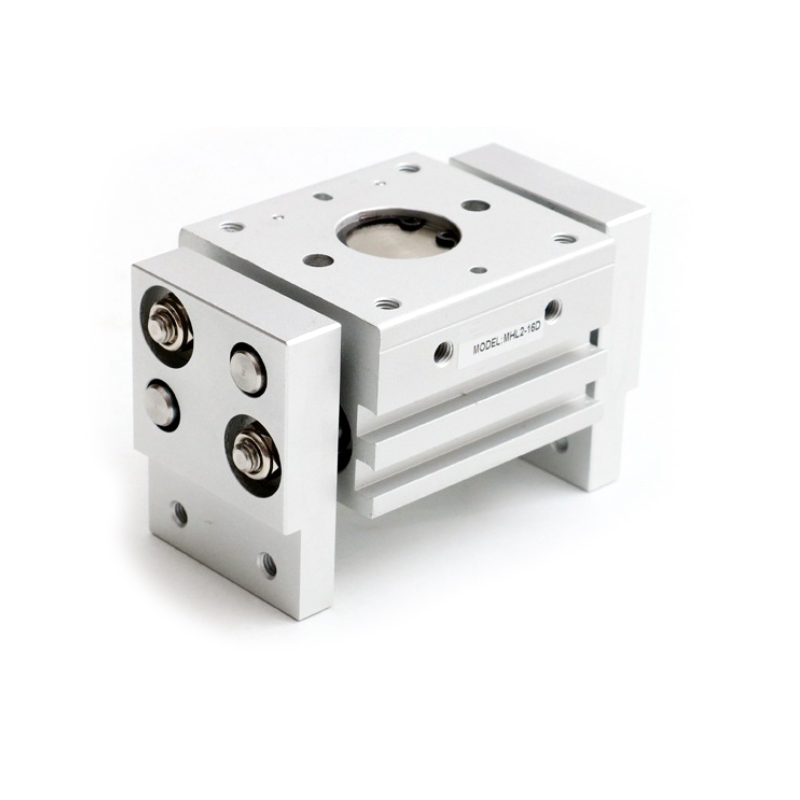

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Overview for MHL2 Gripper

MHL2 Gripper are widely used in automatic assembly lines. The finger stroke is long and suitable for holding large volume objects. The double piston design of China Pneumatic Grippers can increase the retention. Use gear rack operation, so that fingers can be synchronized open and close. Dust-proof design due to special seals.

Product Feature for MHL2 Gripper

* Long finger stroke, suitable for holding large objects.
* Dual piston design, can increase the retention force.
* Use rack and pinion operation, so that fingers can be synchronized open and close.
* Dust-proof design due to the use of special seals.

Specification for MHL2 Gripper

Bore (mm) 10 16 20 25 32 40
Working Medium Air (No Lubrication)
Motion Pattern Double-acting
Max. Operating Pressure MPa 0.6
Min. Operating Pressure MPa 0.15 0.1
Ambient and fluid temperature -10~60℃
Repeatability ±0.1mm
Clamping Force N 14 45 74 131 228 396
Port Size M5×0.8 Rc1/8

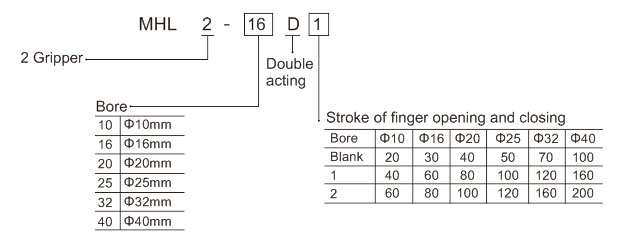

Ordering Code for MHL2 Gripper

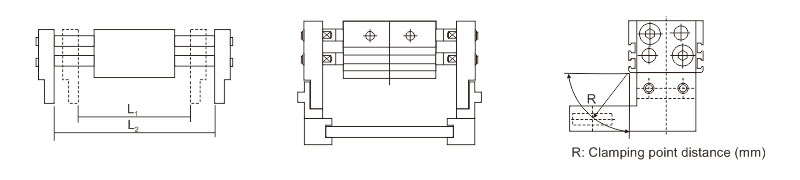

Stroke Table

Model Bore (mm) Max. Frequence c.p.m Opening/Closing stroke mm (L2-L1) Width in closing mm (L1) Width in opening mm (L2)
MHL2-10D 10 60 20 56 76
MHL2-10D1 40 40 78 118
MHL2-10D2 60 96 156
MHL2-16D 16 60 30 68 98
MHL2-16D1 40 60 110 170
MHL2-16D2 80 130 210
MHL2-20D 20 60 40 82 122
MHL2-20D1 40 80 142 222
MHL2-20D2 100 162 262
MHL2-25D 25 60 50 100 150
MHL2-25D1 40 100 182 282
MHL2-25D2 120 200 320
MHL2-32D 32 30 70 150 220
MHL2-32D1 20 120 198 318
MHL2-32D2 160 242 402
MHL2-40D 40 30 100 188 288
MHL2-40D1 20 160 246 406
MHL2-40D2 200 286 486

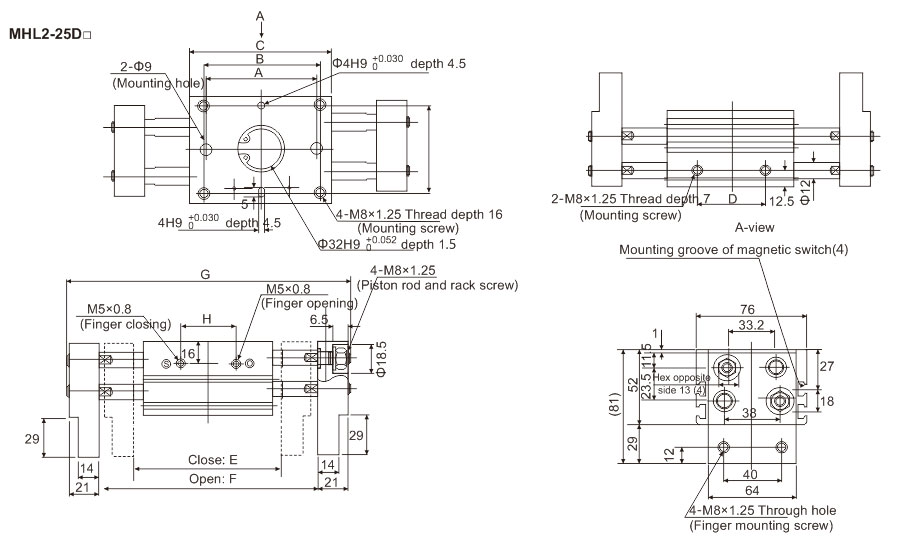

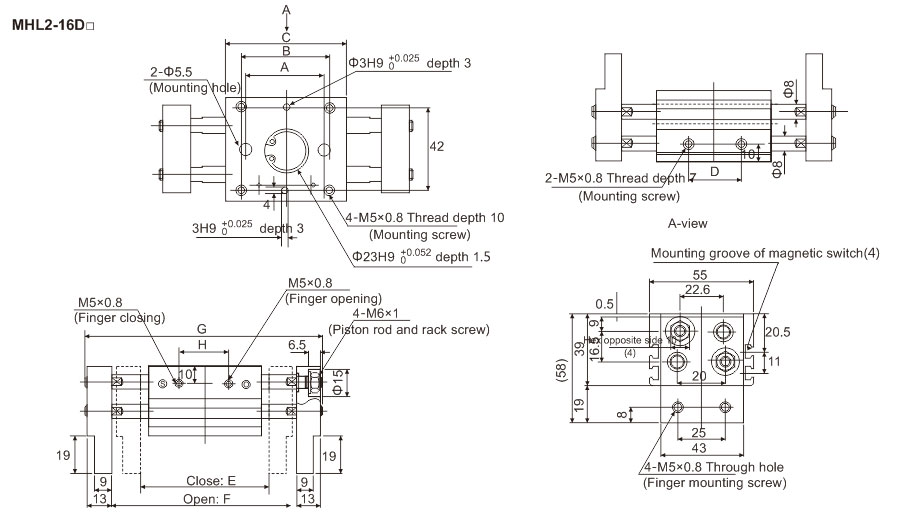

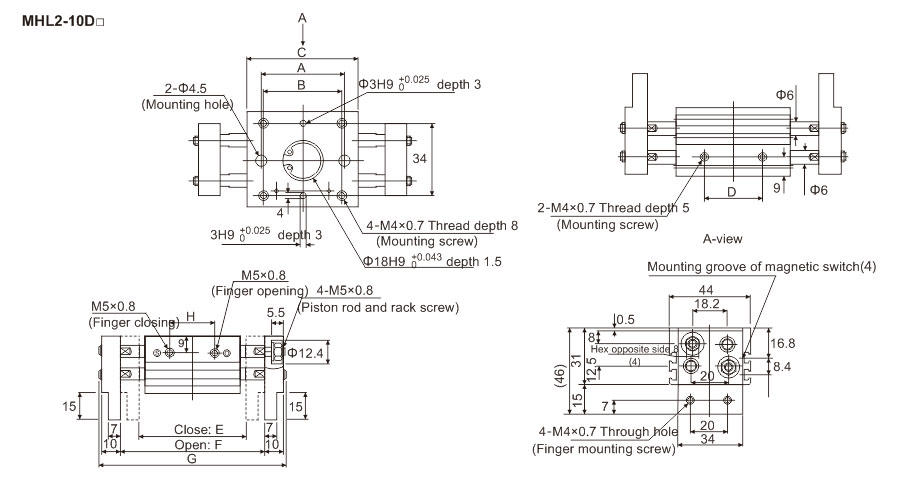

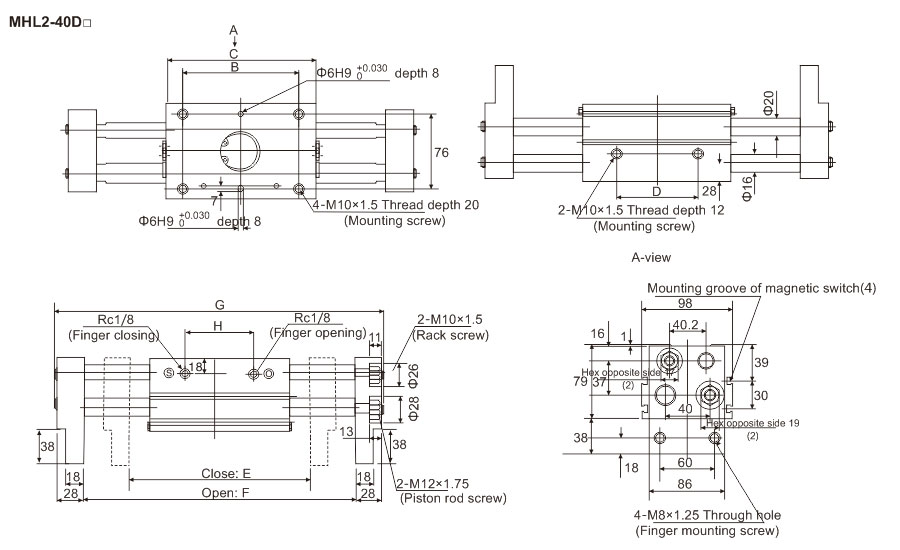

Dimension (mm)

Model A B C D E F G H
MHL2-10D 38 36 51 26 56 76 100 24
MHL2-10D1 54 52 67 42 78 118 142 39
MHL2-10D2 72 70 85 60 96 156 180 57

Model A B C D E F G H
MHL2-16D 40 45 60 28 68 98 128 26
MHL2-16D1 70 75 90 58 110 170 200 50
MHL2-16D2 90 95 110 78 130 210 240 70

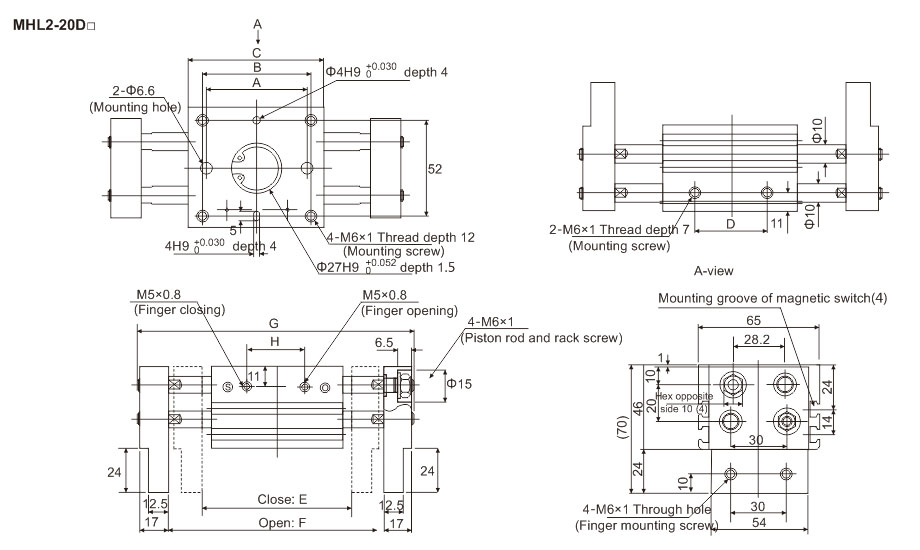

Model A B C D E F G H
MHL2-20D 54 58 71 38 82 122 160 32
MHL2-20D1 96 100 113 80 142 222 260 68
MHL2-20D2 116 120 133 100 162 262 300 88

Model A B C D E F G H
MHL2-25D 66 70 88 48 100 150 196 38
MHL2-25D1 120 124 142 102 182 282 328 86
MHL2-25D2 138 142 160 120 200 320 366 104

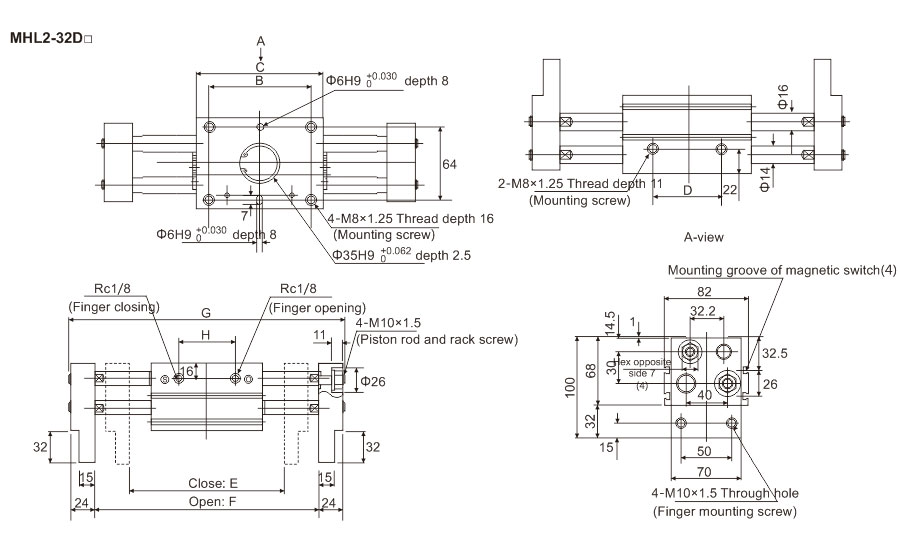

Model B C D E F G H
MHL2-32D 86 110 60 150 220 272 56
MHL2-32D1 134 158 108 198 318 370 104
MHL2-32D2 178 202 152 242 402 454 148

Model B C D E F G H
MHL2-40D 116 148 80 188 288 348 72
MHL2-40D1 174 206 138 246 406 466 130
MHL2-40D2 214 246 178 286 486 546 170
