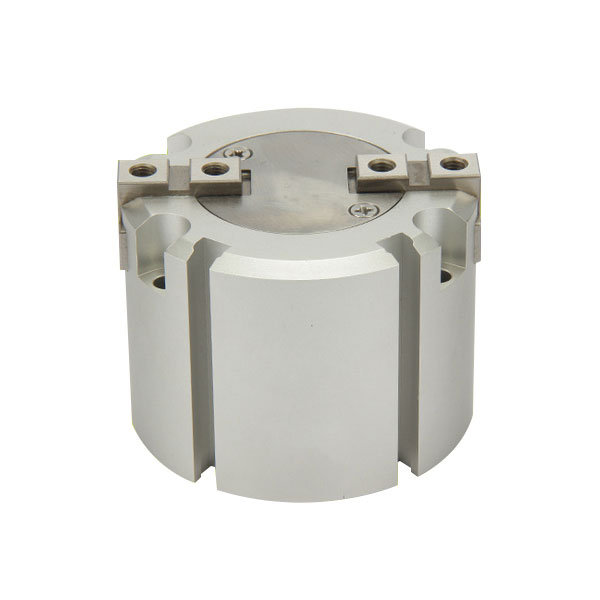

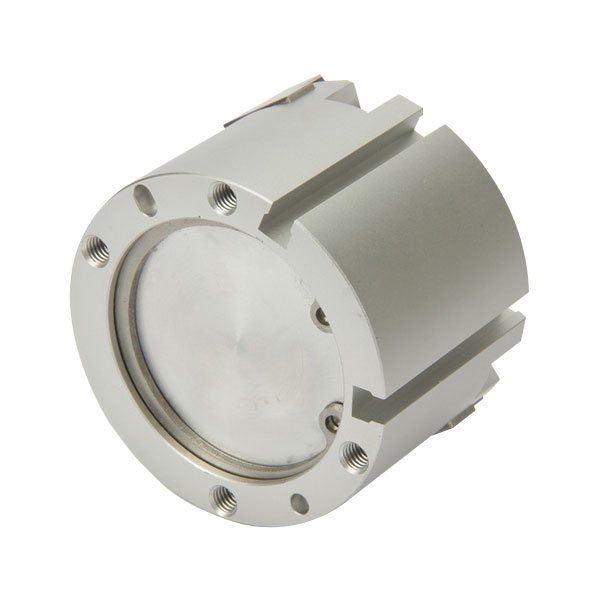

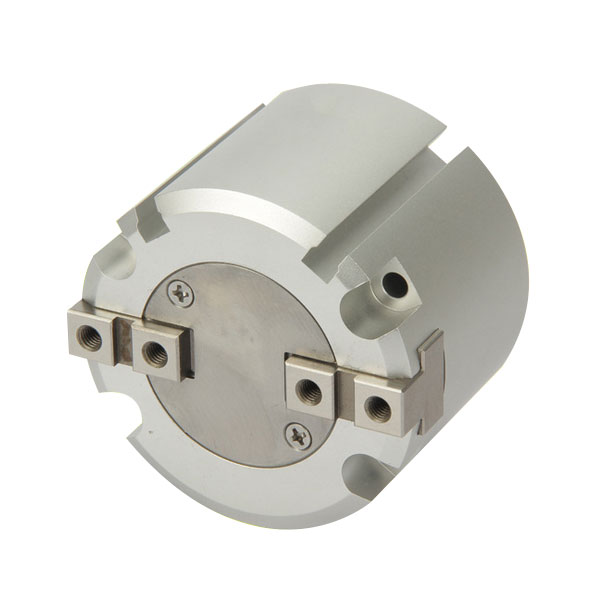

Overview for MHS2 Parallel Type Air Gripper
MHS2
Parallel Type Air Gripper utilize a wedge cam design to minimize their overall size, allow no lateral vibration along stroke direction once the workpiece is held, while retaining a high holding force.
2 Finger Gripper is suitable for pressing and other operations bearing external forces. The repeatability accuracy of these
China Pneumatic Grippers is ±0.01mm.

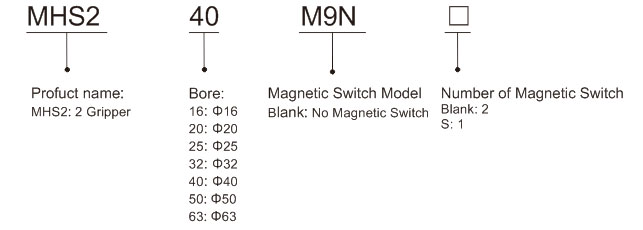

Ordering Code for MHS2 Parallel Type Air Gripper
Specification for MHS2 Parallel Type Air Gripper
| Model |
MHS2-16D |
MHS2-20D |
MHS2-25D |
MHS2-32D |
MHS2-40D |
MHS2-50D |
MHS2-63D |
| Bore mm |
16 |
20 |
25 |
32 |
40 |
50 |
63 |
| Working Medium |
Air |
| Pressure Range |
0.2~0.6MPa |
0.1~0.6MPa |
| Environment and fluid temp. |
-10~+60℃ |
| Repeatability Precision |
±0.01mm |
| Max. Frequency |
120c.p.m |
60c.p.m |
| Lubrication |
Non-lube |
| Motion Pattern |
Double acting |
Clamping Force N
Pressure 0.5MPa |
O.D clamping |
21 |
37 |
63 |
111 |
177 |
280 |
502 |
| I.D clamping |
23 |
42 |
71 |
123 |
196 |
306 |
537 |
| Finger Stroke mm |
4 |
4 |
6 |
8 |
8 |
12 |
16 |
| Port Size |
M3×0.5 |
M5×0.8 |
| Magnetic Switch |
Built in magnetic ring type |
| Magnetic Switch Model |
M9N(V), M9P(V), M9B(V) |
Note) The clamping force when clamping the outer diameter, the clamping point distance of Φ16 ~ Φ25: L=20mm, clamping point distance of Φ32 ~ Φ63: L=30mm.
Note) The complete model indicates that the wire length of the magnetic switch is added behind the model (no mark -0.5m, L-3m) Example: WMHS4-16D-M9NL

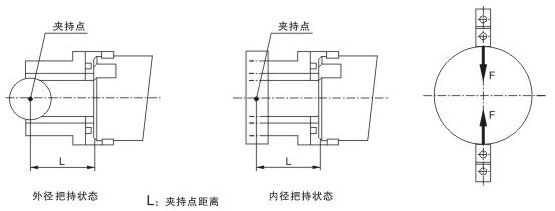

Clamping point for 2 Finger Gripper

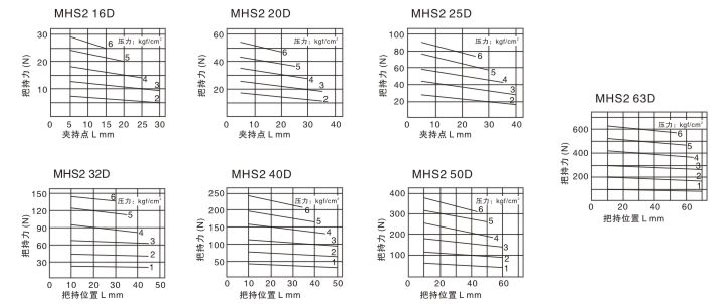

Effective retention for 2 Finger Gripper

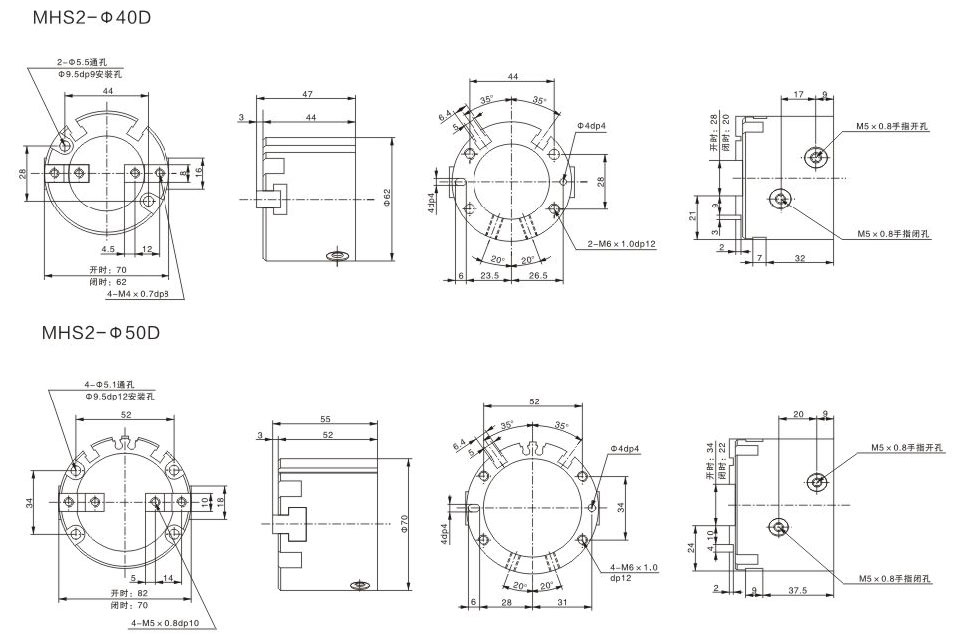

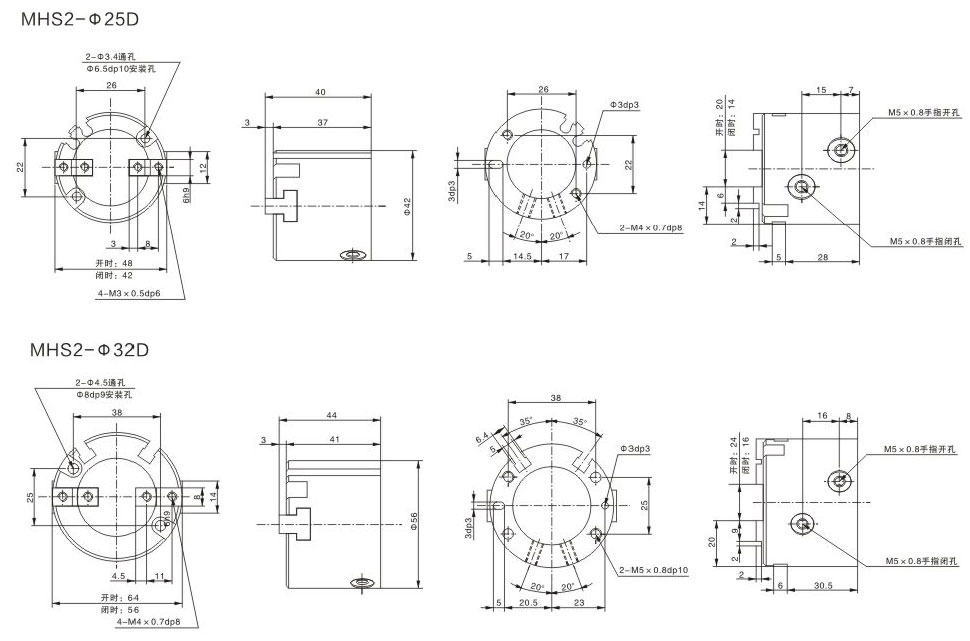

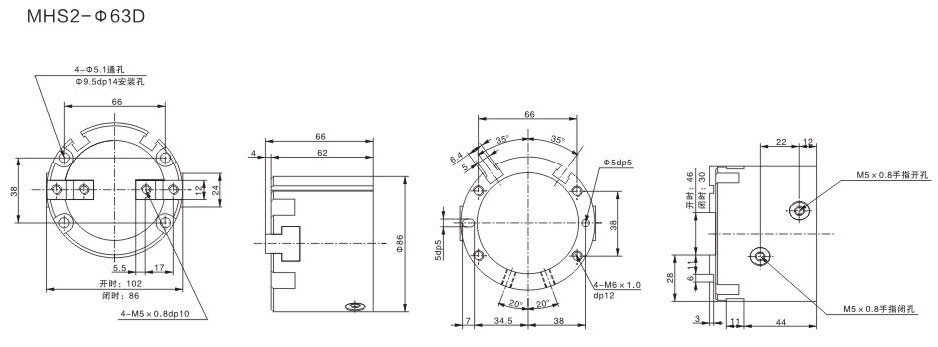

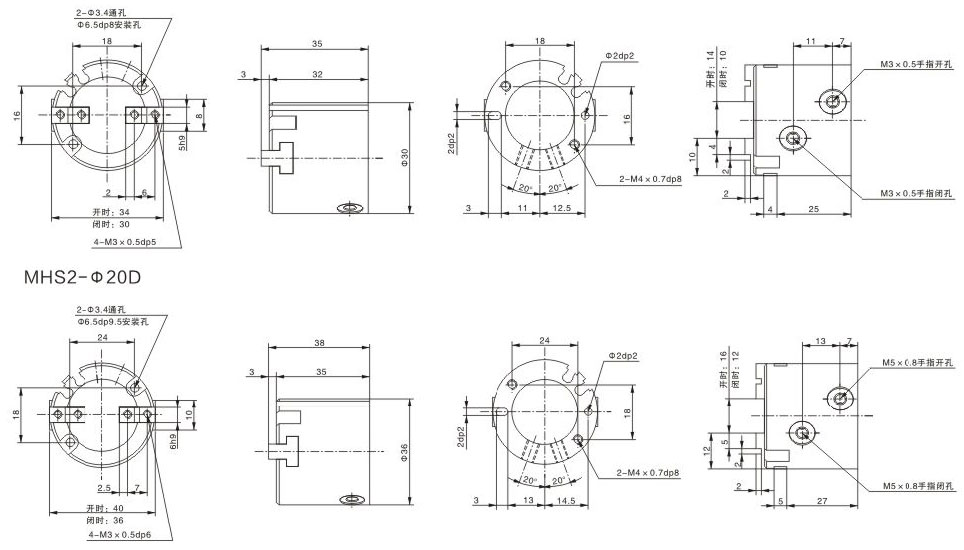

Dimension (mm) for MHS2 2 Finger Gripper
