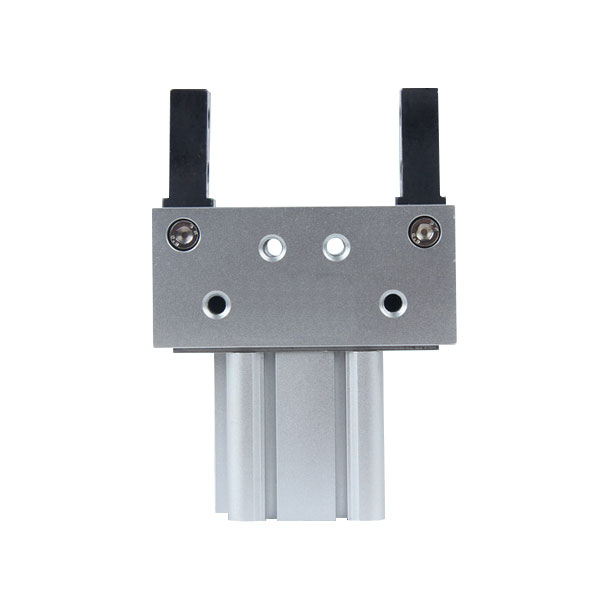

Toggle Type Air Gripper MHT2

MHT2 Parallel Gripper adopts a new cylinder body and small magnetic switches can be installed on all sides. The toggle mechanism ensures a strong and stable clamping force.

Bore: 32, 40, 50, 63mm
Motion Pattern: Double-acting
Operating pressure: 0.1~0.6MPa
Vertical, axial, lateral mounting
Ambient and fluid temperature: 5~60°C

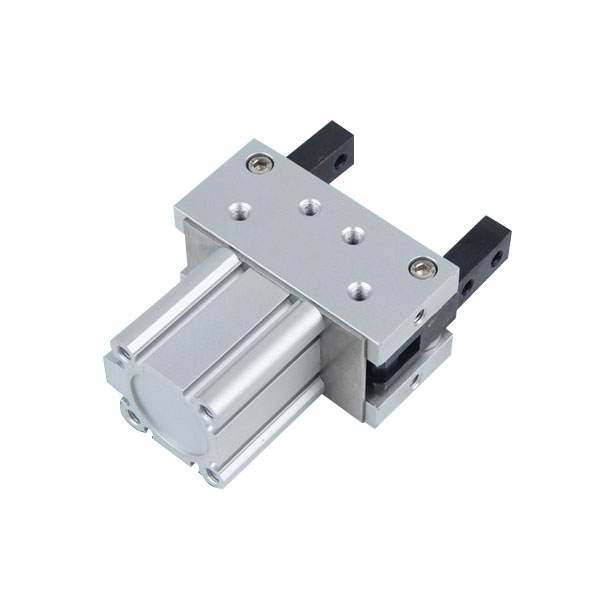

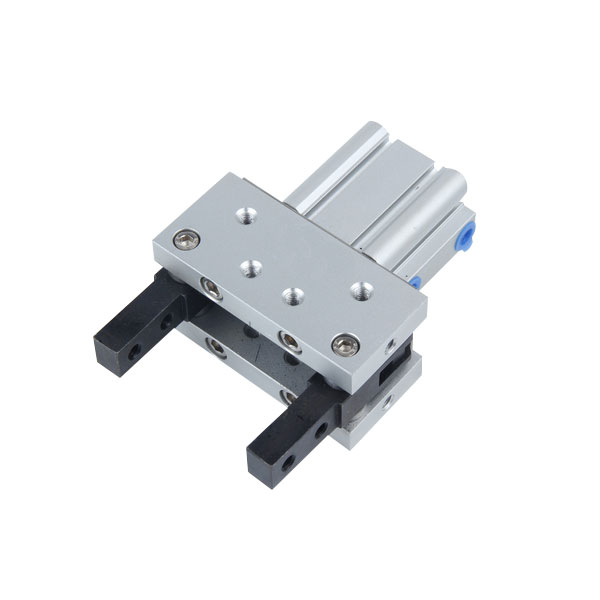

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Overview for MHT2 Parallel Gripper

MHT2 Parallel Gripper adopts a new cylinder body and small magnetic switches can be installed on all sides. The toggle mechanism ensures a strong and stable clamping force. And Toggle Type Air Gripper also can keep the workpiece clamping when cutting off gas supply. MHT2 Parallel Gripper includes a toggle mechanism is that is actuated to produce a strong and stable holding force, even when air pressure drops or is lost.

Product Feature for MHT2 Parallel Gripper

* Toggle Type Air Gripper is suitable for holding heavy workpieces
* The toggle structure, even if suddenly lost pressure, fingers can hold the workpiece
* Built-in magnetic ring type, magnetic switch can be installed on the China Pneumatic Grippers

Specification for MHT2 Parallel Gripper

Model MHT2-32D MHT2-40D MHT2-50D MHT2-63D
Bore (mm) Φ32 Φ40 Φ50 Φ63
Motion Pattern Double acting
Working Medium Air
Pressure Range 0.1~0.6MPa
Environment and fluid temp. 5~60℃
Lubrication Note 1 Non-lube
Angle of finger opening and closing -3°~28° -3°~27° -2°~23° -2°~23°
Weight (kg) 0.80 1.09 1.93 2.08
Clamping Force Note 2 N·m 12.4 36.0 63.0 106

Note 1) If you need lubrication, please use ISOVG32
Note 2) At 0.5MPa

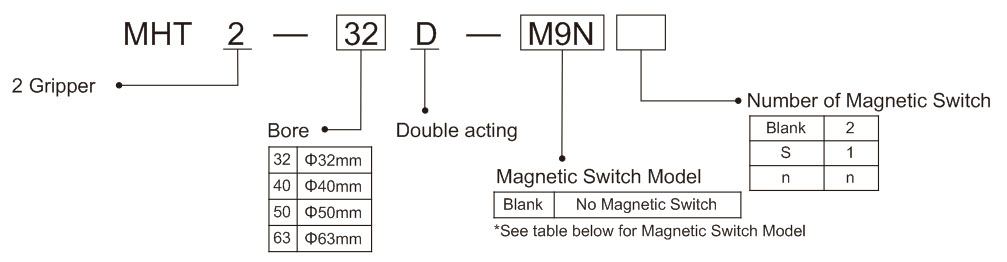

Ordering Code for MHT2 Toggle Type Air Gripper

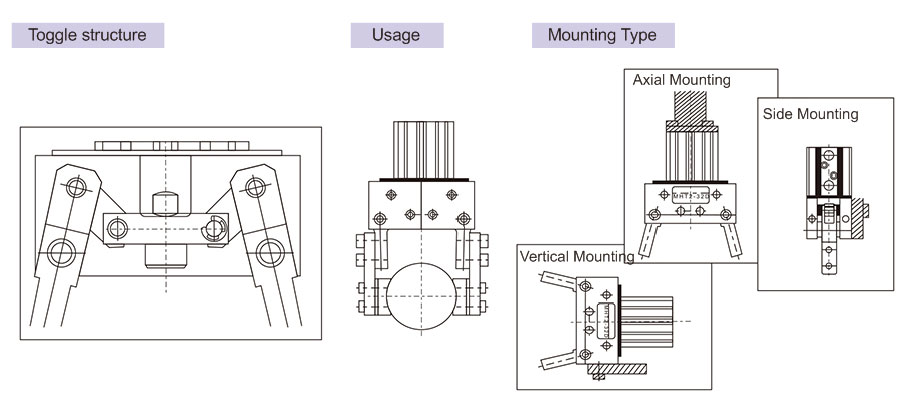

Toggle Structure / Usage / Mounting Type

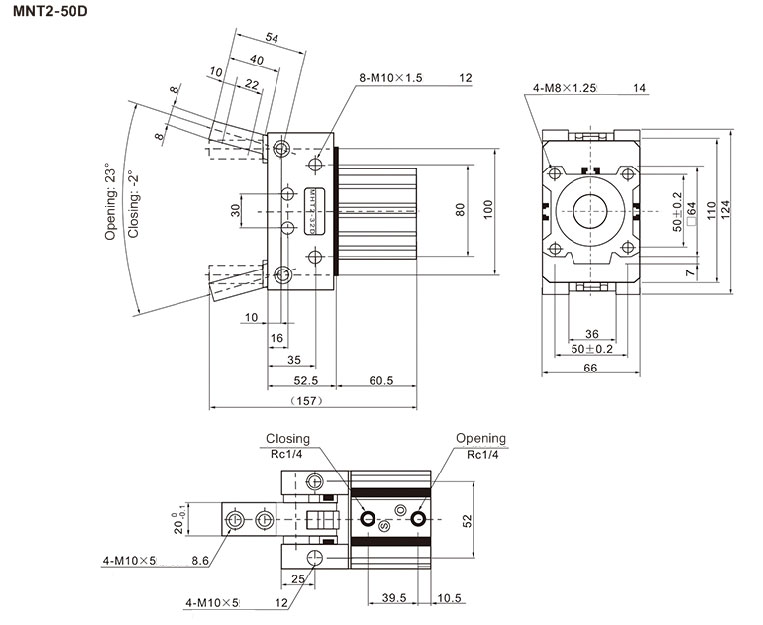

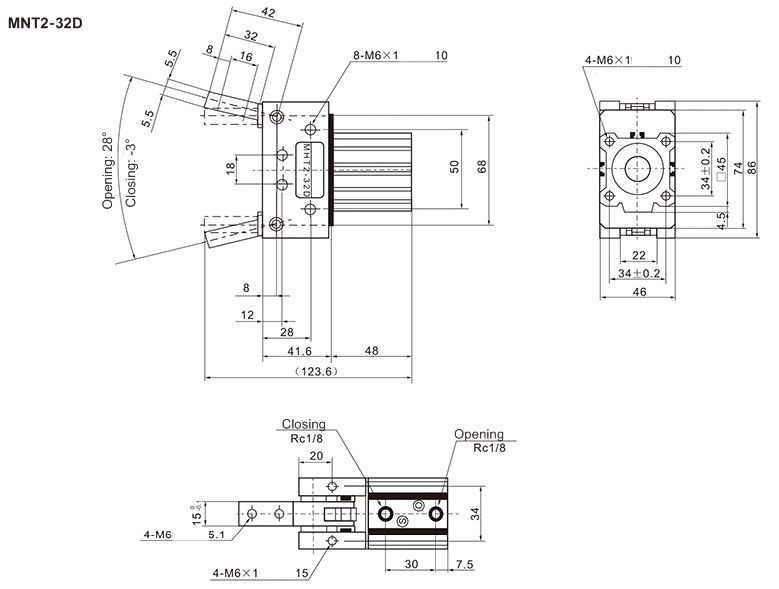

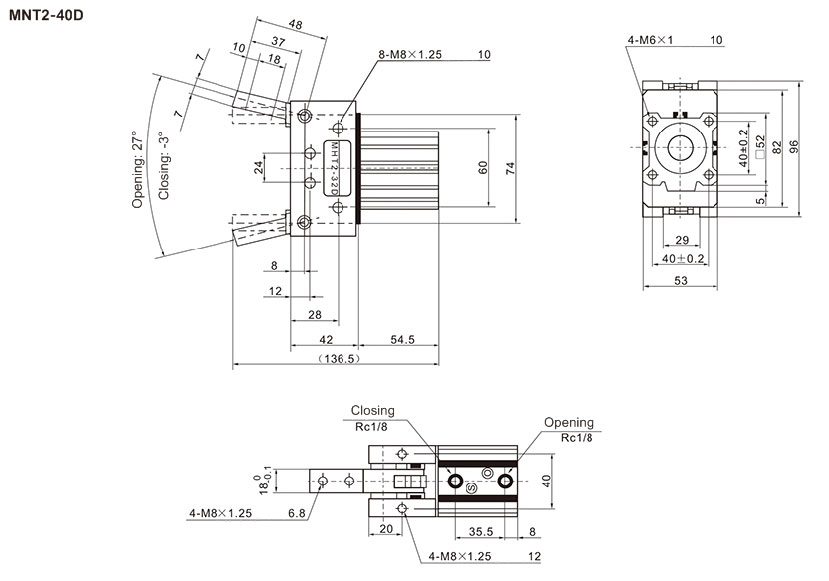

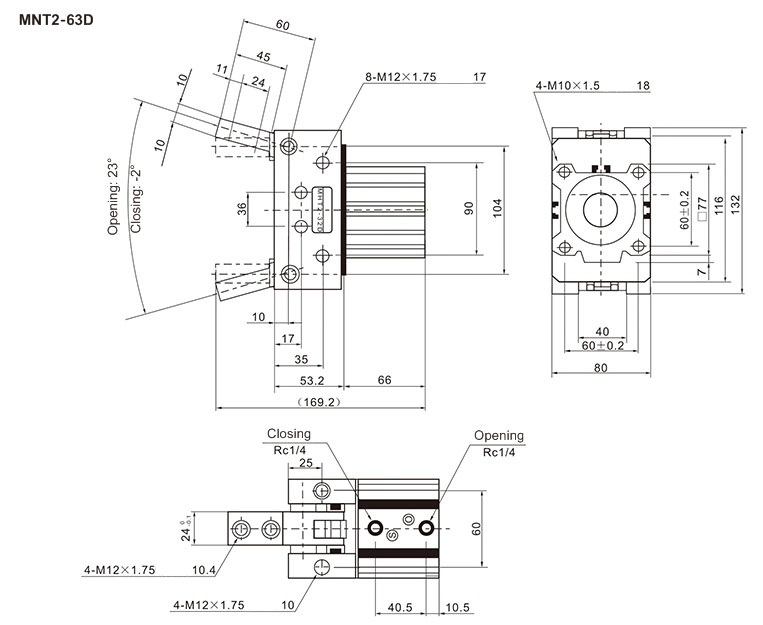

Dimension (mm) for Toggle Type Air Gripper
