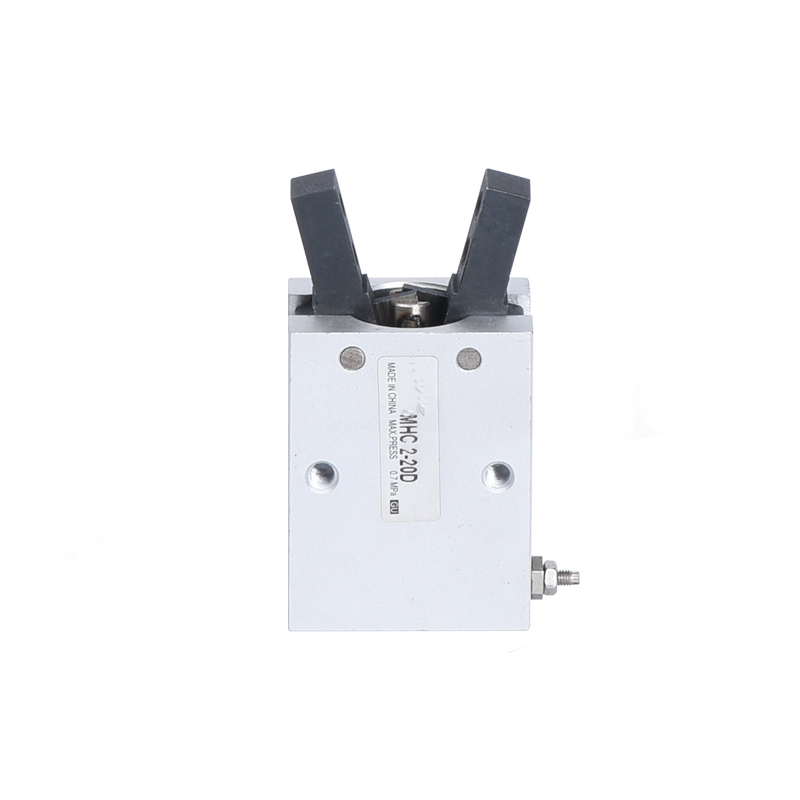

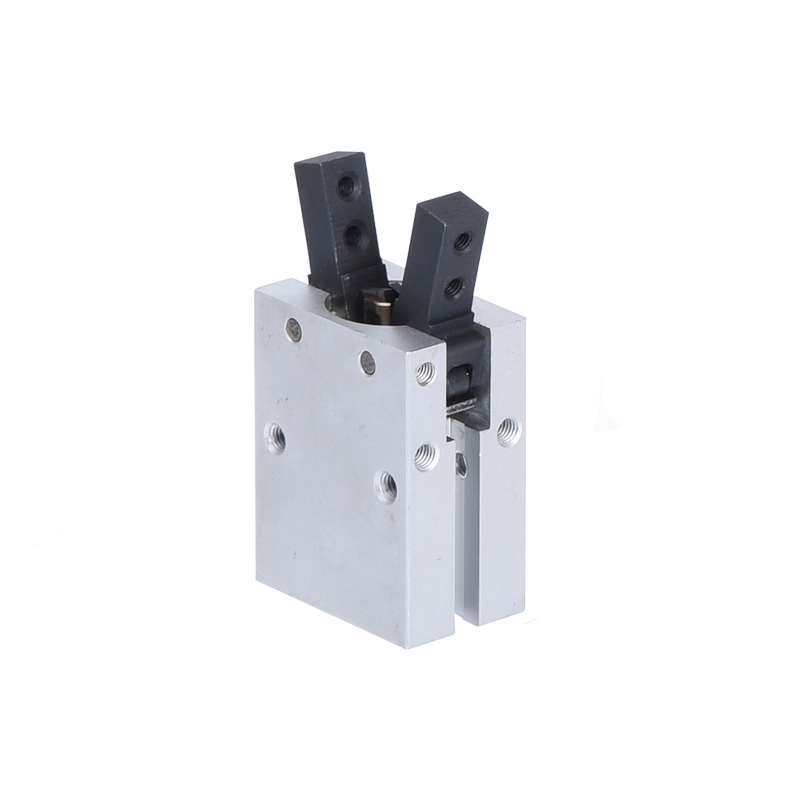

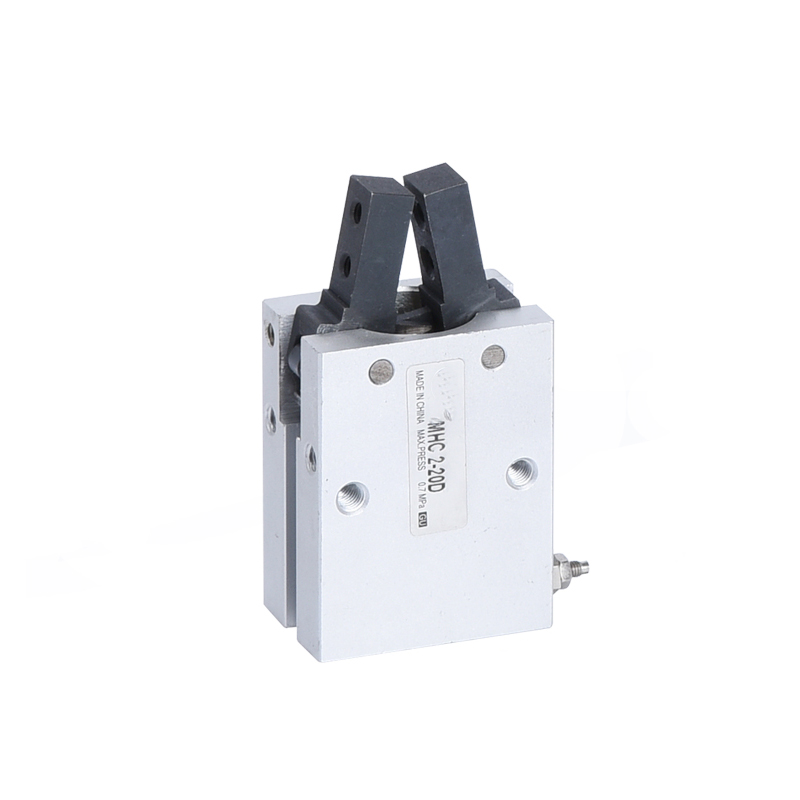

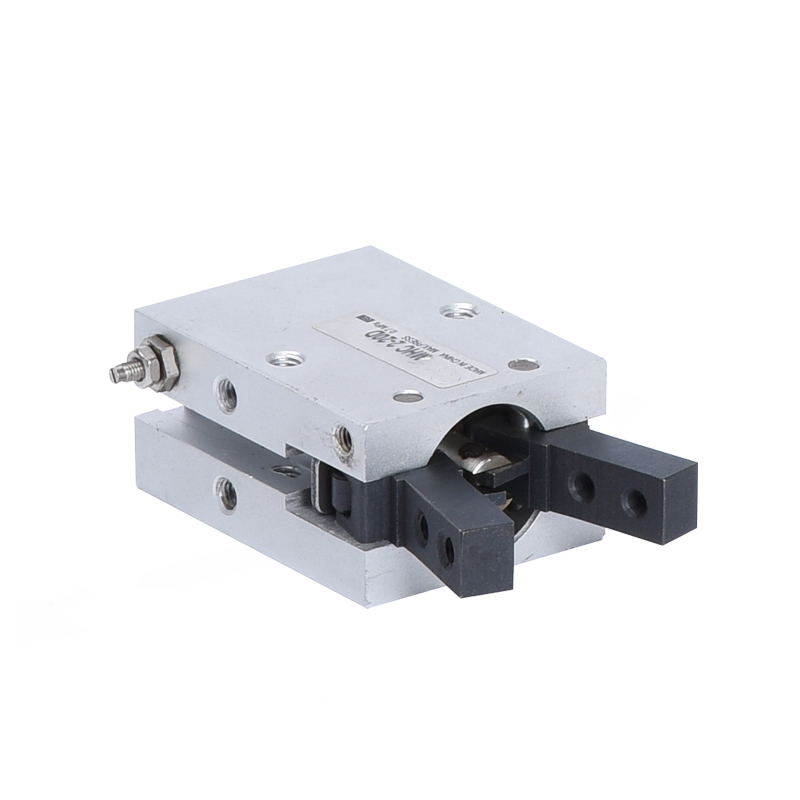

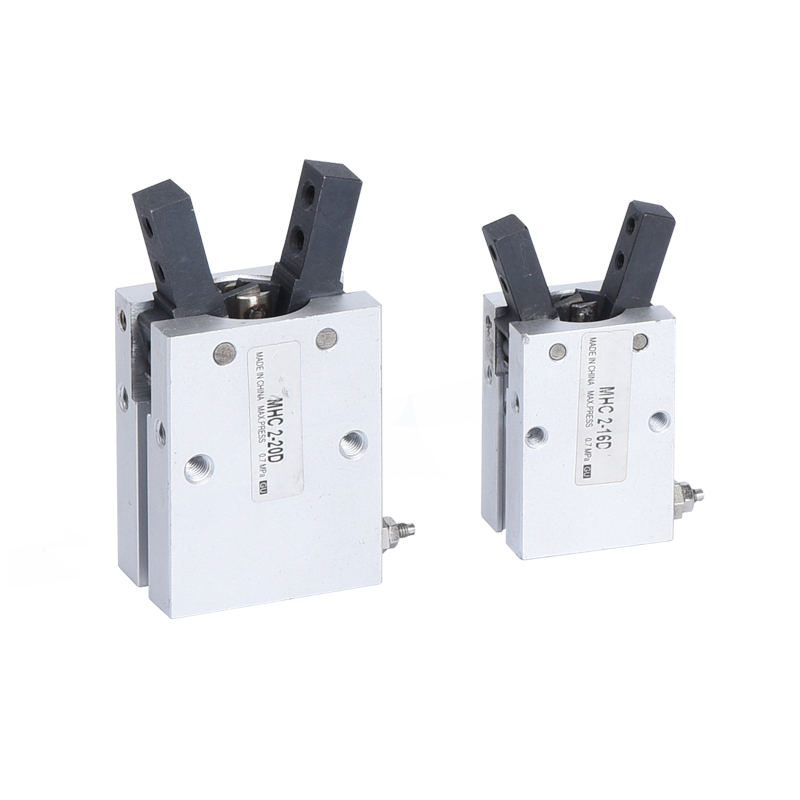

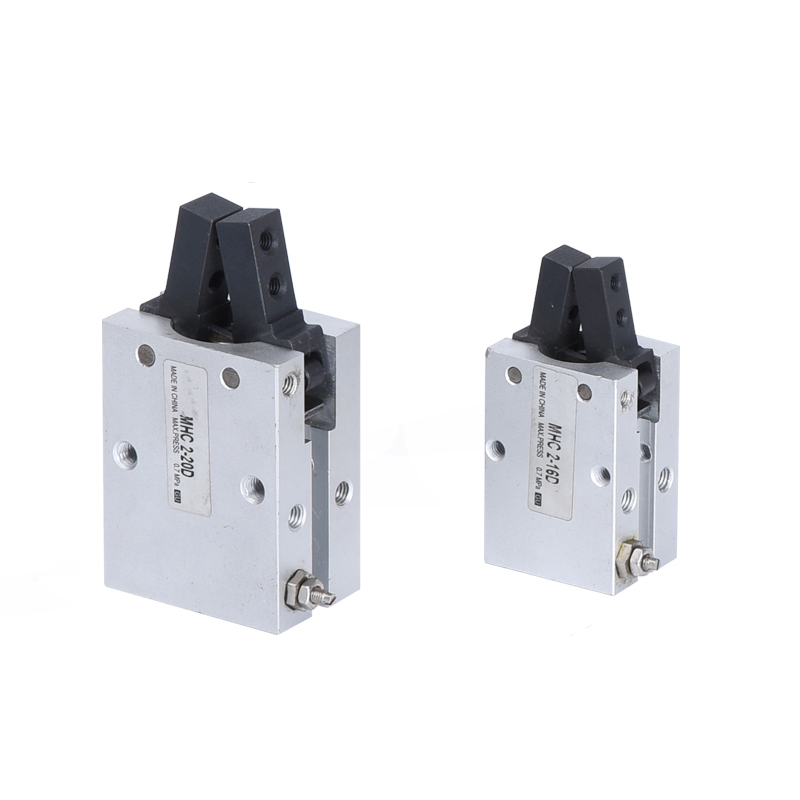

Angular Pneumatic Gripper MHC2

MHC2 Pneumatic Gripper uses a thin cylinder body to process positioning pinholes on the body to install claws and poke rods. When the piston rod is pushed upward or downward by compressed air, the claw or poke rod opens and closes by the pole tip at the upper end of the piston rod.

Bore: 6, 7, 10, 16, 20, 25mm
Motion Pattern: Double-acting / Single-acting
Working Medium: Air
Lubrication: Non-lube
Ambient and fluid temperature: -10~+60°C

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Overview for MHC2 Pneumatic Gripper

MHC2 Pneumatic Gripper uses a thin cylinder body to process positioning pinholes on the body to install claws and poke rods. When the piston rod is pushed upward or downward by compressed air, the claw or poke rod opens and closes by the pole tip at the upper end of the piston rod.
MHC2 Angular Gripper has the following characteristics:
1. The body shape is thin and small, and occupies less space.
2. Angular Gripper has compact structure and light weight, also known as compact cylinder.
3. The China Pneumatic Grippers have good corrosion resistance and good performance.
4. The installation method is simple, use fixed cylinder.
5. The thrust and pull force of cylinder output are determined according to load force.

Specification for MHC2 Pneumatic Gripper

Bore (mm) 6 7 10 16 20 25
Working Medium Air
Operating pressure range MPa Single-acting 0.3~0.6 0.4~0.6 0.25~0.6
Double-acting 0.15~0.6 0.1~0.6
Ambient and fluid temperature -10~60℃
Max. frequency of use 180c.p.m
Repeatability precision (mm) ±0.02 ±0.01
Lubrication Non-lube

Clamping Torque

Motion Pattern Model Bore (mm) Clamping torque (N·m) Opening and closing angle (both sides)
Double-acting MHCA2-6D 6 0.038 30°~-10°
MHC2-10D 10 0.1
MHC2-16D 16 0.39
MHC2-20D 20 0.70
MHC2-25D 25 1.36
Single-acting MHCA2-6S 6 0.024 30°~-10°
MHCM2-7S 7 0.017 20°~-7°
MHC2-10S 10 0.07 30°~-10°
MHC2-16S 16 0.31
MHC2-20S 20 0.54
MHC2-25S 25 1.08

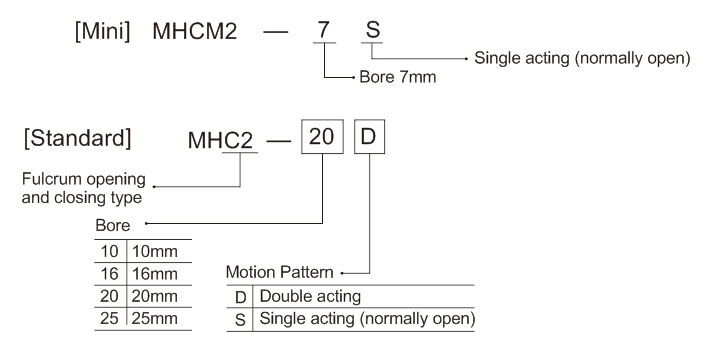

Ordering Code for MHC2 Pneumatic Gripper

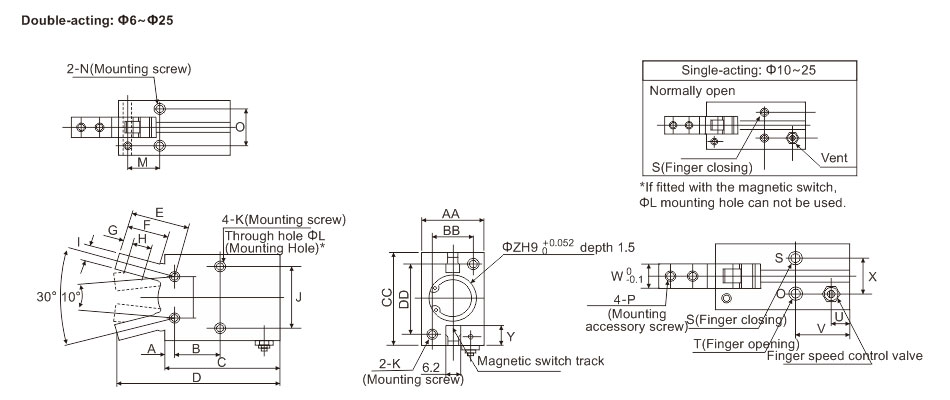

Dimension (mm) for MHC2 Angular Gripper

Bore
(mm)		 A B C D E F G H I J K L M N O P Port Size U V W X Y Z AA BB CC DD EE
S T
6 4 6 29 41 16 11 2.5 5 2 12 M3×0.5 D5 2.6 - M2×0.4 D4 5 M2×0.4 M3×0.5 - - 4 2.1 - 7 10 4 20 13.6 14
10 2.8 12.8 38.6 52.4 17.2 12 3 5.7 4 16 M3×0.5 D5 2.6 8.8 M3×0.5 D6 11.4 M2.5×0.45 M3×0.5 7.2 18.8 6.4 10.4 5.4 11 16.4 12 23 18 10
16 3.9 16.2 44.6 62.5 22.6 16 4 7 7 24 M4×0.7 D8 3.4 10.7 M4×0.7 D8 16 M3×0.5 M5×0.8 7 18.3 8 13 5.8 17 23.6 15 30.6 22 16
20 4.5 21.7 55.2 78.7 28 20 5.2 9 8 30 M5×0.8 D10 4.3 15.7 M5×0.8 D8 18.6 M4×0.7 M5×0.8 7.5 22.2 10 15 9 21 27.6 18 42 32 20
25 4.6 25.8 60.4 92 37.5 27 8 12 10 36 M6×1.0 D12 5.1 19.3 M6×1.0 D10 22 M5×0.8 M5×0.8 7.7 23.5 12 20 11.5 26 33.6 22 52 40 25
