Angular Pneumatic Gripper MHY2

MHY2 Gripper is widely used in automatic manipulator and strong clamping cylinder. Built-in magnetic ring, magnetic switch can be installed. 180° opening and closing, simplifying pick-and-place action.

Bore: 10, 16, 20, 25mm
Motion Pattern: Double-acting
Operating pressure: 0.1~0.6MPa
Repeatability: ±0.2mm
Ambient and fluid temperature: -10~+60°C

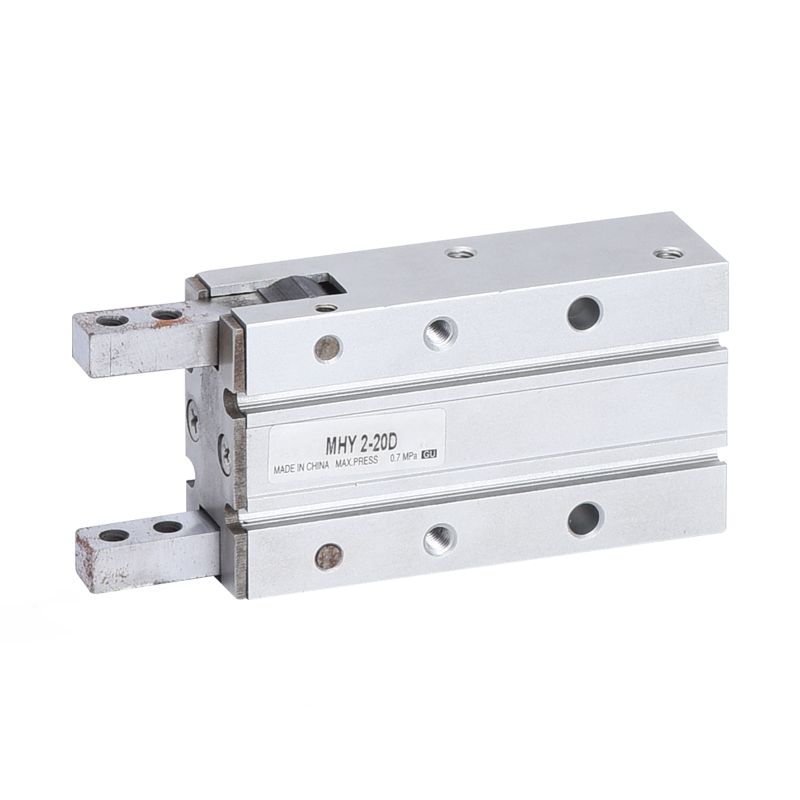

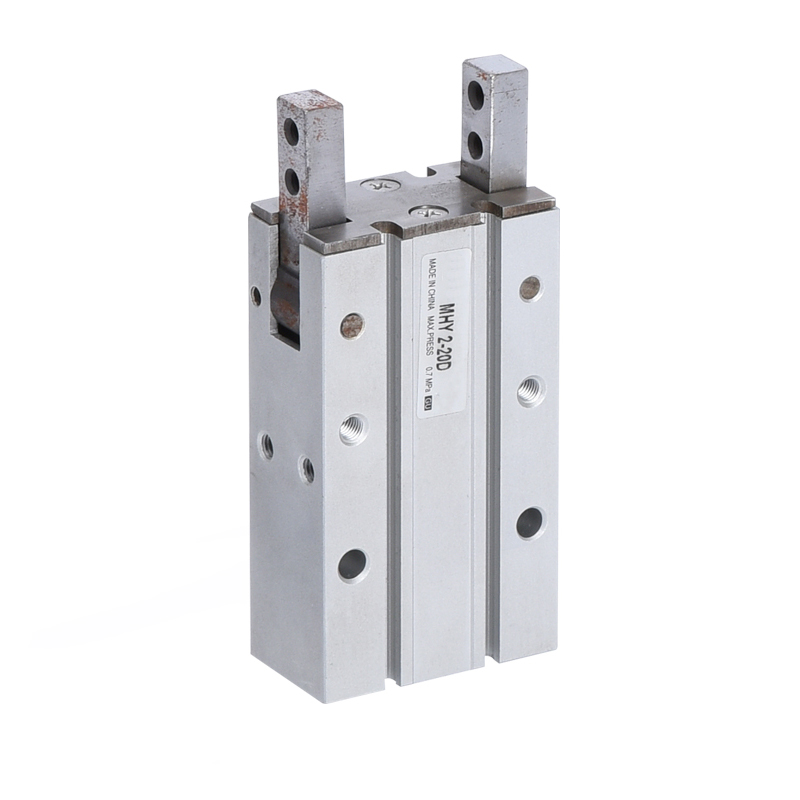

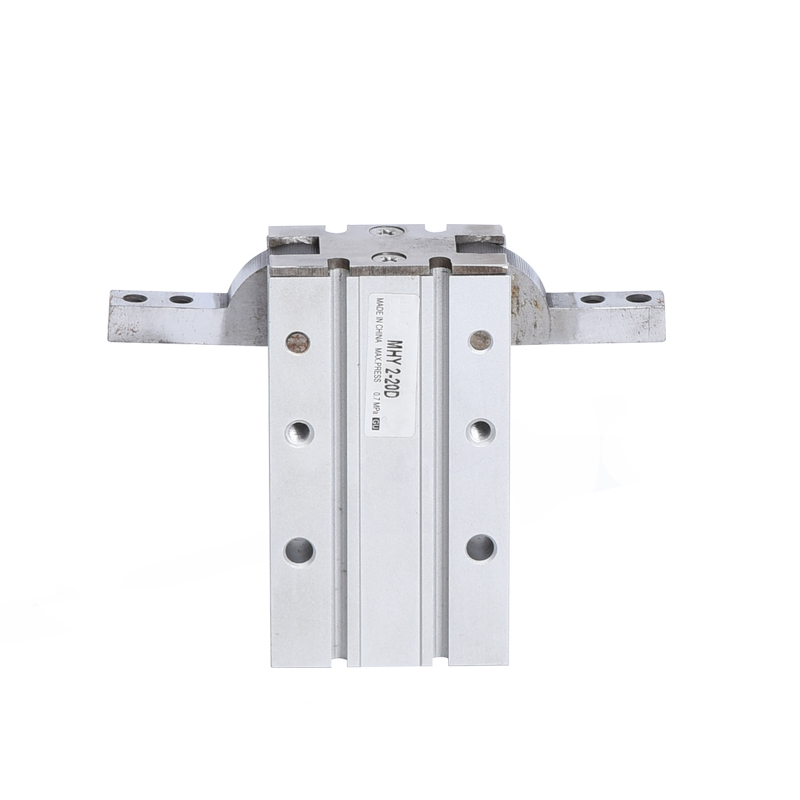

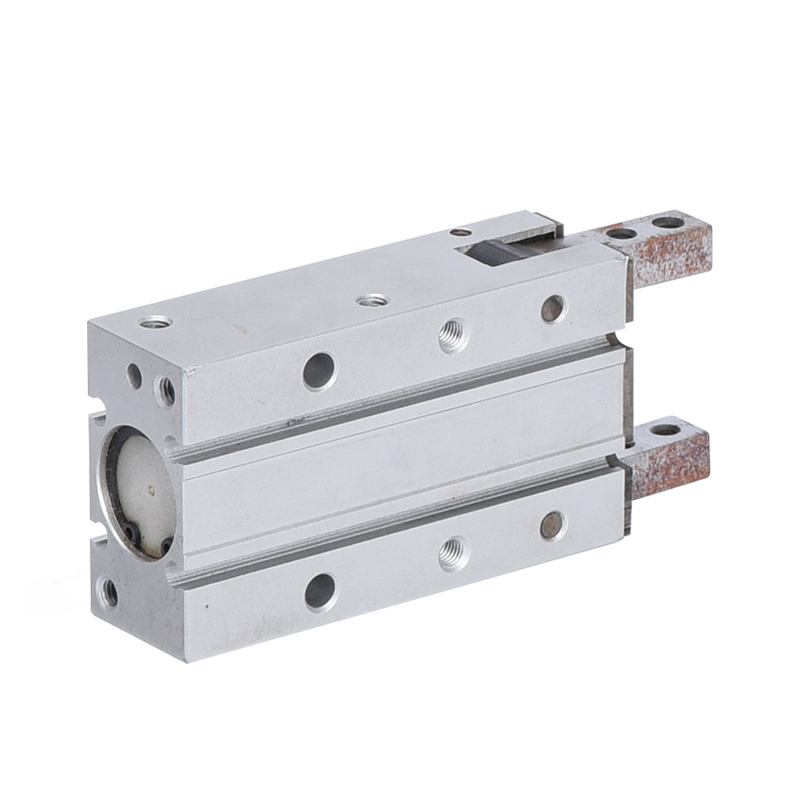

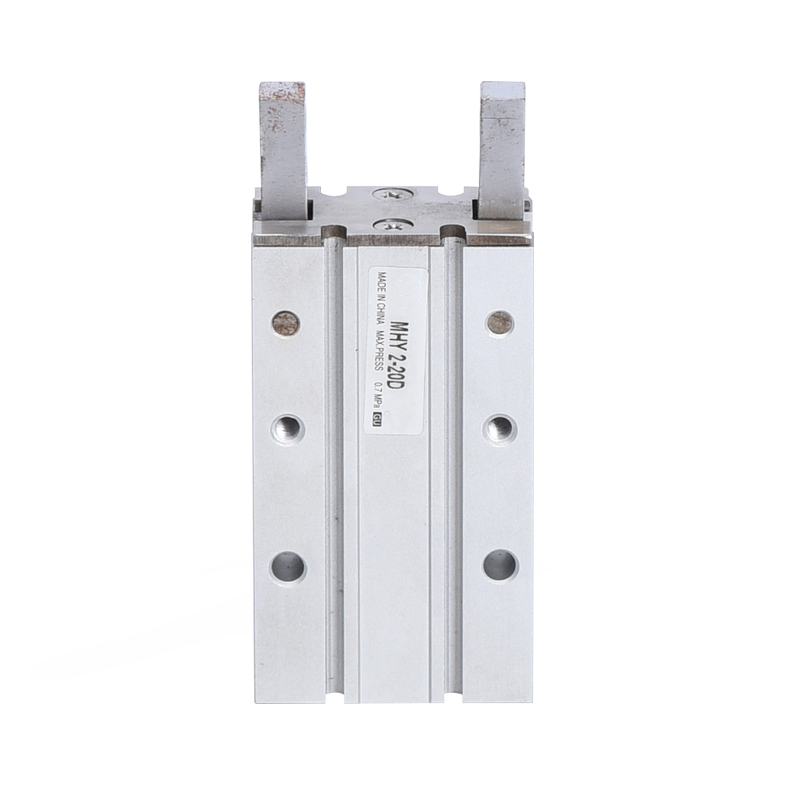

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Overview for MHY2 Gripper

MHY2 Gripper is widely used in automatic manipulator and strong clamping cylinder. Built-in magnetic ring, magnetic switch can be installed. 180° opening and closing, simplifying pick-and-place action. 180 degree angular gripper can be used in special environment. The opening and closing part of gripper is specially designed to prevent tiny objects from entering. Easy to install, with positioning holes.
This compact 180° gripper uses a cam style mechanism for a reliable gripping force. Its fingers can rotate back perpendicular to the gripper body for space saving where vertical clearance is limited.

Product Feature for MHY2 Gripper

* Built-in magnetic ring type, magnetic switch can be installed.
* 180 ° open and close, simplified pick and place action.
* China Pneumatic Grippers can be used for special circumstances, finger opening and closing part of the specially designed to prevent the entry of small foreign matter.
* 180° gripper is easy to install, with positioning holes.

Specification for MHY2 180° gripper

Model J-MHY2-10D J-MHY2-16D J-MHY2-20D J-MHY2-25D
Working Medium Air
Motion Pattern Double-acting
Max. Operating Pressure MPa 0.6
Min. Operating Pressure MPa 0.1
Ambient and fluid temperature -10~+60℃
Max. Frequence 60c.p.m
Repeatability ±0.2mm
Clamping Torque N·m 0.16 0.54 1.10 2.28
Lubrication Non-lube
Port Size M5×0.8

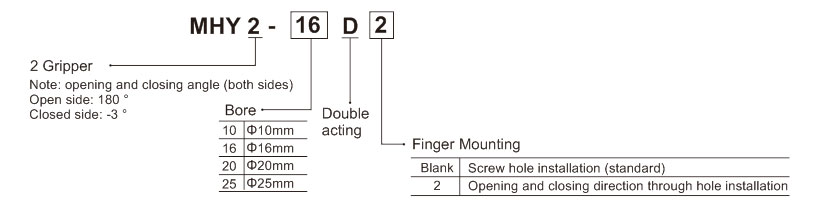

Ordering Code for MHY2 180 degree angular gripper

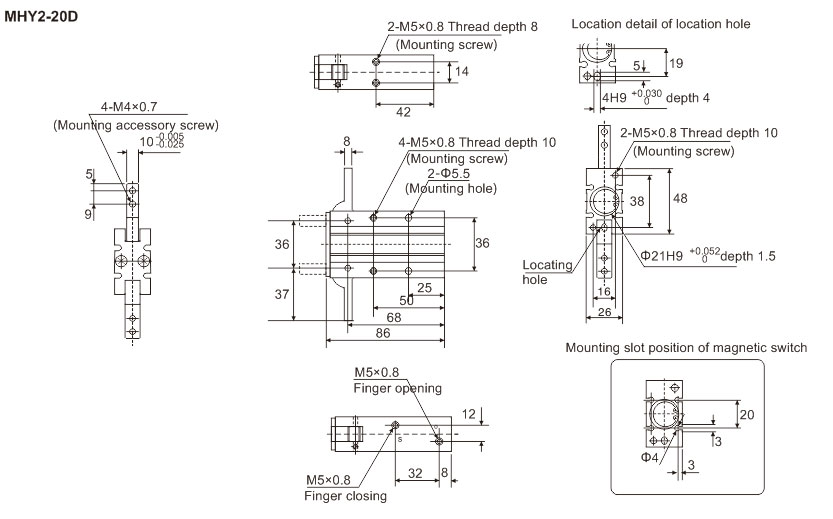

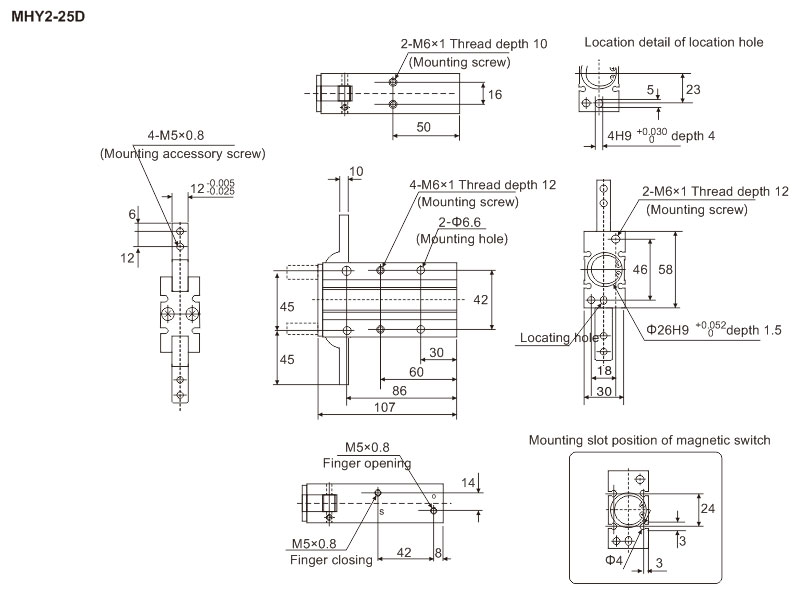

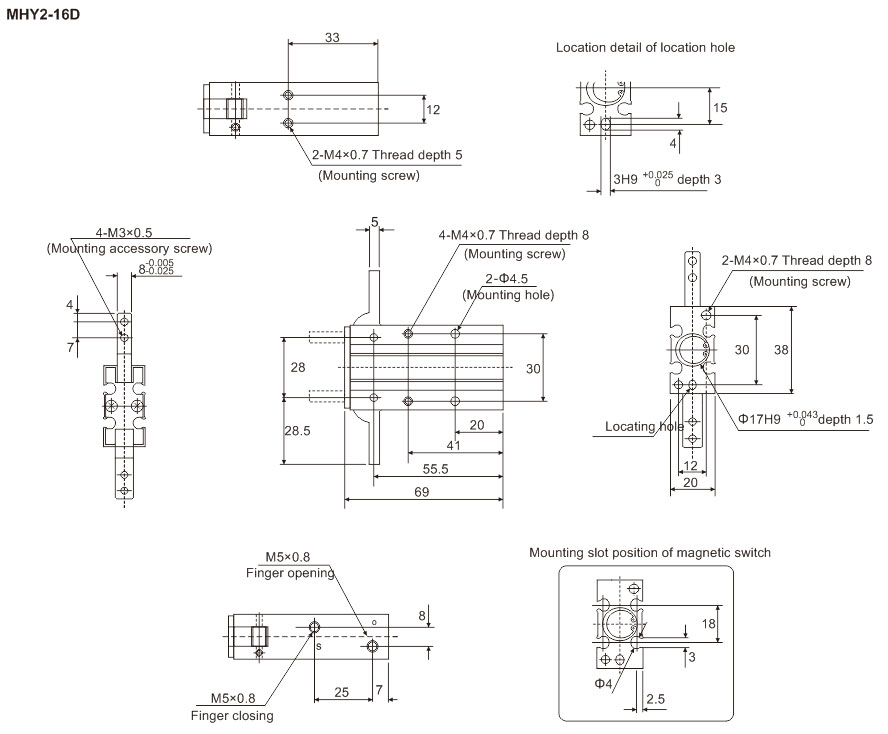

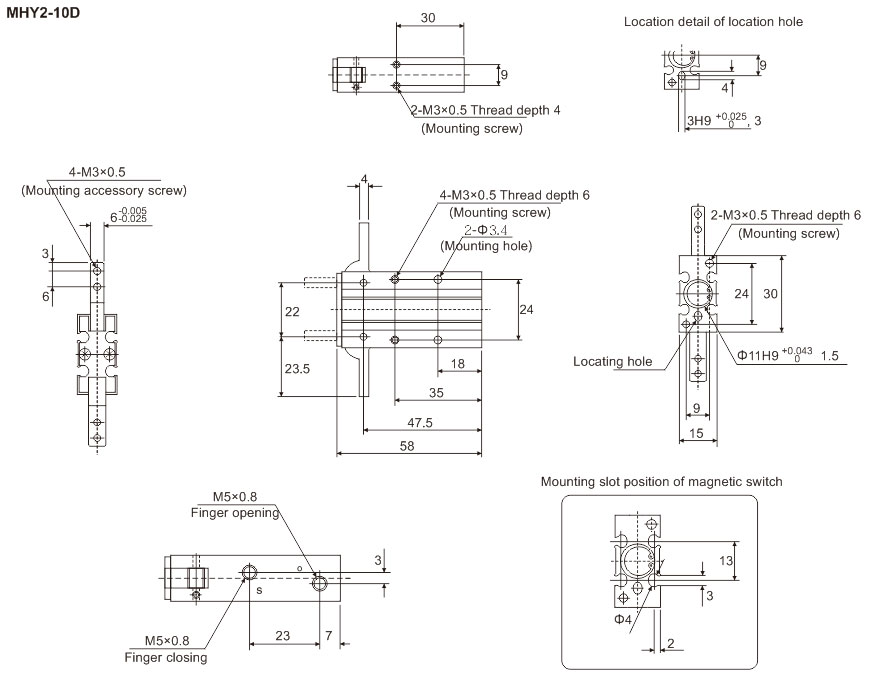

Dimension (mm) for MHY2 180 degree angular gripper
