Guided Pneumatic Cylinder

Guided Pneumatic Cylinder (Guided Air Cylinder) makes two guide rods parallel to the piston and the cylinder form a whole. The structure is compact, the steering precision is high, can bear the bigger lateral load and the torque.
Guided Air Cylinder use end lock, even if without air source, which can maintain the position of the cylinder, there are two types of guide rod bearings: slide bearing - strong wear resistance and strong resistance to heavy load; ball bearing - high precision, smooth operation.
Guided Cylinder (Guide Rod Cylinder) is rich in variety and suitable for various uses and environments.

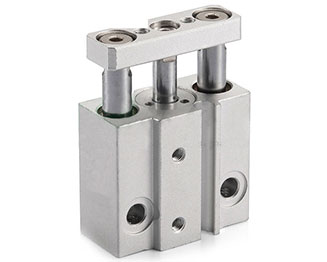

MGP Guided Pneumatic Cylinder

MGP Precision Guided Cylinder is a new thin guide rod cylinder, with small size, light weight, easy installation, strong lateral load resistance, high torque resistance and high rotation accuracy.

Bore Sizes: 12,16,20,25,32,40,50,63,80,100
Stroke Lengths: 10,20,30,40,50,75,100,125,150,175,200,250,300,350,400mm
Operating Pressure: 0.1/0.12-1.0 MPa
Speed: 50-400mm/s；50-500mm/s
Working Environment Temperature: -10 to 60°C
Learn more
MGJ Guided Pneumatic Cylinder

MGJ Guide Rod Cylinder is a miniature version of the MGP Guided Pneumatic Cylinder, designed for low load applications requiring high precision. Its integrated guide provides ±0.1° non-rotation accuracy.

Bore Sizes: 6,10
Stroke Lengths: 5,10,15,20mm
Operating Pressure: 0.15-0.7 MPa
Speed: 50-500mm/s
Working Environment Temperature: -10 to 60°C
Learn more
