MGP Guided Pneumatic Cylinder

MGP Precision Guided Cylinder is a new thin guide rod cylinder, with small size, light weight, easy installation, strong lateral load resistance, high torque resistance and high rotation accuracy.

Bore Sizes: 12,16,20,25,32,40,50,63,80,100
Stroke Lengths: 10,20,30,40,50,75,100,125,150,175,200,250,300,350,400mm
Operating Pressure: 0.1/0.12-1.0 MPa
Speed: 50-400mm/s；50-500mm/s
Working Environment Temperature: -10 to 60°C

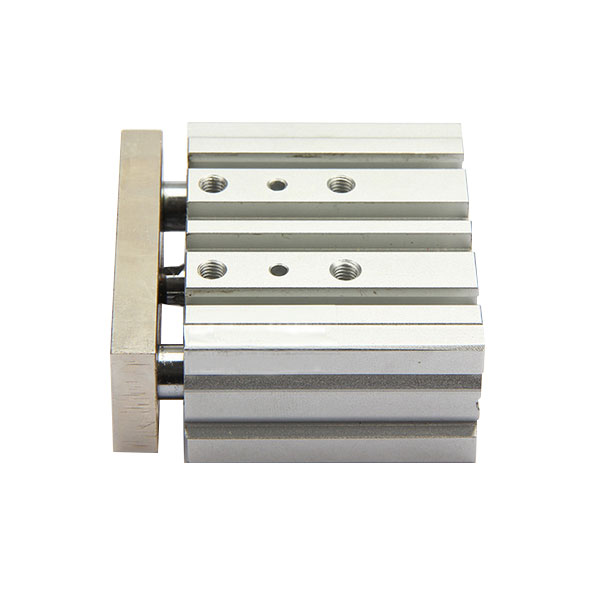

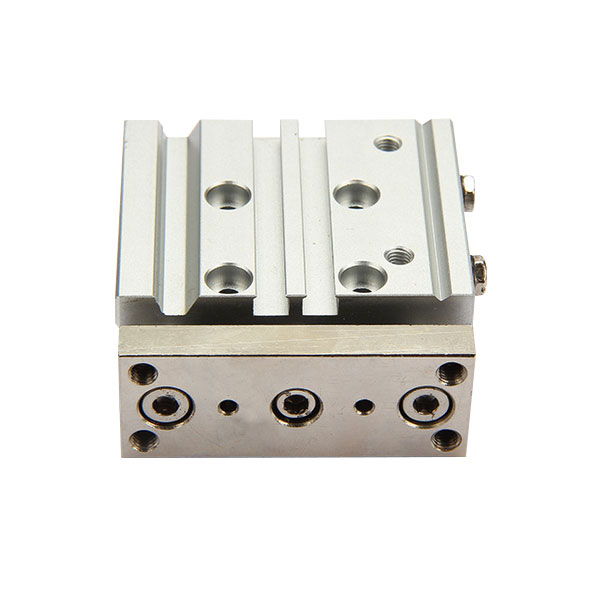

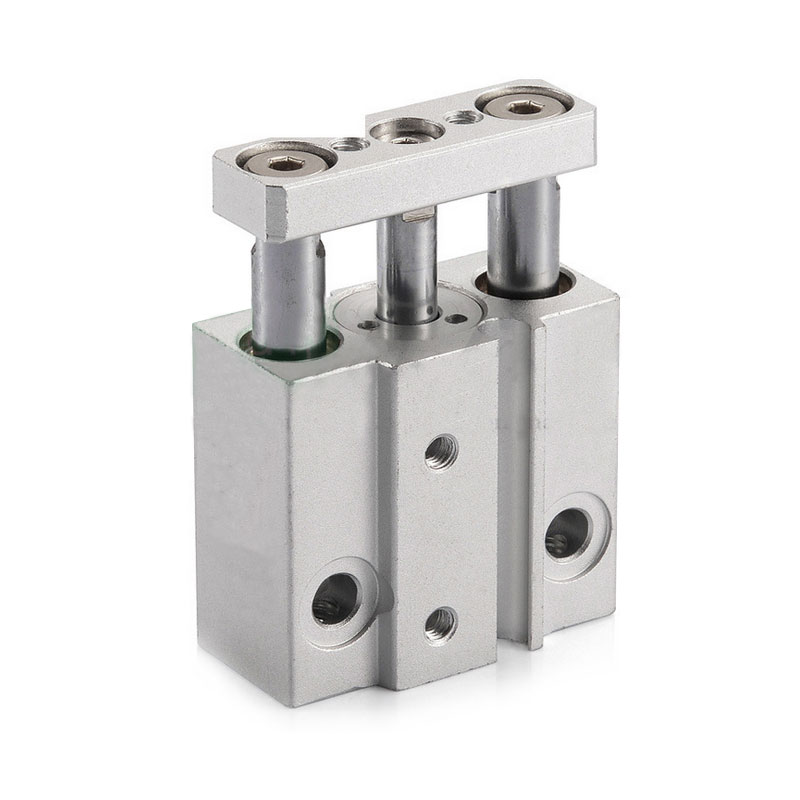

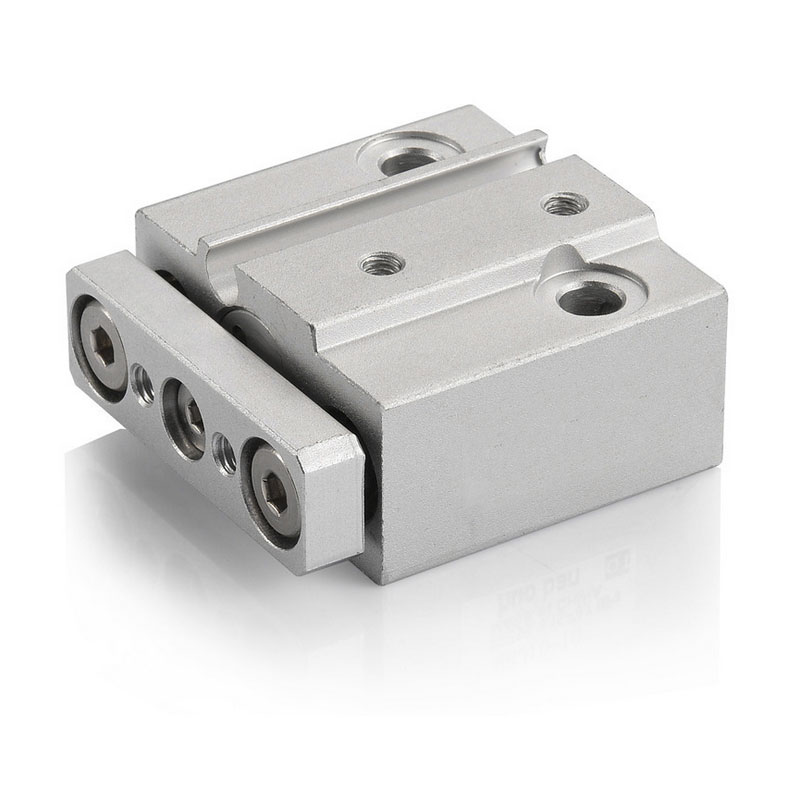

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Overview for MGP Precision Guided Cylinder (equivalent to SMC MGP Standard Guided Cylinder)

MGP Precision Guided Cylinder is a new thin guide rod cylinder, with small size, light weight, easy installation, strong lateral load resistance, high torque resistance and high rotation accuracy.
The series of cylinders are double acting cylinders, the three shafts are connected in a straight line, the strength is high, the action is stable, the installation form is various, the rubber buffer on both sides, no oil is required.
MGP Guided Pneumatic Cylinder guide rod bearings can be selected, there are sliding bearings (MGPM Precision Guided Cylinder) and ball bearings (MGPL Compact Guided Cylinder), two-sided nozzle position to choose from, sliding bearing (MGPM Precision Guided Cylinder) has good wear resistance and heavy load resistance, ball bearings ( MGPL Compact Guided Cylinder) has high precision, smooth operation, and can be selected according to the specific use.

Technical Parameters for MGP Precision Guided Cylinder

Bore Sizes: 12,16,20,25,32,40,50,63,80,100
Stroke Lengths: 10,20,30,40,50,75,100,125,150,175,200,250,300,350,400mm
Operating Pressure: 0.1/0.12-1.0 MPa
Speed: 50-400mm/s；50-500mm/s
Working Environment Temperature: -10 to 60°C

Product Feature for MGP Precision Guided Cylinder

Small size, light weight.
Strong torque resistance.
The bearing of the guide rod is optional.
Easy installation.
Strong lateral load resistant capacity.
High non-rotating accuracy.
Sliding bearings or ball bearings.
Two-sides pipe position for choose.

Specification for Precision Guided Cylinder

Bore (mm) 12 16 20 25 32 40 50 63 80 100
Working Medium Air
Motion Pattern Double-acting
Max. Operating Pressure 1.0MPa
Min. Operating Pressure 0.12MPa 0.1MPa
Ambient and fluid temperature -10~60℃(No Freezing)
Piston Speed 50~500mm/s 50~400mm/s
Cushion Rubber Bumper on Both Ends
Stroke Tolerance +1.5/-0 mm
Lubrication Non-lube
Bearing Slide Bearing/Ball Bearing
Non-rotating accuracy of piston rod Slide Bearing ±0.08° ±0.07° ±0.03° ±0.05° ±0.04°
Ball bearing ±0.10° ±0.09° ±0.08° ±0.03° ±0.05°
Port Size M5×0.8 1/8 1/4 3/8

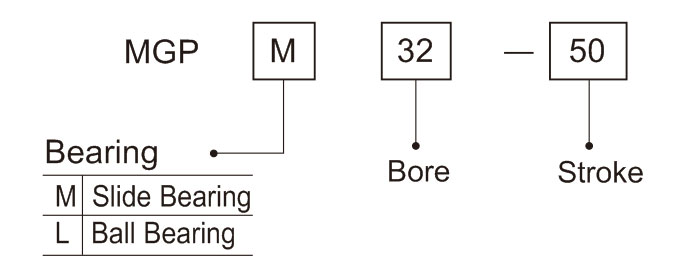

Ordering Code for Standard Guided Cylinder

Dimension (mm)

Common Dimension Sheet of MGPM and MGPL

Bore Standard Stroke (mm) B C DA FA FB G GA GB H HA J K L MM ML NN OA OB OL P PA PB PW Q R S T U VA VB WA WB X XA XB XC XL YY YL Z
<30st 30~100st 100~200st 200~300st >300st <30st 30~100st 100~200st 200~300st >300st
12 10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250 42 29 6 8 5 26 11 7.5 58 M4 13 13 18 M4×0.7 10 M4×0.7 4.3 8 4.5 M5×0.8 13 8 18 14 48 22 56 41 50 37 20 40 110 200 - 15 25 60 105 - 23 3 3.5 3 6 M5×0.8 10 5
16 46 33 8 8 5 30 11 8 64 M4 15 15 22 M5×0.8 12 M5×0.8 4.3 8 4.5 M5×0.8 15 10 19 16 54 25 62 46 56 38 24 44 110 200 - 17 27 60 105 - 24 3 3.5 3 6 M5×0.8 10 5
20 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400 53 37 10 10 6 36 10.5 8.5 83 M5 18 18 24 M5×0.8 13 M5×0.8 5.6 9.5 5.5 1/8 12.5 10.5 25 18 70 30 81 54 72 44 24 44 120 200 300 29 39 77 117 167 28 3 3.5 3 6 M6×1.0 12 17
25 53.5 37.5 12 10 6 42 11.5 9 93 M5 21 21 30 M6×1.0 15 M6×1.0 5.6 9.5 5.5 1/8 12.5 13.5 28.5 26 78 38 91 64 82 50 24 44 120 200 300 29 39 77 117 167 34 4 4.5 3 6 M6×1.0 12 17

Dimension of MGPM (Slide Bearing): A, DB, E

Bore (mm) A DB E
<50st 50~100st >100st <50st 50~100st >100st
12 42 60.5 85 8 0 18.5 43
16 46 64.5 95 10 0 18.5 49

Dimension of MGPL Standard Guided Cylinder (Slide Bearing): A, DB, E

Bore (mm) A DB E
<50st 50~200st >200st <50st 50~200st >200st
20 53 84.5 122 12 0 31.5 69
25 53.5 85 122 16 0 31.5 68.5

Dimension of MGPM Standard Guided Cylinder (Ball Bearing): A, DB, E

Bore (mm) A DB E
<30st 30~100st >100st <30st 30~100st >100st
12 43 55 85 6 1 13 43
16 49 65 95 8 3 19 49

Dimension of MGPL Standard Guided Cylinder (Ball Bearing): A, DB, E

Bore (mm) A DB E
<30st 30~100st 100~200st >200st <30st 30~100st 100~200st >200st
20 63 80 104 122 10 10 27 51 69
25 69.5 85.5 104.5 122 13 16 32 51 68.5

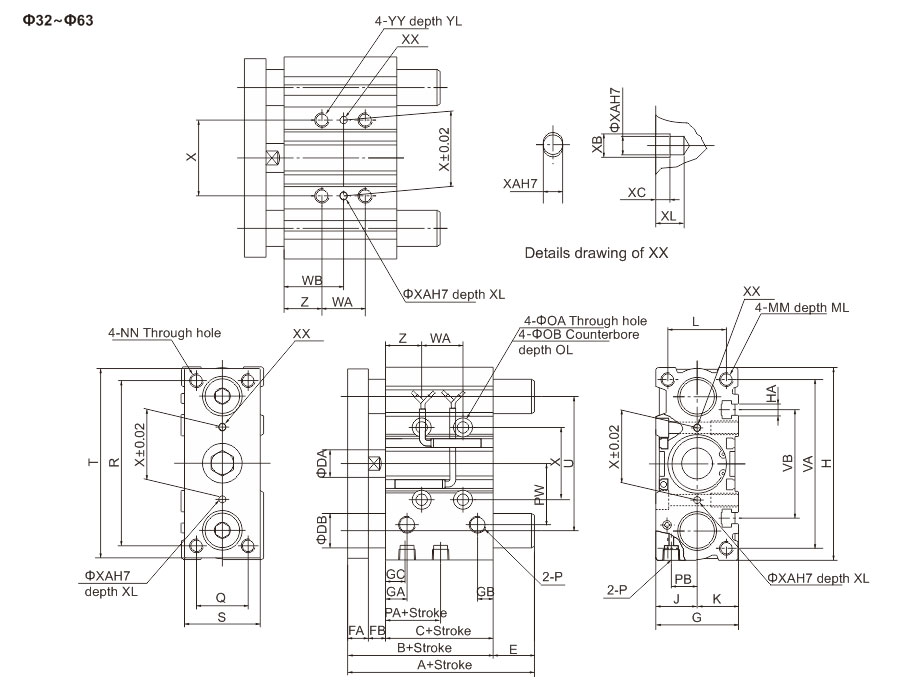

Common size table of MGPM Precision Guided Cylinder , MGPL Compact Guided Cylinder

Bore Standard Stroke(mm) B C DA FA FB G GA GB GC H HA J K L MM ML NN OA OB OL P PA PB PW Q R S T U VA VB WA WB X XA XB XC XL YY YL Z
<25st 25~100st 100~200st 200~300st >300st <25st 25~100st 100~200st 200~300st >300st
32 25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400 59.5 29 16 12 10 48 12.5 9 12.5 112 M6 24 24 34 M8×1.25 20 M8×1.25 6.6 11 7.5 1/8 7 15 34 30 96 44 110 78 98 63 24 48 124 200 300 33 45 83 121 171 42 4 4.5 3 6 M8×1.25 16 21
40 66 33 16 12 10 54 14 10 14 120 M6 27 27 40 M8×1.25 20 M8×1.25 6.6 11 7.5 1/8 13 18 38 30 104 44 118 86 106 72 24 48 124 200 300 34 46 84 122 172 50 4 4.5 3 6 M8×1.25 16 22
50 72 44 20 16 12 64 14 11 12 148 M8 32 32 46 M10×1.5 22 M10×1.5 8.6 14 9 1/4 9 21.5 47 40 130 60 146 110 130 92 24 48 124 200 300 36 48 86 124 174 66 5 6 4 8 M10×1.5 20 24
63 77 49 20 16 12 78 16.5 13.5 16.5 162 M10 39 39 58 M10×1.5 22 M10×1.5 8.6 14 9 1/4 14 28 55 50 130 70 158 124 142 110 28 52 128 200 300 38 50 88 124 174 80 5 6 4 8 M10×1.5 20 24

Dimension of MGPM Precision Guided Cylinder(Slide Bearing): A, DB, E

Bore (mm) A DB E
<50st 50~100st >200st <50st 50~200st >200st
32 97 102 140 20 37.5 42.5 80.5
40 97 102 140 20 31 36 74
50 106.5 118 161 25 34.5 46 89
63 106.5 118 161 25 29.5 41 84

Dimension of MGPL Compact Guided Cylinder (Ball Bearing): A, DB, E

Bore (mm) A DB E
<50st 50~100st 100~200st >200st <50st 50~100st 100~200st >200st
32 81 98 118 140 16 21.5 38.5 58.5 80.5
40 81 98 118 140 16 15 32 52 74
50 93 114 134 161 20 21 42 62 89
63 93 114 134 161 20 16 37 57 84
