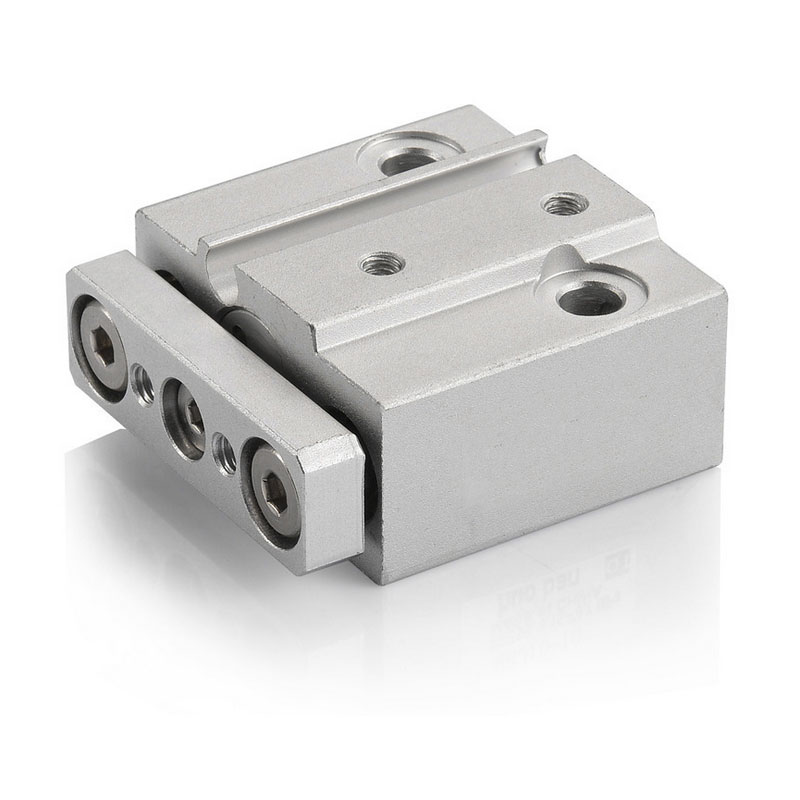

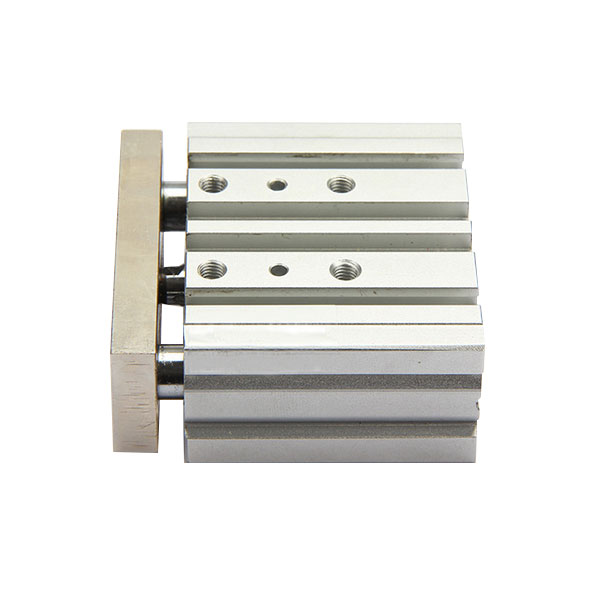

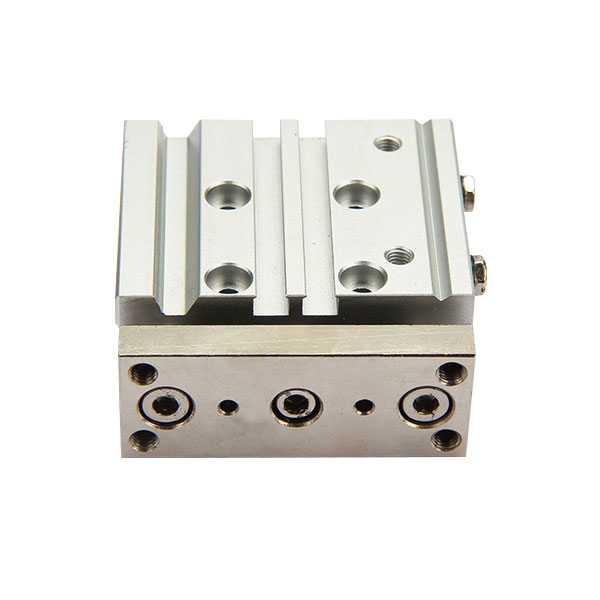

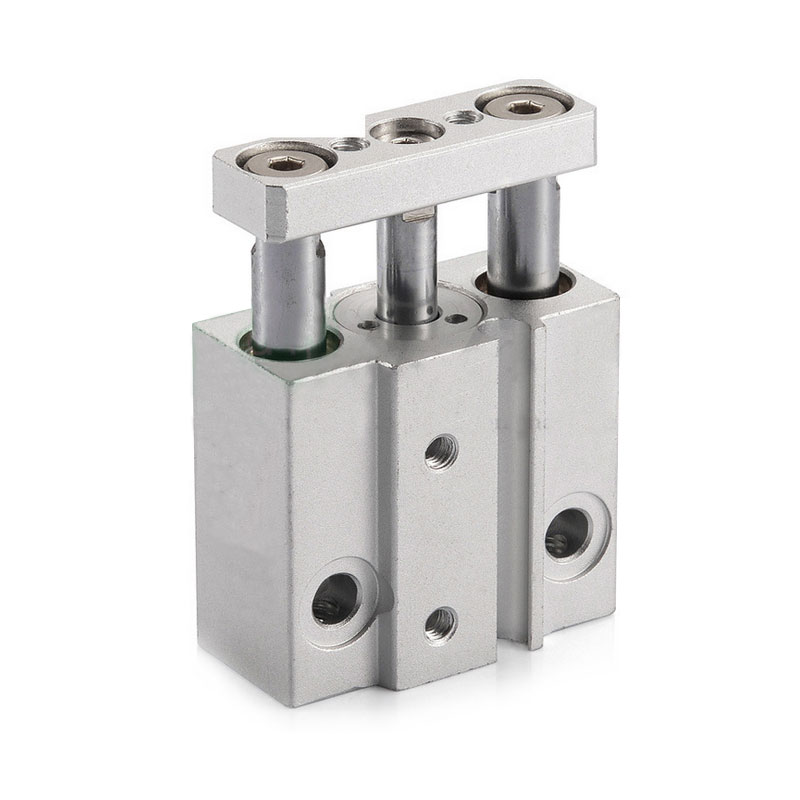

MGJ Guided Pneumatic Cylinder

MGJ Guide Rod Cylinder is a miniature version of the MGP Guided Pneumatic Cylinder, designed for low load applications requiring high precision. Its integrated guide provides ±0.1° non-rotation accuracy.

Bore Sizes: 6,10
Stroke Lengths: 5,10,15,20mm
Operating Pressure: 0.15-0.7 MPa
Speed: 50-500mm/s
Working Environment Temperature: -10 to 60°C

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Overview for MGJ Miniature Guide Rod Cylinder

MGJ Guide Rod Cylinder is a miniature version of the MGP Standard Guided Cylinder, designed for low load applications requiring high precision. Guided Pneumatic Cylinder integrated guide provides ±0.1° non-rotation accuracy. MGJ Guide Rod Cylinder is suitable for use in the electronics and instrumentation industries and is not suitable for plug applications.

Technical Parameters for MGJ Miniature Guide Rod Cylinder

Bore Sizes: 6,10
Stroke Lengths: 5,10,15,20mm
Operating Pressure: 0.15-0.7 MPa
Speed: 50-500mm/s
Working Environment Temperature: -10 to 60°C

Product Feature for MGJ Miniature Guide Rod Cylinder

1. 2 magnetic switches can also be installed on the 5mm stroke cylinder.
2. The receiver is on the same side as the magnetic switch.
3. Lateral load resistance is strong.
4. No turning, high accuracy.
5. Compact structure and small size.

Symbol for MGJ Miniature Guide Rod Cylinder

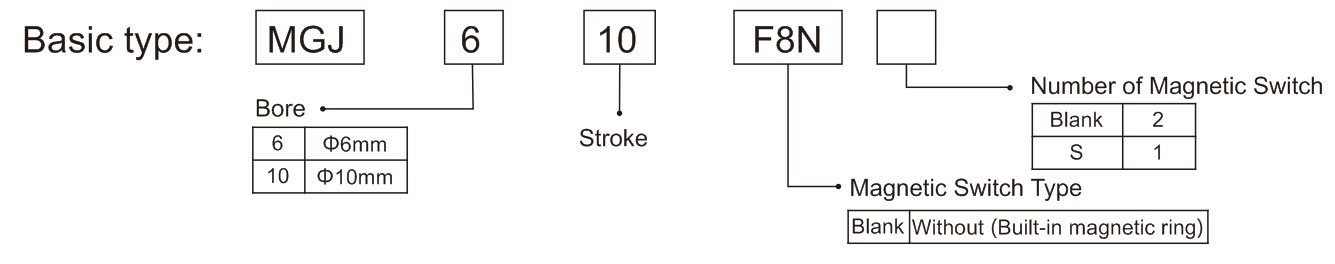

Ordering Code for MGJ Cylinder (equivalent to SMC MGJ Tie Rod Air Cylinder)

Specification

Bore (mm) Φ6 Φ10
Working Medium Air
Motion Pattern Double-acting
Max. Operating Pressure 0.7MPa
Min. Operating Pressure 0.15MPa
Ambient and Fluid Temp. -10~60(No Freezing)
Lubrication Non-lube
Piston velocity 50~500mm/s
Stroke length tolerance 0~+1.0mm
Buffer Rubber Bumper on Both Ends
Thread tolerance JIS2 class
Port Side M3×0.5
Guide rod diameter Φ5 Φ6
Allowable kinetic energy (J) 0.012 0.035

Stroke / magnetic switch type table

Bore (mm) Standard stroke (mm) Applicable stroke (mm) Note 1 Magnetic switch type Note 2
6 5, 10, 15 1~15(Plate) F8N
F8P
10 5, 10, 15, 20 1~20(Plate)

Note 1: Stroke interval is 1mm. But the minimum stroke for mounting the magnetic switch is 4mm.
Note 2: The magnetic switch type is followed by a wire length indicating a mark: Blank - 0.5m, L - 3M, Z - 5m. Example: F8NL.

Guide Rod Air Cylinder Theoretical output force

Bore (mm) Piston rod diameter (mm) Operating direction Piston area (mm²) Operating Pressure (MPa)
0.15 0.3 0.5 0.7
6 3 OUT 28.3 4.24 8.48 14.15 19.81
IN 21.2 3.18 6.36 10.60 14.81
10 5 OUT 78.5 11.77 23.55 39.25 54.95
IN 58.9 8.83 17.67 29.45 41.23

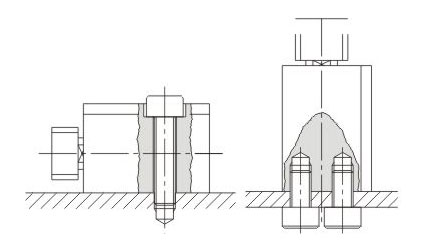

Guide Rod Air Cylinder Two-sides installation method

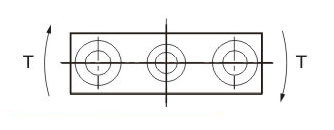

Allowable rotation torque of end plate

Bore (mm) Stroke (mm)
5 10 15 20
6 0.92 0.73 0.61 -
10 4.75 3.96 3.36 2.87

Guide Rod Air Cylinder Non rotation accuracy of end plate

Bore (mm) Non rotation accuracy θ
6 ±0.1°
10

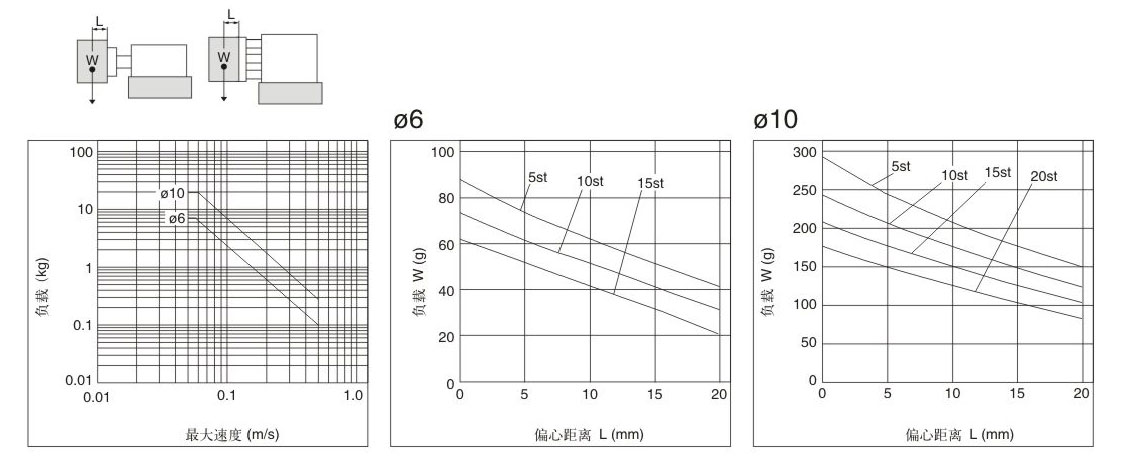

Lateral Load

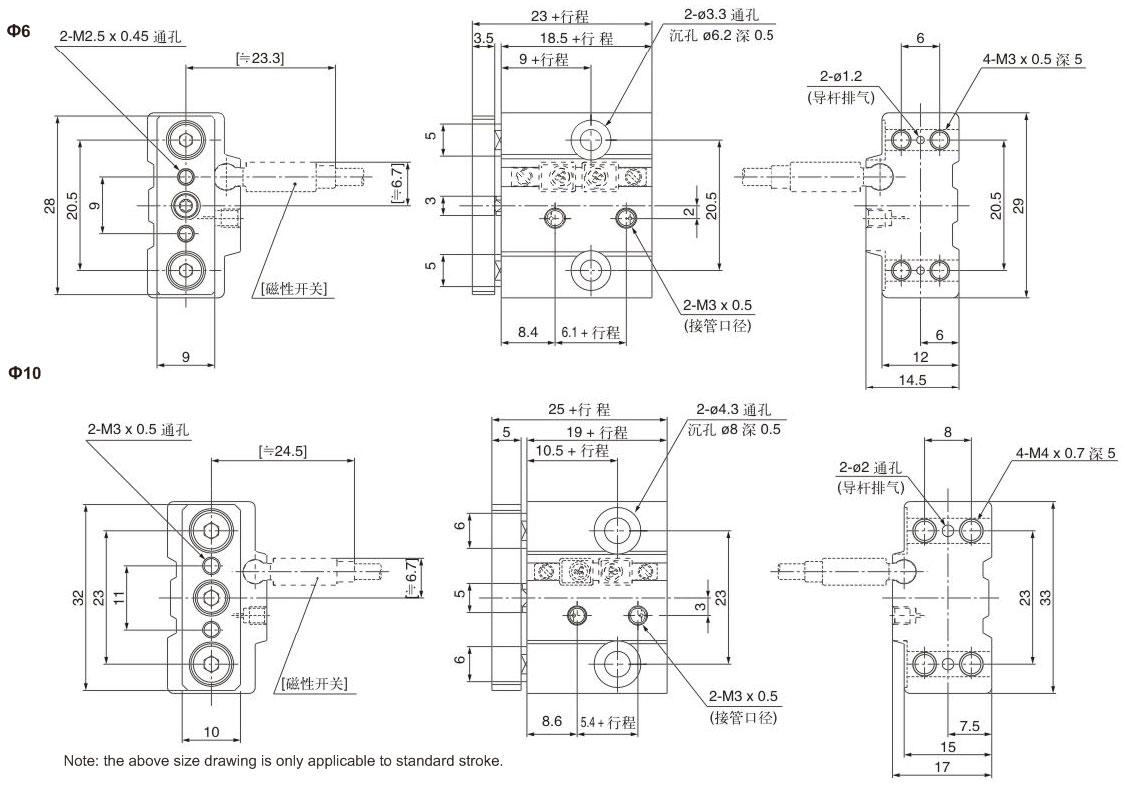

Guide Rod Air Cylinder Dimension Drawing (mm)
